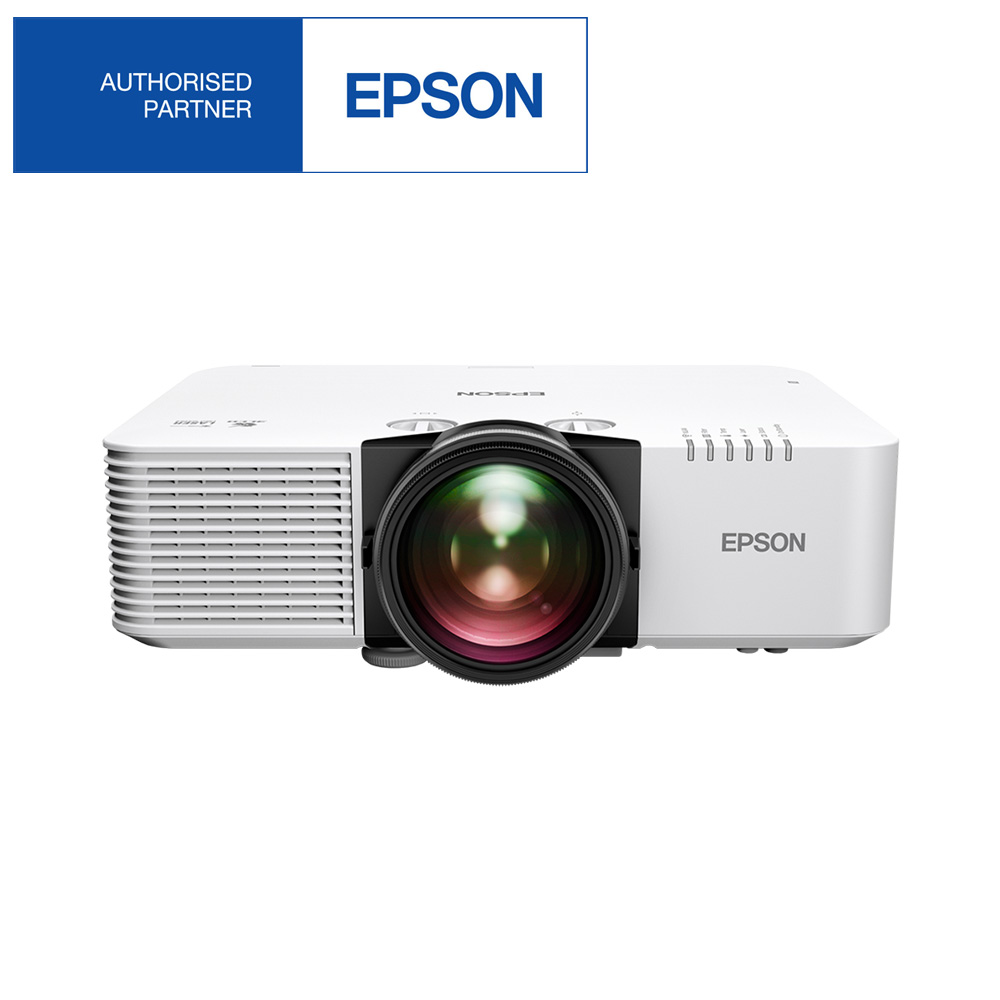

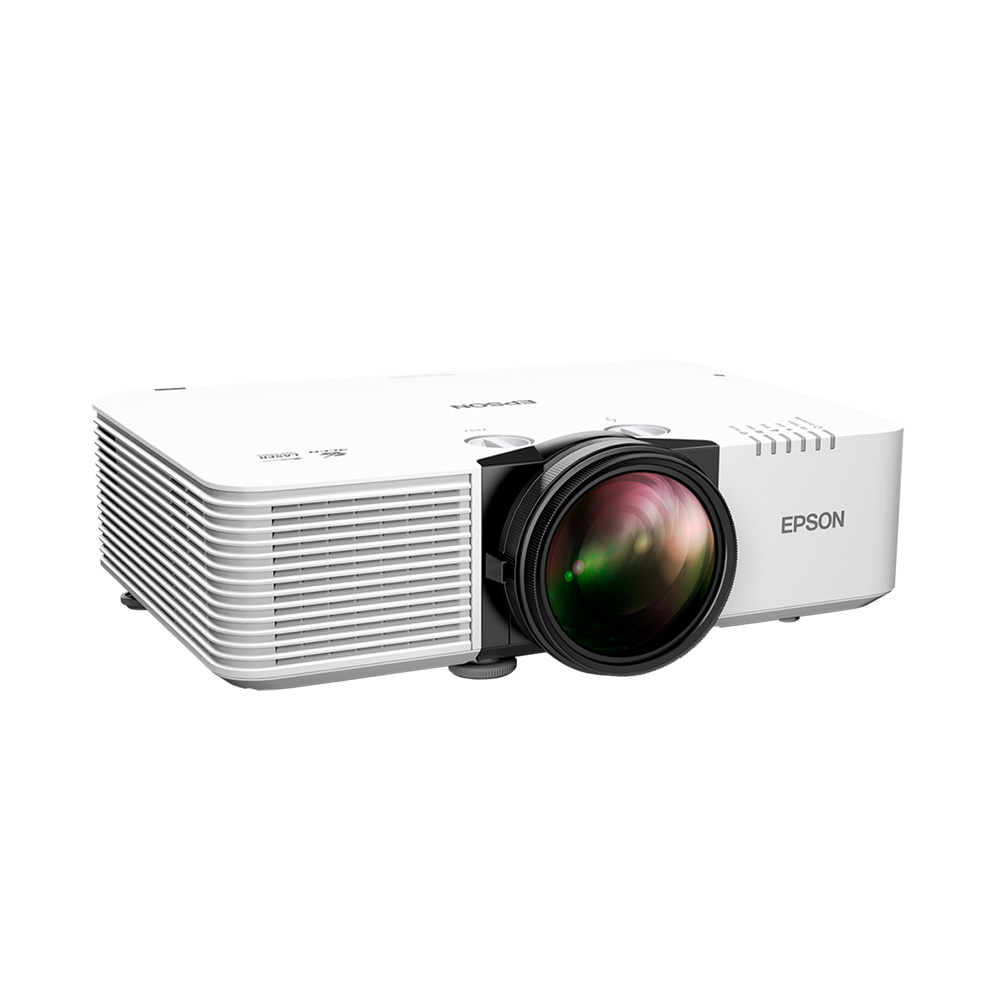

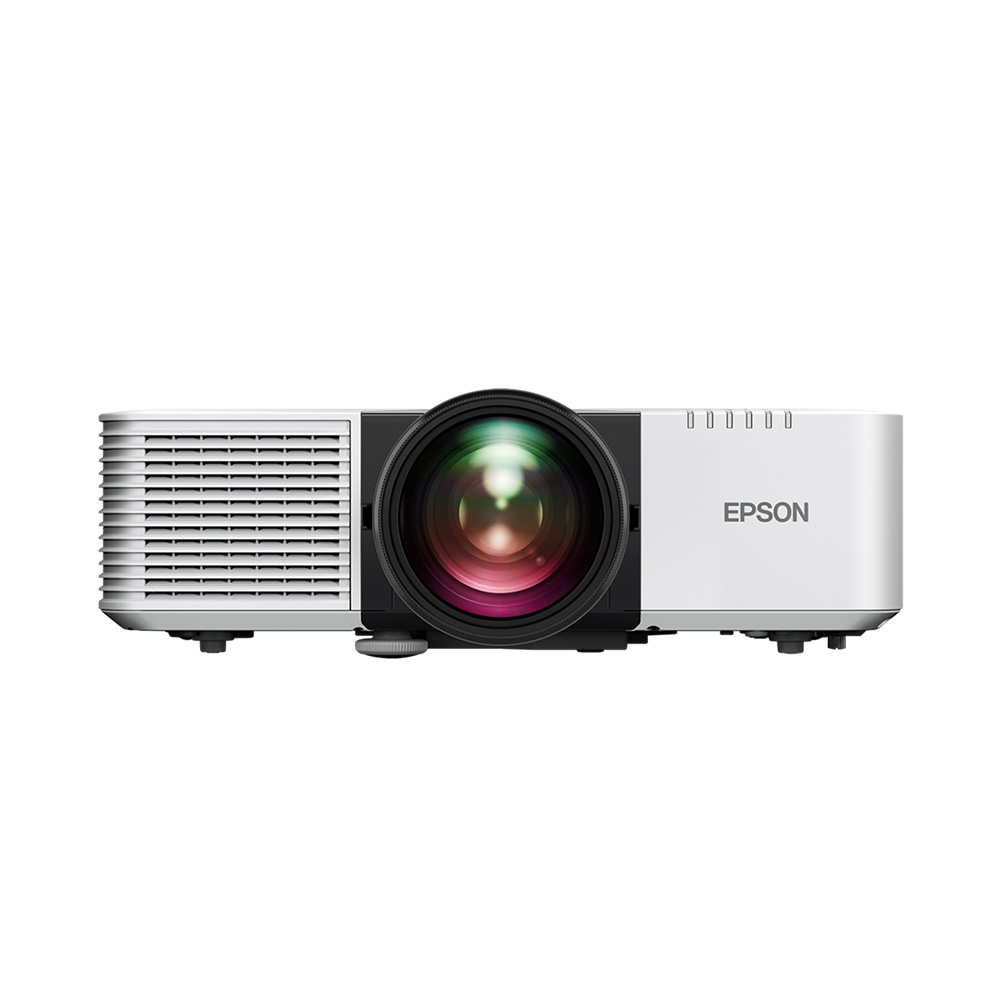

Epson EB-L690E WUXGA 3LCD Laser Projector with 4K Enhancement

Experience an incredibly bright and compact projector with pro-level features.

The Epson EB-L690E adds pro features to the compact and versatile Epson business projector family. Featuring 6,500-lumens of color and white brightness, it is ideal for classrooms and lecture halls, conference rooms, hybrid workspaces and more. The EB-L690E displays double HD resolution on-screen with 4K Enhancement Technology for sharp, detailed images—even up close. This powerful projector produces exceptionally vibrant, high-resolution images up to 500” in 16:10, plus is capable of projecting in a variety of other aspect ratios, including ultra wide 16:6 and 21:9.

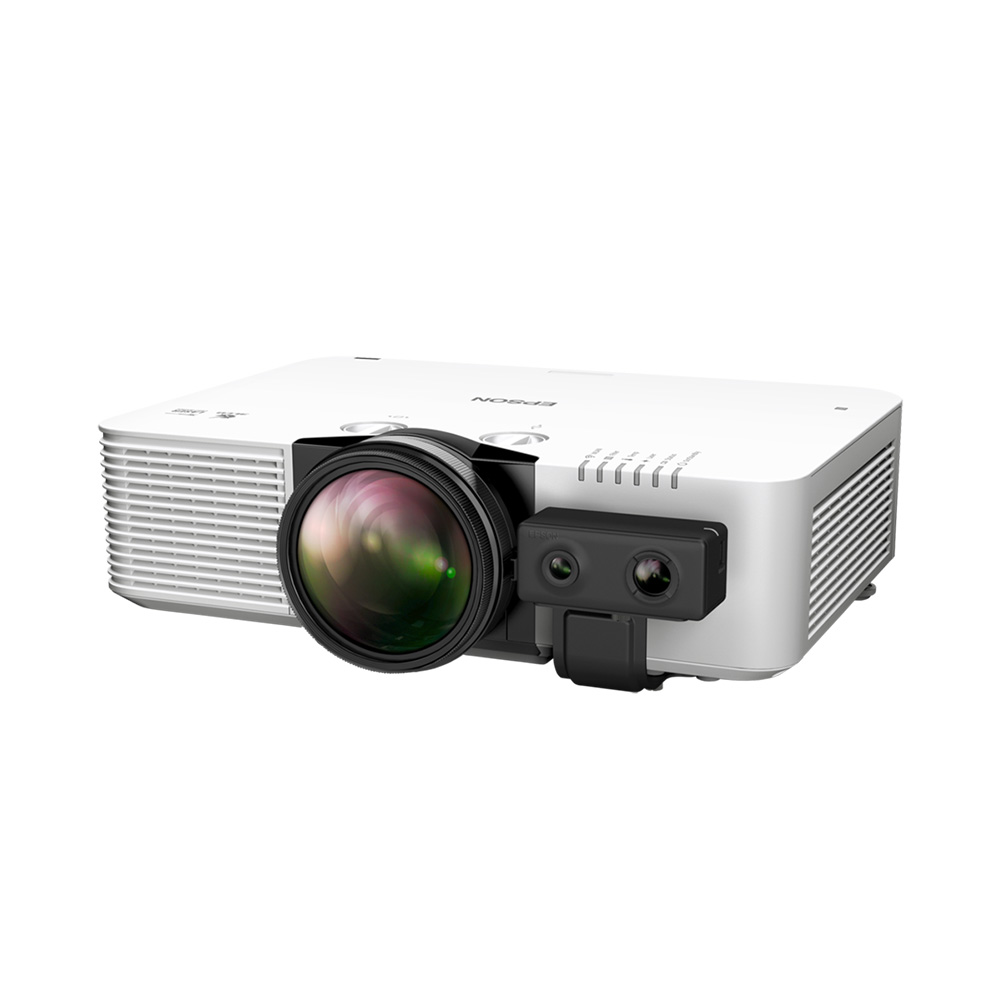

Designed with convenience in mind, the EB-L690E features an up to 30,000-hour virtually maintenance-free laser light source and air filter in Extended Mode. And for simple, seamless installation, this versatile solution offers a variety of powerful features, such as optical zoom, wide lens shift, geometric correction tools and more. With built-in wireless communication, you can monitor and control your fleet remotely from a web browser using the Epson Projector Management Connected app, as well as enable advanced screen casting tools like Epson iProjection and Miracast. In addition, simplify complex multi-projector applications with the optional attachable ELPEC01 camera.

6,500 lumens color/white brightness
WUXGA with 4K Enhancement for clear, detailed images
Display up to 500″ diagonal in 16:10, plus ultra wide 16:6 and 21:9
Lightweight, compact design allows for easy installation
Up to 30,000-hour laser light source and air filter
AirPlay 2 supported

Description

Features
Specification

Ultra bright, true-to-life images

3-chip 3LCD technology and 6,500 lumens of equal color and white brightness

WUXGA with 4K Enhancement Technology

Accepts 4K content and displays double HD resolution on-screen; enjoy a visibly sharper, more detailed picture even at close viewing distances

Large, versatile display options

Easily create a display up to 500″ diagonal in 16:10, plus ultra wide 16:6 and 21:9 aspect ratios for enhanced content display and visibility

Simplified installation

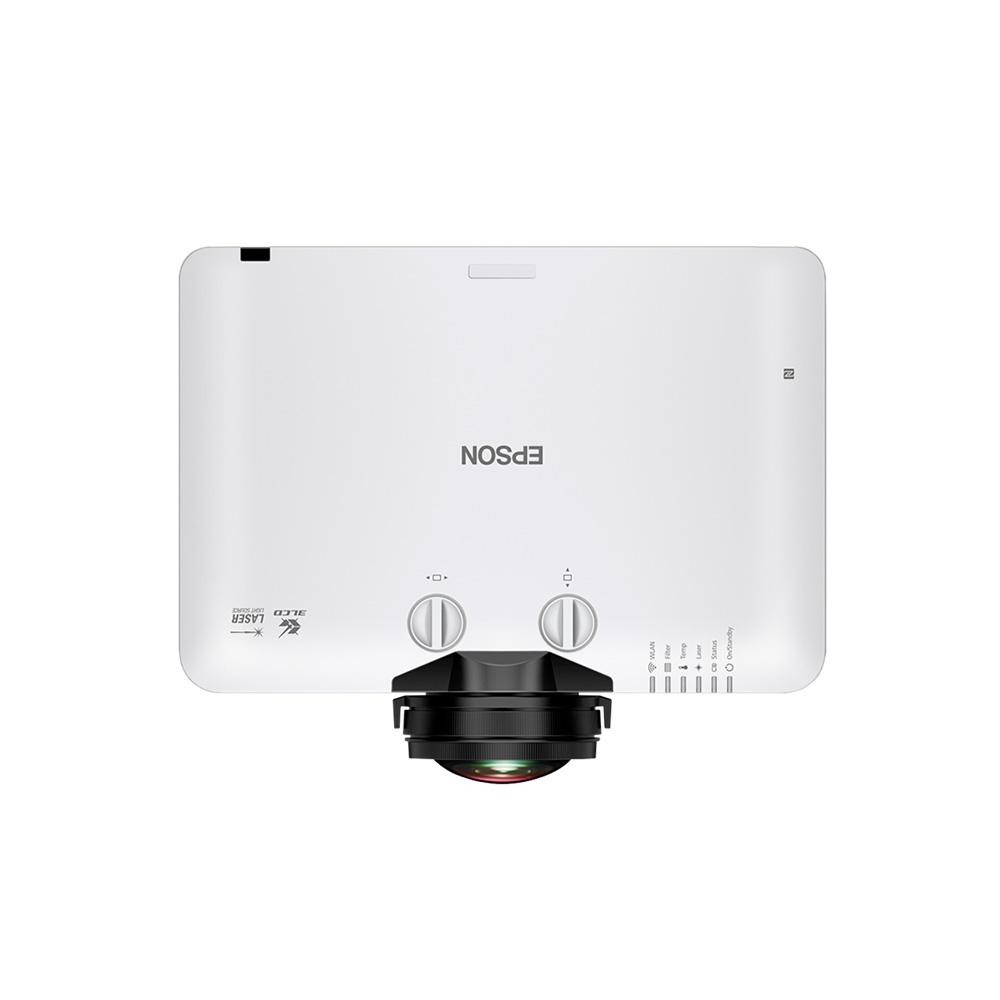

Compact and lightweight design featuring a wide vertical and horizontal lens shift, 1.6x optical zoom, 360-degree mounting, built-in geometric correction tools and a universal VESA mounting pattern

Low maintenance

Up to 30,000-hour laser light source and air filter in Extended Mode

Wireless networking and content sharing

Wi-Fi 6 allows for fast, reliable wireless connectivity for screen casting, along with direct connection to the cloud-based service, Epson Projector Management Connected, and WPA 3-enterprise security

Feature	Specification
Projection Technology	RGB liquid crystal shutter projection system (3LCD)
Brightness (Center)	7,100 lm / 6,500 lm / 4,550 lm / 6,500 lm

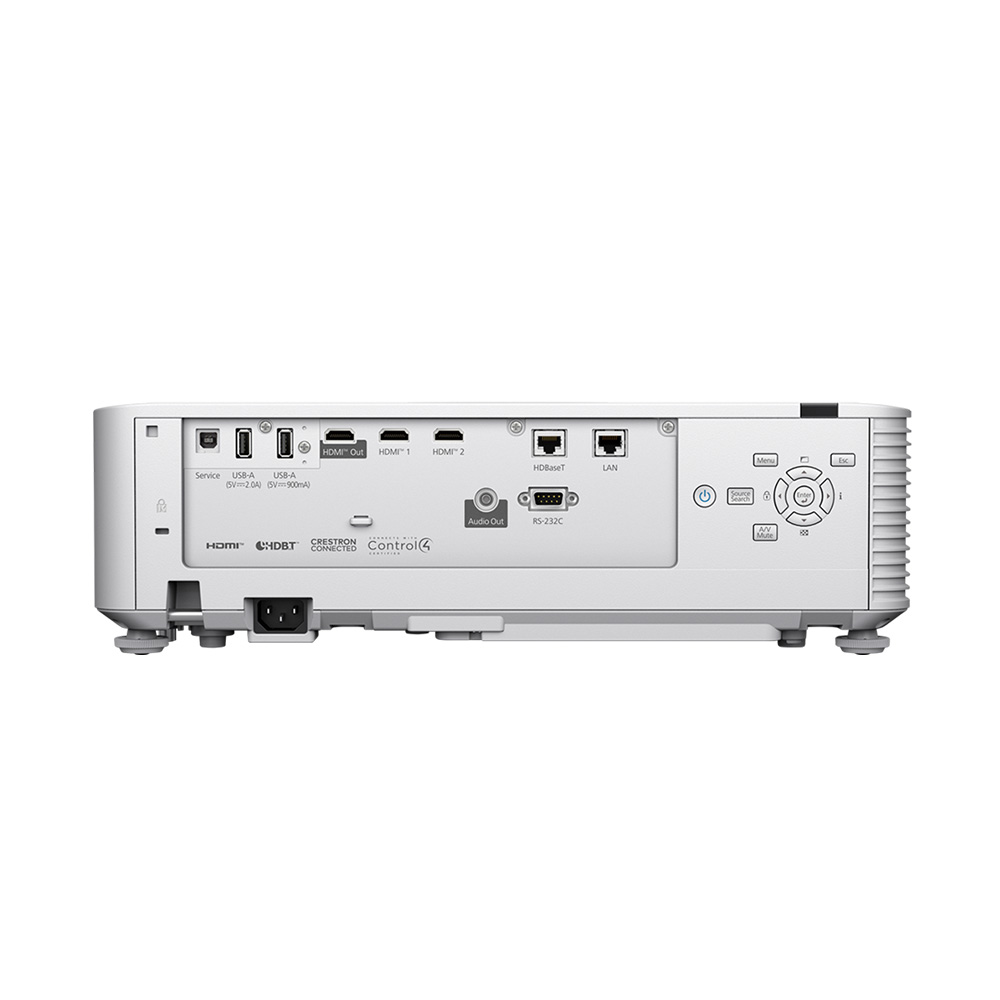

USB Interface Type A	2x (5V/2A and 5V/0.9A)
USB Interface Type B	1x (Firmware, Copy OSD Settings)
Wired LAN	RJ45 x 1 (100Mbps)
Wireless LAN	Built-in
HDMI Input	2 (HDCP 2.3)
HDBaseT Input	1 (HDCP 2.3)
Audio Output	Stereo Mini: 1
RS-232C Control	1 (D-Sub 9pin)
HDMI Output	1 (HDCP 2.3, HDMI1 only)
Contrast Ratio	Over 5,000,000:1
Standard Projection Distance (80″)	2.39m – 3.90m
Screen Size (Zoom: Wide)	50″ – 500″ (1.49m – 14.94m)
Screen Size (Zoom: Tele)	50″ – 500″ (2.44m – 24.35m)
Keystone Correction	±30° / ±30°
Projection Orientation	360º Free
Operating Temp (Single Use, Low/High Altitude)	0-45°C / 0-40°C
Operating Temp (Multi Use, Low/High Altitude)	0-40°C / 0-35°C
Operating Altitude	0 – 3,048m (High Altitude Mode)
Start-Up Period	12 sec (logo), 30 sec (warm-up)
Cool Down Period	Instant Off
Internal Speaker Output	10W Mono
Direct Power On/Off	Yes
Dimensions (WxHxD)	440 x 122 x 304mm
Weight	Approx. 8.2kg
Air Filter Type	Electrostatic Filter
Air Filter Maintenance Cycle	20,000 hrs / 30,000 hrs
Fan Noise (Normal/Eco)	32dB / 25dB
Projection Method	Front / Rear / Ceiling
Projection System	3LCD Reflective, Poly-silicon TFT
Pixel Number	1920 × 1080 × 3
Color Brightness	1500 lumens
Projected Output	HD, 2D, 3D, 1080p
White Brightness	1500 lumens
Aspect Ratio	16:9 Native
Driving Method	0.74-inch Reflective HTPS
Native Resolution	1920 × 1080
Laser Type	Laser Diode 41.9 mW
Light Source Life	Up to 20,000 hrs (ECO)
Power Consumption (Normal/Extended)	399W / 295W
Standby Power (Network On/Off)	2.4W / 0.4W
Power Supply Voltage	100 – 240 V AC ±10%, 50/60 Hz
Colour Modes	Multiple (Dynamic, Cinema, etc.)
Miracast Certification	Wi-Fi CERTIFIED Miracast R2
Miracast Codec	H.264 (AVC)
Wireless Modes	Infrastructure, Simple AP
Wireless Speed	IEEE 802.11a/b/g/n/ac/ax
Wireless Security	WPA2/WPA3-PSK/EAP
Quick Start-Up	<8 sec (Display)
AirPlay 2 Codec	H.264, H.265, AV1, VP9, MPEG-2/4
Aspect Modes	Auto, 4:3, 16:9, Full, H-zoom, V-zoom, Native
Frame Interpolation	N/A
