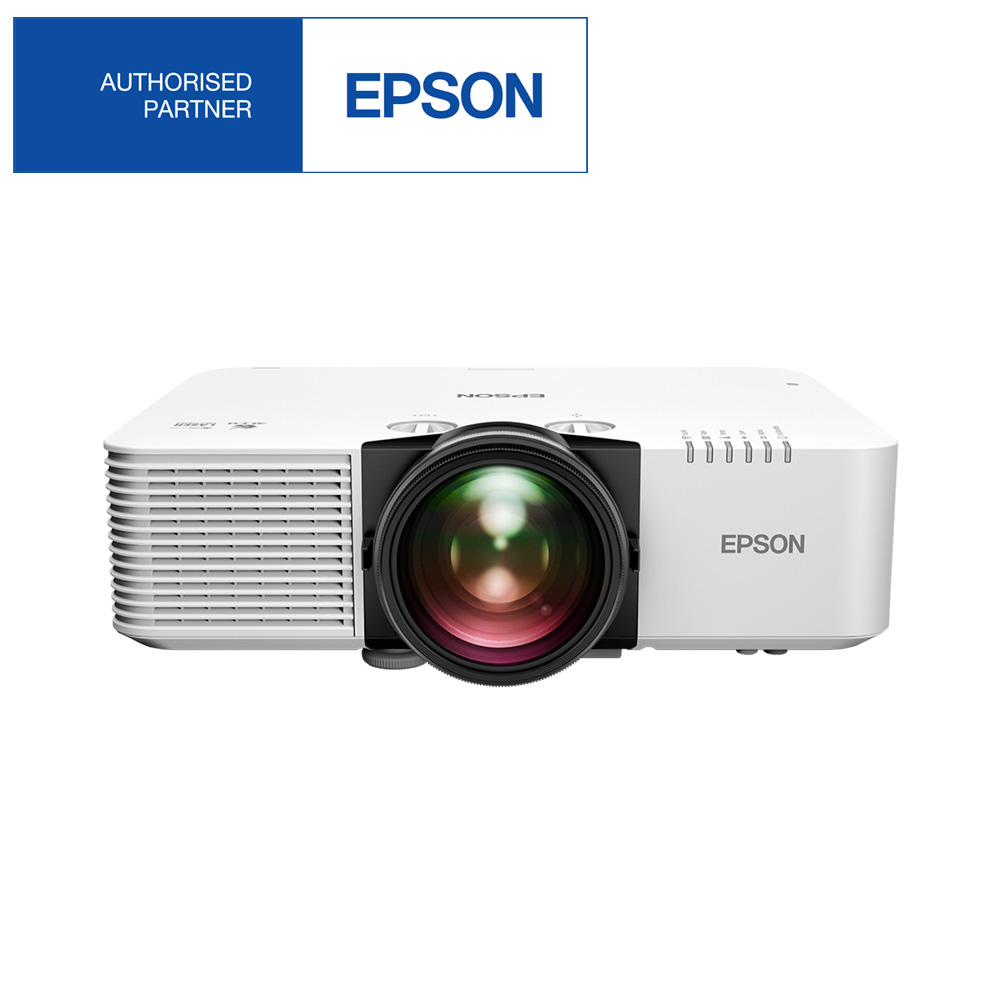

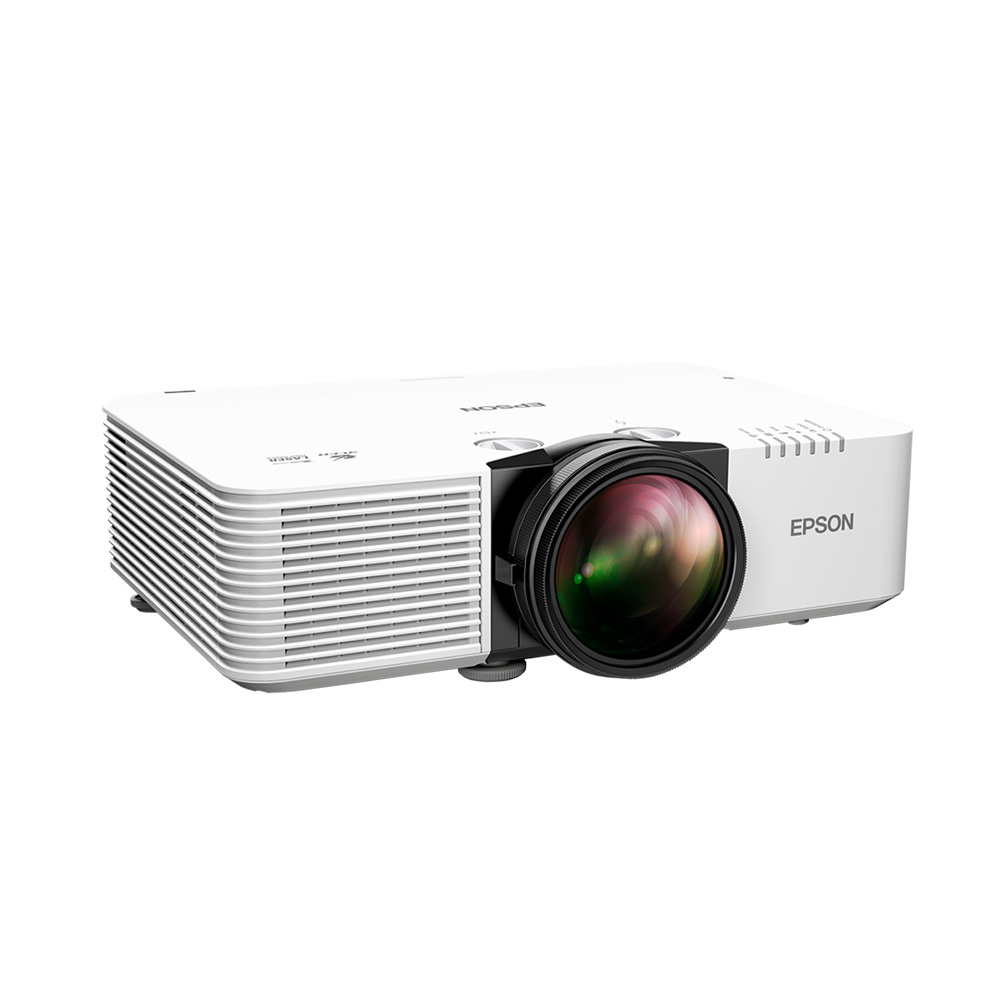

Epson EB-L690U WUXGA 3LCD Laser Projector

Experience an incredibly bright and compact projector with pro-level features.
The Epson EB-L690U adds incredible brightness and pro features to the compact and versatile Epson business projector family. Featuring an impressive 6,500 lumens of color and white brightness1, it is ideal for classrooms and lecture halls, conference rooms, hybrid workspaces and more. This powerful projector produces exceptionally vibrant, high-resolution images up to 500” in 16:10, plus is capable of projecting in a variety of other aspect ratios, including ultra wide 16:6 and 21:9.

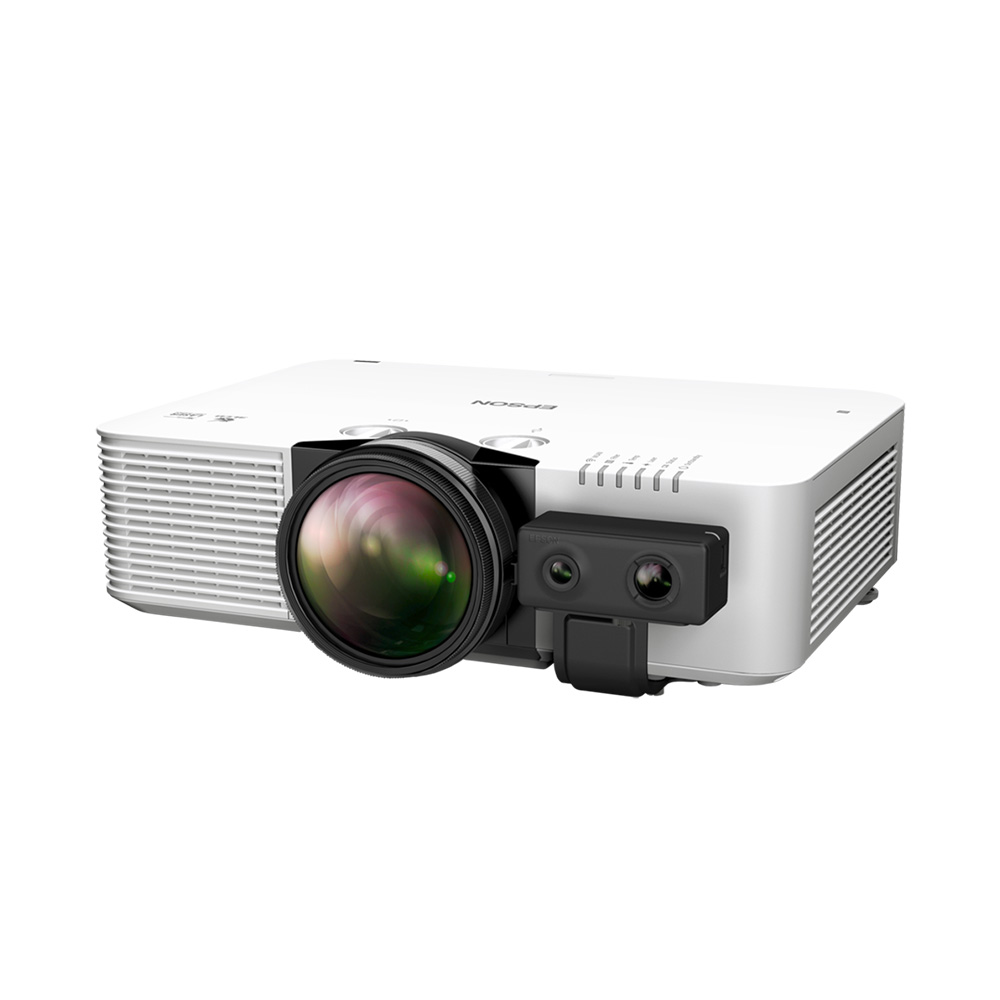

Designed with convenience in mind, the EB-L690U features an up to 30,000-hour virtually maintenance-free laser light source2 and air filter in Extended Mode. And for simple, seamless installation, this versatile solution offers a variety of powerful features, such as optical zoom, wide lens shift, geometric correction tools and more. With built-in wireless communication, you can monitor and control your fleet remotely from a web browser using the Epson Projector Management Connected app, as well as enable advanced screen casting tools like Epson iProjection and Miracast. In addition, simplify complex multi-projector applications with the optional attachable ELPEC01 camera.

6,500 lumens color/white brightness 1
WUXGA resolution for clear, detailed images
Display up to 500″ diagonal in 16:10, plus ultra wide 16:6 and 21:9
Lightweight, compact design allows for easy installation
Up to 30,000-hour laser light source2 and air filter
AirPlay 2 supported

Description

Ultra bright, true-to-life images

3-chip 3LCD technology and 6,500 lumens of equal color and white brightness

WUXGA resolution

Provides 1920 x 1200 resolution for vibrant, high-definition images

Large, versatile display options

Easily create a display up to 500″ diagonal in 16:10, plus ultra wide 16:6 and 21:9 aspect ratios for enhanced content display and visibility

Simplified installation

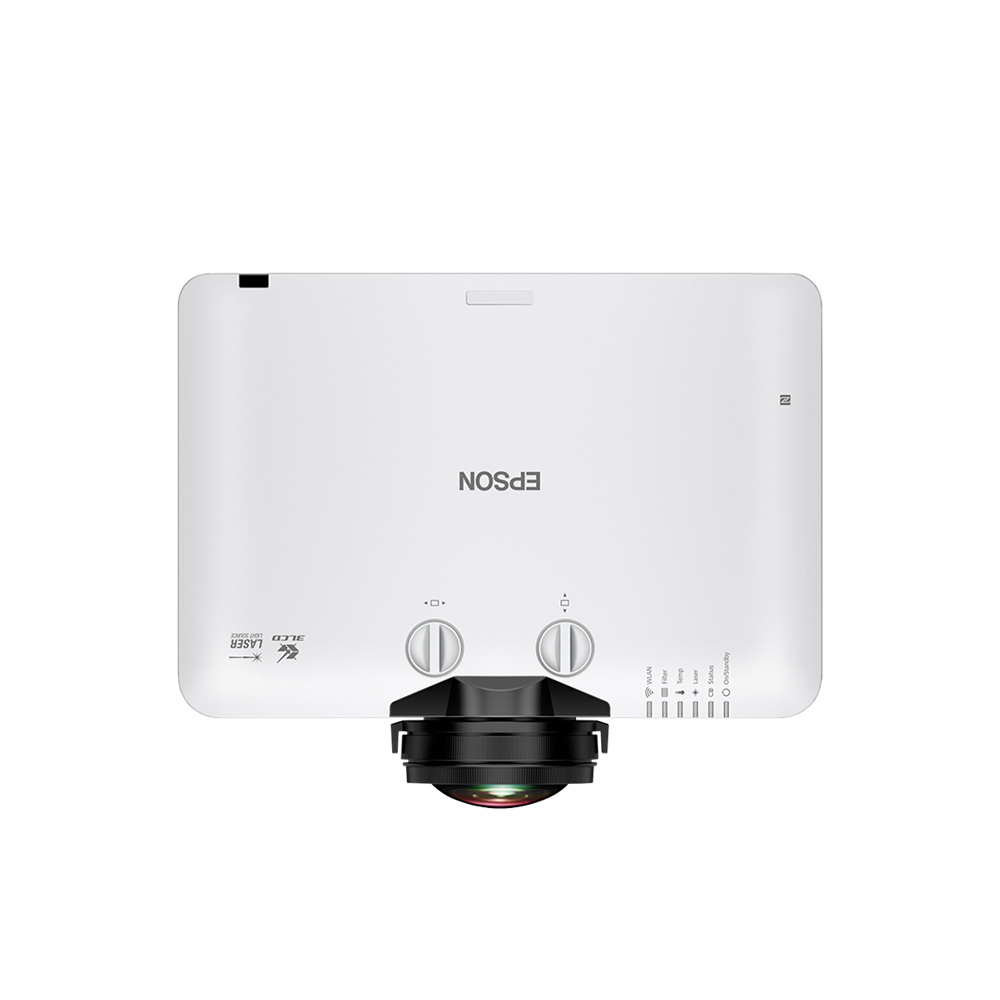

Compact and lightweight design featuring a wide vertical and horizontal lens shift, 1.6x optical zoom, 360-degree mounting, built-in geometric correction tools and a universal VESA mounting pattern

Low maintenance

Up to 30,000-hour laser light source and air filter in Extended Mode

Wireless networking and content sharing

Wi-Fi 6 allows for fast, reliable wireless connectivity for screen casting, along with direct connection to the cloud-based service, Epson Projector Management Connected, and WPA 3-enterprise security

FeatureSpecification
Projection TechnologyRGB liquid crystal shutter projection system (3LCD)
Brightness7,100 lm / 6,500 lm / 4,550 lm / 6,500 lm
USB Interface Type A2x (5V/2A and 5V/0.9A)
USB Interface Type B1x (Firmware, Copy OSD Settings)
Wired LANRJ45 x 1 (100Mbps)
Wireless LANBuilt-in
HDMI Input2 (HDCP 2.3)
HDBaseT Input1 (HDCP 2.3)
Audio OutputStereo Mini: 1
RS-232C Control1 (D-Sub 9pin)
HDMI Output1 (HDCP 2.3, HDMI1 only)
Contrast RatioOver 5,000,000:1
Standard Projection Distance (80″)2.33m – 3.78m
Screen Size (Zoom: Wide)50″ – 500″ (1.44 – 14.76m)
Screen Size (Zoom: Tele)50″ – 500″ (2.35 – 23.84m)
Keystone Correction±30° / ±30°
Projection Orientation360º Free
Operating Temp (Single Use, Low/High Altitude)0-45°C / 0-40°C
Operating Temp (Multi Use, Low/High Altitude)0-40°C / 0-35°C
Operating Altitude0 – 3,048m (High Altitude Mode)
Start-Up Period12 sec (logo), 30 sec (warm-up)
Quick Start-Up<8 sec (Display)
Cool Down PeriodInstant Off
Internal Speaker Output10W Mono
Direct Power On/OffYes
WeightApprox. 8.2kg
Air Filter TypeElectrostatic Filter
Air Filter Maintenance Cycle20,000 hrs / 30,000 hrs
Fan Noise (Normal/Eco)32dB / 25dB
Projection MethodFront / Rear / Ceiling
Projection System3LCD Reflective, Poly-silicon TFT
Pixel Number1920 × 1080 × 3
Color Brightness1500 lumens
Projected OutputHD, 2D, 3D, 1080p
White Brightness1500 lumens
Aspect Ratio16:9 Native
Driving Method0.74-inch Reflective HTPS
Native Resolution1920 × 1080
Laser TypeLaser Diode 41.9 mW
Light Source LifeUp to 20,000 hrs (ECO)
Power Supply Voltage100 – 240 V AC ±10%, 50/60 Hz
Power Consumption (Normal/Extended)399W / 295W
Standby Power (Normal/Eco)2.4W / 0.4W
Colour ModesMultiple (Dynamic, Cinema, etc.)
Dimensions (WxDxH)440 x 304 x 122mm
Miracast CertificationWi-Fi CERTIFIED Miracast R2
Miracast CodecH.264 (AVC)
Wireless ModesInfrastructure, Simple AP
Wireless SpeedIEEE 802.11a/b/g/n/ac/ax
Wireless SecurityWPA2/WPA3-PSK/EAP, WPA2-PSK (AES)
AirPlay 2 CodecH.264, H.265, AV1, VP9, MPEG-2/4
