EWS530C Edgeless In-Wall LCR Speaker

The Earthquake EDGELESS Series of In-Wall Speakers is one of Earthquake Sound’s most valued speaker lines. Designed with aesthetics (WAF – Wife Approval Factor) and sound quality in mind, these speakers seamlessly blend into their surroundings as they provide a lifetime of durability and high-end performance.

Designed like no other, the EDGELESS series is a prime example of Earthquake’s continuing pursuit of audio excellence: “the goal is to seamlessly blend into any interior decor and to reproduce the sound of a concert hall or the sound of a movie sound track in any room with these speakers; with seamless super low profile, these speakers blend perfectly with any decor.”

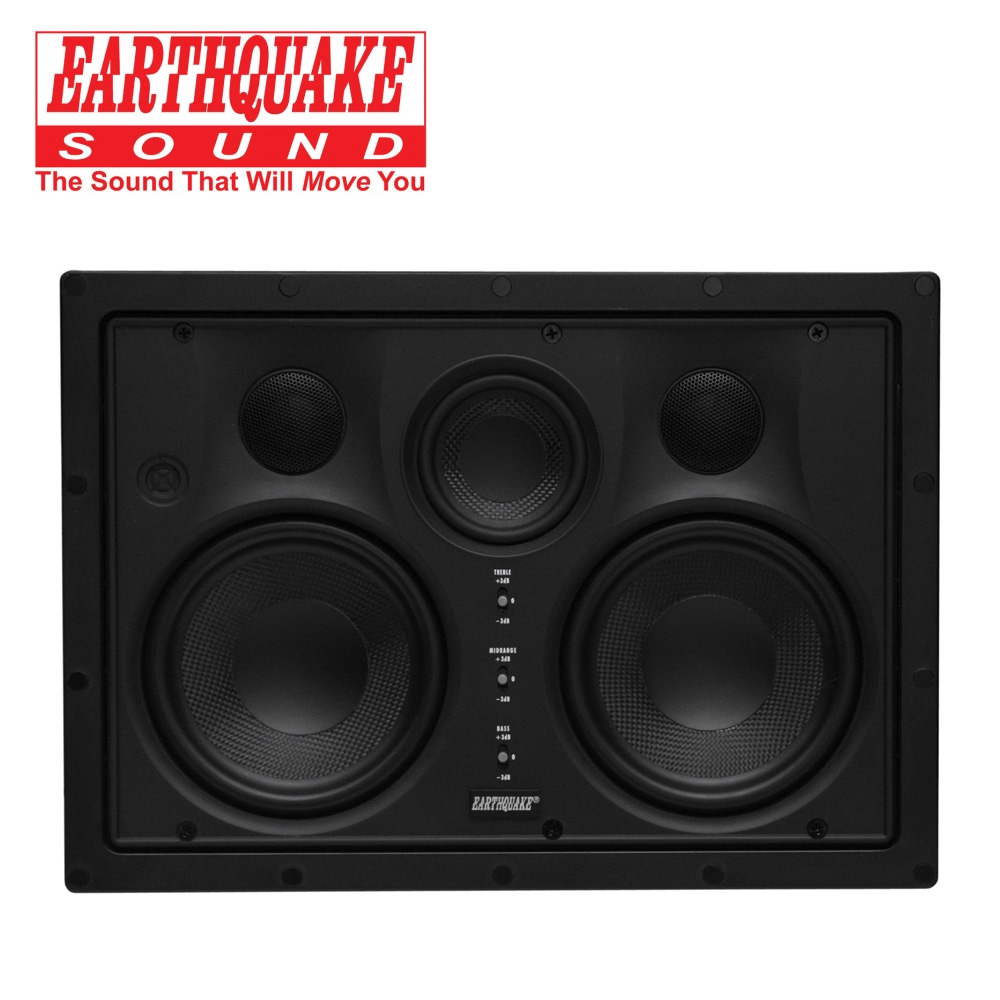

The EWS530C delivers a deep and natural response from the design of their advanced cones and surrounds. Superb sonic accuracy is guaranteed by the utilization of stiff light weight Kevlar cones in the woofer and silk NEO tweeters. Additionally, you can customize the sound of the speakers with +/- 3dB adjustment switches that optimize the sound to the acoustics of the room and end user’s own personal preference.

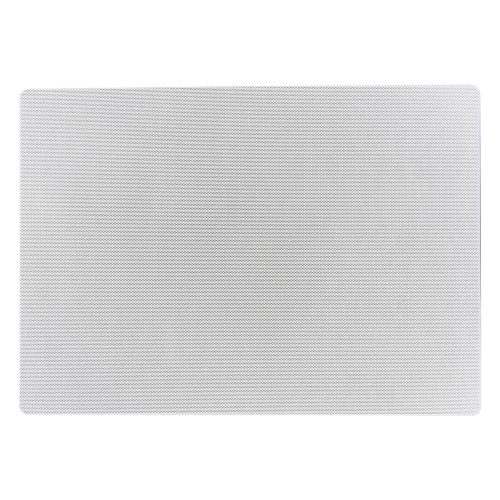

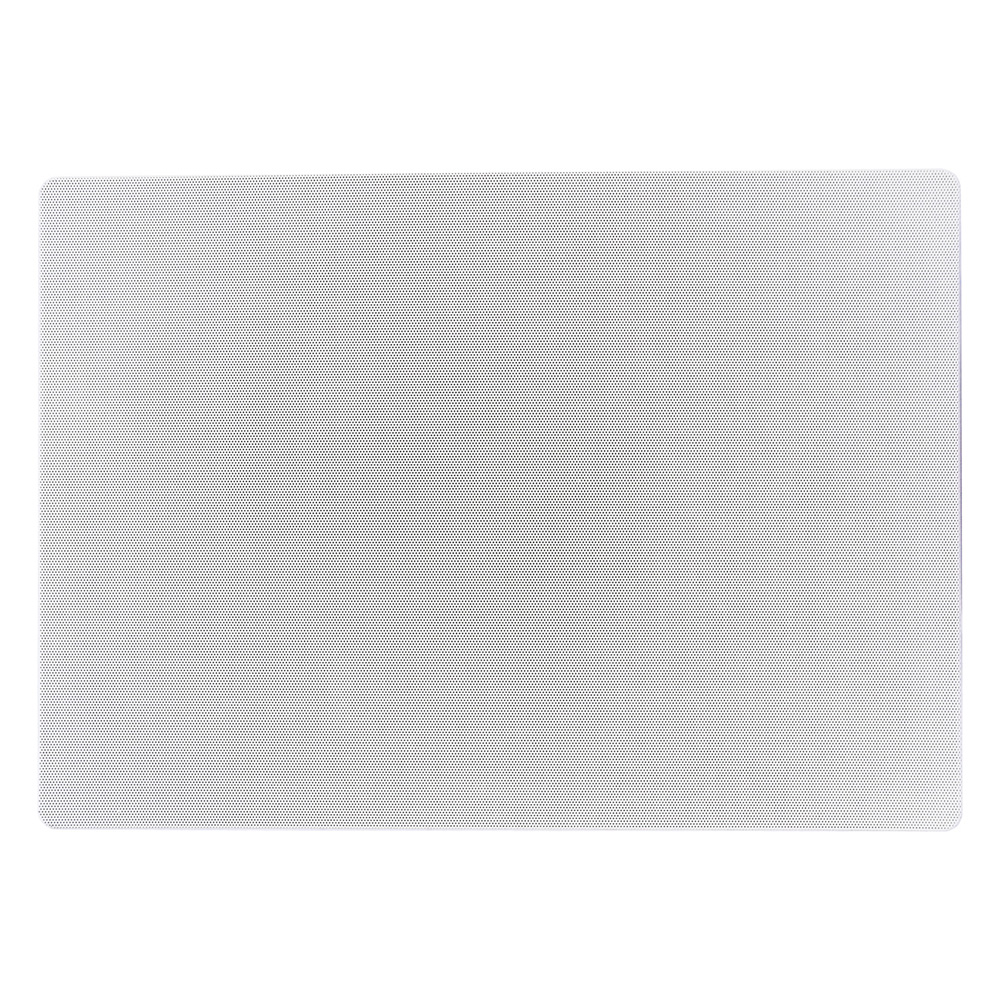

  • Magnetically attached and paintable grille

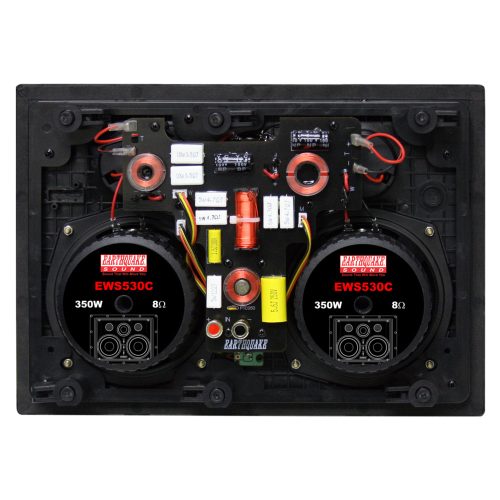

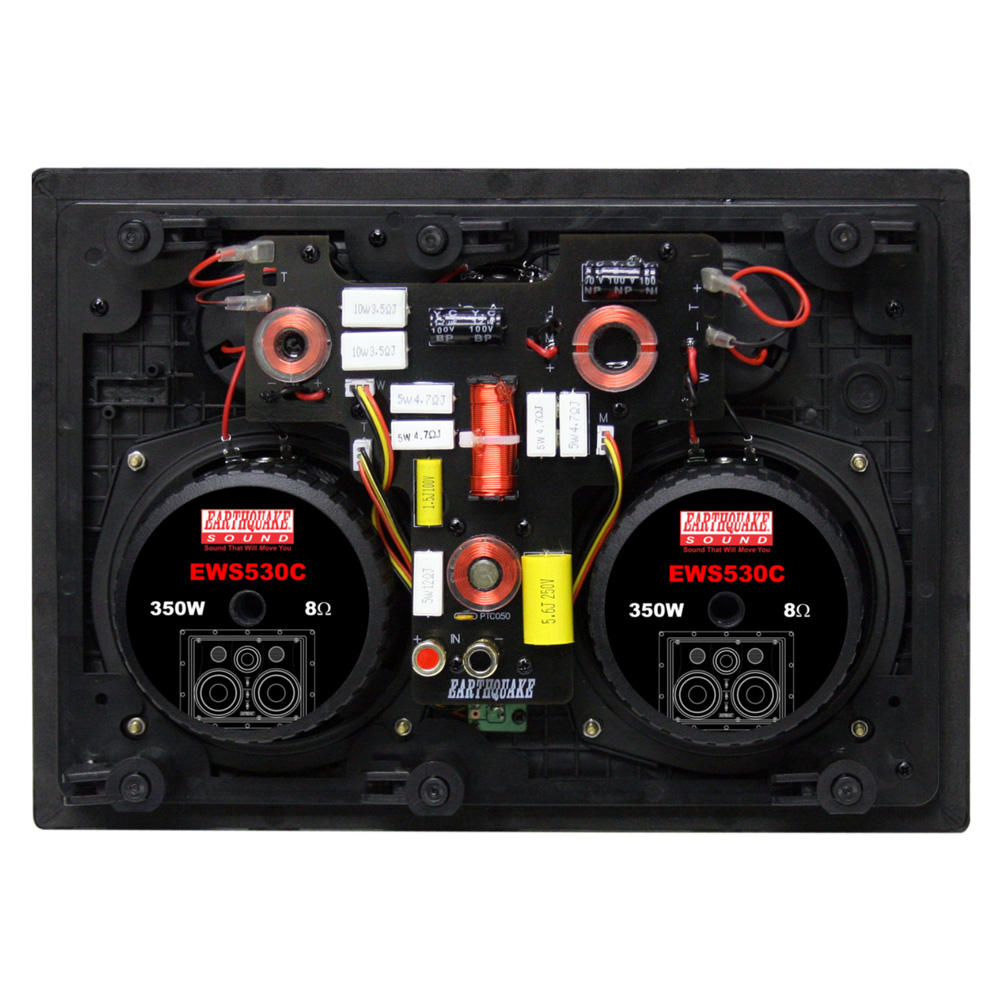

  • Elaborate crossover network
  • 12dB/Octave with polyswitch protection
  • Gold plated spring loaded terminals
  • Easy install “Turn-N-Lock™” mechanism


Power Handling350W MAX
Frequency Response40Hz—20kHz
Sensitivity87dB 1W/1M
Impedance8 Ohm
Outer Dimensions248 x 349mm (9-3/4″ x 13-3/4″)
Cut out Dimensions224 x 326mm (8-13/16″ x 12-7/8″)
Mounting Depth85mm (3-3/16″)
Weight3.1 kg (6.8 lbs)
