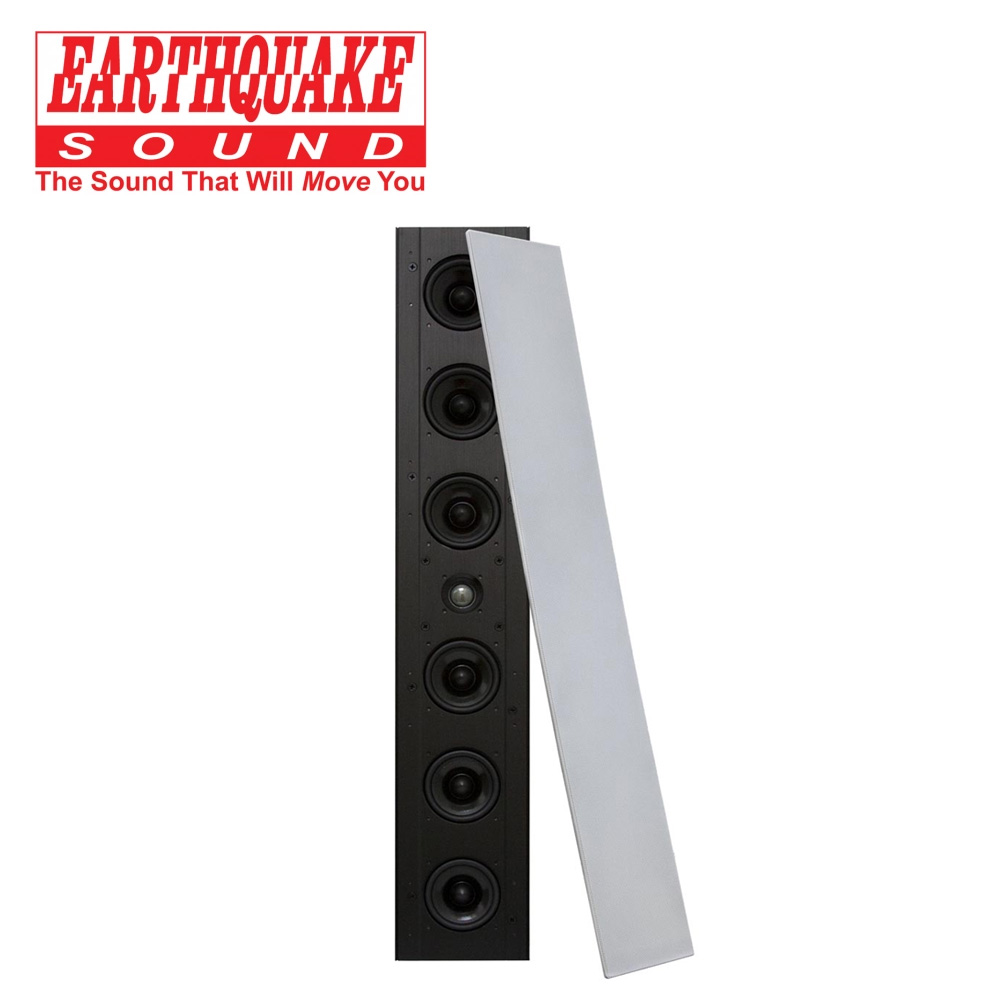

EWSLA63 Edgeless Line Array In-Wall LCR Speaker

The Earthquake new EWSLA63 (line array in-wall system) benefits from 57 years of acoustic discoveries dating back to 1957. Line array system is a directive way of sending sound wave from the speaker to the listener with minimum wall reflection. You listen to the music, not the room. In a typical room, the EWSLA63 requires 4 times less power than a single source speaker to achieve the same sound pressure level at a listening position. As the power is reduced, so are the reflections.

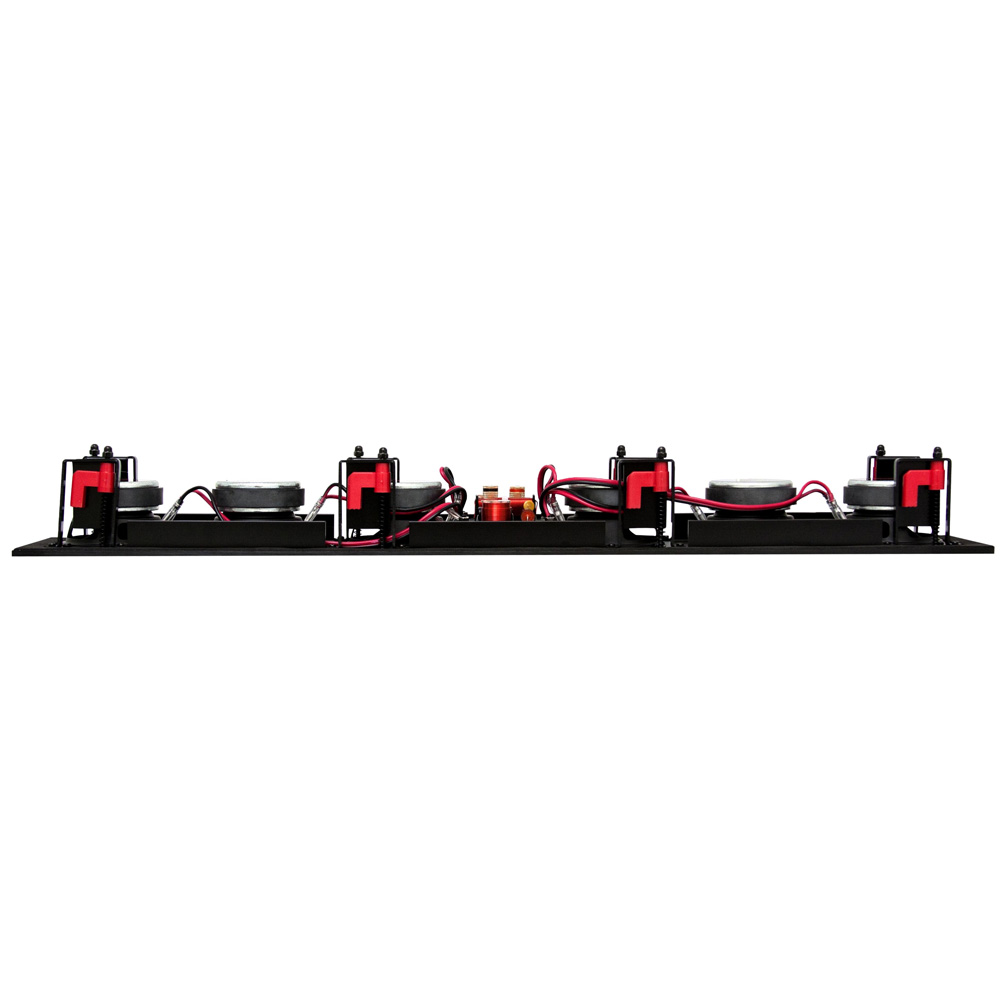

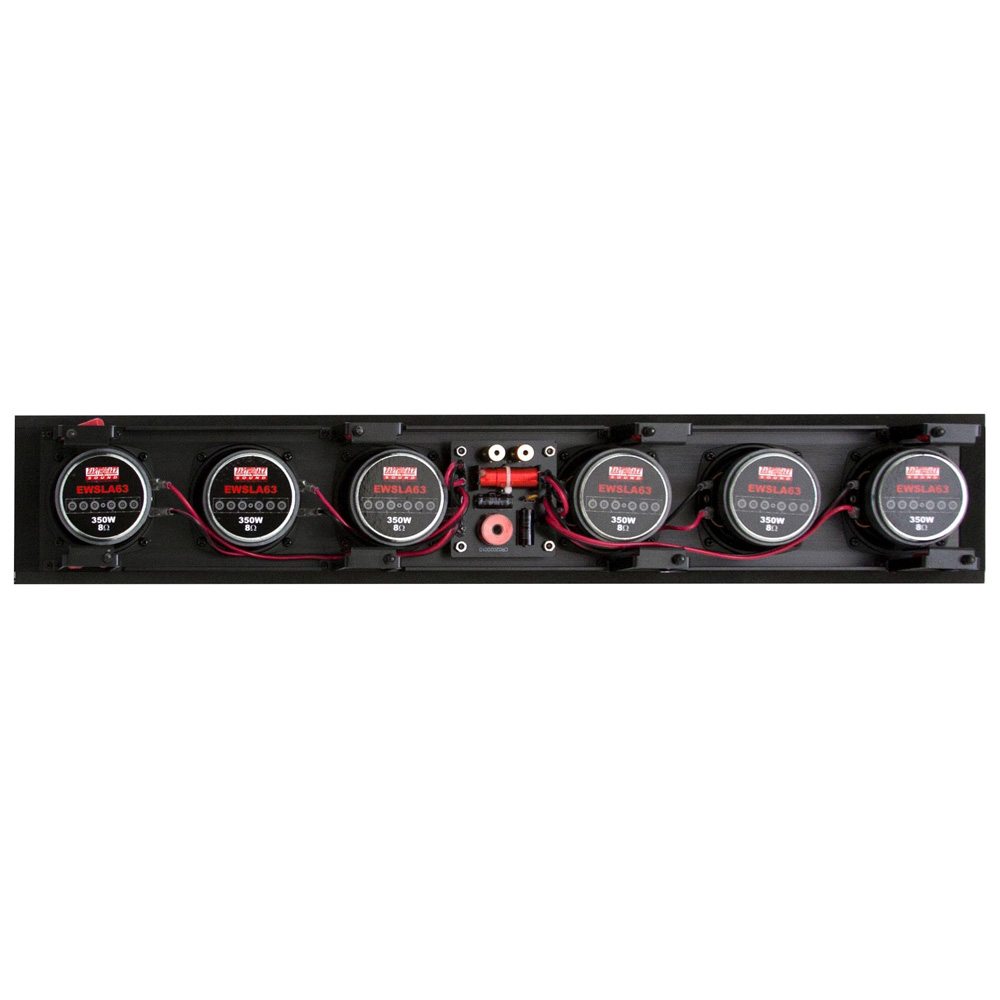

The EWSLA63 implements an array of six 3-inch speakers that are positioned to minimum phase delineation. The frame is made of AL6061 (aluminum alloy) which kills vibrations. A complementary Turn-n-Lock™ mounting mechanism makes the installation a snap.

With an edgeless design, slim profile and magnetically attached (paintable) grille, the EWSLA63 delivers sound clarity and style to any home theater.

  • 2-way line array system
  • Resonance free
  • Gold plated spring loaded terminals
  • Elaborate crossover networks
  • Frameless design for reduced visibility/seamless blend
  • Stiff aluminum body


Power Handling350W MAX
Frequency Response40Hz–20kHz
Nominal Impedance8 Ohm
Sensitivity89dB @ 1W/1M
Grille FinishWhite
Product Dimensions673 x 121mm (26.49″ x 4.76″ )
Cut Out Dimensions654 x 102mm (25.74″ x 4.01″)
Mounting Depth73mm (2.87″)
Weight4.12kg (9.1 lbs)
