Imãge-83X In-Wall Speakers

The Earthquake Imãge-83X brings a new dimension of reality and convenience to a flush-mount design. These three-way in-wall surround speakers feature a unique adjustable tweeter that allows the creation of custom enveloping sound fields and localized effects without disrupting a home’s décor.

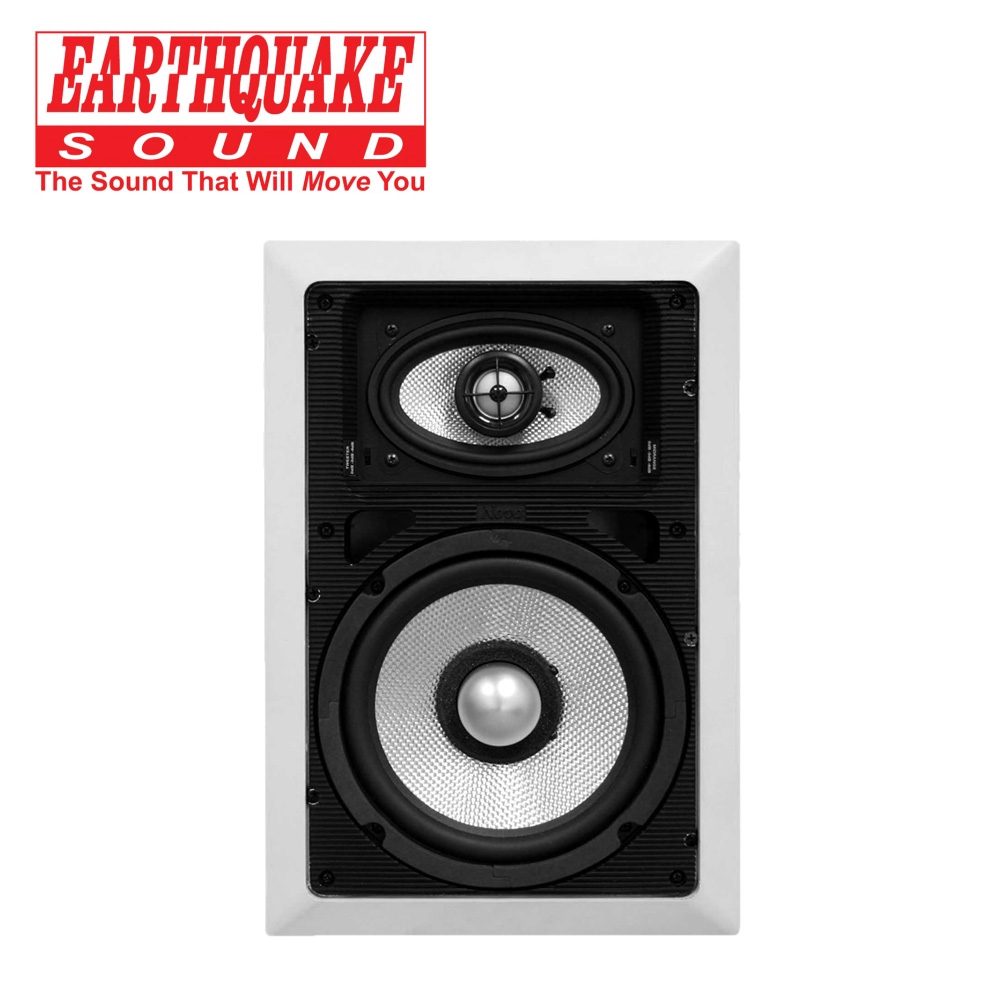

A 4” x 6” carbon fiber cone mid-range elliptical driver delivers a wider dispersion of sound and more vocal clarity. Tonal adjustments can be made in +/-3dB increments for even the most particular tastes. For bass, the Imãge-83X has a high quality 8” carbon fiber cone subwoofer with phase plug, for the most precise and accurate bass that you have ever heard from an in-wall.

Designed for surround use in 5.1 and 2-channel systems, the Imãge-83X employs an 8” carbon fiber cone woofer, a single 1” NEO silk dome tweeter for enhanced high frequency plus a 4” x 6” carbon fiber cone mid-range. Because of its adjustable tweeter, high precision mid-range as well as expanded surround woofer and back box, the Imãge-83X out performs conventional designs by maximizing diffusion, clarity and efficiency.

  • High temperature ribbed back box
  • Port tuned enclosure
  • Easy-install “Turn-N-Lock™” mechanism

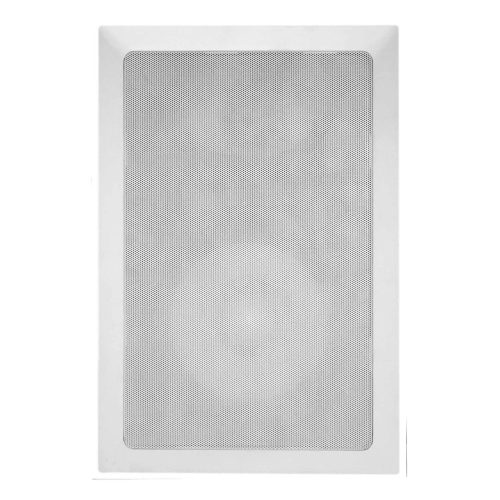

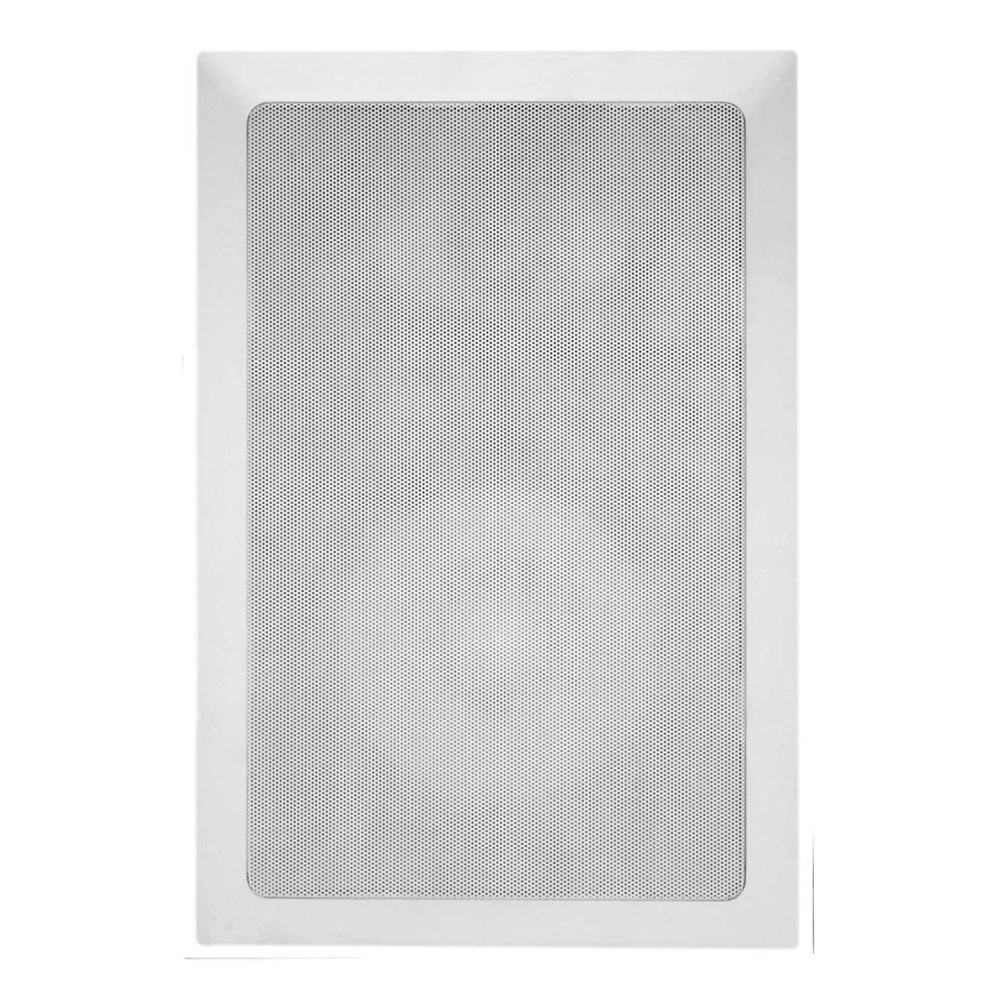

  • Paintable rust-proof aluminum grilles
  • 2″ inch high power handling voice coil

Description

Power Rating500W MAX
Frequency Response18Hz–22kHz
Crossover NetworkHigh Pass @ 1kHz, 18dB/Oct
Low Pass @ 1kHz, 18dB/Oct
Sensitivity89dB 1W/1M
Nominal Impedance8 Ohm
FinishWhite / Paintable
Grill Frame Dimensions400.5 x 266.7mm (15.75″ x 10.5″)
Cut Out Dimensions374.65 x 241.29mm (14.75″ x 9.5″)
Mounting Depth95.25mm (3.75″)
Weight(30 lbs)
