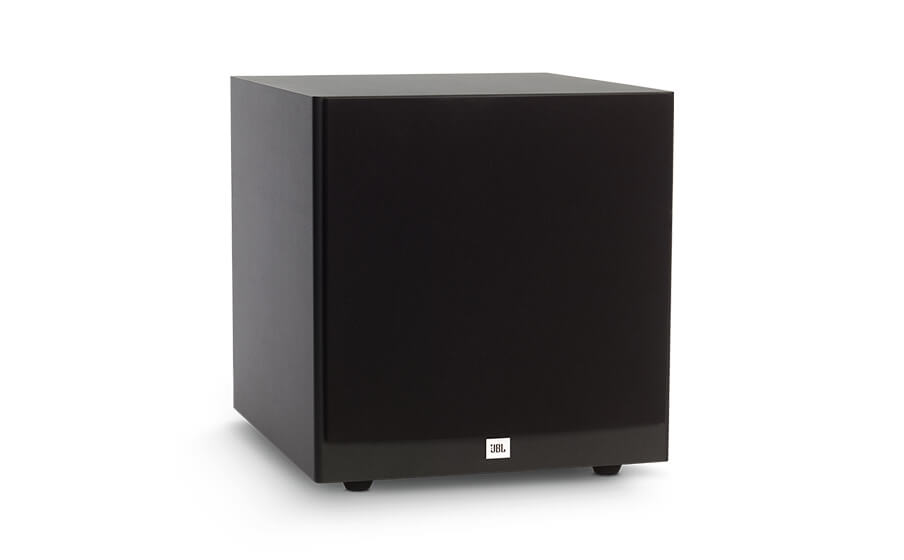

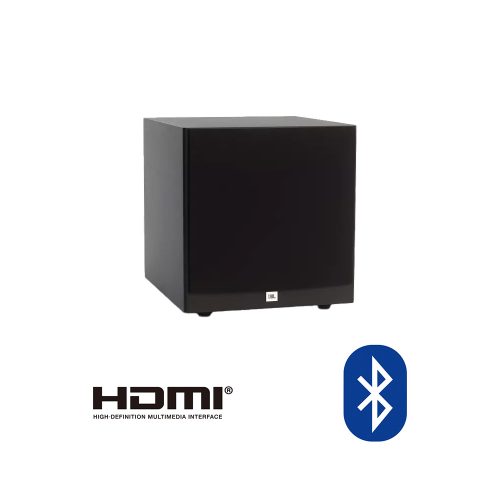

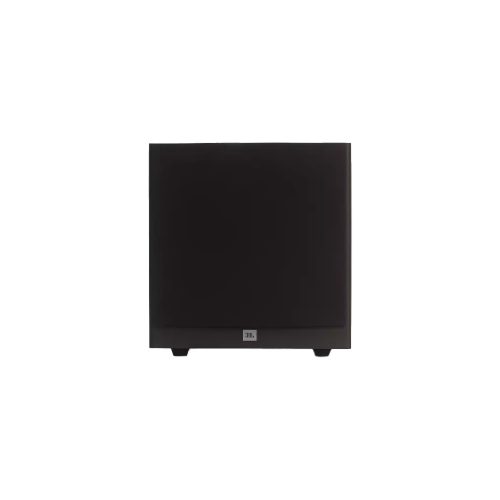

JBL Stage A120P

12″ (300mm) 500W Powered Subwoofer

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the Stage A120P is the 12-inch (300mm) 500W powered subwoofer of the JBL Stage Series.

Categories: , ,

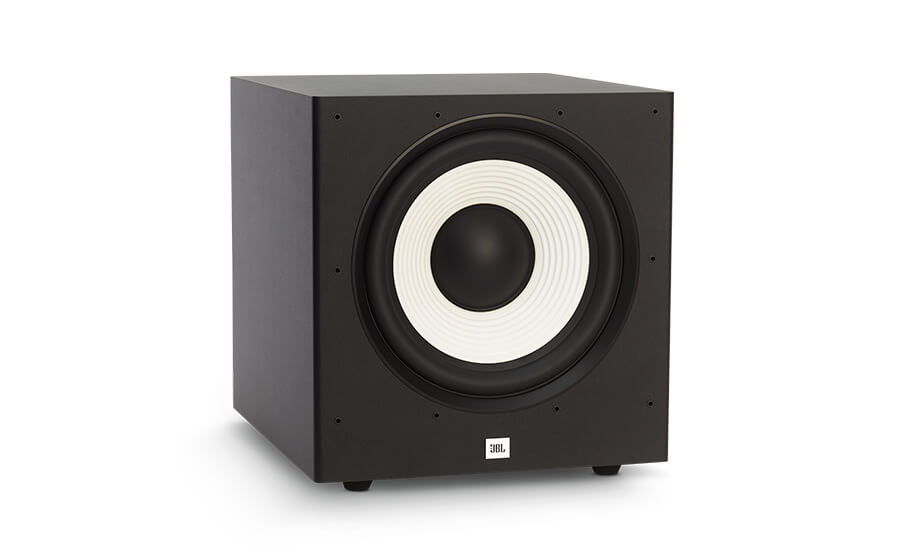

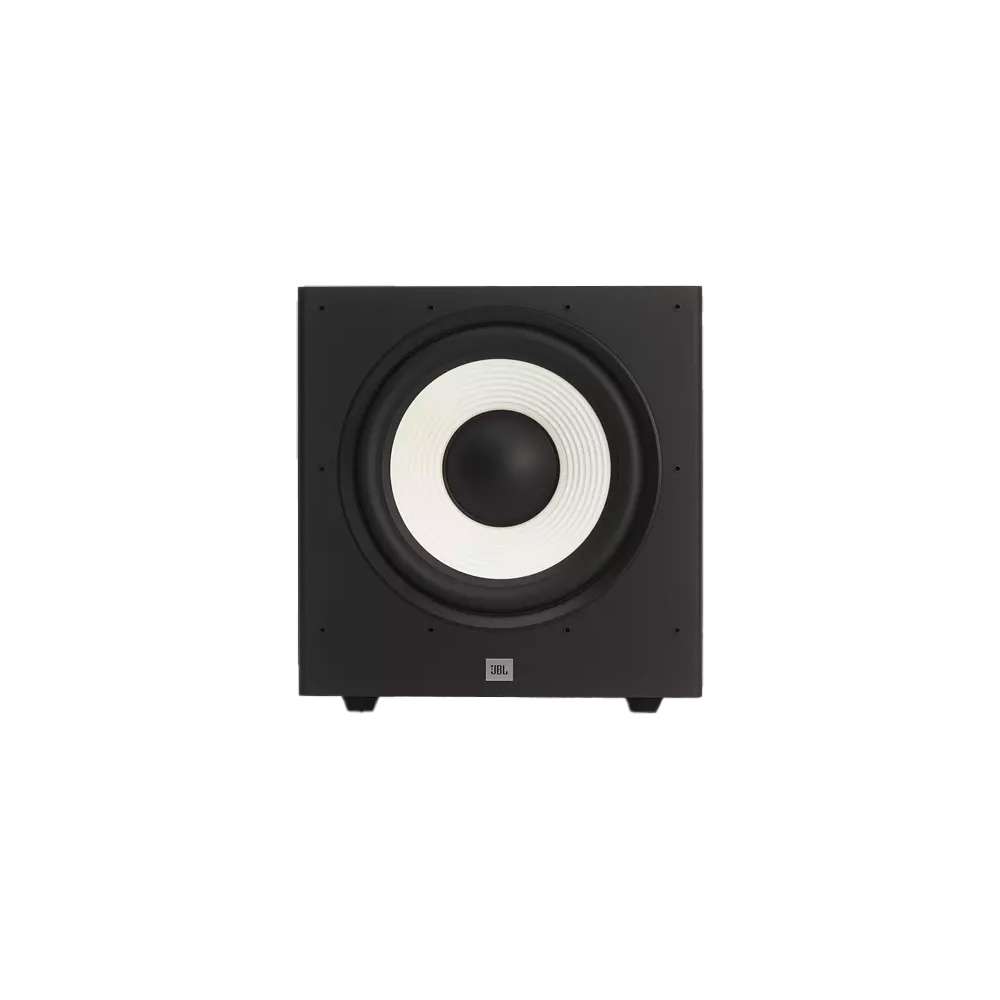

12-inch (305mm) Polycellulose Low-Frequency Woofer

12-inch (305mm) Polycellulose Low-Frequency Woofer

Two-tone Unique Design for wood



12" 500 Watts powered subwooferYes
12" (305mm) Polycellulose Low-Frequency WooferYes
Power250W RMS (500W Dynamic)
Frequency Response32Hz – 150Hz
Crossover Frequencies50Hz – 150Hz (variable) 24dB/octave
ControlsAuto Power, Crossover, Level, Phase
Input1 x Line-Level LFE Input

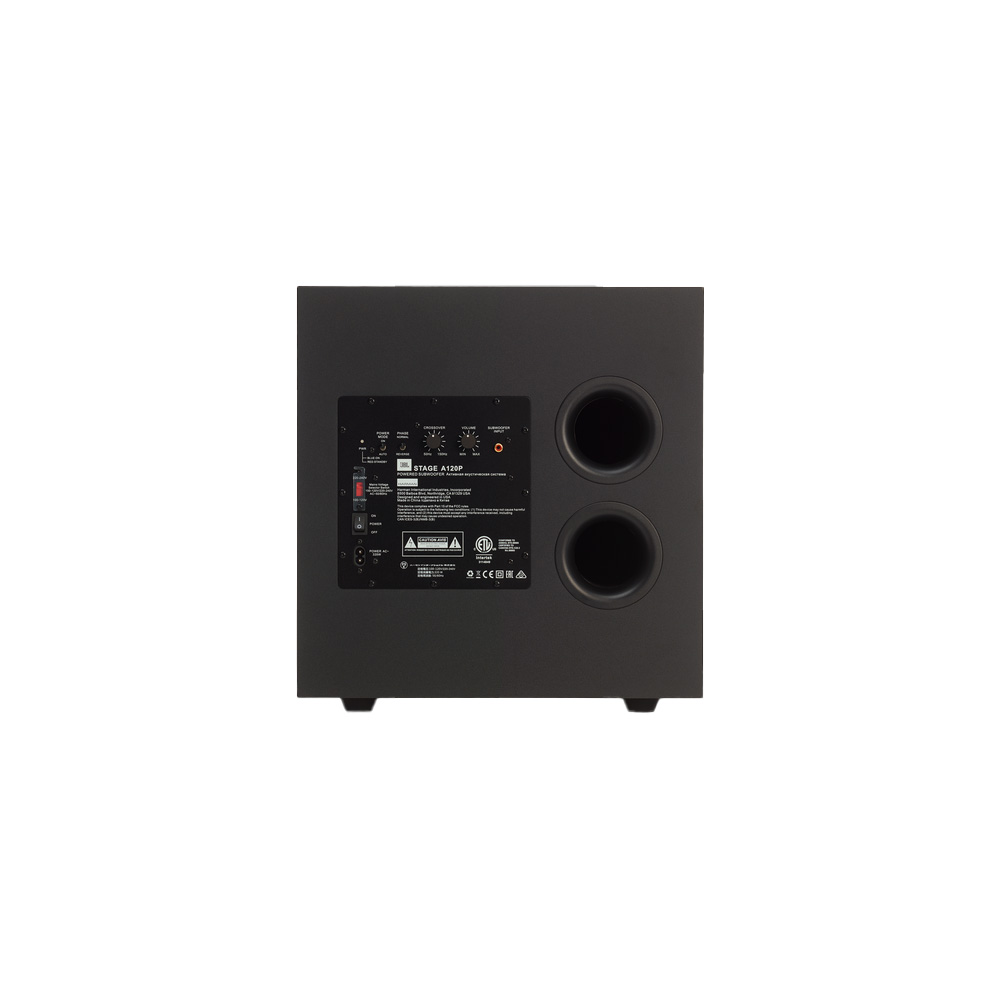

Enclosure TypeBass-Reflex via Rear-Firing Tuned Ports
Power Requirement120V, 60Hz (US) 220-230V, 50/60Hz (EU)
Power Consumption (Idle/Full/Power)<0.5W (standby) / 335W/2A (max – 230V) / 335W/4A (max – 120V)
Dimensions (W x D x H)370 x 420 x 395mm
Weight41.09 lbs (18.64kg)
