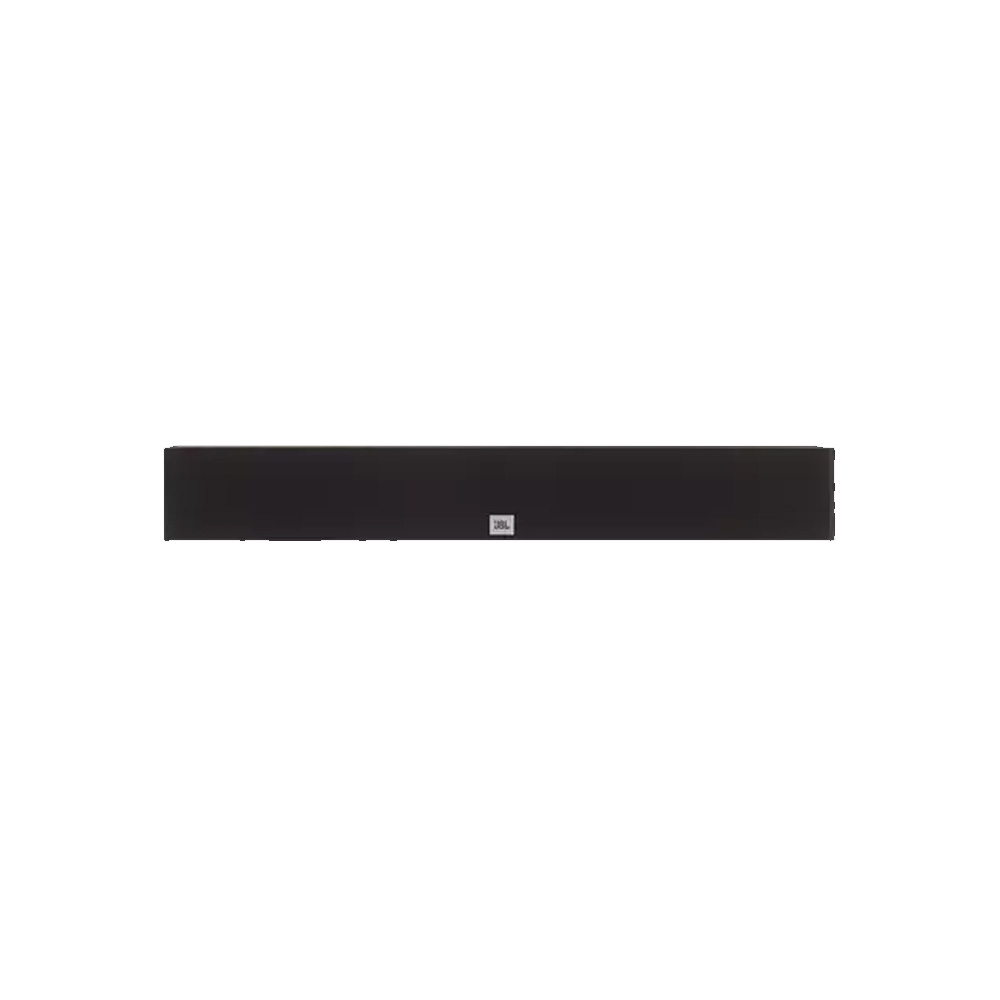

JBL Stage A135C

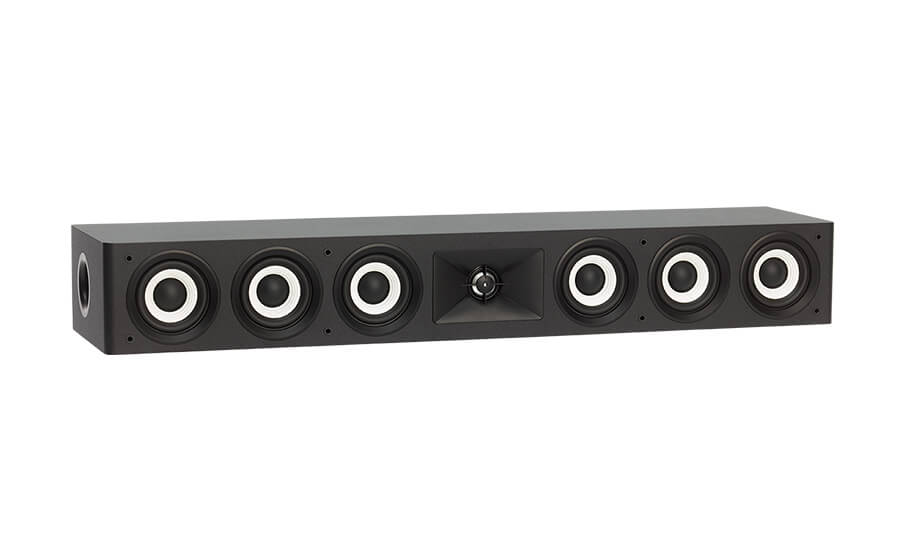

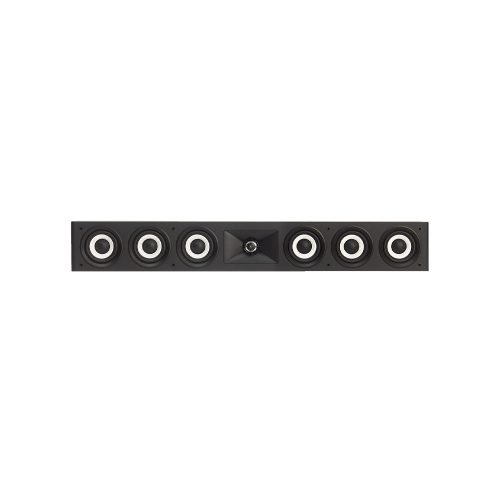

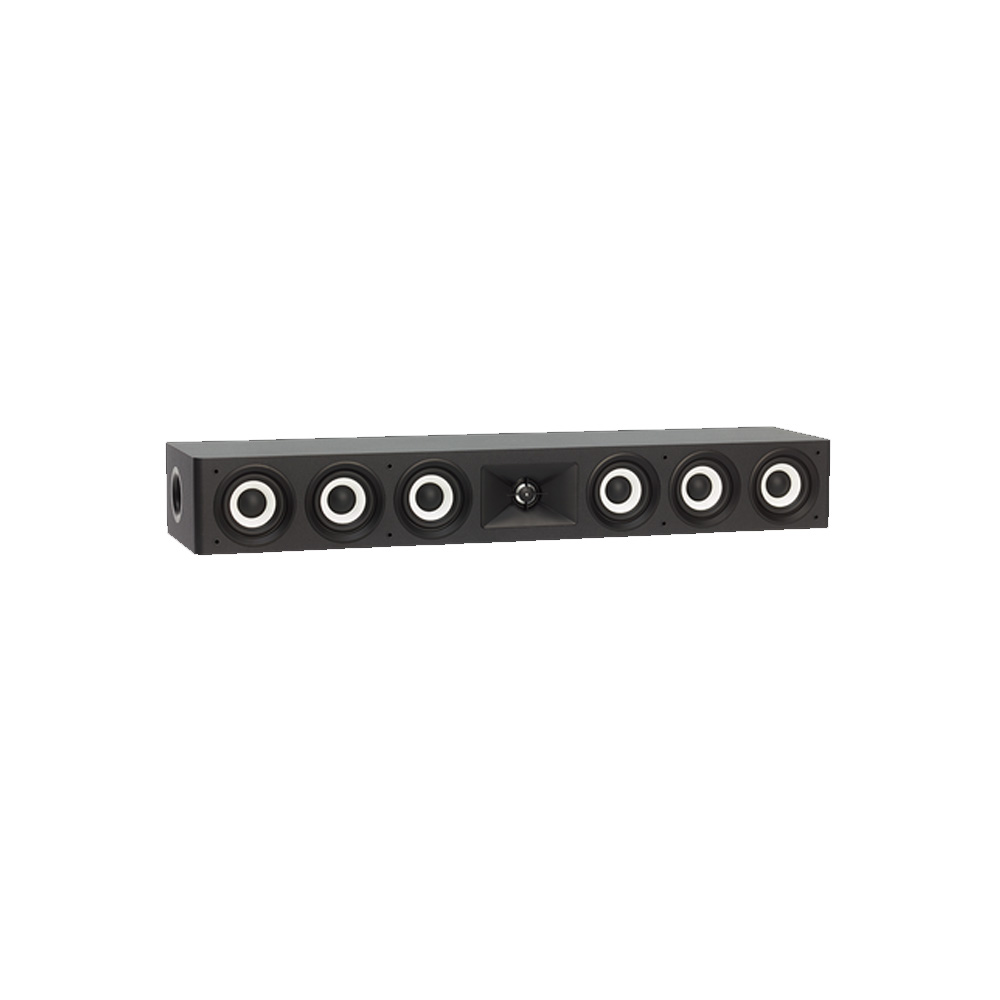

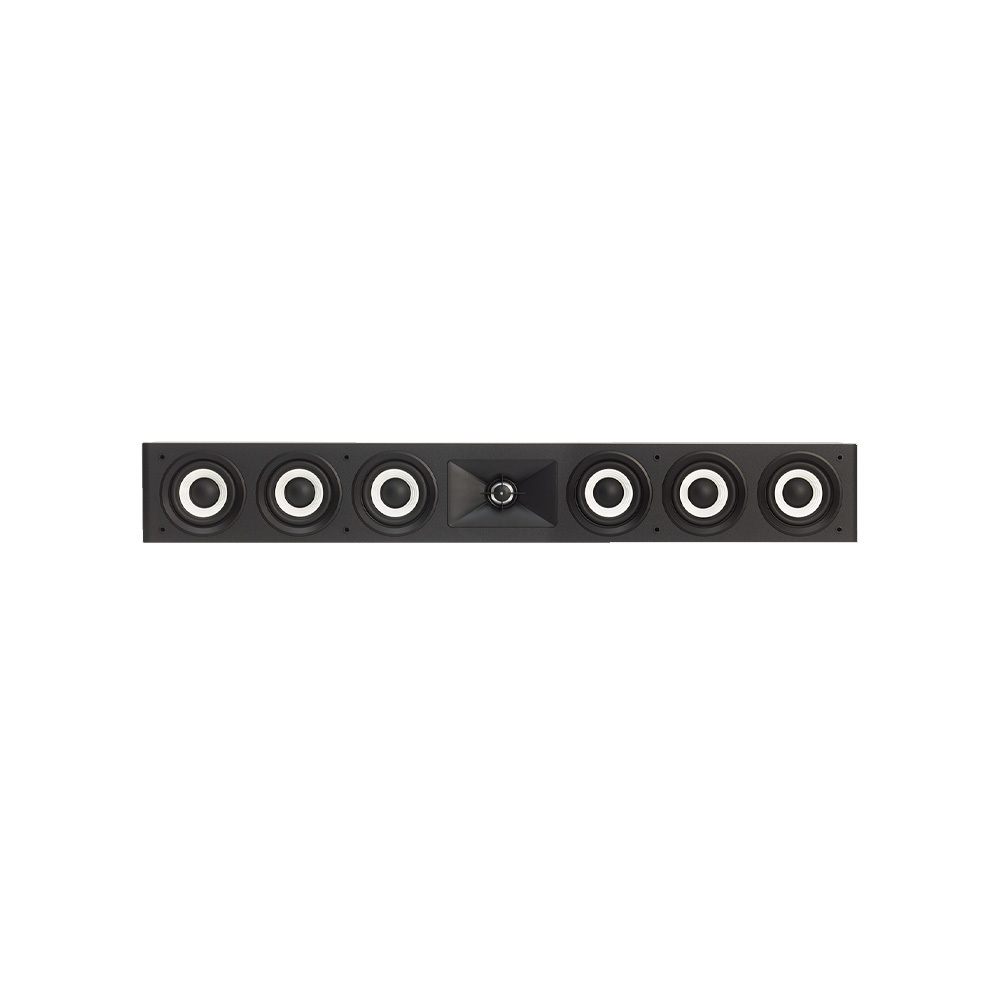

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the Stage A135C is the 6 x 3-inch 2-way center channel loudspeaker of the JBL Stage Series. The narrow footprint features a 2-way design with patented High-Definition Imaging (HDI™) waveguide geometry, 1-inch (25mm) Aluminum dome tweeter, and 6 x 3-inch (76mm) Polycellulose cone woofers for signature JBL bass.

Description

 6 x 3-inch (76mm) Polycellulose Low-Frequency Woofer

6 x 3-inch (76mm) Polycellulose Low-Frequency Woofer

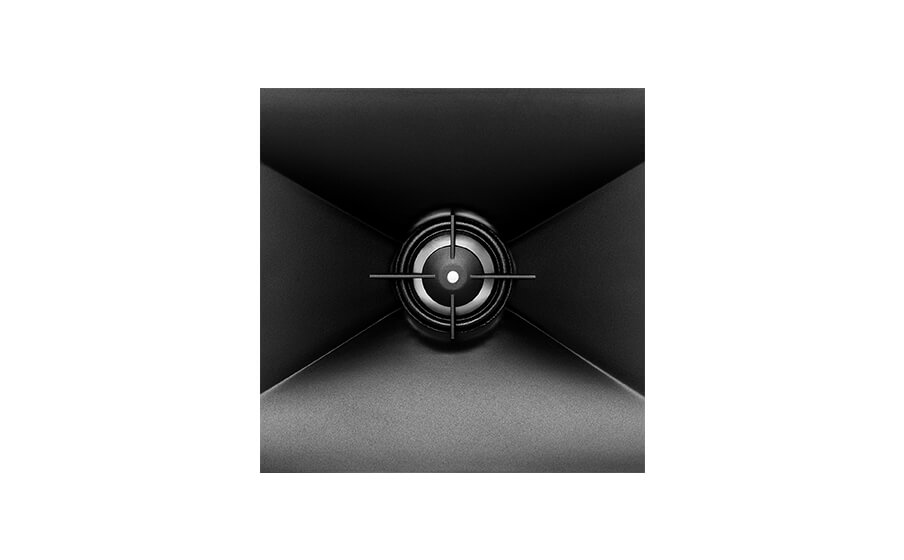

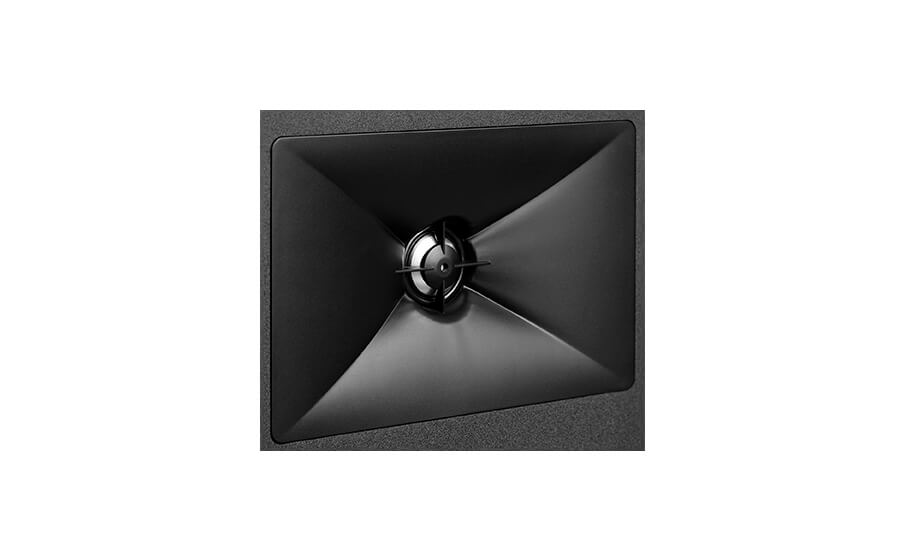

New High Definition Imaging (HDI) Waveguide

New High Definition Imaging (HDI) Waveguide
 1-inch (25mm) Aluminum Dome Tweeter

1-inch (25mm) Aluminum Dome Tweeter



2 way, 6 x 3" woofer, 1" aluminum tweeter center loudspeakerYes
6 x 3" (76mm) Polycellulose Low-Frequency WooferYes
New High Definition Imaging (HDI) WaveguideYes
1” (25mm) Aluminum Dome TweeterYes
Recommended Amplifier Power20 – 150W
Frequency Response75Hz – 40kHz
Sensitivity90dB @ 1M, 2.83V
Nominal Impedance6 Ohms
Crossover Frequencies2.5kHz

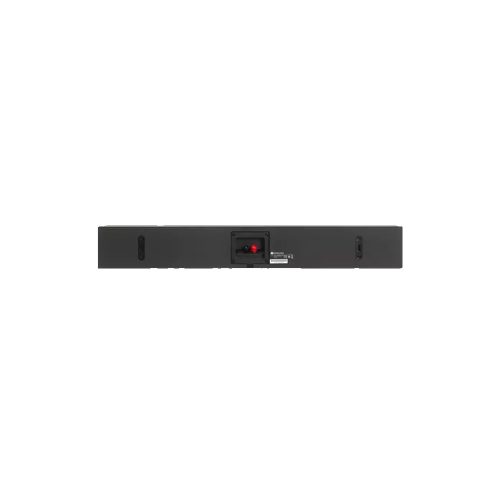

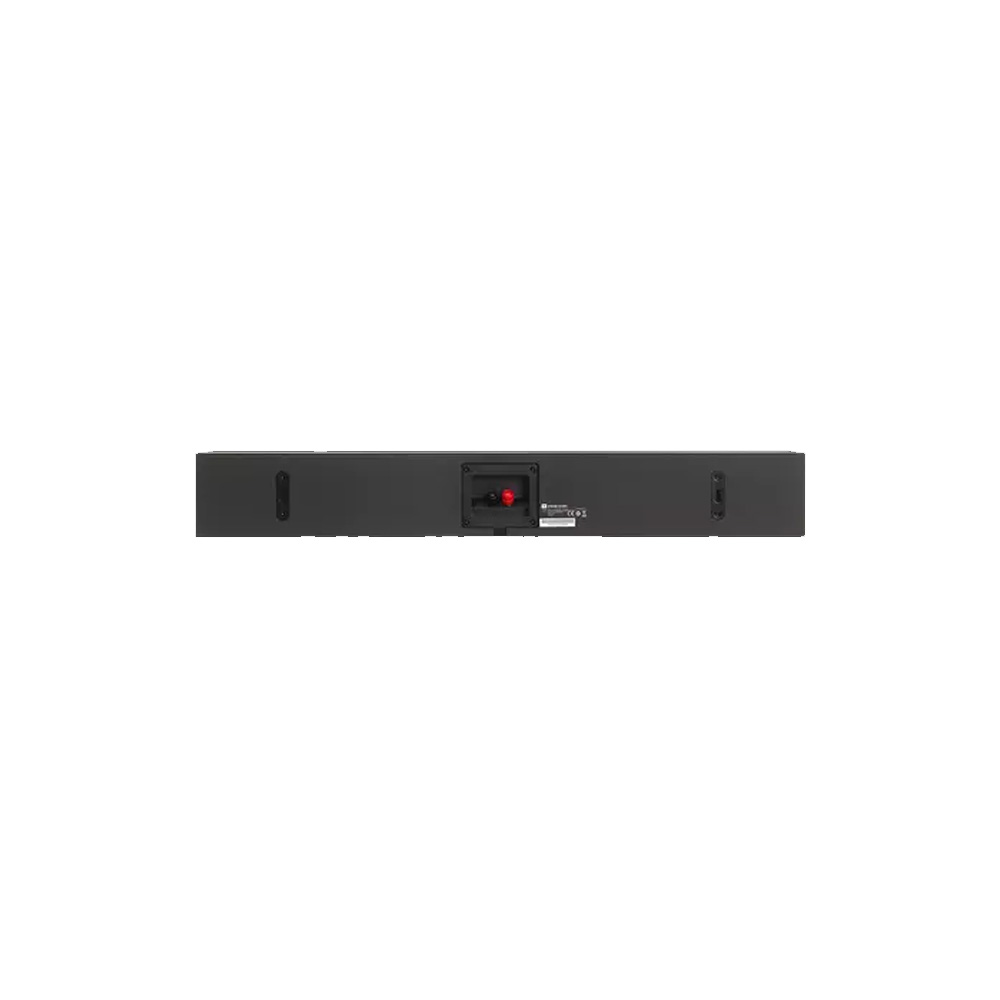

Enclosure TypeBass-Reflex via Rear-Firing Tuned Port
Dimensions (W x D x H)745 x 166 x 104mm
Weight16.42 lbs (7.45kg)
