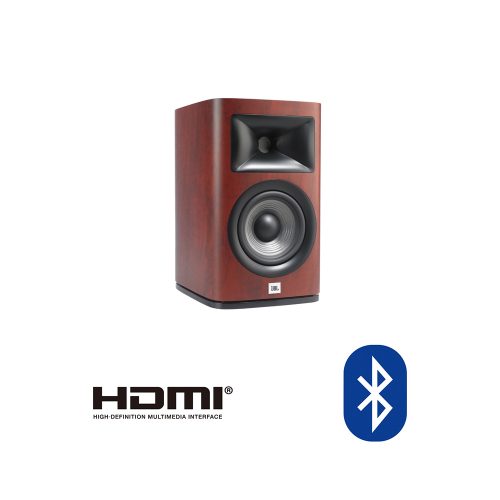

JBL Studio 620

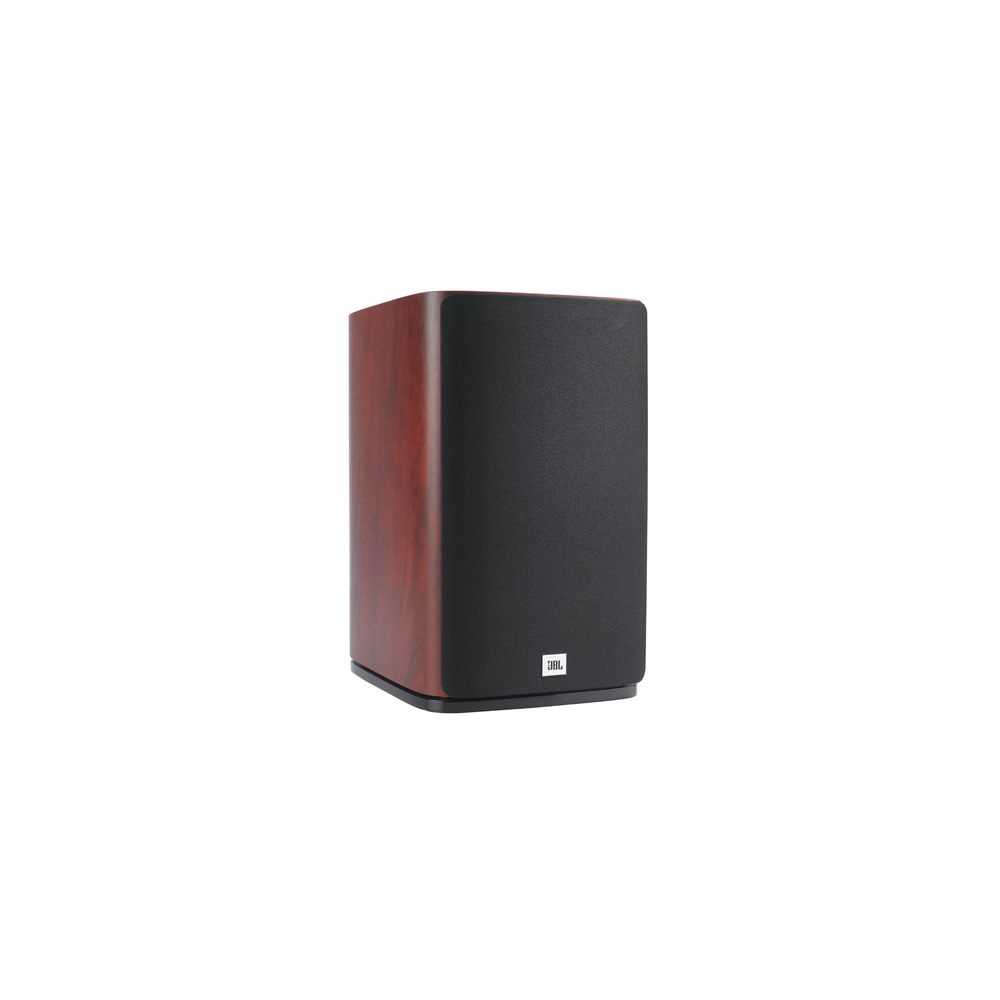

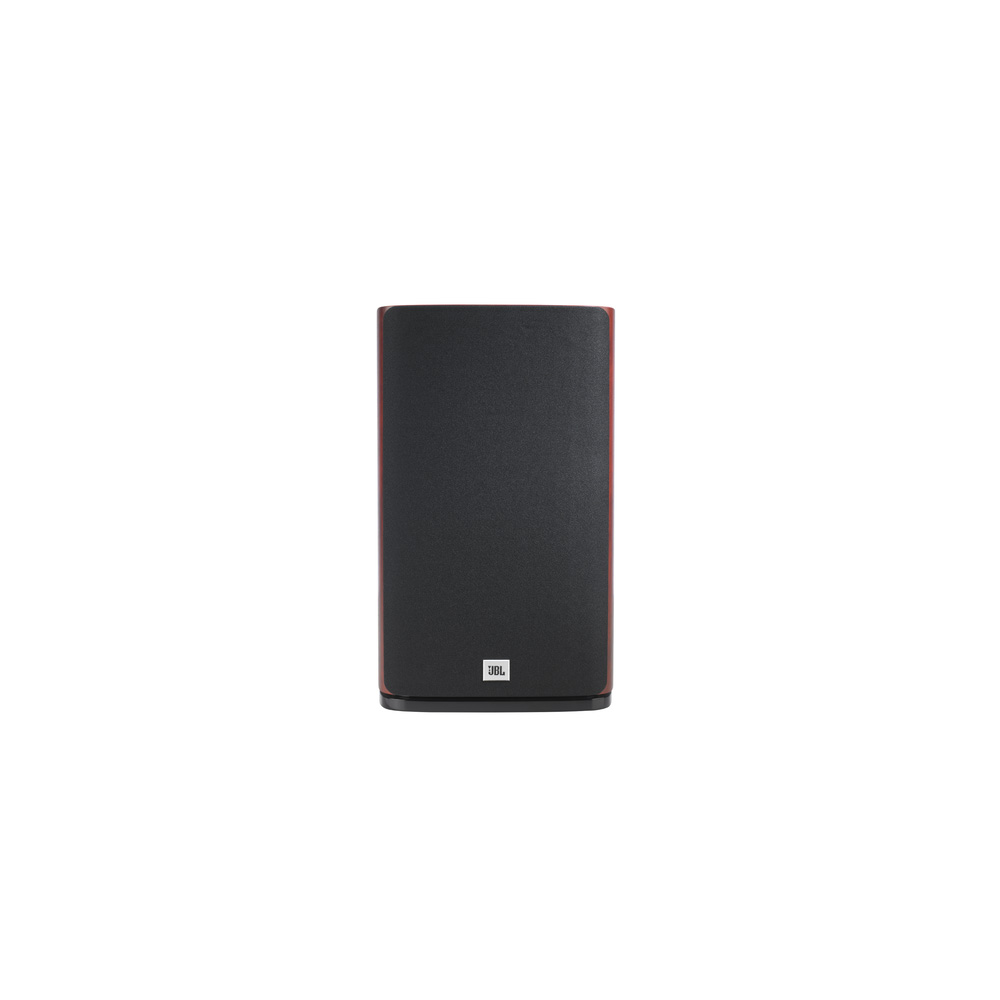

The JBL Studio 620 is a high-performance bookshelf loudspeaker utilizing JBL’s 2414H-1 1-inch compression driver mated to a High-Definition Imaging horn complemented by a 5.25-inch PolyPlas cone woofer. The elegant cabinet design includes a magnetically attached grille and brings an element of sophistication to any room. The Studio 6 Series delivers big dynamics, detailed sound, and powerful bass for true high-fidelity sound.

Categories: , ,

Description

 Top-graded PolyPlass cones

Top-graded PolyPlass cones




High-quality sounding compression drivers

High-quality sounding compression drivers
 New, appealing form factor

New, appealing form factor

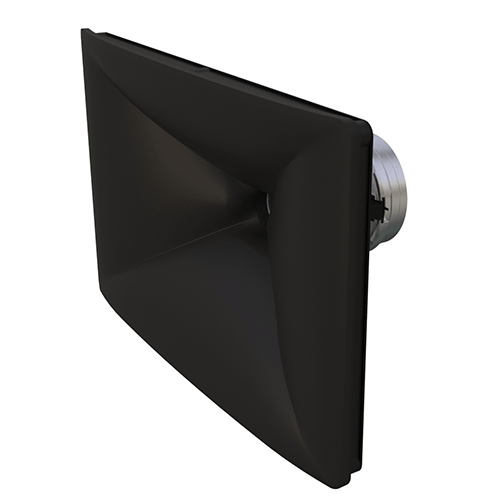

High-Definition Imaging Waveguide With High-Frequency Compression Driver

High-definition imaging Waveguide with high-frequency compression driver

Single 5.25", 2-way compression driver bookshelf loudspeakerYes

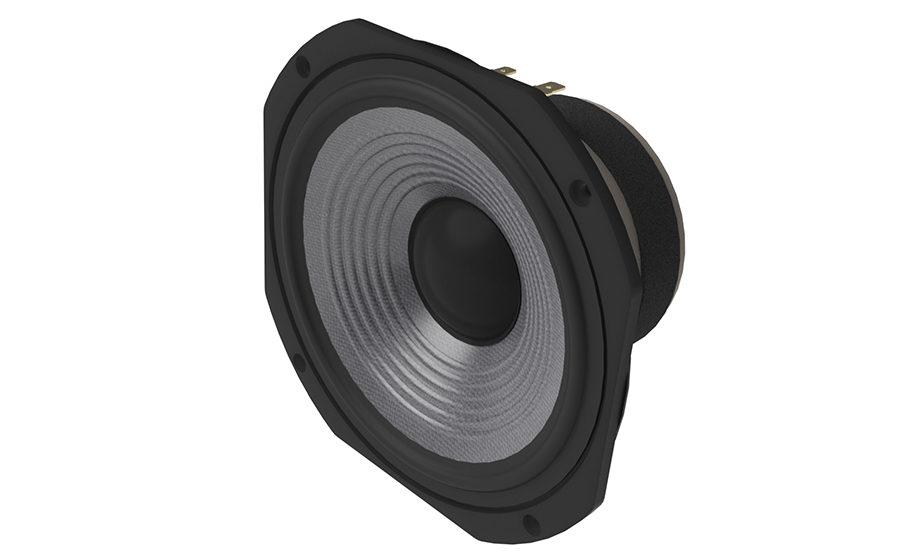

5.25" (133mm) PolyPlas Low-Frequency WooferYes

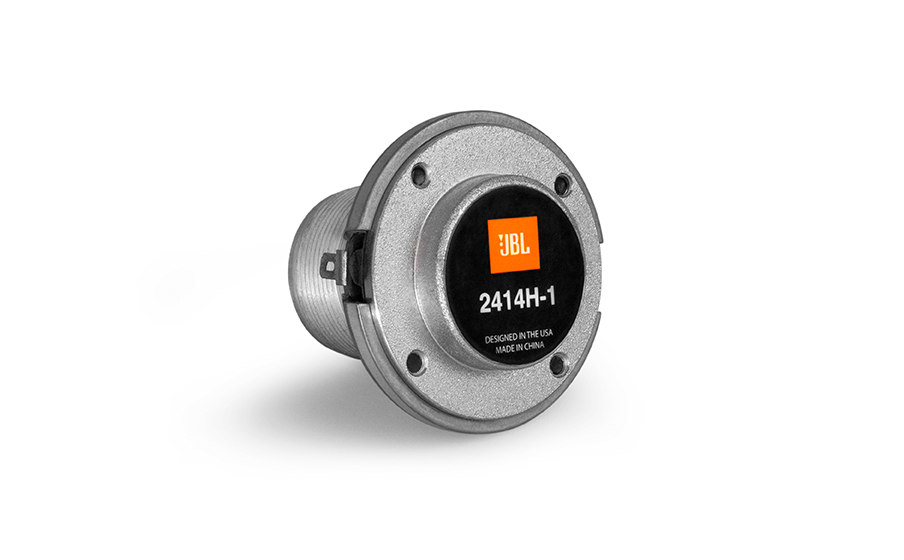

High Definition Imaging (HDI) Waveguide with 1” (25mm) High Frequency Compression DriverYes
Recommended Amplifier PowerMax 100W
Frequency Response50Hz – 40kHz
Sensitivity84dB @ 1M, 2.83V
Nominal Impedance6 Ohms
Crossover Frequencies2.3 kHz

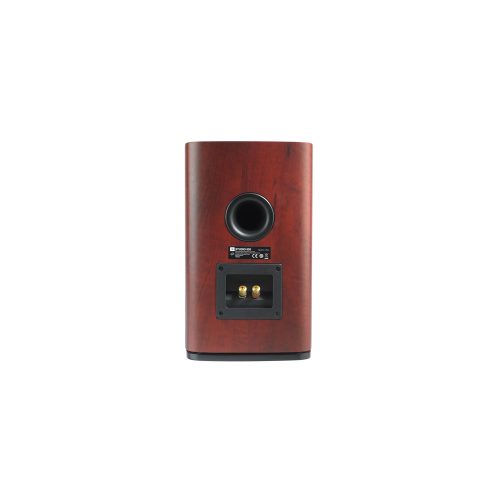

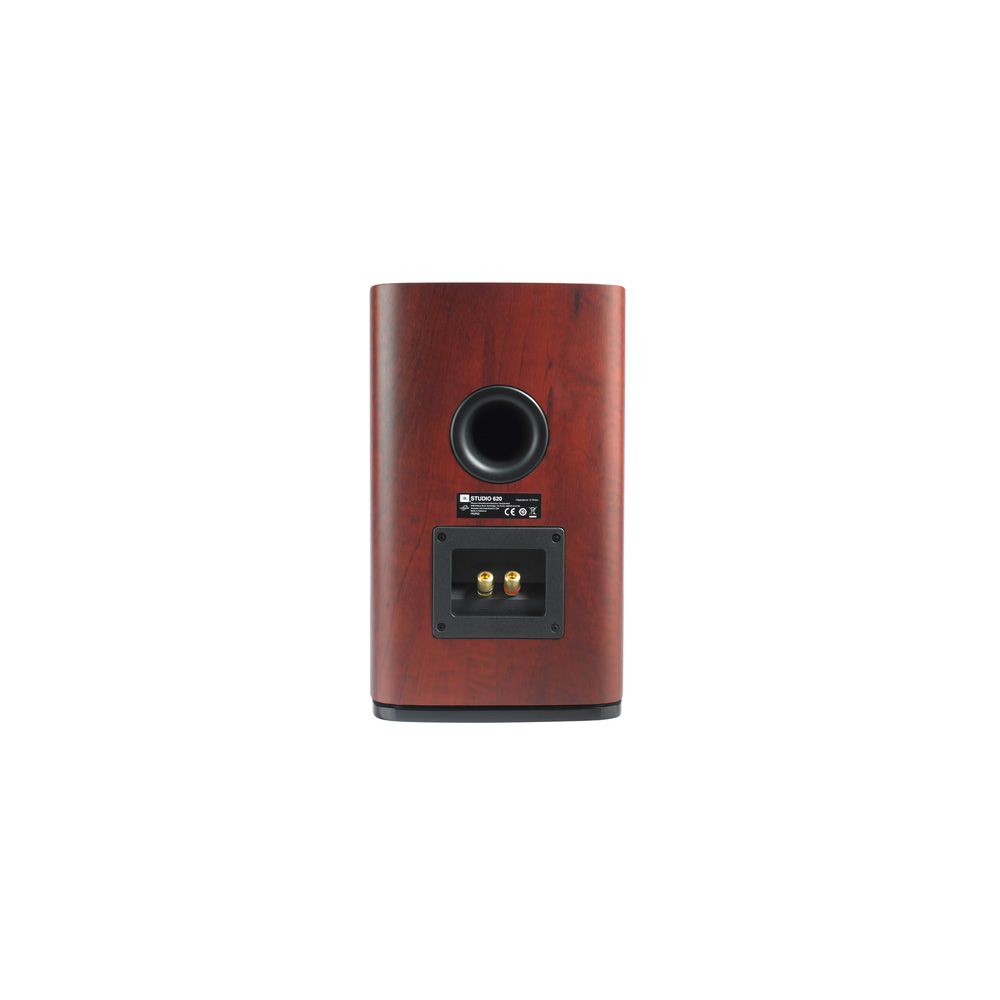

Enclosure TypeBass-Reflex via Rear-Firing Tuned Port
Dimensions (W x D x H)190 x 240 x 312mm
