JBL Studio 630

6.5-inch 2-way Bookshelf Loudspeaker

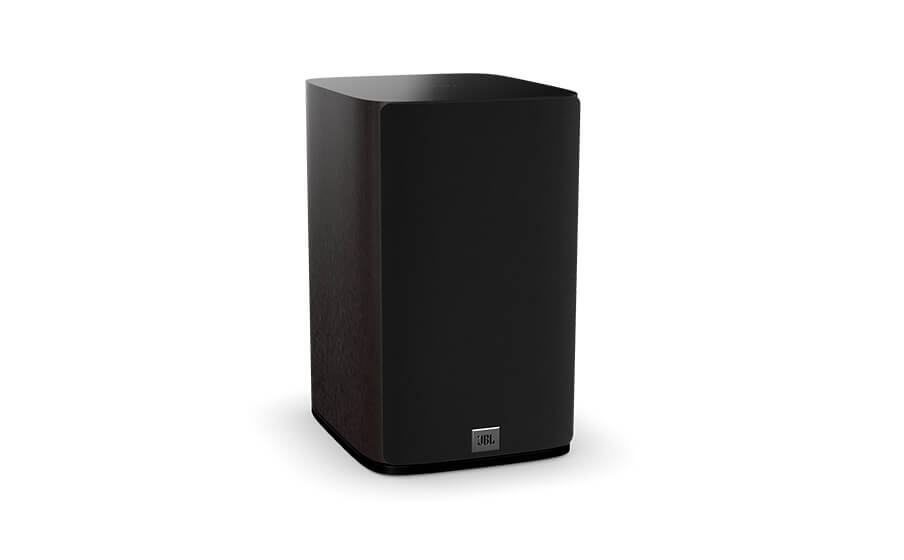

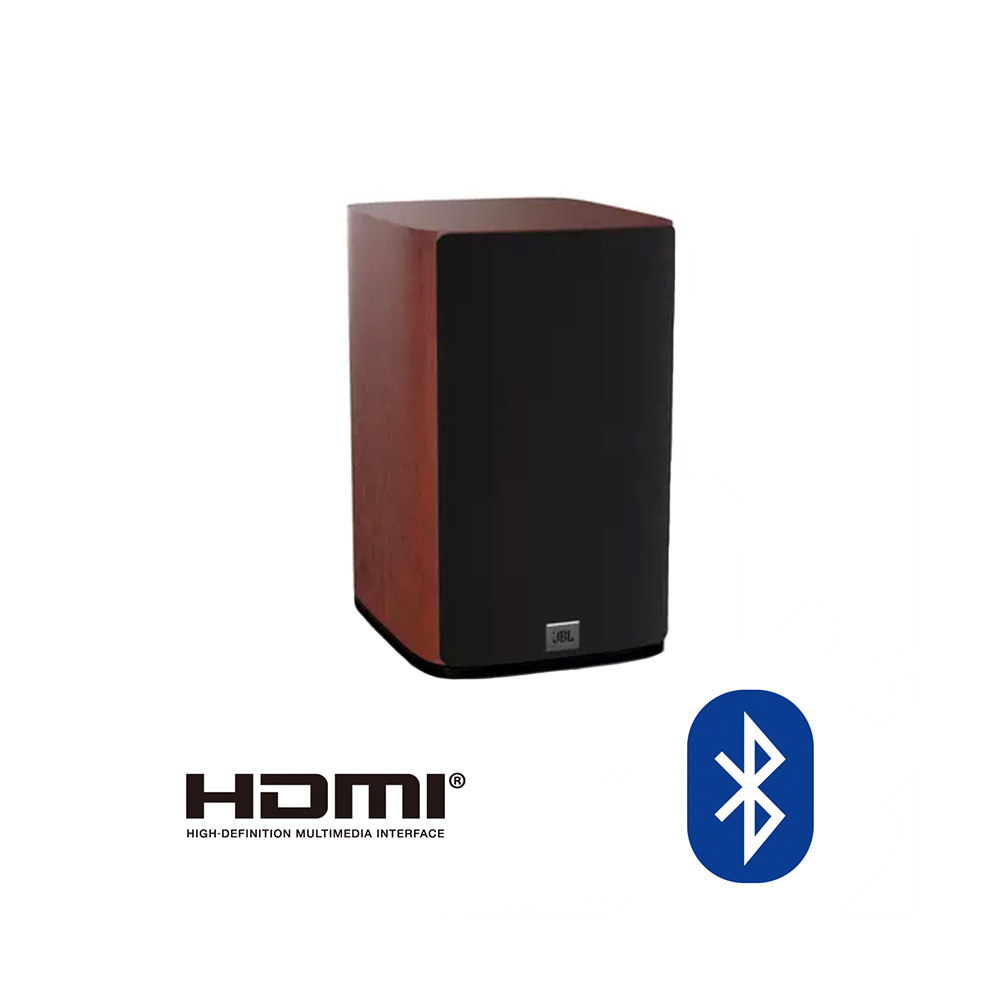

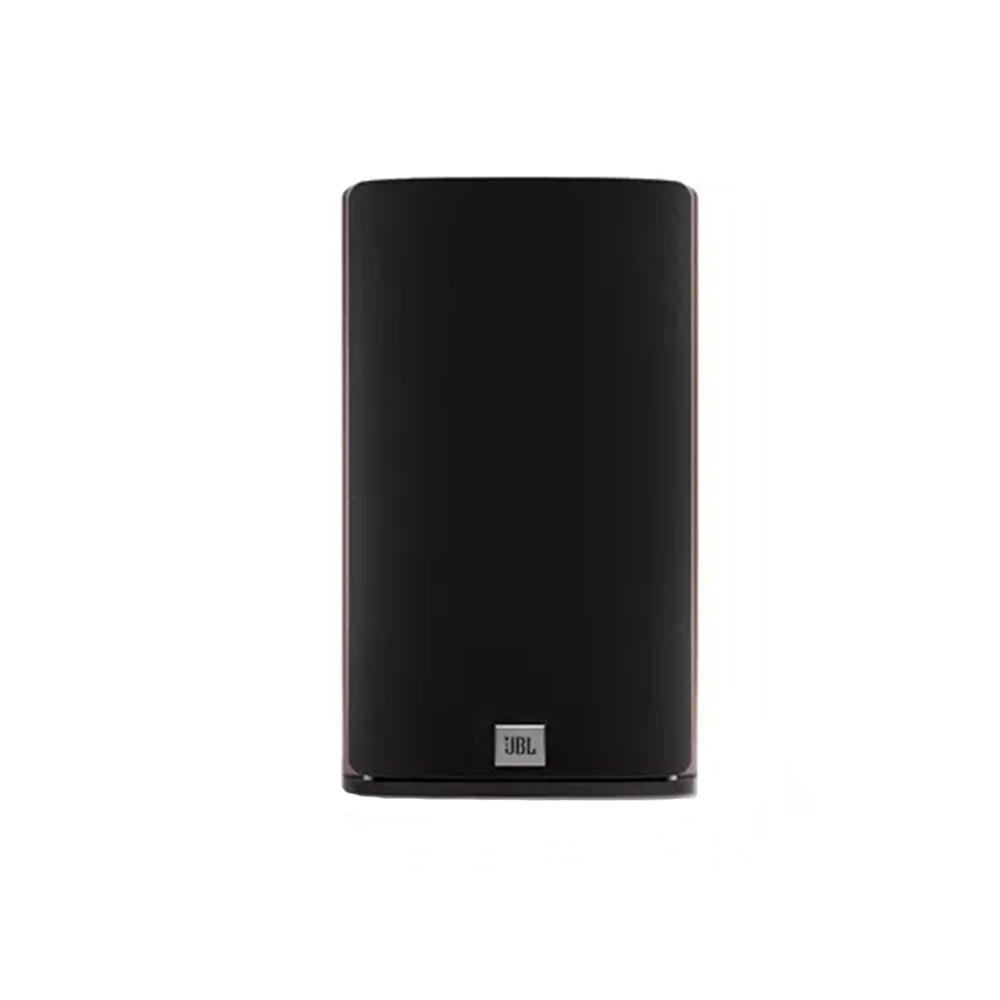

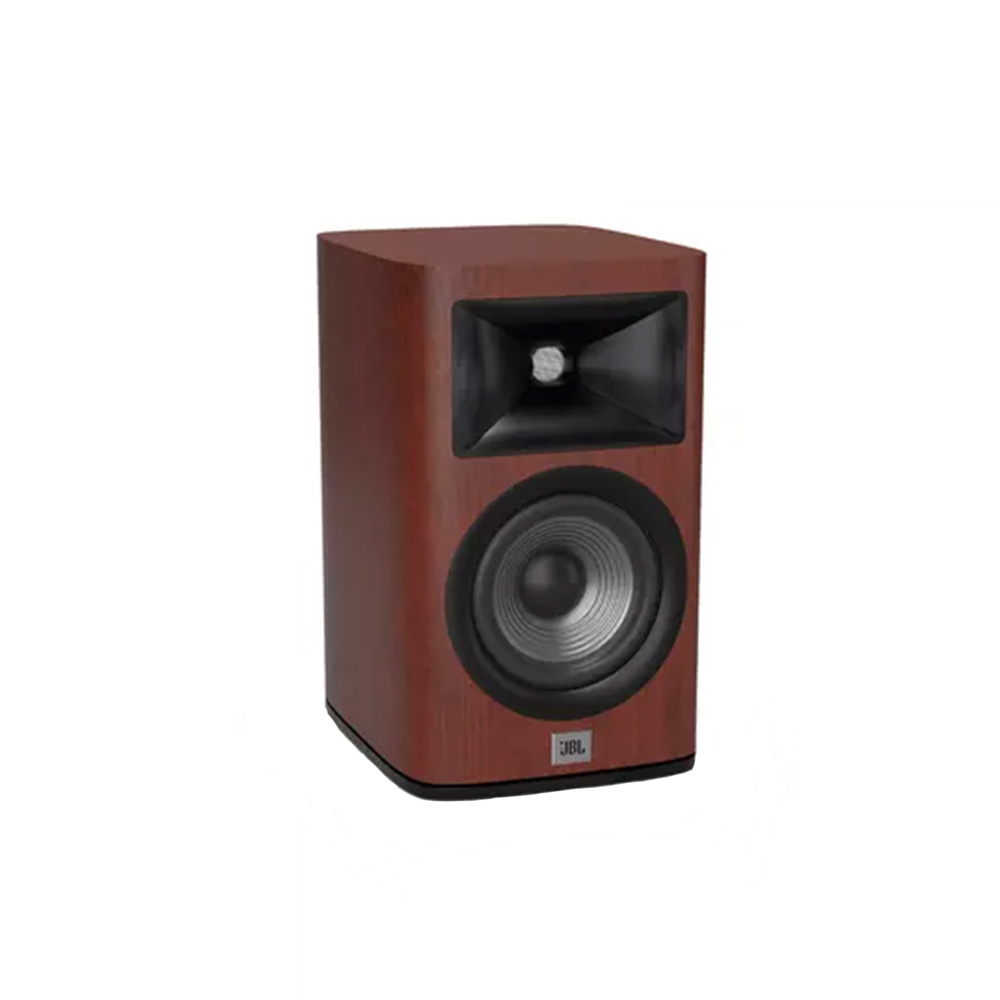

The JBL Studio 630 is a high-performance bookshelf loudspeaker utilizing JBL’s 2414H-1 1-inch compression driver mated to a High-Definition Imaging horn complemented with a 6.5-inch PolyPlas cone woofer. The elegant cabinet design includes a magnitically attached grille and brings an element of sophistication to any room. The Studio 6 Series delivers big dynamics, detailed sound, and powerful bass for true high-fidelity sound.

Description

 Top-graded PolyPlass cones

Top-graded PolyPlass cones




High-quality sounding compression drivers

High-quality sounding compression drivers
 New, appealing form factor

New, appealing form factor

High-Definition Imaging Waveguide With High-Frequency Compression Driver

High-definition imaging Waveguide with high-frequency compression driver

Single 6.5", 2-way compression driver bookshelf loudspeakerYes
6.5" (165mm) PolyPlas Low-Frequency WooferYes
High Definition Imaging (HDI) Waveguide with 1” (25mm) High Frequency Compression DriverYes
Recommended Amplifier PowerMax 150W
Frequency Response45Hz – 40kHz
Sensitivity85dB @ 1M, 2.83V
Nominal Impedance6 Ohms
Crossover Frequencies1.9 kHz

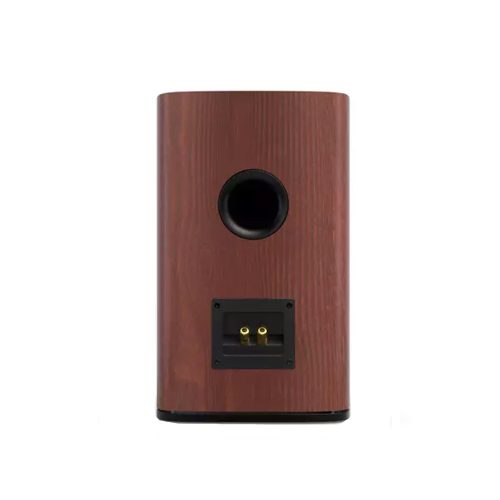

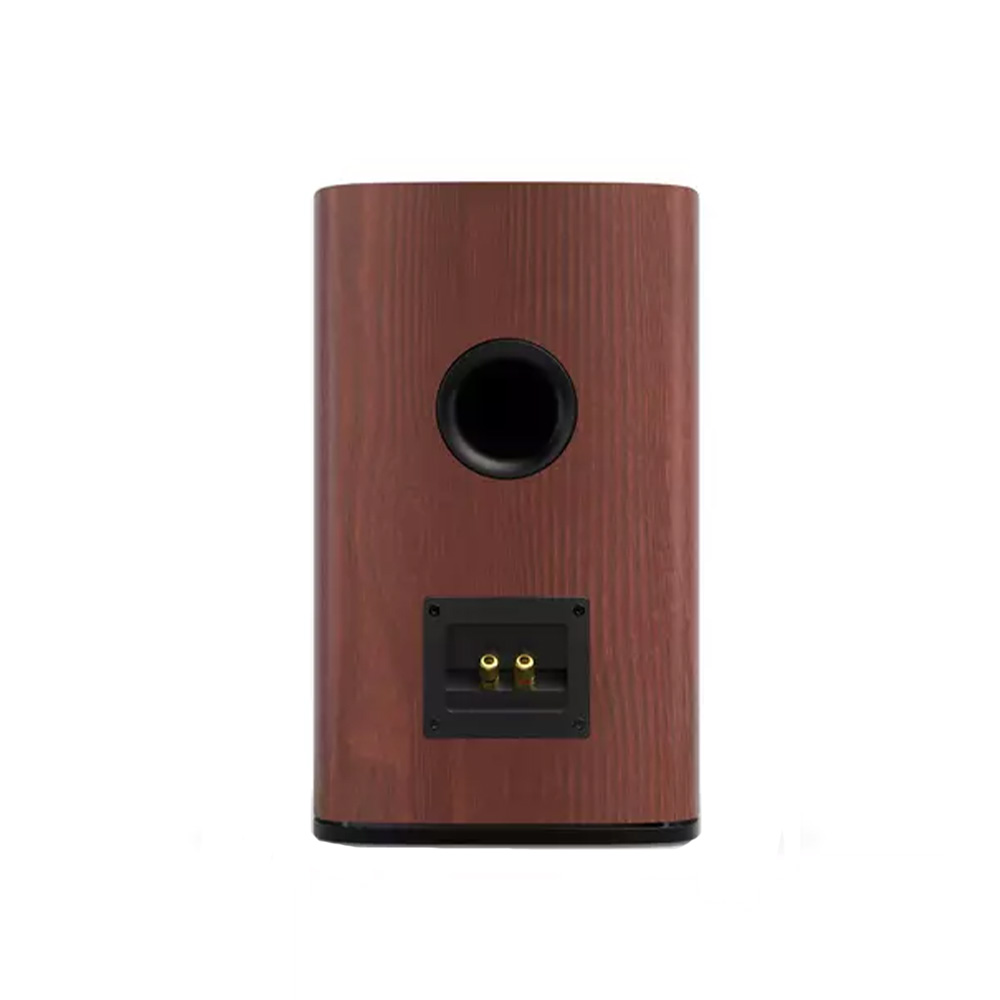

Enclosure TypeBass-Reflex via Rear-Firing Tuned Port
Dimensions (W x D x H)230 x 280 x 372mm
