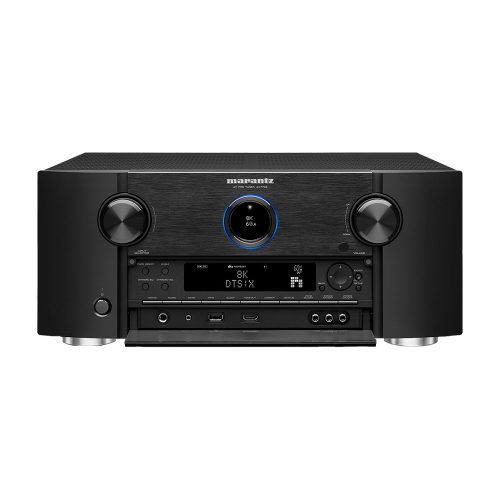

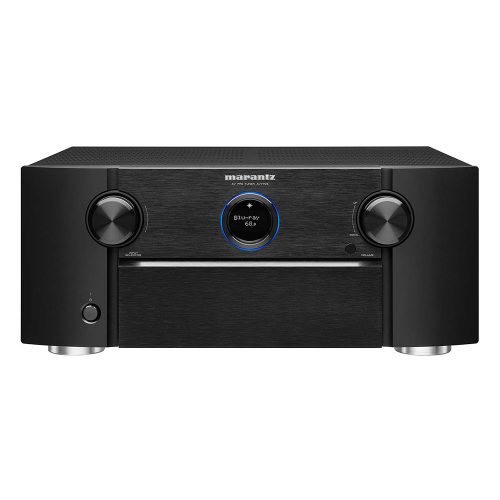

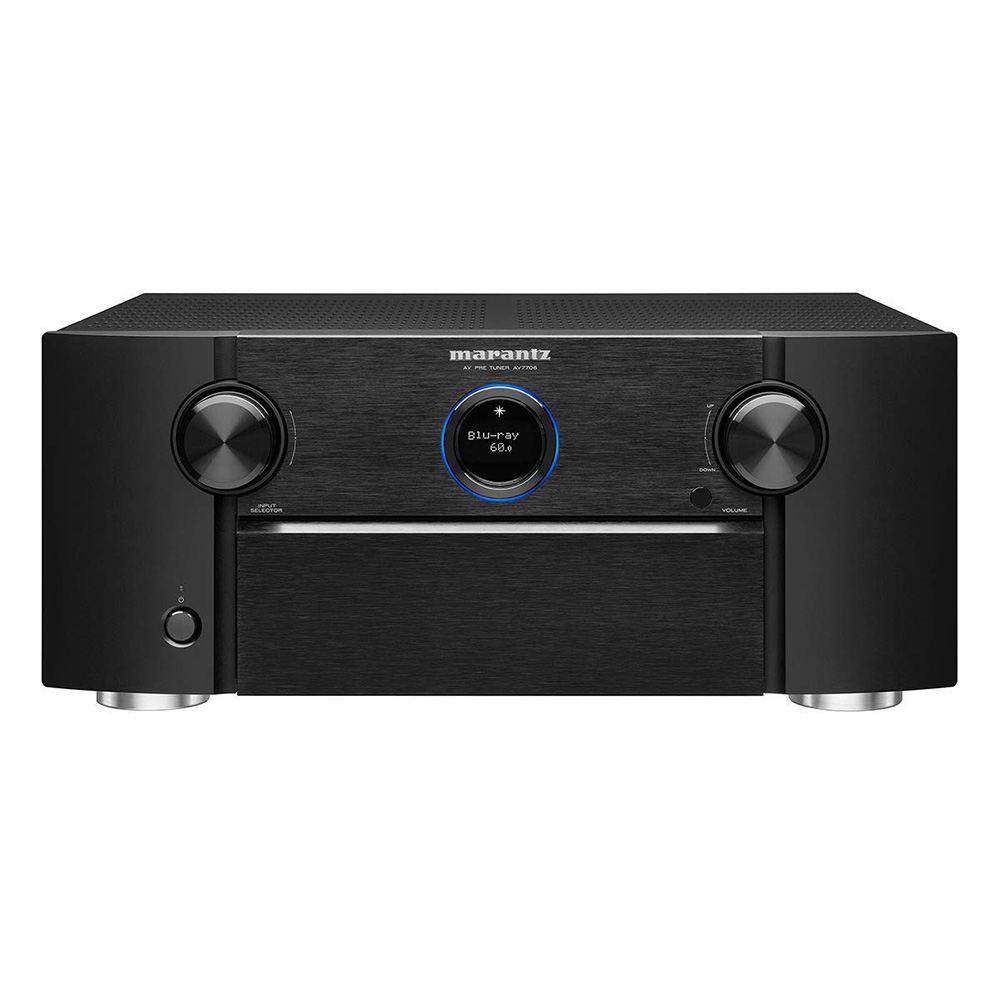

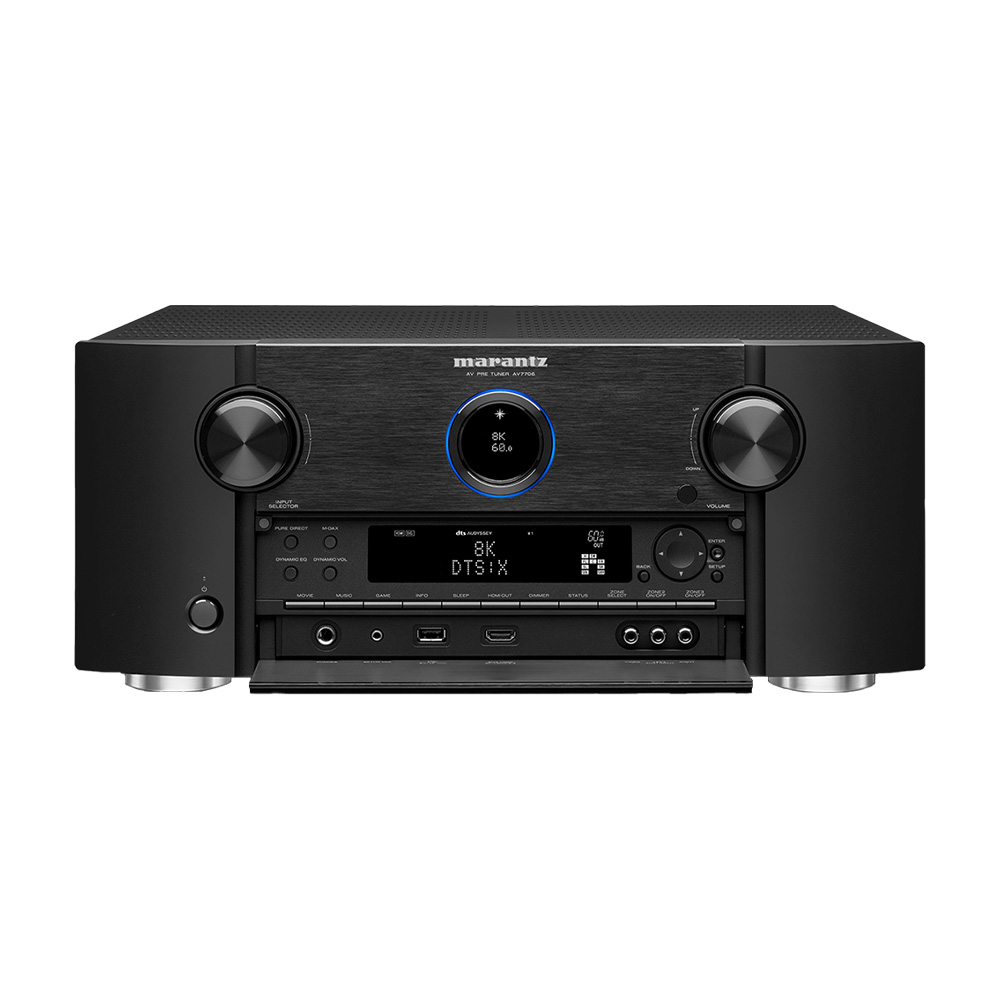

Marantz AV7706

Marantz AV7706

Featuring 11.2 channel XLR and RCA pre-outs, the Marantz AV7706 supports all 3D audio formats including Dolby Atmos® , Dolby Atmos Height Virtualization, DTS:X® , DTS Virtual:X™, IMAX Enhanced® , and Auro-3D® . Enjoy audio playback with exceptional quality thanks to Marantz-proprietary HDAM modules and stream from Amazon Music HD, Pandora, Spotify, TIDAL, Deezer, and more with HEOS® Built-in.

Categories: ,

Description

Advanced 11.2 channel pre-amplifier

Experience a versatile home theater setup with the new Marantz AV7706 processor/pre-amplifier. Featuring 11.2 channel XLR and RCA pre-outs, the AV7706 is built with masterful-quality external power amplification for the most demanding active speakers. Enjoy the audiophile sound you expect from Marantz combined with the latest video and audio decoding, as well as voice control with your favorite voice assistants.



Sophisticated engineering

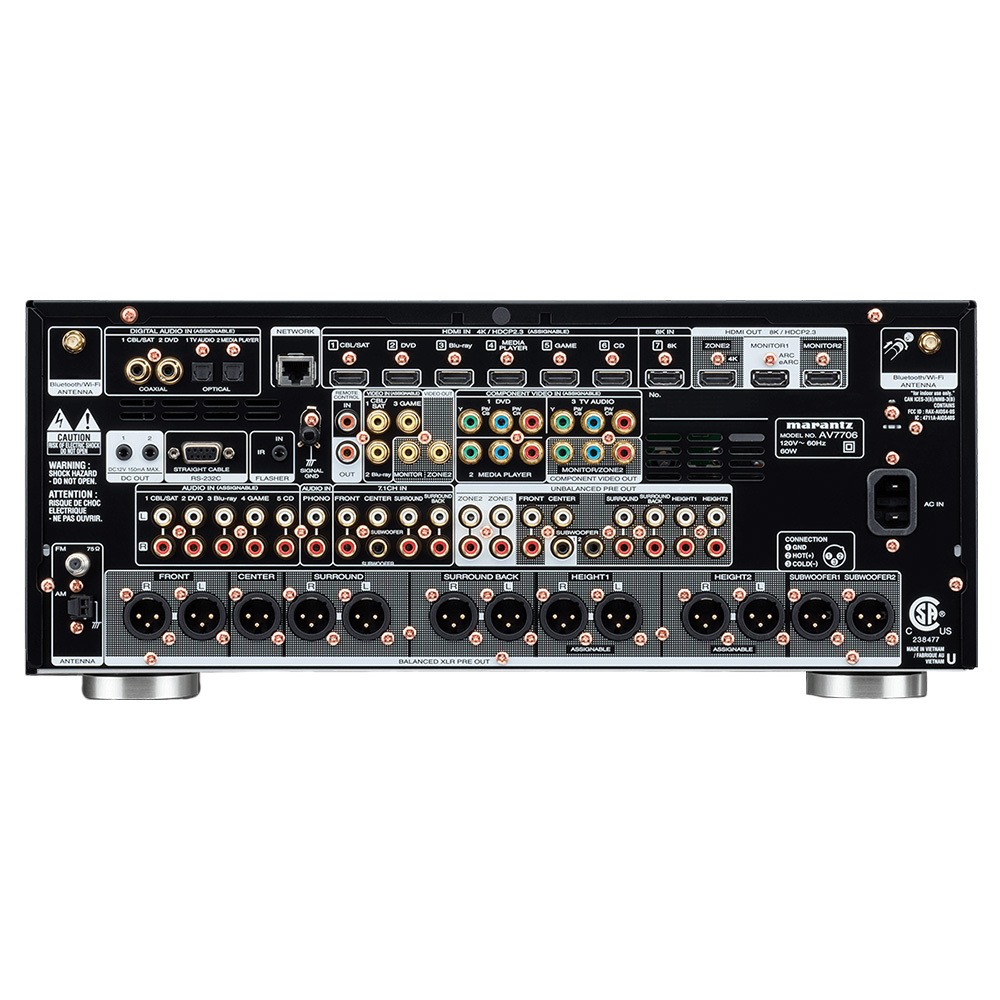

With 11.2 channel pre-outs on both conventional RCA sockets and balanced XLRs, the AV7706 is designed to work alongside high-quality external power amplifiers like the Marantz MM8077, MM7055, and MM7025.





Advanced 8K HDMI connectivity with eARC support

The new Marantz AV7706 includes 8 HDMI inputs and 3 outputs for all your favorite sources. One dedicated 8K input supports 8K/60Hz or 4K/120Hz pass-through capability, 4:4:4 Pure Color sub-sampling, Dolby Vision, HLG, HDR10, 21:9 video, 3D, and BT.2020 pass-through while the latest HDCP 2.3 copy protection standard is supported on all HDMI inputs.



Full 3D audio support

Immerse yourself in multi-dimensional audio with the latest surround formats, including Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X®, DTS Virtual:X™, IMAX® Enhanced, and Auro-3D®.



Marantz HDAM and current feedback topology

The AV7706 features exclusive Marantz Hyper Dynamic Amplifier Module (HDAM) technology that provide ultra-fast slew rate, true wideband performance, and maximum dynamic range for optimum sound quality.







The next chapter in movie entertainment

The new AV7706 offers the highest-quality, crystal-clear viewing experience. Enjoy your movies with 8K/60Hz pass-through or upscaling, as well the latest in HDMI technology like Dynamic HDR and Quick Media Switching (QMS), which is used in movies to eliminate video delay.



More than 60 Years of audiophile heritage

Founded in 1953, Marantz has a rich history of designing audio components embraced by music lovers and critical listeners around the world. Because Music Matters, the AV7706 continues our long tradition of delivering a best-in-class listening experience for music and cinema.

Multichannel Surround
Multichannel StereoYes
Max Number of Processing (Preamp) Channels11.2
Sound Enhancements
Copper Plated ChassisNo
Power Transformer: Toroidal / ElNo / Yes
Pure DirectYes
Gold plated RCA terminalsYes
Clock Jitter ReducerYes
AudysseyMultEQ XT32
Network
HEOS Multi-room and Streaming Yes
Network Audio SharingYes
DSD Audio StreamingYes (2.8/5.6MHz)
Ethernet PortsYes
Wi-FiYes
BluetoothYes
HDMI
Analog to HDMI Scaling480i/576i up to 8K 60/50
HDMI to HDMI Scalingup to 8K 60/50
HDMI Pass-Through in Standby ModeYes
Multi-Room / CI
HEOS Multi-Room IntegratedYes
Multi-Room Zones3
DC Trigger Output2
Others
FL Display2 lines + port hole
Variable Cross OverYes
ECO ModeNo
Auto Power offYes
Sleep TimerYes
General
System Remote ControlRC044SR
Power Consumption60W
Power Consumption No-Sound (ECO on/off)No
Standby Consumption0.2W
CEC Standby Consumption0.5W
Network Standby Consumption3.5W
Maximum Dimensions (W x H x D)Antenna (Horizontal): 439.42 x 185.42 x 411.48mm (17.3″ x 7.3″ x 16.2″)
Antenna (Vertical): 439.42 x 246.38 x 411.48mm (17.3″ x 9.7″ x 16.2″)
W/o Antenna: 439.42 x 185.42 x 401.32mm (17.3″ x 7.3″ x 15.8″)
Weight (TBD)10.39 kg (22.9 lbs)
