Stealth Acoustics Invisible Speakers LR3G

Full Range, Invisible In-Wall Or In-Ceiling Speaker

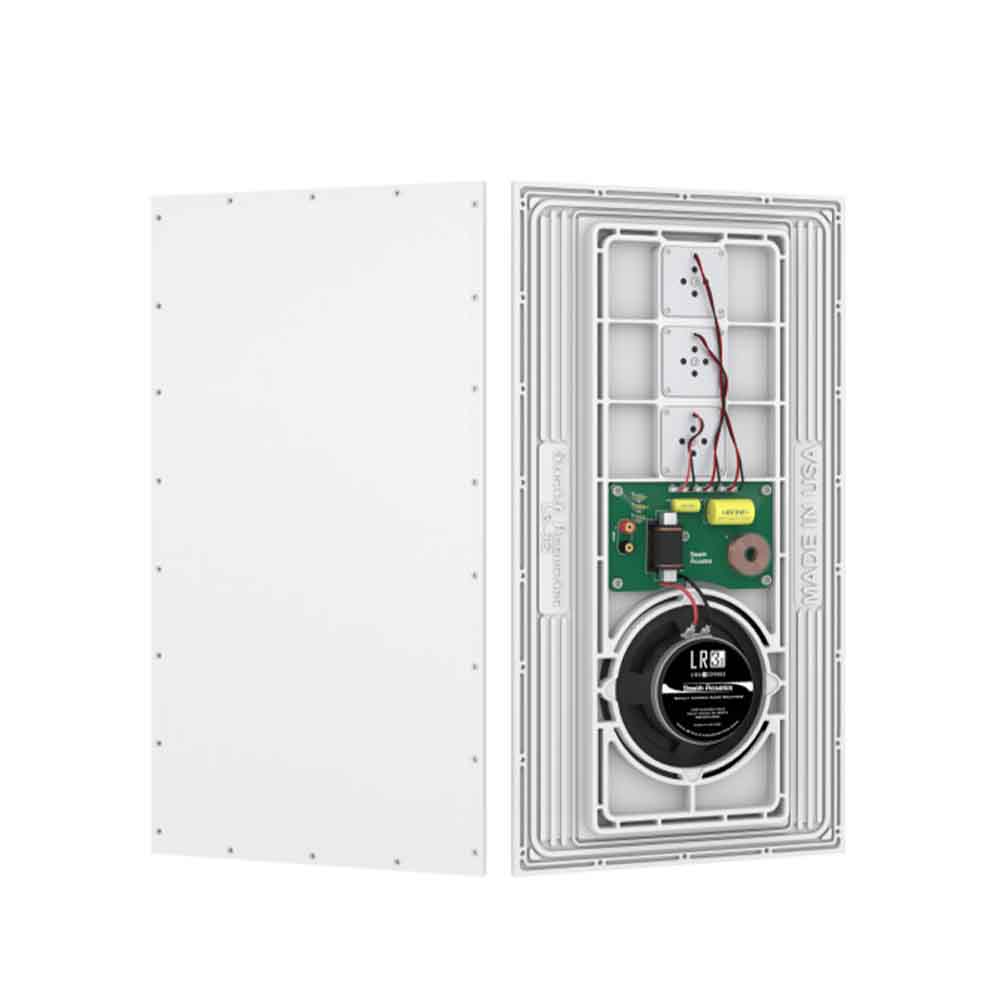

The Stealth Acoustics model LR3G is a 3-way, full-range speaker system that becomes completely invisible after installation. The speaker has a rigid frame that attaches directly to standard structural framing. The paintable active diaphragm face is bonded to the frame of the speaker panel, creating an active area surrounded by a stable mounting area.

Description

Specifications
Recommended Uses

Frequency Response:		45Hz to 20kHz
Power Capacity:		200 watts RMS 75 watts minimum recommended power
Protection:		Three independent self-resetting poly switches for low, mid-range and high frequency drivers
Sensitivity:		81 dB (1 watt / 1 meter)
System Impedance:		8Ω nominal
Driver Components:	High frequency:	1” (25 mm) neodymium motor
	Midrange frequency:	Two 1” (25 mm) neodymium motors
	Low-frequency:	1.5” (38 mm) voice coil, 8” (203 mm) woofer Ceramic 20 oz. (622 gr) magnet
Polar Dispersion:		170 degrees vertical and horizontal

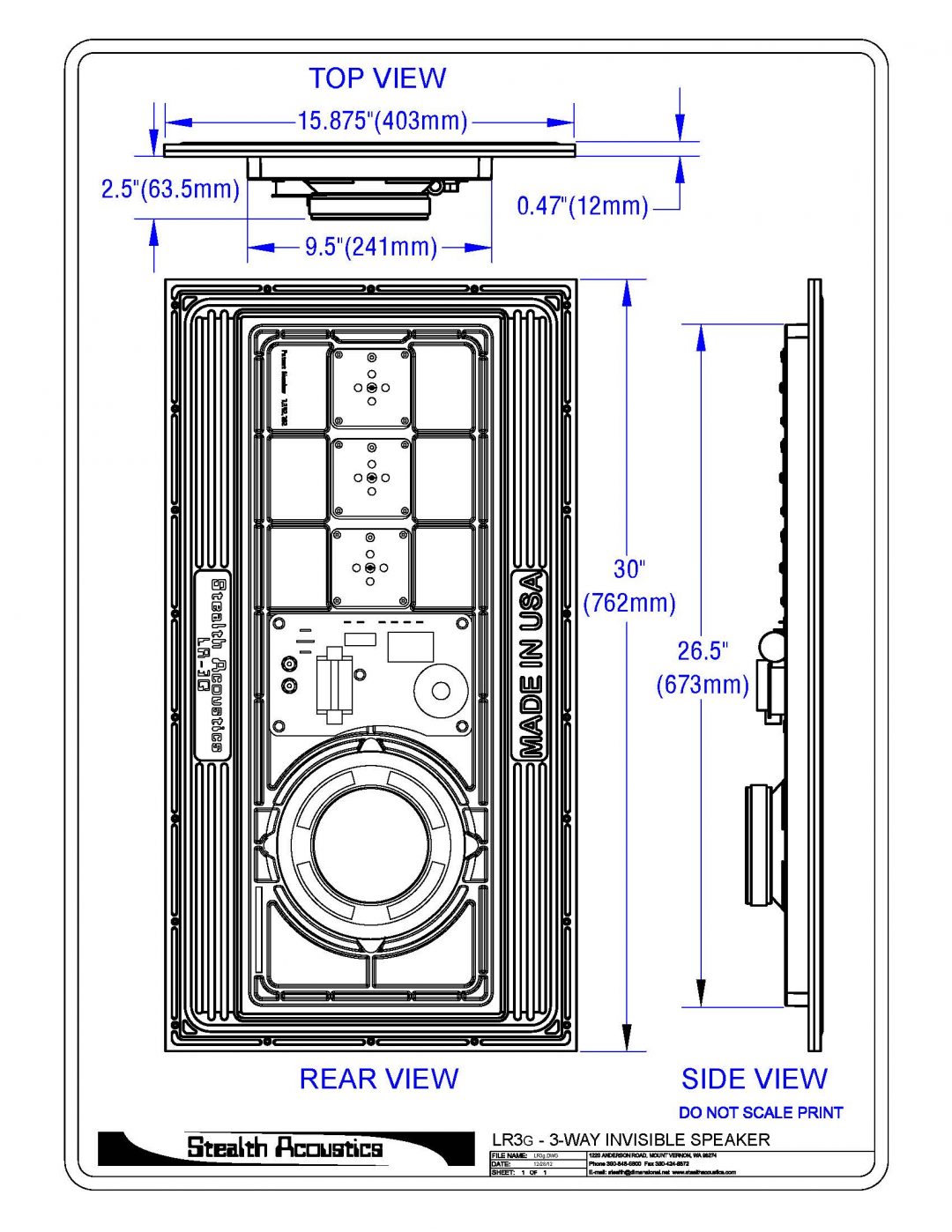

Dimensions:	W	15-7/8” (403 mm)
	H	30” (762 mm)
Mounting Depth:		2-1/2” (64 mm)
Product Weight:		19 lbs. (8.8 kg) each
Shipping Weight:		44 lbs. (20 kg) per pair 26 lbs. (11.8 kg) per single
Included Accessories:		Mounting shims Shim tape Mounting screws Terminal wrench
Optional Accessories:		PS-30 PlaceSaver BX-30 MDF Acoustical Back Box MBX-30 UL Listed Metal Back Box MBA-30 UL Listed Adjustable Metal Back Box MBC-30 Concrete Back Box SK-1 Shim Kit CVXMR 100, 75 and 25 volt Constant Voltage Transformers WARRANTY – Extended Warranty 15 year
