Stealth Acoustics Invisible Speakers LR6G

Full Range, 2-Way Invisible In-Wall Or In-Ceiling Speaker

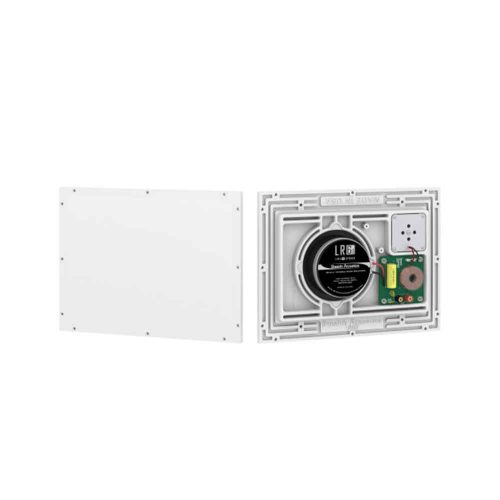

The Stealth Acoustics model LR6G is a 2-way, full-range speaker system that becomes completely invisible after installation. The loudspeaker has a rigid frame that attaches directly to standard structural framing. The paintable active diaphragm face is bonded to the frame of the speaker panel, creating an active area surrounded by a stable mounting area.


Frequency Response:
45Hz to 20kHz
Power Capacity:100 watts RMS

50 watts minimum
recommended power
Protection:Two independent self-resetting
devices (low and high frequency)
Sensitivity:83 dB (1 watt / 1 meter)
System Impedance:8Ω nominal
Driver Components:High frequency:1” (25 mm) neodymium motor
Low-frequency:1.5” (38 mm) voice coil, 6.5” (165 mm) woofer

Ceramic 20 oz. (622 gr) magnet
Polar Dispersion:170 degrees vertical and horizontal

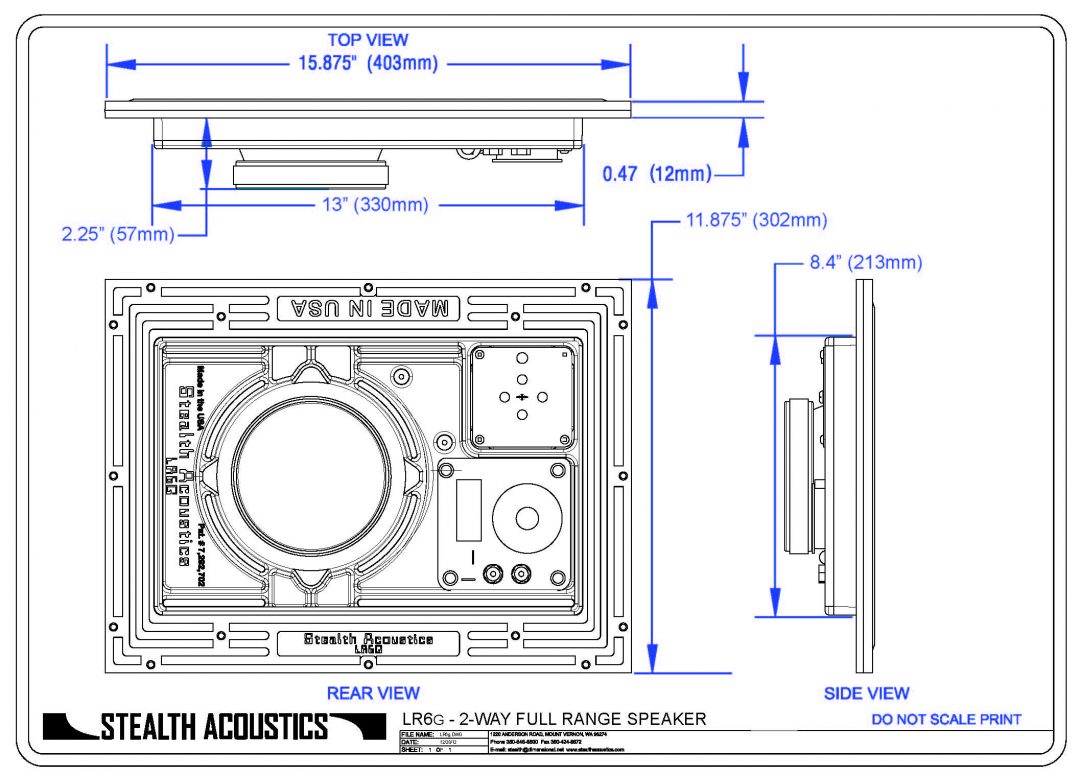

Dimensions:W15-7/8” (403 mm)
H11-7/8” (302 mm)
Mounting Depth:2-1/4” (58 mm)
Product Weight:8.7 lbs. (3.9 kg) each
Shipping Weight:21 lbs. (9.5 kg) per pair

13 lbs. (5.9 kg) per single
Included Accessories:Mounting shims

Shim Tape

Mounting screws

Terminal wrench
Optional Accessories:PS-12 PlaceSaver

BX-12 MDF Acoustical Back Box

MBX-12 UL Listed Metal Back Box

MBC-12 Concrete Back Box

SK-1 Shim Kit

CVXMR 100, 75 and 25 volt Constant Voltage Transformers

WARRANTY – Extended Warranty 15 year

Stealth Acoustics
