SUB8 In-Wall Subwoofer

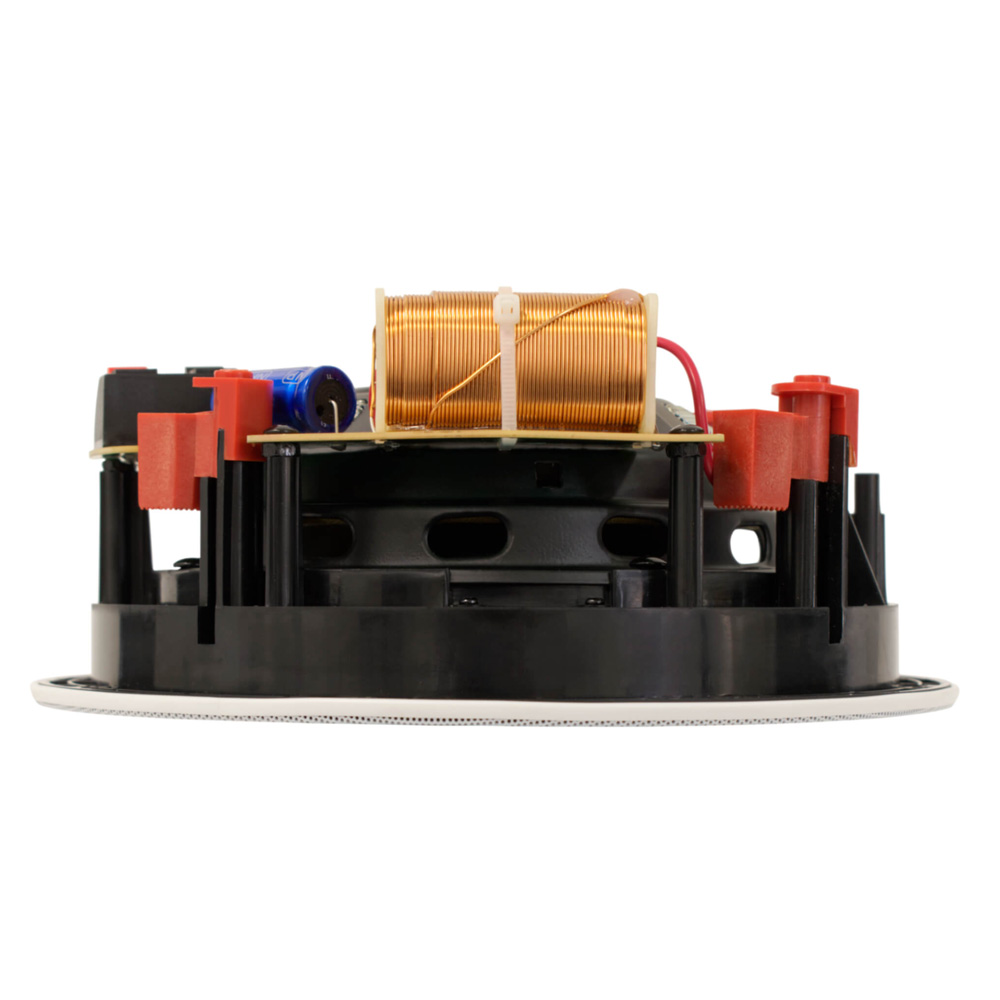

Earthquake newly released SUB6 and SUB8 passive subwoofers powered by the SWS patented design deliver impressive bass from a shallow space. In fact, these subwoofers deliver twice the excursion of any other conventional speaker with the same mounting depth. Impressive bass performance can now be invisible allowing the home integrator or installer to use these subs in 2×4 walls or ceilings with round or square edgeless and paintable grilles (both included). The SUB6 and SUB8 are also equipped with a 100% copper wire crossover network to filter out voices and instruments leaving you with pure bass. Constructed from long-lasting and high-quality components, the SUB6 and SUB8 are a great choice to quickly and efficiently add more bass to any room whether it is for new constructions or existing home theaters.

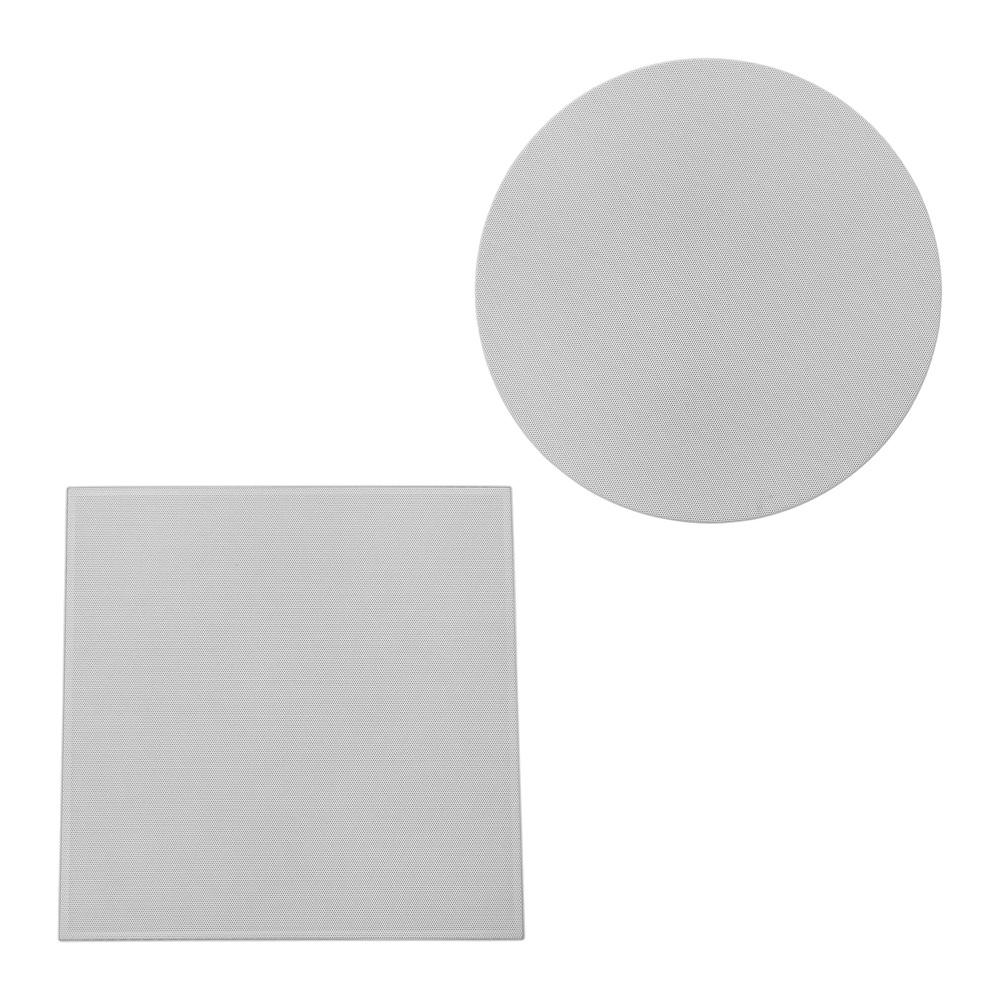

  • Round and square grilles included
  • Grille Finish: White/Paintable
  • Easy to use Turn-N-Lock mounting mechanism
  • Push type spring loaded terminals
  • High temperature voice with heat-sink attachment

Description

Woofer Size203.20 mm (8″)
Power Handling300W MAX
Frequency Response30Hz–500Hz
Sensitivity86.7dB
Impedance8 Ohm
Voice Coil Diameter38.1mm (1.5″)
100Hz LP 6dB/Oct filter network crossover
Overall Diameter267mm (10.5″)
Cut-out Diameter240mm (9.5″)
Mounting Depth91.94mm (3.62″)
Weight2.34kg (5.16 lbs)
