Recommended Amp Power:
50 – 160 watts
Impedance:
4 ohms
Sensitivity (1 watt/ 1 meter):
Bipole: 86 dB
Anechoic Frequency Response:
80 Hz – 20 kHz
Tweeter Type:
Broad Dispersion Polycone
Tweeter Size:
(2) 4″ (10 cm)
Woofer Type:
Paper/ fiber blend
Woofer Size:
(1) 6 1/2″ (17 cm)

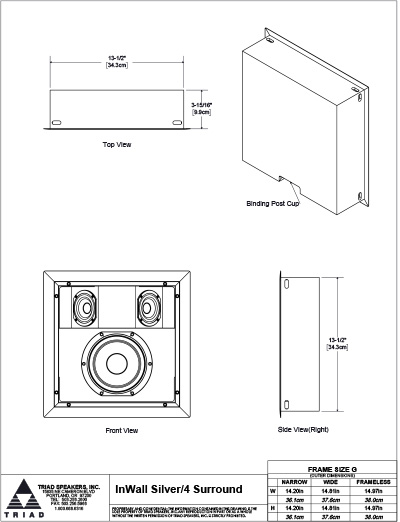

Dimensions:
Height: 13 1/2″ (34.3 cm)
Width: 13 1/2″ (34.3 cm)
Depth: 3 15/16″ (9.9 cm)
Hole Cut Out – Height:
13 5/8″ (34.6 cm)
Hole Cut Out – Width:
13 5/8″ (34.6 cm)
Frameless Grill Dimensions:
W: 14 5/16″ X H: 14 15/16″ (W: 38 cm x H: 38 cm)
Product Weight:
13 lbs. (5.9 kg)
Shipping Weight:
16 lbs. (7.3 kg)
NCB Size:
G
