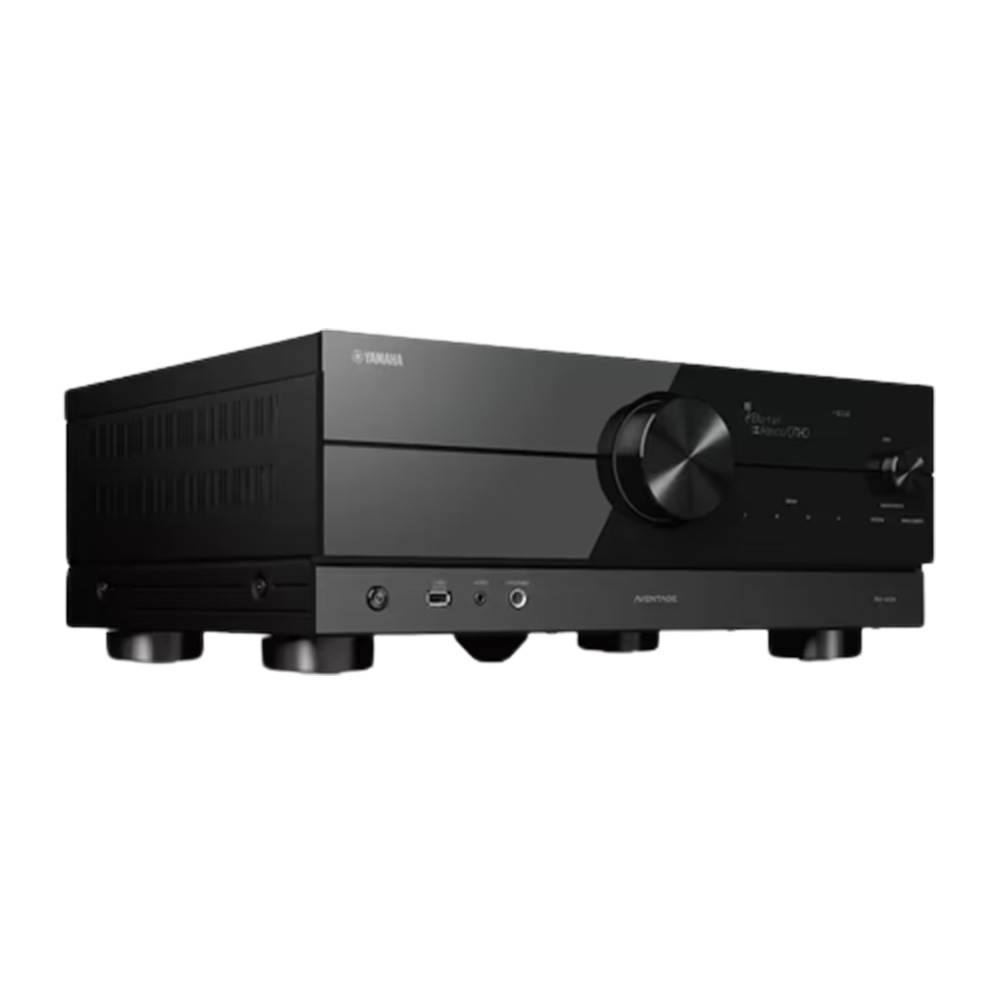

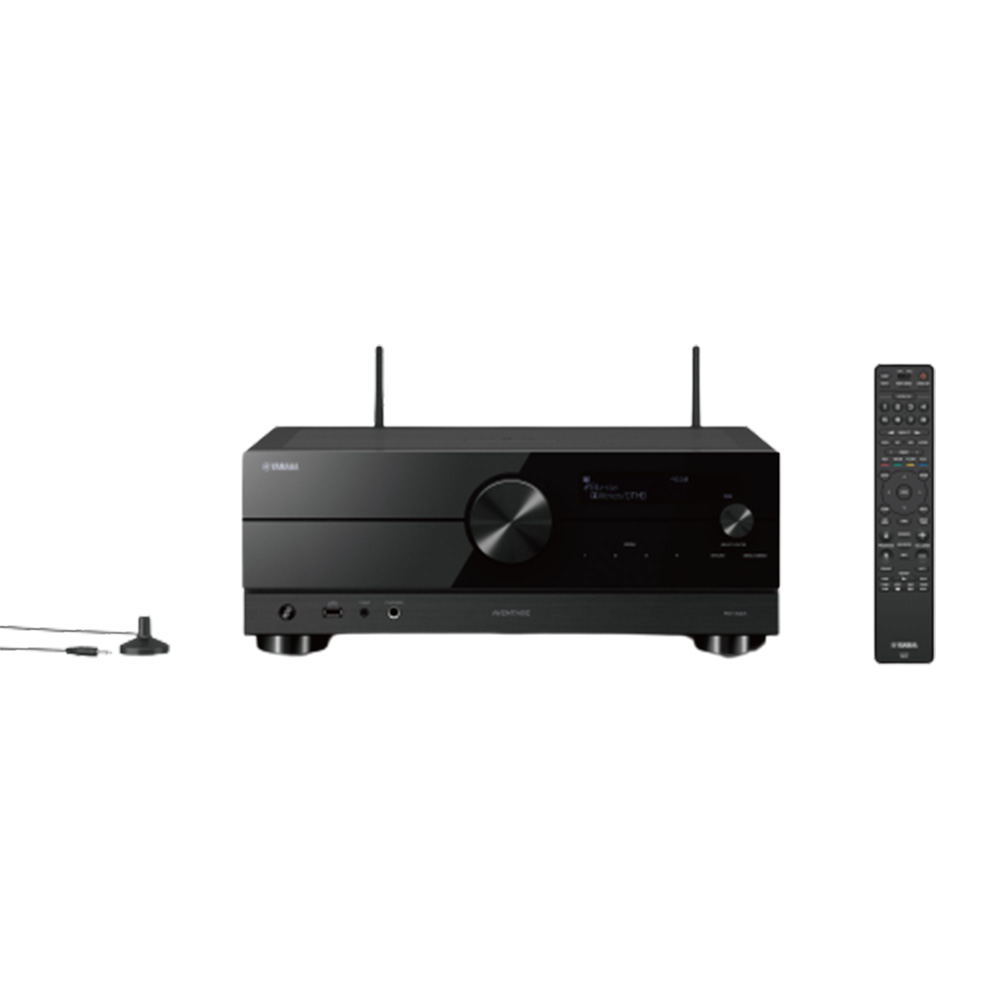

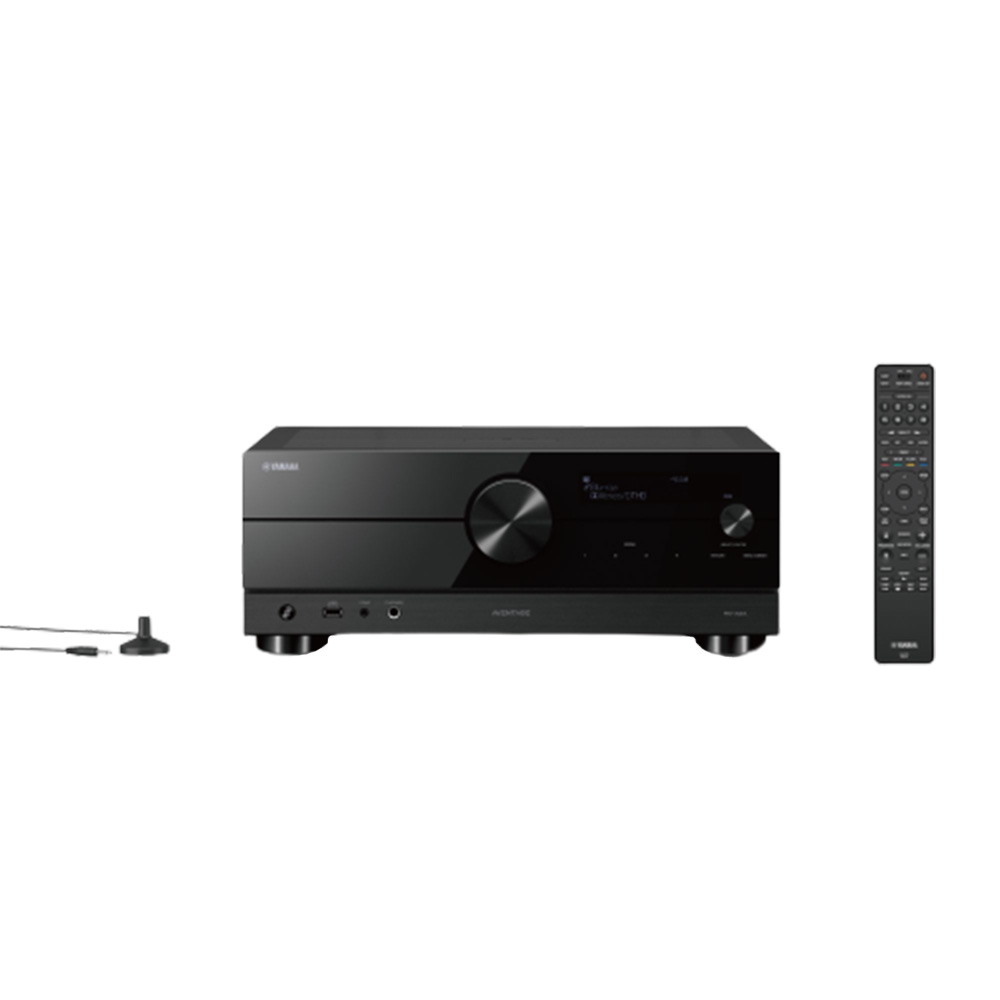

Yamaha AVENTAGE AV Receiver RX-A2A

With its powerful design, the A2A was made to deliver rock-solid, superior sound. This impressive AV receiver will completely transform your home cinema with professional-quality audio and video.

Description

Yamaha RX-A2A A2A AVENTAGE Receiver Amp

BREATHTAKING SOUND

Dolby Atmos® with Height Virtualizer

Puts you at the center of the action by positioning sounds to different points in your room, including from above.

High Slew Rate Amplifier

Responds to rapid changes of input level for precise and stable signal transmission.

Crafted for Clarity

Anti Resonance Technology (A.R.T.), a fifth foot in the center of the unit, provides additional stability from external vibrations. Enjoy crystal clear, solid sound.



Yamaha RX-A2A A2A AVENTAGE Receiver Amp

MOVIES AND GAMES LIKE NEVER BEFORE

4K/120Hz

Enables a higher refresh rate, giving you a smoother and more realistic viewing experience.

HDR10+

Provides deeper contrast and more realistic images that stay true to the creators' intent.

Gaming-dedicated Functions (ALLM,VRR,QMS,QFT)*

Ensures seamless motion and transitions to enhance your performance.

HDMI multiple Input with latest technology*

Multiple HDMI input will equally support the latest HDMI technology to allow next-gen gaming consoles can be connected at the same time.

*These functions are available via future update.



Yamaha RX-A2A A2A AVENTAGE Receiver Amp

SIMPLE TO SET UP, SIMPLE TO USE

MusicCast App

Explore the power of multi-room audio, access your sources and streaming devices, and control your AV receiver, all through your smartphone.

Voice Control

Works with Alexa and Google Assistant, so your AV receiver is always at your command. Through AirPlay 2, you can stream your music via voice control operation Siri from Apple iOS device. *Availability varies by region.

AV Setup Guide App

Offers expert guidance through installation, cable connections, and various other settings.



Yamaha RX-A2A A2A AVENTAGE Receiver Amp

DESIGNED FOR YOUR SPACE

YPAO™ R.S.C/Multi-Point

Calibrates sound to your room by analyzing room acoustics and measuring speaker characteristics. This feature also optimizes sound parameters for maximum performance from CINEMA DSP, Dolby Atmos®, DTS:X®.

Compatible with Wireless Rear Speaker

Gives you the freedom to arrange your rear speakers wirelessly to suit your home décor.

Dynamic and Compelling Design

Classic Yamaha craftsmanship meets cutting-edge design. Every piece has been carefully crafted to ensure this AV receiver looks and sounds perfect in your home.

Amplifier SectionChannel7.2
Rated Output Power (1kHz, 1ch driven)125 W (8 ohms, 0.9% THD)
Rated Output Power (20Hz-20kHz, 2ch driven)100 W (8 ohms, 0.06% THD)
Maximum Effective Output Power (1kHz, 1ch driven)150 W (8 ohms, 10% THD)
High Slew Rate AmplifierYes
Surround Sound ProcessingSurround:AIN/A
CINEMA DSPYes
DSP Programs17
Dialog Level AdjustmentYes
Virtual Presence SpeakerYes
Virtual Surround Back SpeakerYes
Dialogue LiftYes
SILENT CINEMA / Virtual CINEMA DSPYes
Dolby AtmosYes
Dolby Atmos Height VirtualizerYes
Dolby TrueHDYes
Dolby Digital PlusYes
Dolby SurroundYes
DTS:XYes
DTS-HD Master AudioYes
Audio FeaturesFile FormatMP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 384 kHz / 24-bit, WAV / AIFF: up to 384 kHz / 32-bit, DSD: up to 11.2 MHz
Pure DirectYes
Compressed Music EnhancerYes
High-resolution Music EnhancerN/A
YPAO multi-point measurementYes
YPAO VolumeYes
Adaptive DRC (Dynamic Range Control)Yes
Initial Volume & Maximum Volume SettingYes
A.R.T. WedgeYes
Bi-amp capabilityYes
Audio DelayYes (0-500 ms)
DA Converter384 kHz / 32-bit BB PCM5102A
Video FeaturesHDMI eARCYes
HDMI Audio Return ChannelYes
HDMI Pass-through8K60B, 4K120AB, 24GBPS *HDMI1-3
HDMI Up-scalingYes up to 4K
HDMI Up-conversionN/A
Dolby VisionYes
HDR 10+Yes
VRR/ALLM/QMS/QFTYes (via future update)
Video adjustmentN/A

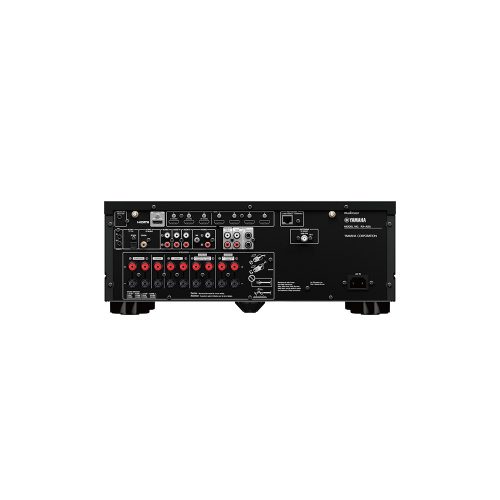

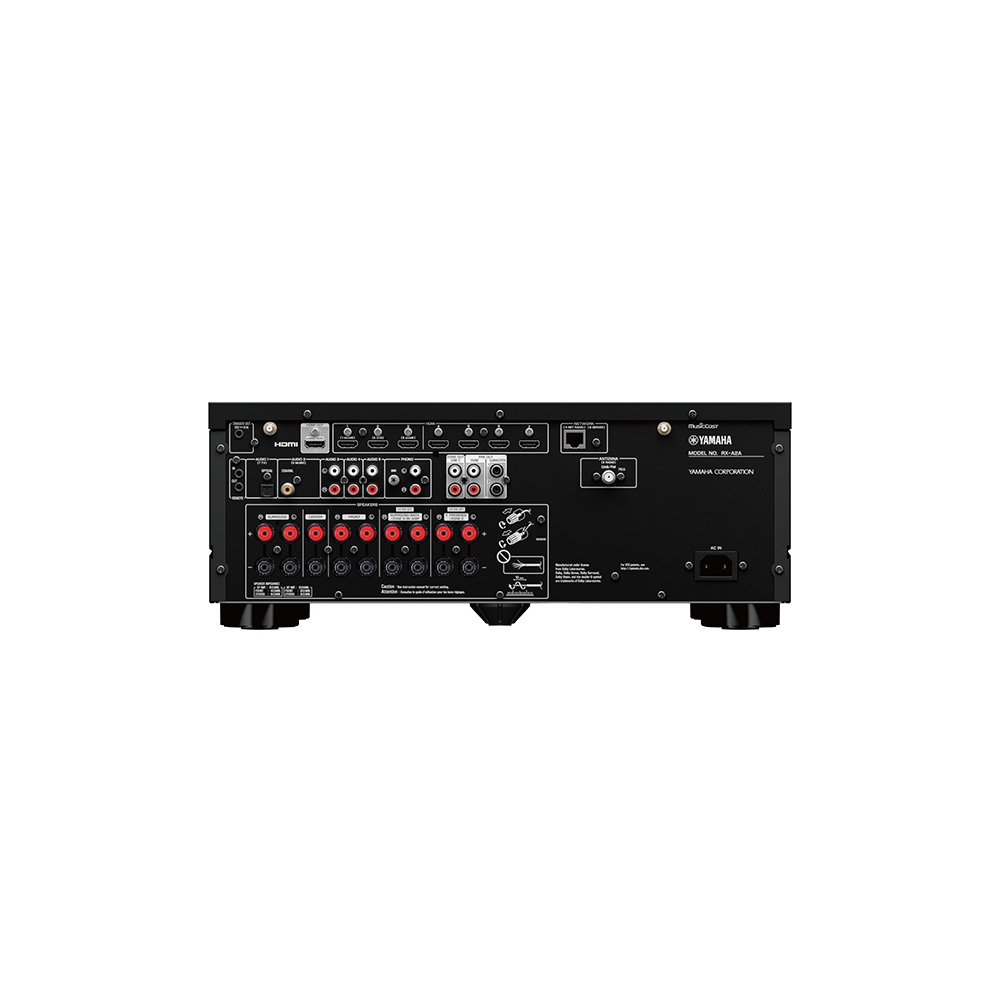

ConnectivityMusicCast SurroundYes
HDMI Input/Output7 / 1
HDMI CECYes
USB InputYes
Network PortYes
Wi-FiYes (2.4 / 5 GHz)
AirPlay 2Yes
BluetoothYes (SBC / AAC)
Front AV InputUSB
Digital Audio Input/Output: Optical1 / 0
Digital Audio Input/Output: Coaxial1 / 0
Analog Audio Input/Output4 / 0
Phono InputYes
XLR TerminalN/A
Component Video Input/OutputN/A
Composite Video Input/OutputN/A
Preout2.2-ch
Headphone Output1
Tuner SectionFM/AM TunerYes (Availability varies by region.)
DAB TunerYes (Availability varies by region.)
User InterfaceOn-screen displayGraphical User Interface
SCENEYes (8 sets)
App ControlYes (iPhone / iPad / Android phone / tablet)
Web Browser ControlYes
Remote Control UnitYes
Zone ControlZone 2 Audio OutputPreout
Zone 3 Audio OutputN/A
Zone 4 Audio OutputN/A
Powered ZoneZone 2
Zone Video OutputN/A
Zone B OutputN/A
Zone GUIN/A
RS-232C InterfaceN/A
+12V Trigger Output1
Remote (IR) Input/Output1 / 1
Party ModeYes
GeneralStandby Power Consumption (IR only)0.1 W
Auto Power StandbyYes
ECO modeYes
Dimensions (W x H x D)435 W x 171 H x 372 D mm (with antenna up:435 W x 245 H x 372 D mm)17-1/8"W x 6-3/4"H x 14-5/8"D (with antenna up:17-1/8"W x 9-5/8"H x 14-5/8"D)
Weight10.2 kg; 22.5 lbs.
