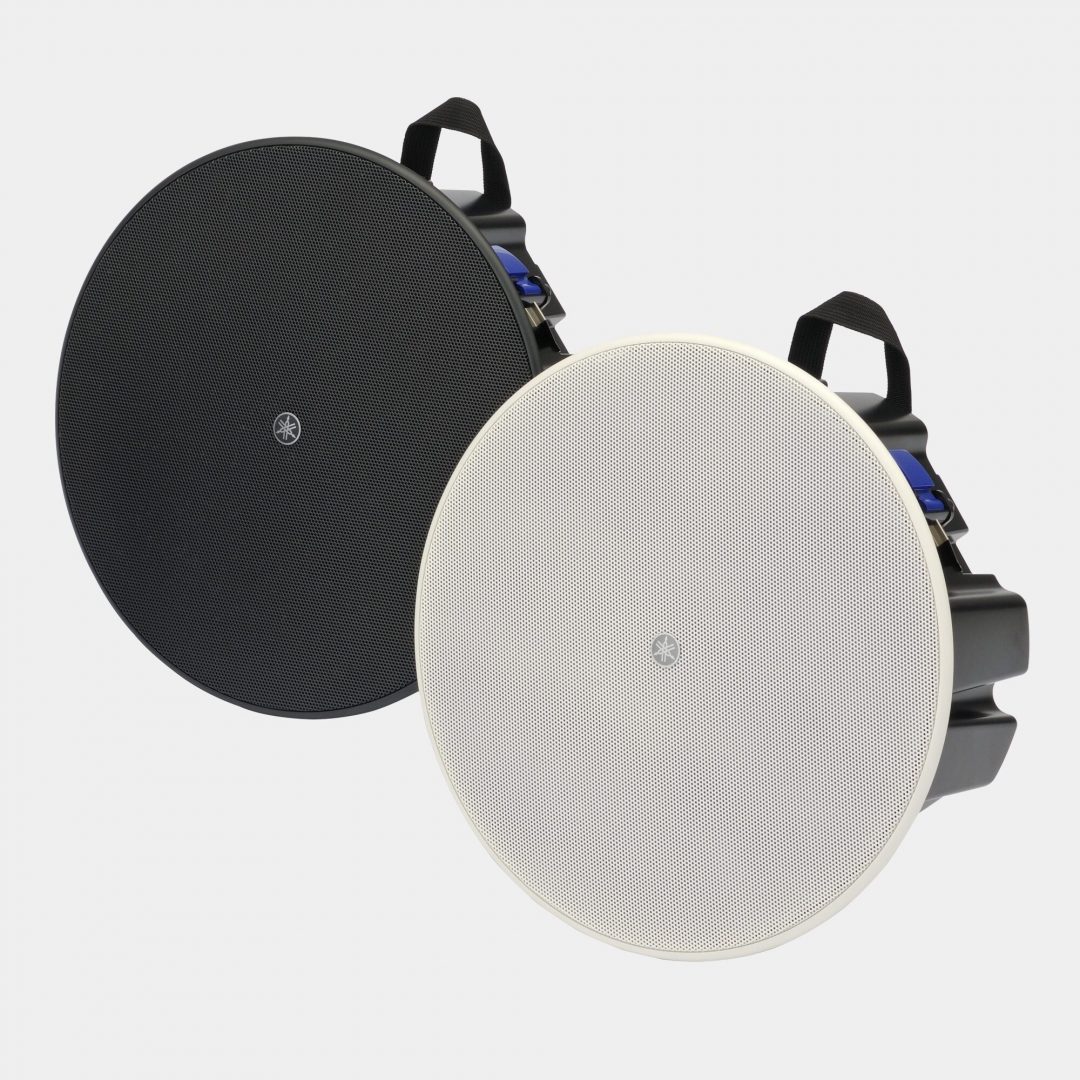

Yamaha Ceiling Speakers VXC Series “F model” VXC5F / VXC5FW

4.5″ full-range low-profile ceiling speaker

  • 4.5” full-range speaker unit
  • Engineered for optimum BGM reproduction
  • Low-profile design facilitates installation in limited ceiling spaces
  • Direct support for low-impedance or high-impedance connections
  • Built-in carrying band increases safety during installation

Description

Yamaha’s deep understanding of music comes together with cutting edge technology in newly designed speaker units and resin enclosures that allow an extraordinary degree of acoustic design freedom, resulting in refined, natural music reproduction at any volume level without the midrange distortion that often plagues speakers of this type. The VXC-F’s speaker unit size and back box volume have also been painstakingly matched to achieve well-balanced reproduction from low to high frequencies even at low output levels.

Recommended Applications

Restarurant, cafe, bar, retail stores, spa, museum, hotel lobby, ball room, etc.



The VXC-F ceiling speakers feature low profile back boxes, reduced weight, and mechanical features that contribute to significantly safer, faster installation. And since these models support both low-impedance and high-impedance connection, the need for extra stock is minimized and systems can be designed to ideally meet the requirements of any application.

Carrying Band

Anti-Drop Tab

Hi-Z or Lo-Z

Yamaha

Both high-impedance and low-impedance connections are supported, and speaker wattage can be easily switched even after installation.

Low Profile

Reduced physical depth allows installation in ceilings where space is limited.

Lightweight

Reduced weight increases installation flexibility while lessening the burden on installation personnel.

Portable

A built-in “carrying band” not only makes the speaker easy to carry around, but also increases safety when working on a stepladder.

Secure

An anti-drop tab mechanism securely holds the speaker in place so that the installation can proceed safely and efficiently. There’s also a release lever that allows the speaker to be smoothly removed from the ceiling as required.

* Not available with the VXC2F

Fast

Double threaded screws used for the speaker clamp mechanism allow the clamps to be tightened twice as fast as conventional screws.

Streamlined

The supplied speaker grilles are firmly and elegantly held in place by powerful magnets. An anti-drop wire is also included.

Paintable

The supplied grilles can be painted any color to match interior decor.



EN54-24 Certified Versions with Uncompromised Performance

EN54-24 Certified Versions with Uncompromised Performance

Yamaha also offers “VA versions” that meet European EN54-24 voice alarm system requirements. These models have been carefully tuned to retain the natural musical instrument and voice reproduction quality that is a feature in all VXC-F speakers, delivering refined BGM during normal operation while providing exceptional clarity for emergency broadcasts. The ability to support both music playback and emergency broadcasts with a single speaker type contributes to reduced system complexity and cost.

*Available models: VXC5F-VA/VXC5F-VAW/VXC3F-VA/VXC3F-VAW

Speaker typeFull range, Bass reflex
Frequency range (-10dB)60 Hz – 20 kHz (Half-space:2π)
Nominal coverage130° conical (Half-space :2π)
ComponentsLF-HF4.5” Full range unit
Power ratingNOISE40 W
PGM80 W
PEAK160 W
Nominal impedance8 Ω
Transformer taps100V30 W, 15W, 7.5 W
70V30 W, 15 W, 7.5 W, 3.8 W
SPLSensitivity (1W; 1m on axis)87 dB SPL (Half-space:2π)
Peak (Calculated)109 dB SPL (1m, Calculated based on power rating and sensitivity, exclusive of power compression)
I/O connectors1x Ceramic terminal block (3P) (input: +/-, Earth)
Protection circuitLoad protectionFull-range power limiting to protect network and transducers
FinishVXC5F-VA: Black (approx. Munsell N3), VXC5F-VAW: White (approx. Munsell N9.3)
WaterproofIP32
DimensionsDiameter324 mm (12-13/16″)
D143 mm (5-11/16″)
Net weight3.2 kg (7.1 lbs)
Cutout sizeØ285 mm (Ø11-1/4″)
Required ceiling board thickness5 mm – 37 mm
AccessoriesO-ring, Tile Rail, Cutout Template, Euro Block (4pin), Terminal Cover
PackagingPackaged in pairs
CertificateEN54-24, CE, EAC
EN54-24 complianceYes (DoP No. 0560-CPR-152190027)
OthersConduit tube: Ø15.4 mm – Ø21.3 mm
