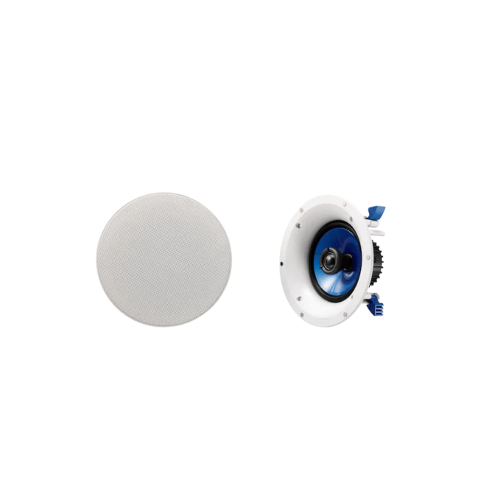

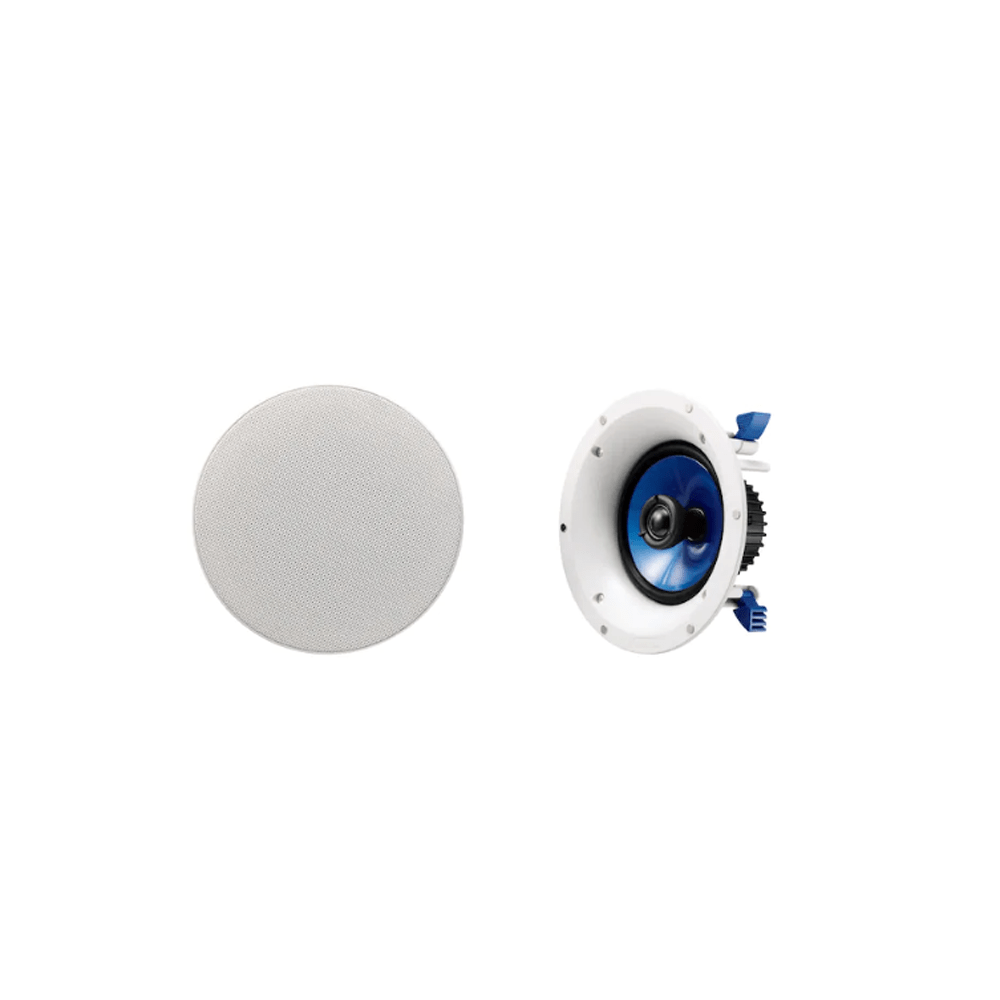

Yamaha Coaxial Ceiling Speaker NS-IC600

Yamaha Coaxial Ceiling Speaker NS-IC600

A 6-1/2″ coaxial ceiling speaker with cone woofer, fluid-cooled soft-dome swivel tweeter, 110W power handling, horn-shaped acoustic baffle and thin, light grille

Categories: ,

Description

  • Blue PP mica cone woofer
  • Fluid-cooled soft-dome swivel tweeter
  • 140W high power handling capacity
  • Horn-shaped acoustic baffle with spiral pattern produces a clean and natural sound
  • Thin grille with slim edge becomes almost invisible after installation
  • Protective plastic cover on the back
  • Light grill with magnetic catch is easy to attach and remove for spray painting and cleaning
  • Large dog-eared clamp with non-slip tread for sure installation
Type2-way coaxial
Woofer6.5” (16 cm) PP (polypropylene) mica cone
Tweeter1” (2.5 cm) fluid-cooled soft dome, coaxial, swivel
Frequency Response65 Hz – 28 kHz
Maximum Input Power110 W
Sensitivity90 dB
Impedance8 ohms
Dimensions (W x H x D)Φ9-1/2” x 4-5/8”; Φ242 x 119 mm
Mounting Depth4-1/4” (109 mm)
Weight3.3 lbs. (1.5 kg)
Crossover Frequencies–
General specifications
I/O connectorsPush Terminal ( Applicable Cable *Max, Twisted wire : 8mm²/ AWG 8)
