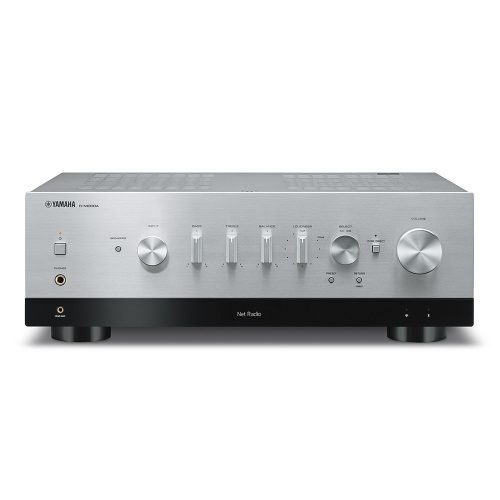

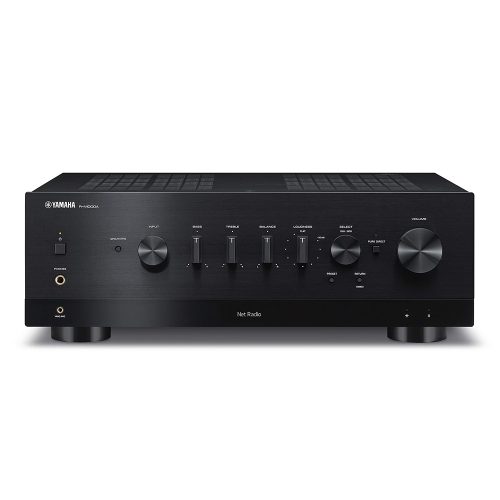

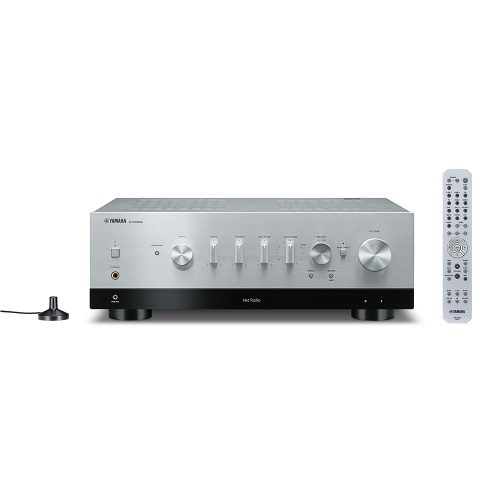

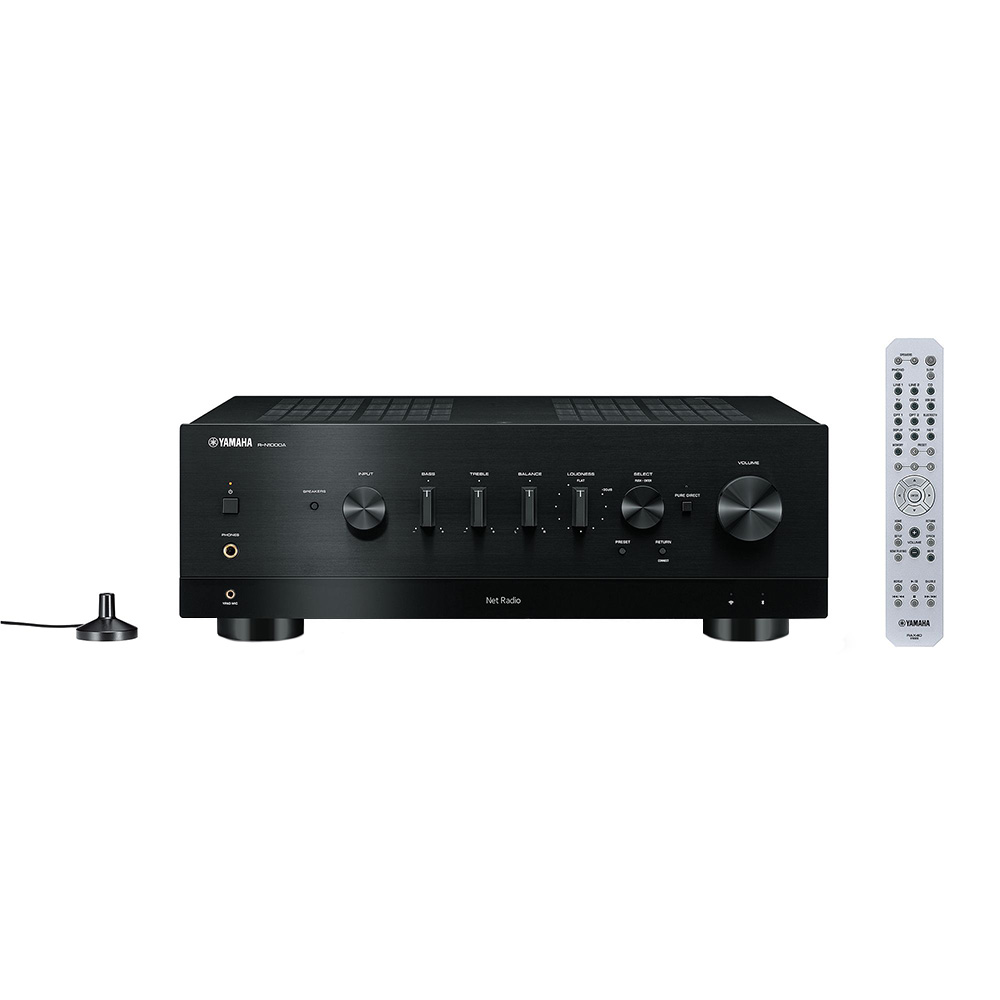

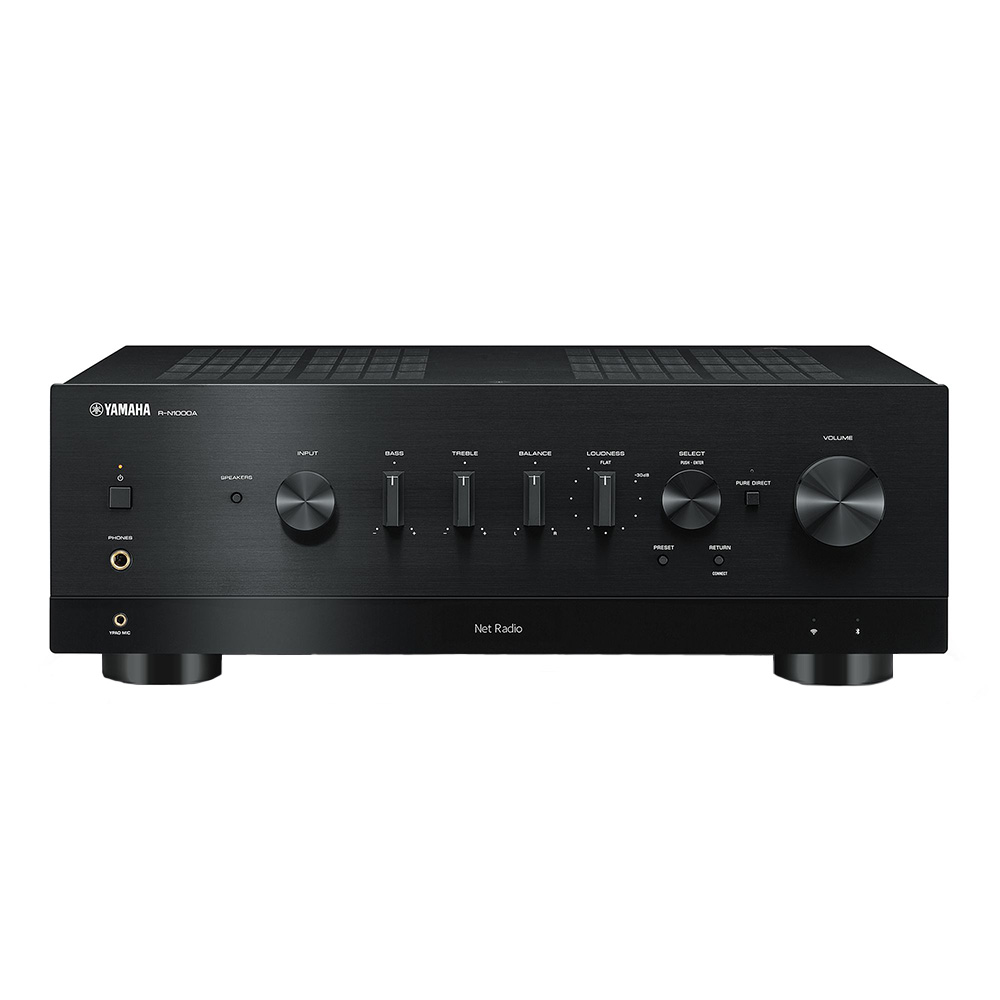

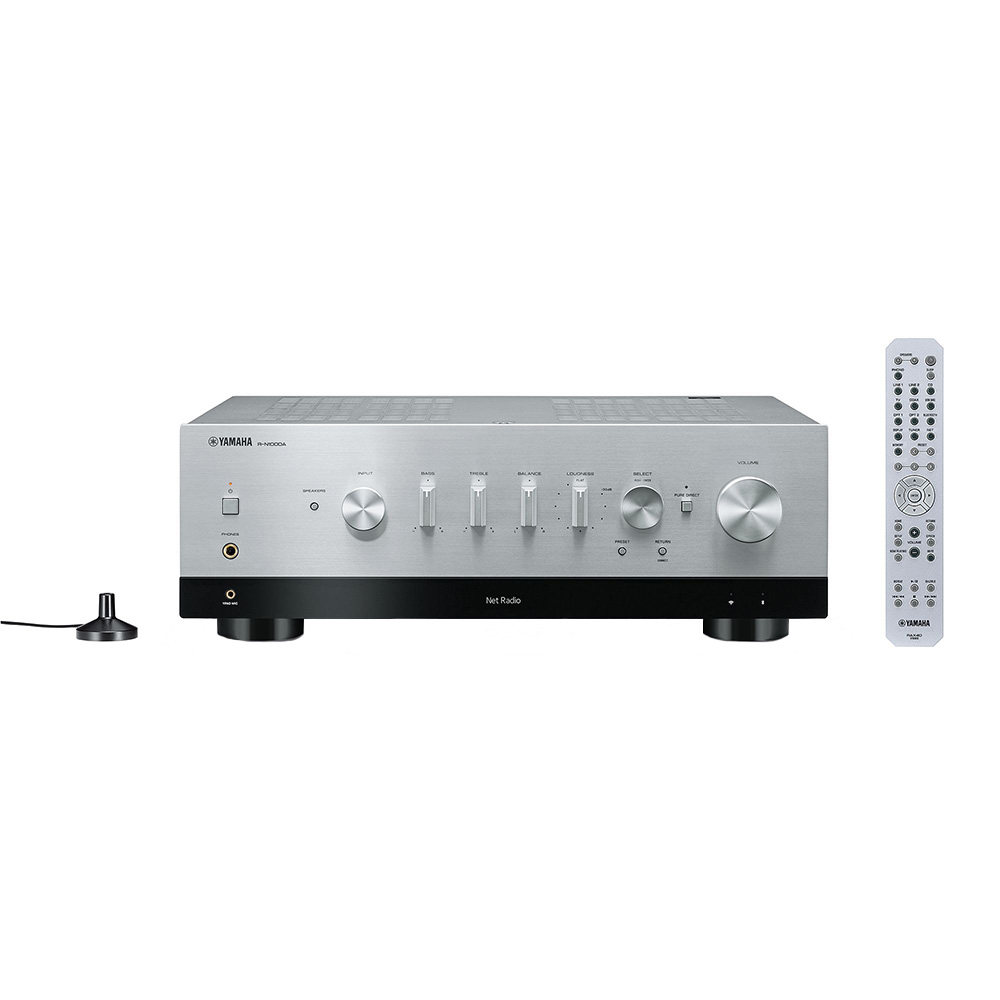

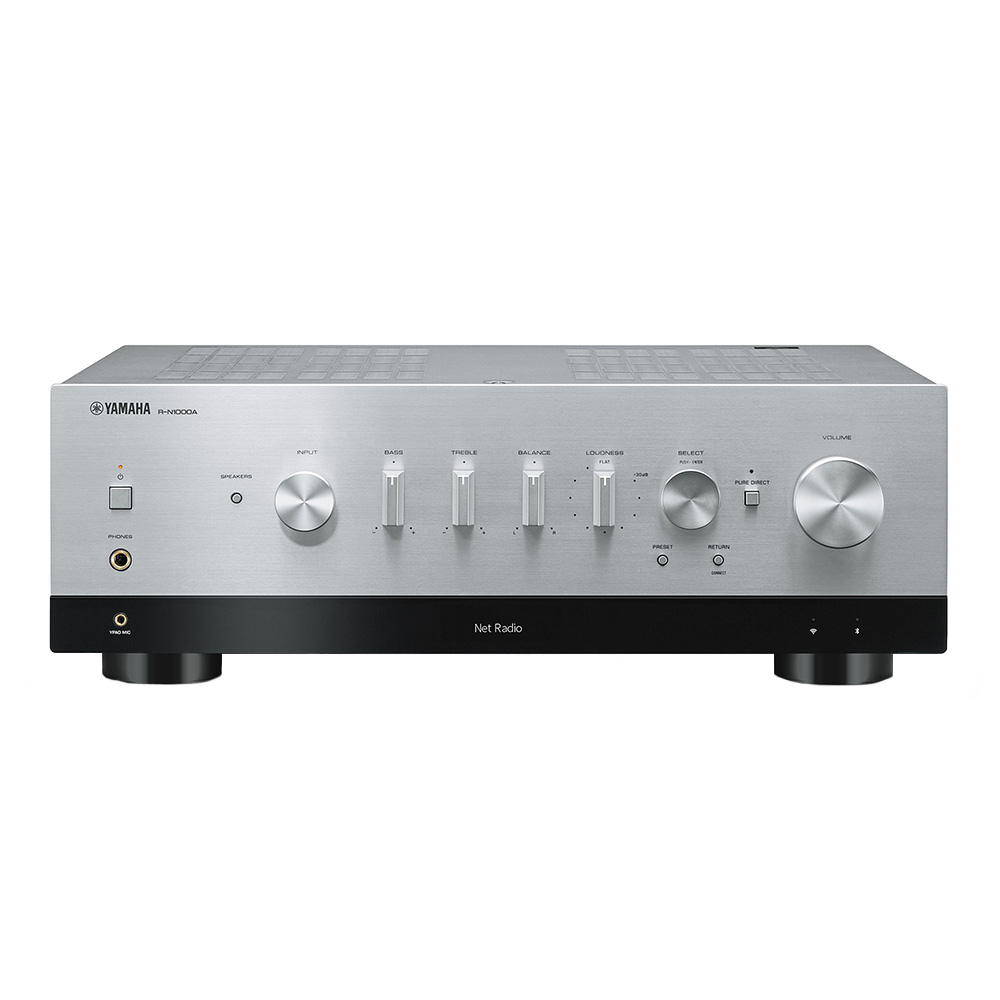

Yamaha HiFi Component R-N1000A

The Yamaha R-N1000A delivers crafted sound for your listening lifestyle. Authentic HiFi quality with high-resolution music streaming compatibility and HDMI connection. It offers effortless ideal room acoustic adjustment (YPAO™)

  • Authentic HiFi quality with Top-ART mechanical structure and top-quality audio parts
  • ESS SABRE ES9080Q Ultra DAC for superior S/N performance
  • YPAO™-R.S.C. (Reflected Sound Control) and precision EQ for ideal listening environment
  • HDMI ARC terminal for excellent TV sound
  • MusicCast lets you stream from your favorite music services
  • High-performance USB DAC function supports DSD 11.2 MHz native playback and 384 kHz playback
  • Original speaker terminals cut from pure brass for highly secure connection
  • Special phono input terminals to enjoy your vinyl record collection.
Categories: ,

Description

Feature image


Environmental factors play an important role in the sonic signature of a room, and with any type of audio. Yamaha’s own YPAO™ automatic calibration technique, refined over decades of use in Home Theater products, has been optimized for the R-N1000A to deliver the ideal listening environment, as if you were in a professional audio listening room – without requiring any laborious manual setting adjustments. YPAO™ features precision EQ, which performs exceptionally high-precision equalization with accuracy of up to 192 kHz / 64-bit audio resolution. YPAO™ R.S.C. (Reflected Sound Control) works in tandem to actively control the important early reflection sounds, automatically adjusting and optimizing how the sound is heard in your room, depending on the materials of the walls and the speaker placement. Which means you can enjoy the profound sound and immersive feeling unique to Hi-Fi audio – right in your own living room.



Yamaha boasts over 60 years of history as an audio brand. And the technology of R-N1000A comes directly from Yamaha’s legendary Hi-Fi design concept ToP-ART (Total Purity Audio Reproduction Technology), which faithfully maintains the integrity of the audio by combining a meticulously symmetrical left / right circuit layout and signal directness (straightest, shortest signal paths) with a low-vibration chassis of high rigidity, equipped with the special resin frame “Art Base” that absorbs and blocks unnecessary vibration. It maintains sonic purity and dynamism of sound.



Feature imageDOUBLE BOTTOM CHASSIS

The enclosing structure is further strengthened by a double-bottom chassis and a thick iron damping plate of 1 mm added to the chassis bottom. This eliminates various vibrations that would adversely affect the sound and enhances the expressiveness of the lower frequencies—conveying both the profound power and supple grace of even the performance of a full concert orchestra.





ANTI-RESONANCE FEET

Feature image

The R-N1000A also employs anti-resonance feet designed under a concept of vibration absorption. By arranging thin curved reinforcing bars on the outer periphery and thick straight reinforcing bars in the center, the vibration energy transmitted from the outside of the leg is effectively dispersed and diminished, while maintaining high central rigidity. These make it possible to reproduce a focused sound that lets you fully feel the rhythm and dynamics of the music.



HIGH-QUALITY PARTS FOR OUTSTANDING AUDIO PERFORMANCE

Feature image

Custom-made power transformer and block capacitors, one-point grounding system, high-quality audio condensers, and other top-class parts effortlessly handle demanding audio signal conditions. Since the quality of each individual part, as well as how they work together, basically determines the sound quality of any component, Yamaha makes sure that only the most carefully selected and tested parts are used.



HIGH-PRECISION, HIGH-PERFORMANCE

Feature imageThe R-N1000A uses the renowned SABRE ES9080Q 384 kHz / 32-bit DAC (from ESS Technology) to deliver superior S/N performance. Combined with Yamaha’s original network module, the unit thoroughly draws out all the sonic merits of high-resolution sound sources, effectively reproducing even the subtle ambience of concert halls and delicate expressive nuances in the sound.

LOW IMPEDANCE CONCEPT

Feature image

In order to thoroughly eliminate energy loss and degradation of the audio signal, the R-N1000A features thick wires for the ground connection a critical feature that establishes the componentry as being truly premium Hi-Fi. In addition, a screw connection is adopted for the output from the power amplifier section in order to strengthen the ground, which is important for audio quality. This gives the R-N1000A increased signal-to-noise performance, making it possible to reproduce sound with full clarity.






GOLD-PLATED TERMINALS

Feature image

Gold-plated terminals ensure a high quality connection that prevents signal loss. The R-N1000A have gold-plated speaker terminals and input terminals.




The R-N1000A is equipped with Yamaha’s original MusicCast network system. Moreover, it is compatible with a variety of streaming services such as Amazon Music HD and Spotify, letting you fully enjoy exceptionally high-quality sound unique to today’s high-resolution and lossless sound sources, with complete fidelity. You can also use it to stream Apple Music with Airplay 2. And the MusicCast system lets you easily listen to music anywhere in your home by linking various MusicCast devices with just one app on your smart device.

* Music service availability varies by region and may change or be discontinued without notice.



From audio you’ve stored your PC or a network drive to vinyl records and TV—the R-N1000A handles everything, giving you superior sound and drawing out the full sonic splendor inherent in all your entertainment.

HDMI ARC TERMINAL

Feature image

Get true Hi-Fi sound on your TV. The R-N1000A is compatible with HDMI ARC (Audio Return Channel), allowing you to connect to your TV with just a single cable meaning that you can enjoy not only audio but also TV audio content such as live performance broadcasts and music programs, with excellent sound quality.

ENJOY YOUR RECORDS, TOO

Feature image

The comprehensive connectors of the R-N1000A include special phono input terminals, letting you easily connect a turntable and enjoy music from your vinyl record collection.

USB DAC FUNCTION

Feature image

A stable transmission method through asynchronous transmission has been adopted. Moreover, an ultra-precision dedicated crystal clock has been installed to improve signal accuracy. It also supports DSD 11.2MHz native playback and PCM 384kHz playback, letting you enjoy exceptionally high-quality sound that takes full advantage of high-resolution audio sources.



MAXIMUM SOUND PURITY

Feature image

Pure Direct mode enables the music signals to travel the shortest possible circuit route, bypassing the buffer amp and the tone, loudness and balance controls to virtually eliminate any signal degradation, for the purest sound quality.

MULTI-ROOM AUDIO – MusicCast

Feature image

Entertainment content from your records, TV, CDs, and other sources connected to the R-N1000A can be sent to other MusicCast devices and enjoyed throughout your home. Moreover, all MusicCast products have been designed first and foremost for superior sound quality. High-res audio formats including Apple Lossless (ALAC) up to 96 kHz, WAV, and FLAC or AIFF up to 384 kHz are supported.

Receiver / Integrated AmplifierReceiver / Integrated Amplifier
Network sectionFile FormatMP3, WMA, MPEG-4 AAC, WAV, FLAC, AIFF, DSD
Wi-FiYes
BluetoothYes (SBC / AAC)
AirPlayYes
Rated Output Power[20 Hz-20 kHz 0.07 % THD] 100 W+100 W (8 ohms) 120 W + 120 W (6 ohms)
High Dynamic Power/Channel (8/6/4/2 ohms)140 / 170 / 220 / 290 W
Frequency Response10 Hz-100 kHz 0±1.0 dB, 20-20 kHz 0±0.5 (Pure Direct ON)
Signal-to-Noise Ratio (CD)100 dB (Pure Direct ON)

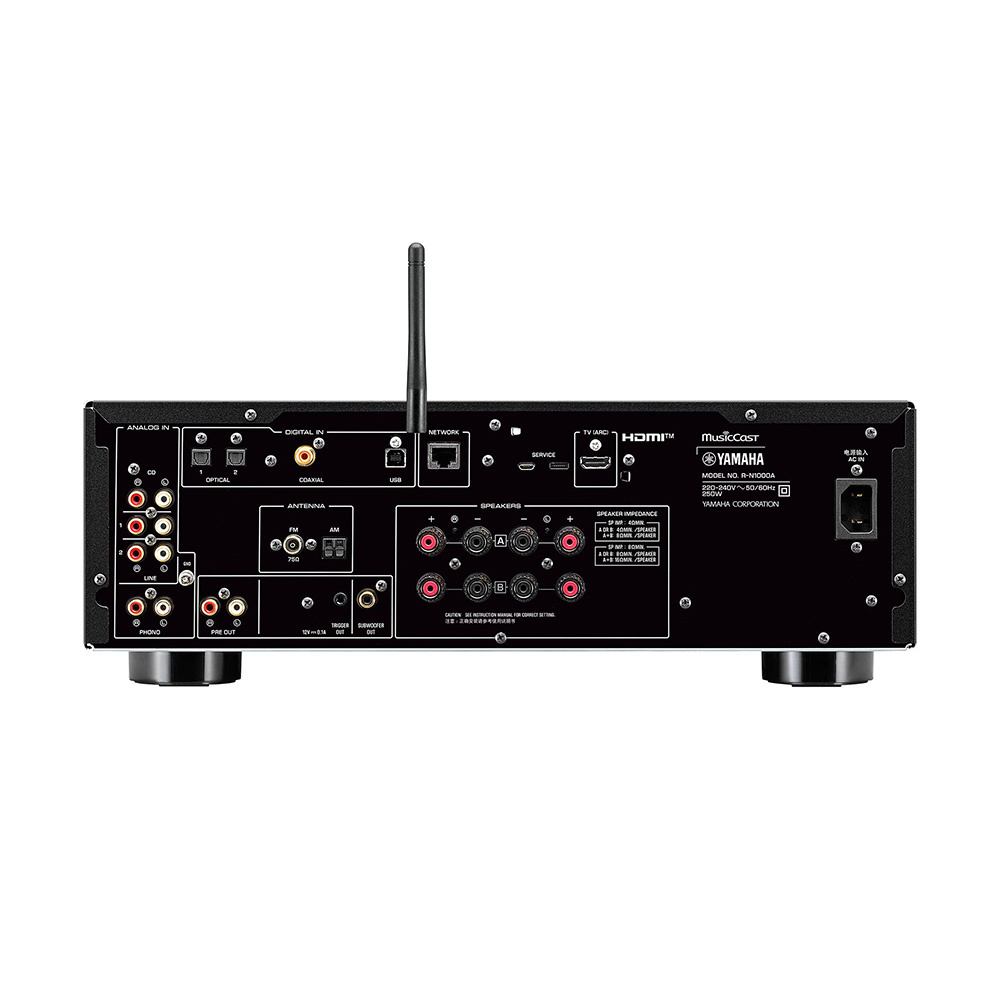

Audio In / OutPhono, CD, line1, line2 / Pre out, Subwoofer out
Digital InputOptical1, Optical2, Coaxial
HDMI(ARC)Yes
Phono InputYes
USB InputUSB DAC (USB B-type)
EthernetYes
Headphone OutYes
Subwoofer OutYes
Control (Trigger) OutYes
FM 50dB Quieting Sensitivity (IHF, 1 kHz, 100% Mod., Mono)3 µV (20.8 dBf)
FM Signal-to-Noise Ratio (Mono/Stereo)69 dB / 68 dB
Pure DirectYes
ToP-ARTYes
Standby Power Consumption0.1 W (Network standby on/ Wi-Fi connection 1.8 W)
Dimensions (W x H x D)435 x 151 x 395 (with antenna up: 435 x 232 x 395)+ 17-1/8″ x 6″ x 15-1/2″ (with antenna up: 17-1/8″ x 9-1/8″ x 15-1/2″)
Weight12.3 kg; 27.1 lbs
