Yamaha HiFi Components Wireless Turntables MusicCast VINYL 500 (TT-N503)

A step into the future with a tribute to the past. Meet our game-changing wireless turntable designed for a new generation of audiophiles. Featuring MusicCast multi-room capabilities, share the joy of your record collection in any room.

  • Wirelessly connect to any MusicCast device for seamless listening
  • Straight tonearm contributes to sound transparency and openness
  • Belt drive turntable
  • Music streaming services built-in
  • Wi-Fi built-in including support for 2.4 GHz and 5 GHz bands

Description



Love Vinyl but Hate Cables?MusicCast VINYL 500 (TT-N503) - Overview - HiFi Components - Audio & Visual - Products - Yamaha - Singapore

Giving an ‘old-school’ medium a modern spin, wirelessly connect the MusicCast VINYL 500 turntable to your MusicCast speakers and other devices to enjoy your record collection without all the cables.















MusicCast VINYL 500 (TT-N503) - Overview - HiFi Components - Audio & Visual - Products - Yamaha - SingaporeEffortless Set Up, Seamless Compatibility

Connect to your existing amp (with or without a phono stage) or simply add the MusicCast VINYL 500 to your existing MusicCast setup.

The choice is yours.

The MusicCast VINYL 500 introduces much more than playback of vinyl to your system with music streaming services, AirPlay® and Bluetooth® built in.

*Streaming service availability varies by region and may change or be discontinued without notice.





A Musical HomeMusicCast VINYL 500 (TT-N503) - Overview - HiFi Components - Audio & Visual - Products - Yamaha - Singapore

Leave the room and let your music follow. Featuring MusicCast multi-room technology, share and listen to your record collection throughout the house.

Stream your vinyl collection to a range of MusicCast devices – everything from speakers to sound bars. The MusicCast VINYL 500 is packed with cutting-edge technology and features that take music listening to the next level.





MusicCast VINYL 500 (TT-N503) - Overview - HiFi Components - Audio & Visual - Products - Yamaha - SingaporeThere’s an App for That

Take control of all your listening needs with intuitive access to all your playlists in different rooms through the sophisticated yet user-friendly design of the MusicCast app.













Iconic SoundMusicCast VINYL 500 (TT-N503) - Overview - HiFi Components - Audio & Visual - Products - Yamaha - Singapore

Turn your listening experience on its head. Meet the MusicCast VINYL 500.

Meticulously designed to ensure the most faithful reproduction of sound – the way music was made to be heard – the MusicCast VINYL 500 features a straight tonearm for an open sound as well as a belt-drive motor to minimise noise caused by vibrations.







MusicCast VINYL 500 - Overview - HiFi Components - Audio & Visual - Products - Yamaha - Other European CountriesMinimalistic Design

Don’t let its sleek look fool you – the MusicCast VINYL 500 features an array of sophisticated features without taking up space.

With both form and function in mind, its compatible design is built to suit all interior aesthetics and tastes.



Network SectionFile FormatMP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC / WAV / AIFF: up to 192 kHz / 24-bit, DSD: up to 11.2 MHz
EthernetYes
Wi-FiYes (2.4 / 5 GHz)
AirPlayYes
Bluetooth SectionVersion/ProfileVer. 4.2 / A2DP, AVRCP
Audio CodecSBC, AAC
Maximum Communication Range10 m / 32.8 ft. 10 in. (without interferene)
TurntableDrive MethodBelt drive
MotorDC motor
Rotation Speed33-1/3 rpm, 45 rpm
Rotation Speed Variation±2%
Wow And Flutter0.2%
PlatterAluminium die-cast (Diameter 30 cm)
Output Level450 mV (-7 dBV, with RIAA EQ, 1 kHz, 3.54 cm / sec), 2.5 mV ± 3 dBV (without RIAA EQ, 1 kHz, 3.54 cm / sec)
Signal To Noise Ratio67 dB or higher (A-weighted, 20 kHz, LPF)
TonearmTonearmStatic balance straight tonearm
Effective Arm Length223.5 mm
Overhang19 mm
Stylus Pressure Adjustment Range0-4 g
Acceptable Cartridge Weight15.5-19 g (including headshell)
Attached CartridgeCartridge TypeMM type
Output Voltage2.5 mV (1 kHz, 3.54 cm / sec)
Stylus Pressure3.5 ± 0.5 g
Cartridge Weight5.0 ± 0.3 g
Cartridge Height17.0 ± 0.7 mm
Head-shell Weight10 g (including screws, nuts and wires)

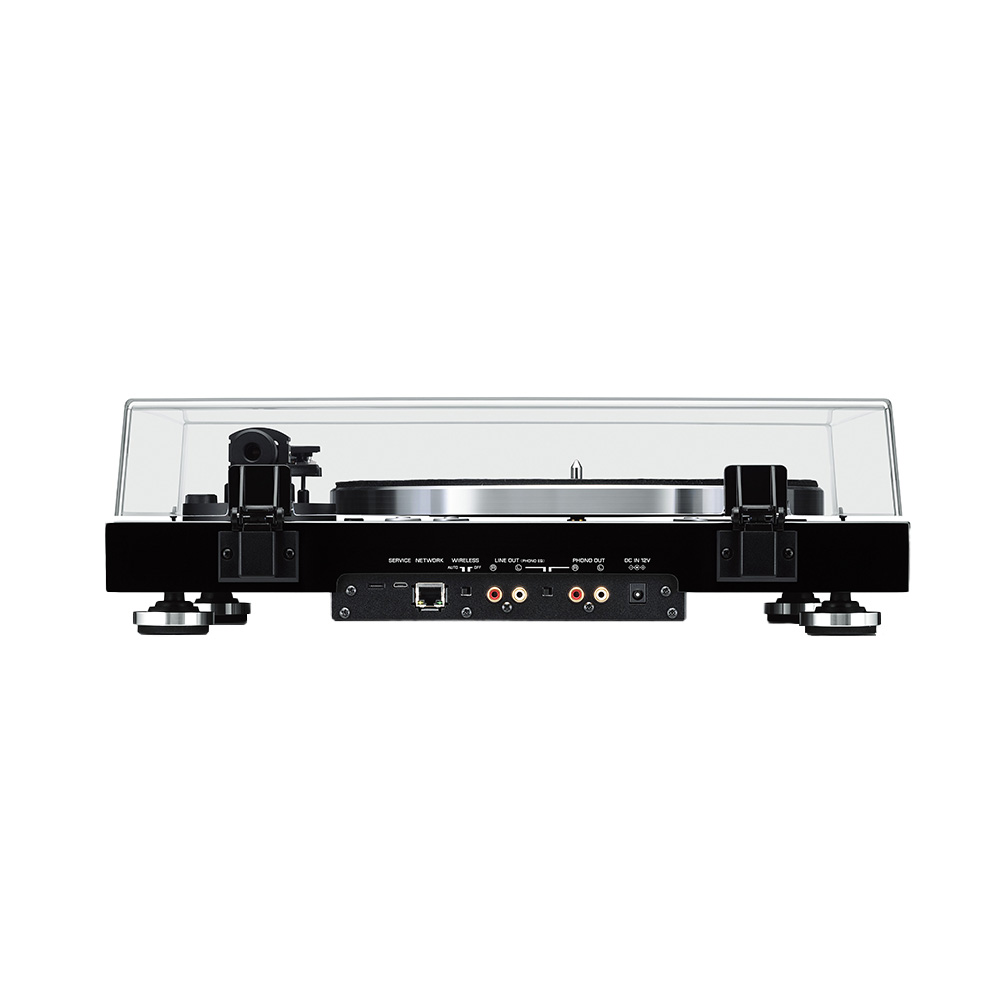

Audio SpecificationsOutput TerminalRCA: 2 (PHONO, LINE)
Output Level2.0 ± 0.3 V (1 kHz, 0 dB, Fs 44.1 kHz)
Signal to Noise Ratio[IHF-A network] 110 dB or higher (Infinity zero, Fs 44.1 kHz)
Dynamic Range100 dB or higher (1 kHz, -60 dB, Fs 44.1 kHz)
Harmonic Distortion0.003 % or lower (1 kHz, 0 dB, Fs 44.1 kHz)
Frequency ResponseFs 44.1 kHz; 2 Hz to 20 kHz (+0 / -3 dB), Fs 48 kHz; 2 Hz to 24 kHz (+0 / -3 dB), Fs 96 kHz; 2 Hz to 48 kHz (+0 / -3 dB), Fs 192 kHz; 2 Hz to 96 kHz (+0 / -6 dB)
GeneralPower Consumption6 W
Eco-Standby (reference date)0.3 W
Standby Power Consumption1.4 W (Network standby ON, Bluetooth® standby OFF, Wired), 1.8 W (Network standby ON, Bluetooth standby ON/OFF, Wi-Fi), 1.6 W (Network standby ON, Bluetooth standby ON, Wired)
Dimension (W×H×D)450 x 136 x 368 mm; 17-3/4” x 5-3/8” x 14-1/2”
Weight5.7 kg; 12.6 lbs.
