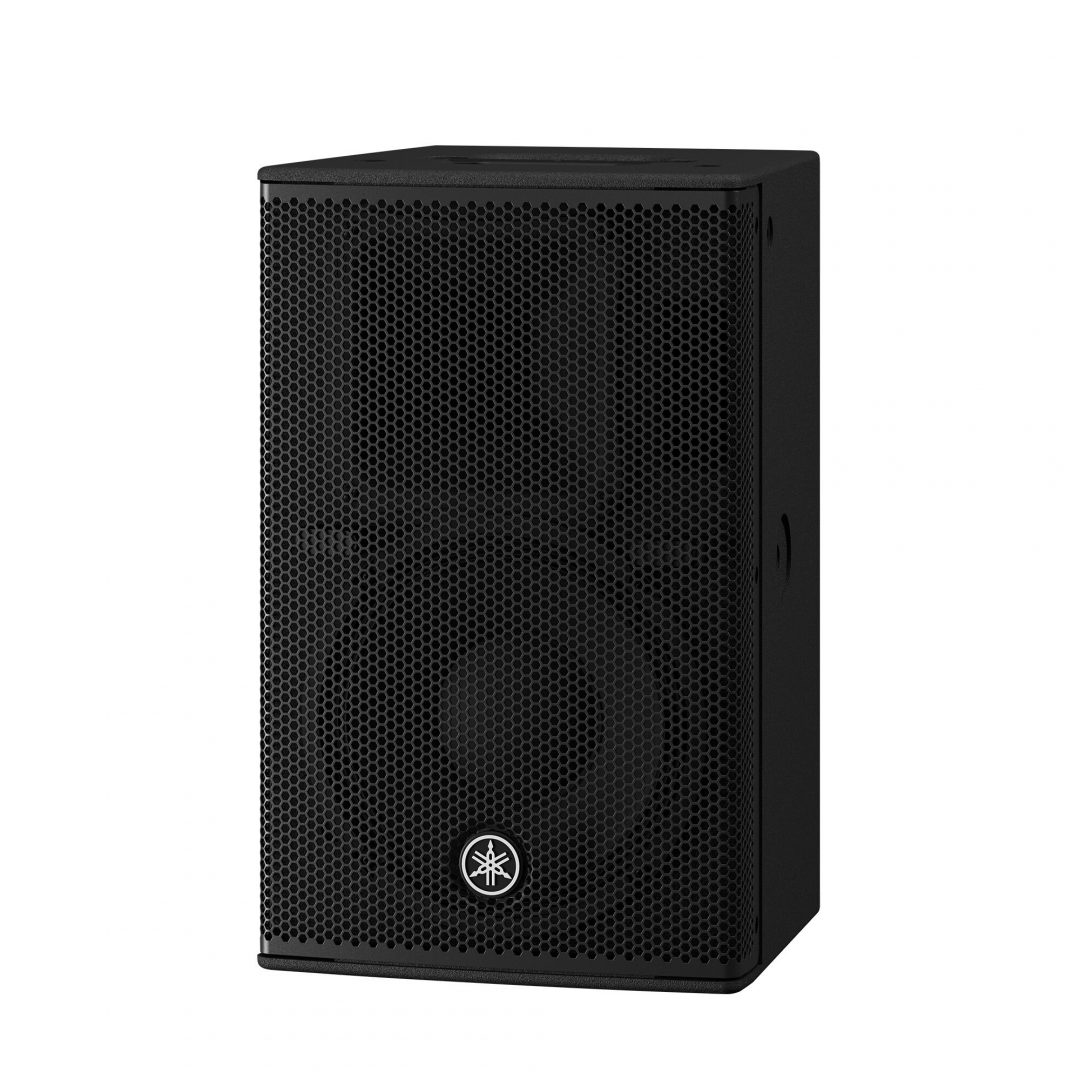

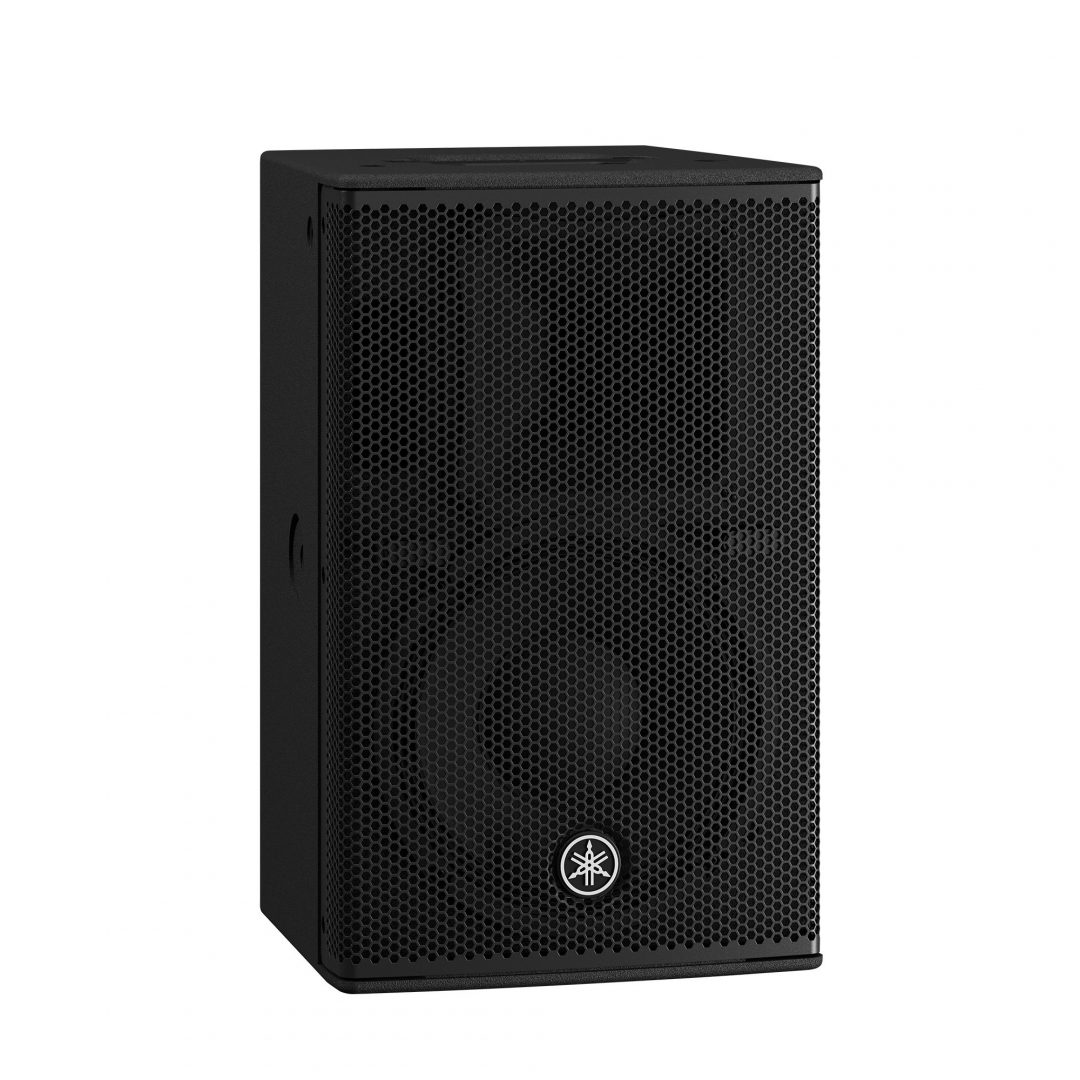

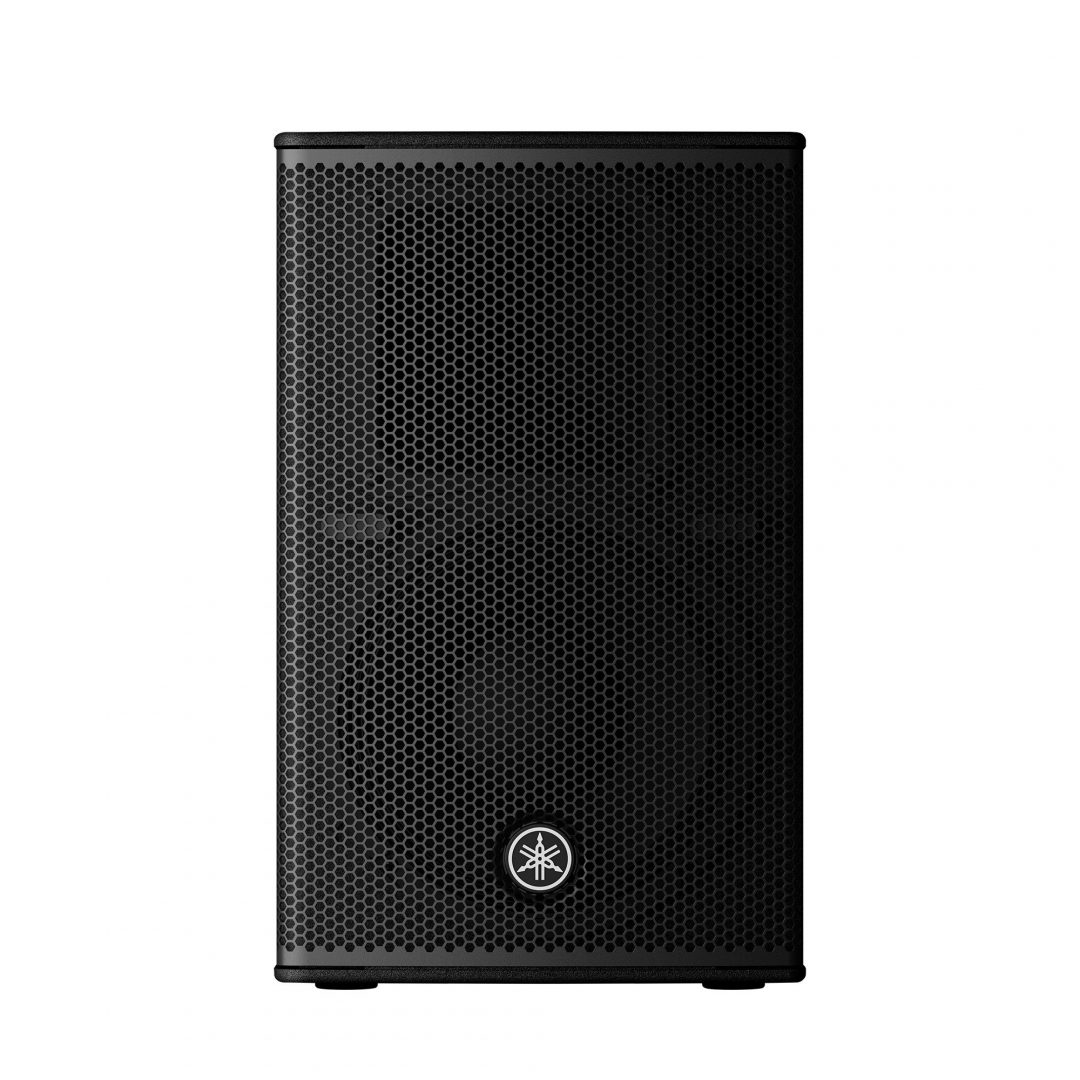

Yamaha Loudspeaker CHR Series CHR10

Combining carefully selected and customized transducers with the same high-grade plywood construction found on Yamaha’s high-end CZR Series, the CHR10 offers best-in-class sound quality and durability.

  • Featuring a plywood cabinet that delivers a clear sound with minimal vibration
  • Plywood enclosure with a polyurea coating for a robust, scratch resistant surface
  • Compact appearance thanks to the 10-inch LF driver that provides excellent low frequency response
  • Can be installed in a horizontal or vertical configuration with a rotatable HF horn offering the flexibility needed for installation in a wide range of environments
  • Optional UB-DXRDHR10 U-bracket allows both for vertical or horizontal use
  • A pole socket for use on a stand
  • Rigging points for use with eye bolts
  • Yamaha DSP equipped amplifiers or other compatible signal processors have dedicated speaker processor tuning settings to maximize system performance


Cabinet designs optimized for a range of audio environments

The CHR Series features a comprehensive lineup optimized to meet the demands of specific applications. The 10” model is equipped with a rotatable HF horn and a dedicated UB-DXRDHR10 U-bracket for use in fixed installations and utility, while the 12” model is the first Yamaha speaker to feature a coaxial compression driver for improved clarity and smoother frequency response for floor monitoring. The series is rounded out by a 15” model featuring dual-angle pole sockets and rigging points for use in fixed installations or as temporary main speakers for sound reinforcement.

Yamaha CHR10: Rotatable HF Horn & Optional U-bracket (UB-DXRDHR10) Yamaha CHR12M: Coaxial Compression Driver Yamaha CHR15: Rigging points for standard eye bolts


Custom Designed Transducers

The high power output woofers deliver well-defined, powerful bass with minimal distortion, while the 1.4” precision compression driver* produces accurate mid-range and high frequencies.

* CHR12M features a 1.75” coaxial compression driver.

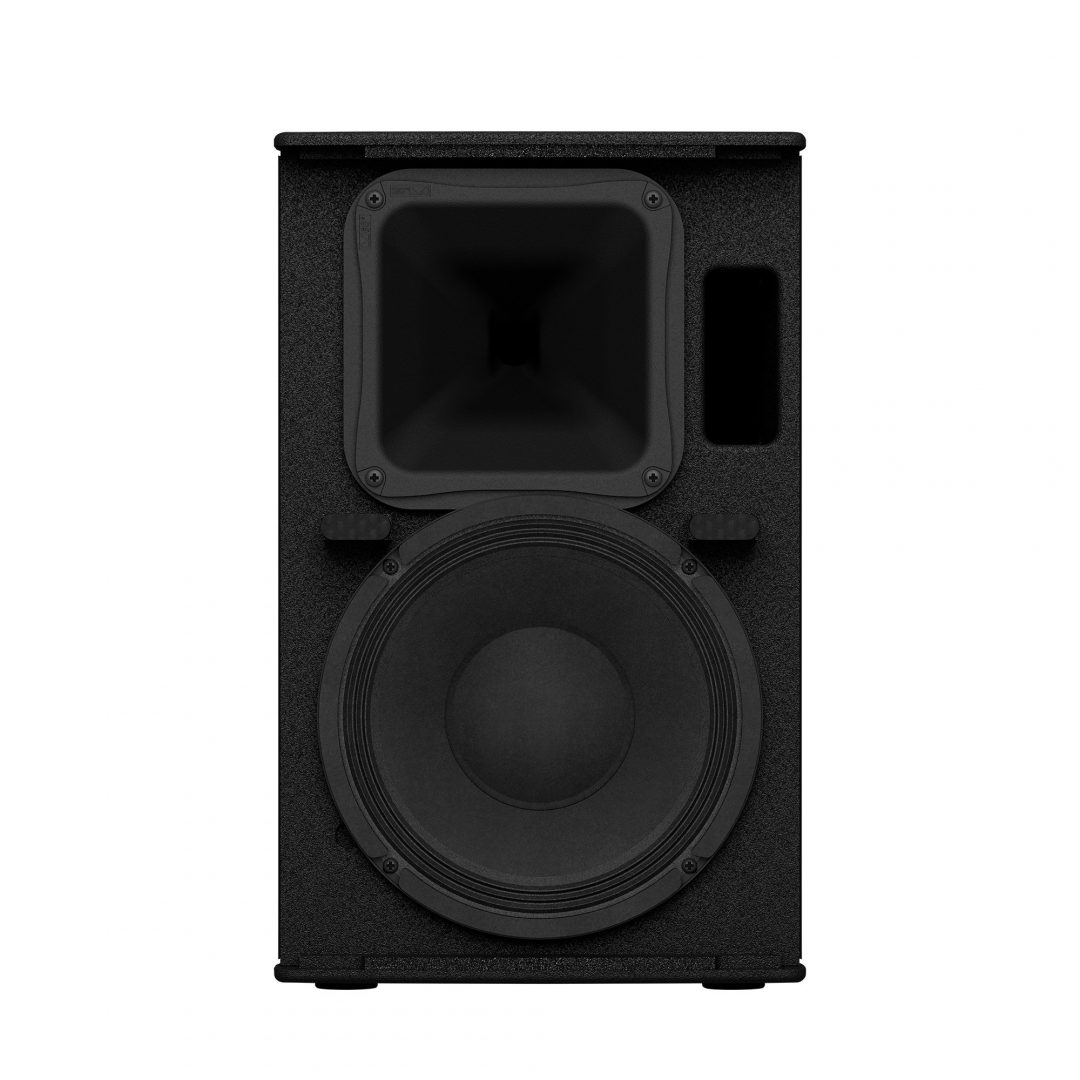

Yamaha CHR Series: LF & HF transducer (CHR15, CHR10)

LF & HF transducer (CHR15, CHR10)

Yamaha CHR Series: 1.75” coaxial compression driver (CHR12M)

1.75” coaxial compression driver (CHR12M)


A Rugged, Highly Portable Cabinet

The CHR series feature plywood enclosures like our acclaimed CZR loudspeakers to deliver outstanding durability and acoustic performance.

Yamaha CHR Series: A Rugged, Highly Portable Cabinet

Intelligent processing to maximize system performance

When used in combination with Yamaha PX Series amplifiers or other compatible signal processors, CHR Series loudspeakers can take full advantage of dedicated speaker processor tuning settings. (*Supported firmware is Ver1.63 or later.)

Yamaha CHR Series: Intelligent processing to maximize system performance

Dual-Angle Pole Mount Socket (CHR15)

Depending on the venue, sometimes your mix can fall prey to low ceilings or other room attributes that can impede a clear, even mix and detract from the audiences' listening experience significantly. The CHR15's pole mount socket offers two positions - 0° or -7° - to direct the acoustic energy away from reflective surfaces and on to your audience where it belongs.

Yamaha CHR15: Dual-Angle Pole Mount Socket

Speaker type2-way Speaker, Bass-reflex
Frequency range (-10dB)55 Hz - 20 kHz
Coverage areaH90゚ x V60゚ (Rotatable)
Crossover2.5 kHz
Nominal impedance8 Ω
SPLSensitivity (1W; 1m on axis)93 dB SPL
Peak (Calculated)122 dB SPL
ComponentsLFDiameter: 10" cone, Voice Coil: 2", Magnet: Ferrite
HFDiaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite
Power ratingNOISE175 W
PGM350 W

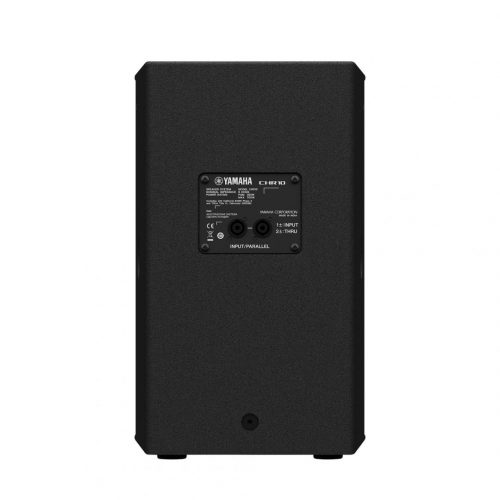

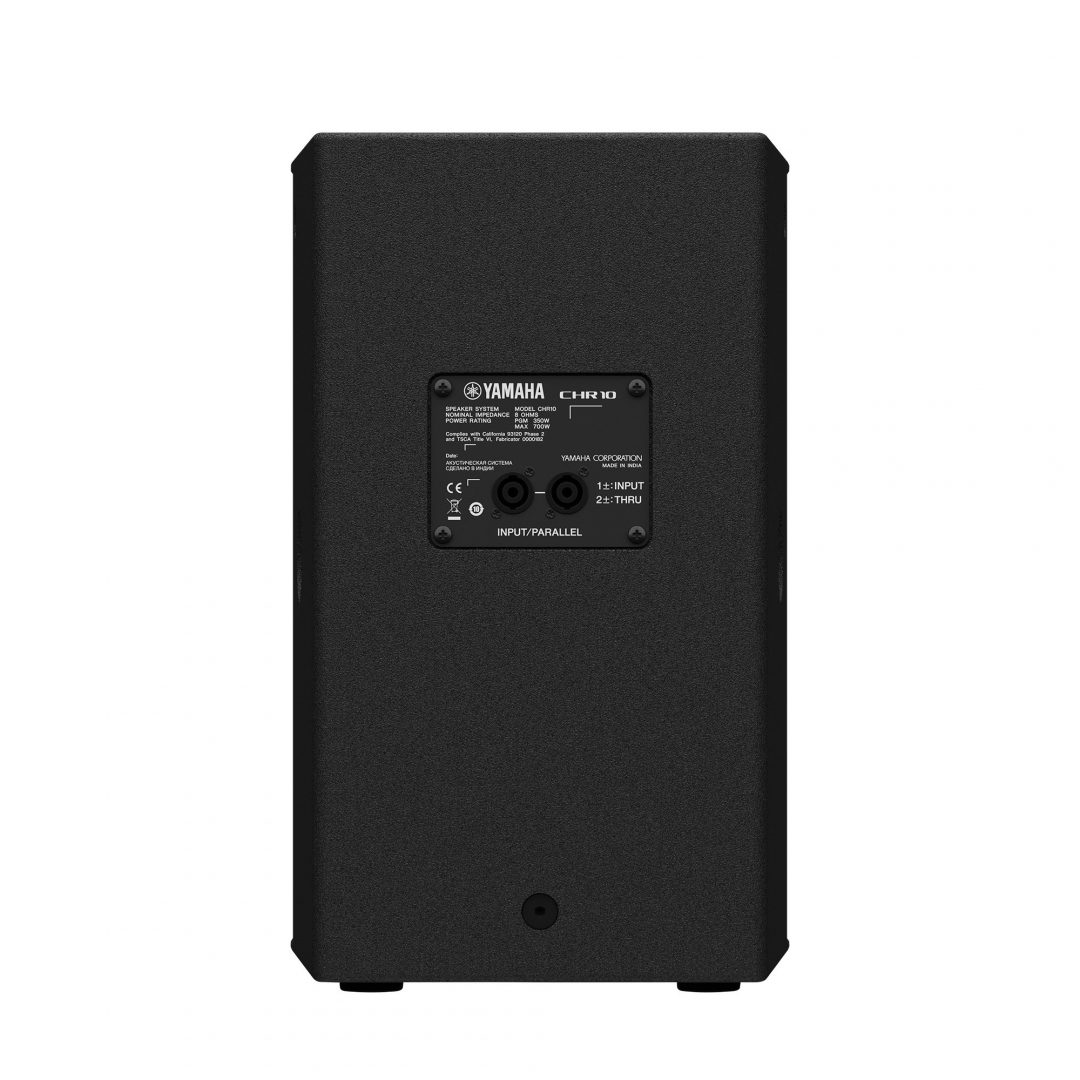

I/O connectorsSpeakON NL4MP x 2 (Parallel)
Cabinet materialPlywood
FinishDurable Polyurea Painting, Black
HandleTop x1
Pole socketΦ35 mm x1 (Bottom)
RiggingTop x 2, Rear x 1 (Fit for M10 x 30 - 50 mm Eyebolts)
Floor Monitor Angle-
DimensionsW305 mm (12.0")
H494 mm (19.5") (with rubber feet)
D300 mm (11.8")
Net weight13.7 kg (30.2 lbs)
OptionsU-bracket: UB-DXRDHR10
