Yamaha Loudspeaker CZR / CXS XLF Series CZR12

The CZR12 is a 2-way loudspeaker offering high power handling and outstanding sonic performance in a portable, lightweight, yet rugged design. Its versatile, compact enclosure design makes the lightweight CZR12 ideal for range of live performance and installed sound environments—from live bands at outdoor festivals to DJ’s in clubs—these loudspeakers deliver crystal clear, high-quality sound with impressive low frequency performance.

  • 2-way loudspeaker with a 2” HF and a 12″ LF
  • Features Yamaha’s own Wide Dispersion CD Waveguide Horn
  • High power 800W(PGM) power handling and Bi-amp capable

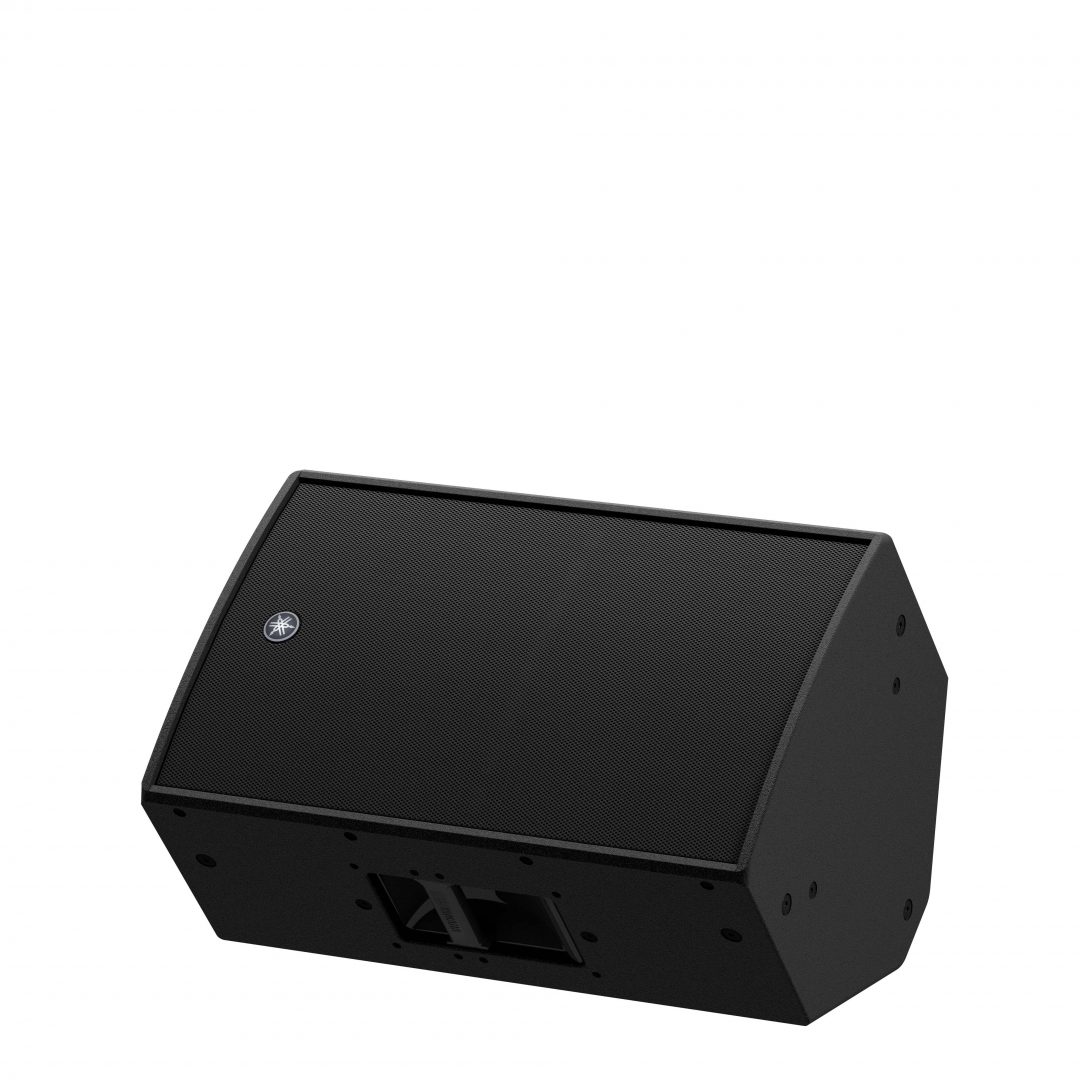

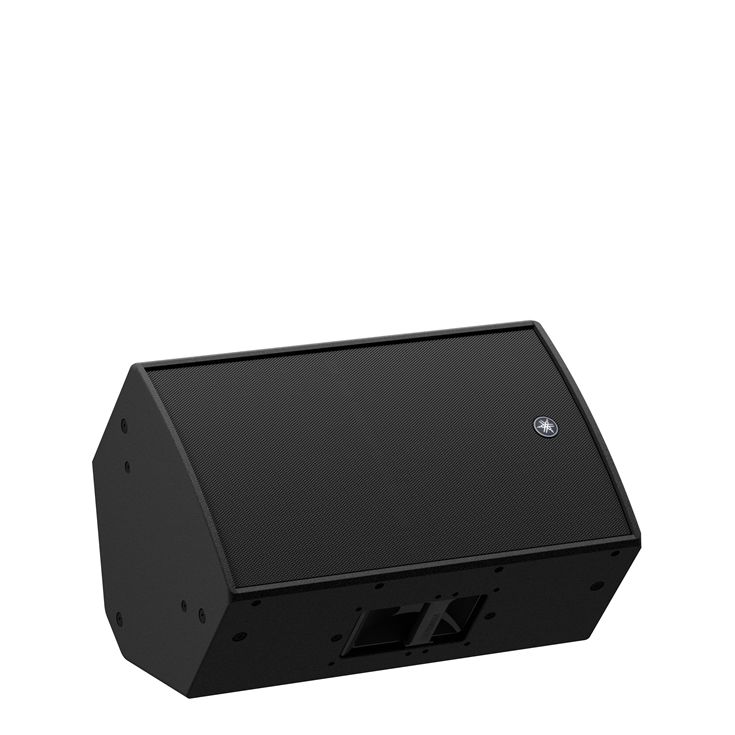

  • Floor monitoring setting enables mirroring configuration
  • Lightweight yet very durable plywood cabinet with premium graded Polyurea coating
  • Dual-angle pole socket
  • Optional speaker cover (SPCVR-DZR12)
  • Rotatable horn and variety of U-bracket options (UB-DZR12H/V) for rigging allow for very flexible setup and speaker placement

Description

Focused sound for flexible installation

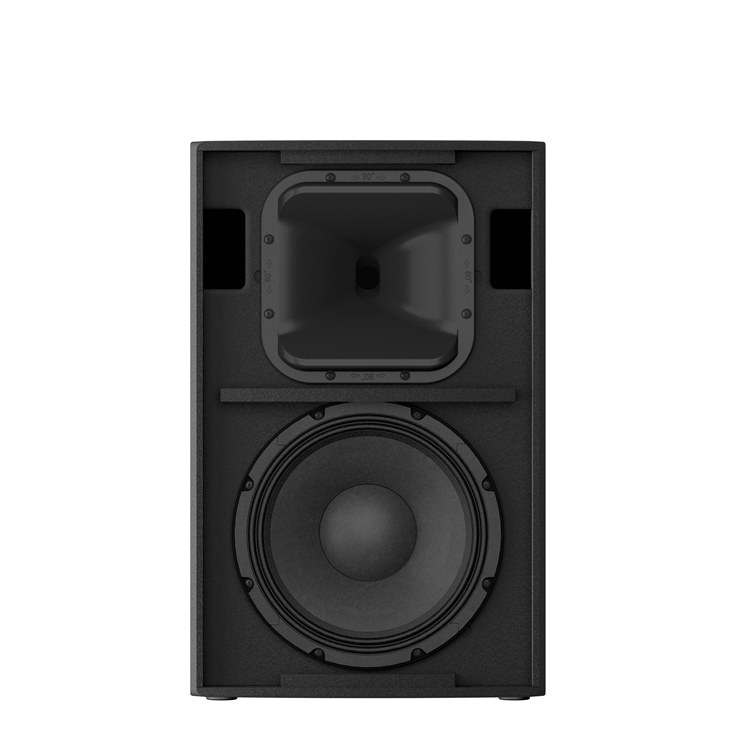

YamahaThe CZR Series features 15˝, 12˝ and 10˝ models with transducers with die-cast aluminum frames with a 3˝ voice coil for very high power input, and a lightweight yet powerful neodymium magnet that helps to add punch and power to your bass. The HF unit achieves vivid, soaring highs from its titanium diaphragm with a 2˝ voice coil and neodymium magnet. Like the DZR, the CZR models also feature the rotatable constant directivity horn design (90°x 50° for the CZR15, and 90°x 60° for the CZR12 and CZR10) for increased flexibility in mounting vertically or horizontally.



Best in Class SPL performance

The CZR15 and CZR12 can both produce 129dB SPL with a power rating of 800W for the CZR15 and CZR12, and 700W for the CZR10 in passive mode. Every CZR model is also equipped with Biamp mode to maximize performance.

The CXS XLF Series of consists of two passive subwoofers, the CXS18XLF (18-inch) and the CXS15XLF (15-inch) which can extend the system’s low frequency down to a starting 29Hz for throbbing LF capability. Neutrik speakON NL4MP connectors provide safe, reliable and flexible connectivity. Equipped with two input/parallel connectors for multiple subwoofers plus one unique output connector for flexible set up to full-range CZR loudspeakers or cardioid mode setting. It is capable the simpler connection with single 4-pole speakON cable.

Intelligent processing to maximize system performance

When used in combination with Yamaha PX Series amplifiers or other compatible signal processors, CZR Series loudspeakers can take full advantage of dedicated speaker processor tuning settings. Additionally, like the DXS XLF models, CXS XLF subwoofers are capable of use in cardioid mode provided the processor has the dedicated DSP settings (visit Yamaha pro-audio website for more information).



Premium materials. Road-tested toughness

The specially designed enclosure features lightweight and robust premium plywood with a scratch-resistant, rugged Polyurea coating for improved portability and durability on the road, as well as two different sockets for pole-mounting at either -7° down tilt or level. The CXS XLF are equipped with both a 35mm pole socket and an M20 threaded socket to support a full range cabinet.



Flexible Deployment Options

CZR Series loudspeakers come equipped with plenty of rigging points for any installation environment, allowing for rigged application with standard eyebolts*. Specialized U brackets are also available for convenient flying/hanging installation. *Eyebolts not included.

Speaker type2-way Speaker, Bass-reflex
Frequency range (-10dB)Passive: 43 Hz – 20 kHz, Normal (*1): 42 Hz – 20 kHz, FOH (*1): 38 Hz – 20 kHz
Coverage areaH90゚ x V60゚ Rotatable Constant Directivity Horn
Floor Monitor Angle50° Symmetrical
ComponentsLF12″ Cone, 3″ Voice Coil, Neodymium magnet
HF2″ Voice Coil, 1″ Throat Compression Driver, Titanium diaphragm, Neodymium magnet
Crossover2.0 kHz
Power ratingNOISEPassive (EIA 426-A) 400 W, Bi-amp LF (EIA 426-A): 400W, HF (AES): 50W
PGMPassive (EIA 426-A) 800 W, Bi-amp LF (EIA 426-A): 800W, HF (AES): 100W
PEAKPassive (EIA 426-A) 1600 W, Bi-amp LF (EIA 426-A): 1600W, HF (AES): 200W
Nominal impedancePassive: 8Ω, Bi-amp: LF: 8Ω, HF: 16Ω
SPLSensitivity (1W; 1m on axis)Passive: 97dB SPL, Bi-amp: LF: 97dB SPL, HF: 108dB SPL
Peak (Calculated)Passive: 129 dB SPL, Bi-amp: LF: 129dB SPL, HF: 131dB SPL

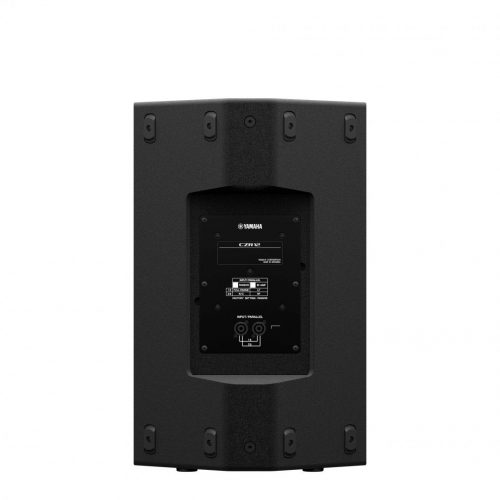

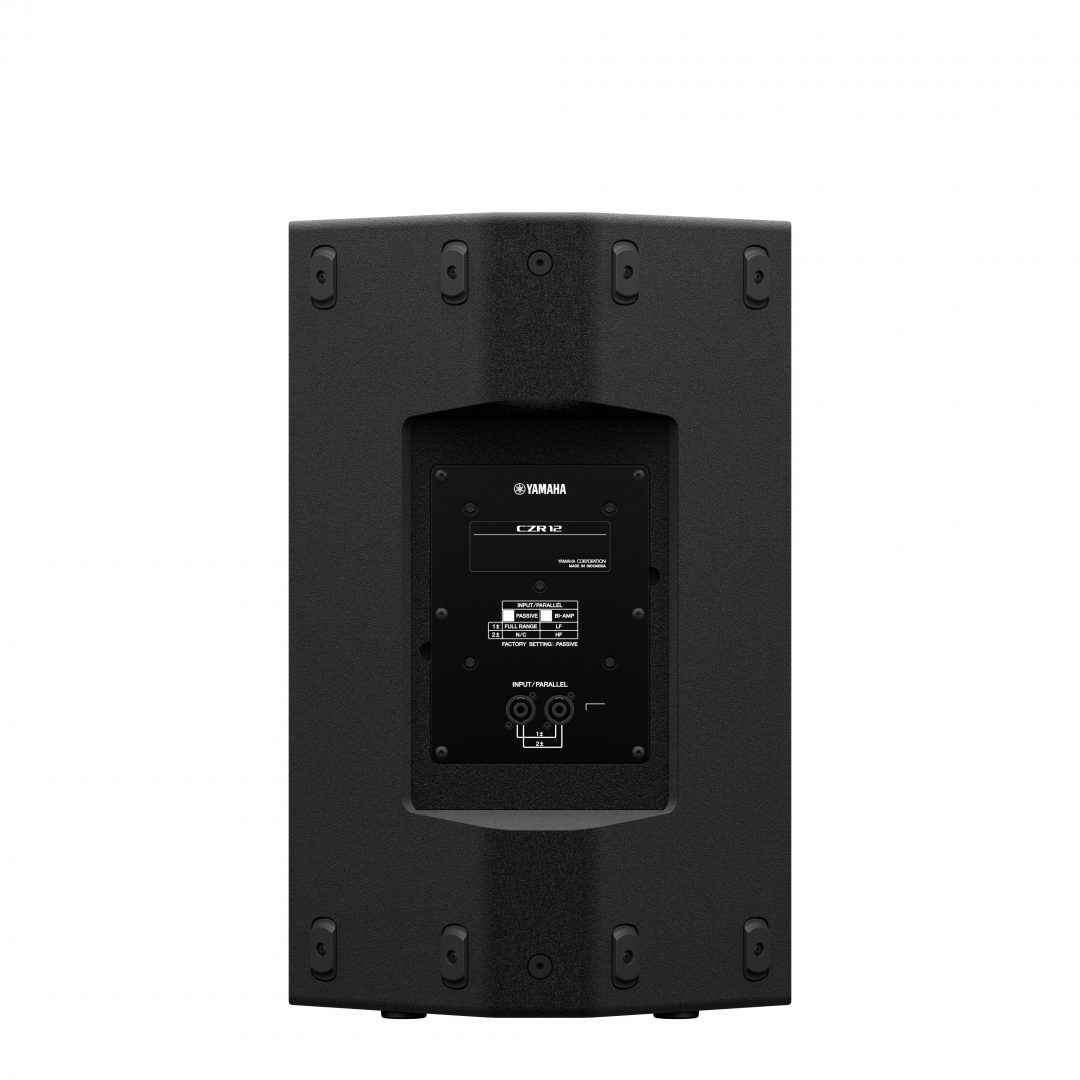

I/O connectorsSpeakON NL4MP x 2 (Parallel)
HandleAluminium die-cast, Side x2
Pole socketΦ35 mm x2 (0° or -7°)
RiggingM10 x 12
DimensionsW410 mm (16.1″)
H646 mm (25.4″) (with rubber feet)
D394 mm (15.5″)
Net weight18.0 kg (39.7 lbs)
OptionsBracket: UB-DZR12H/V, Cover: SPCVR-DZR12
OthersEnclosure Material, Finish, Color: Plywood, Durable Polyurea coating, Black
