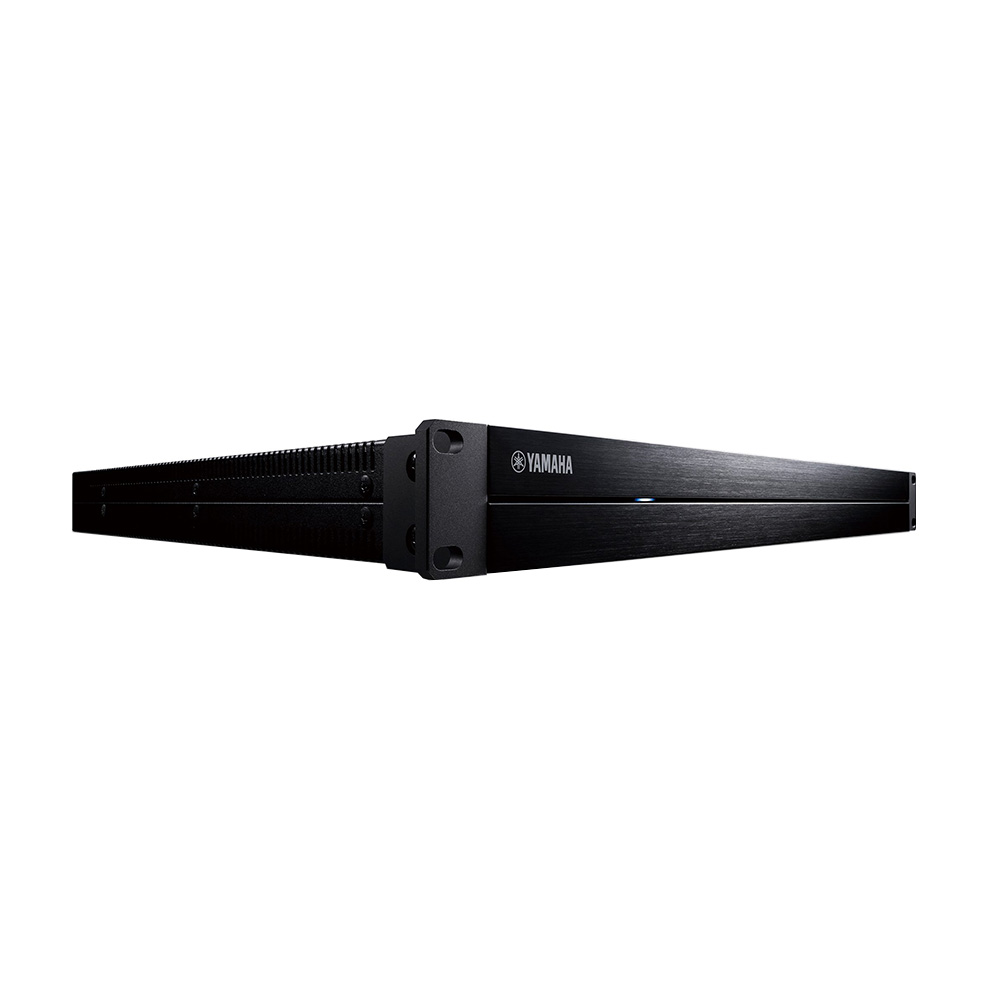

Yamaha Multi-Room Amplifier XDA-AMP5400RK

Specially designed for custom integration of whole home audio systems, the “AMP” serves as a companion amplifier for the Yamaha XDA-QS5400RK to expand speaker coverage and/or increase power output. It may also be used to expand secondary zone speaker coverage for Yamaha AV receivers that have Zone pre outs.

  • Works together with Yamaha XDA-QS5400RK to expand speaker coverage in custom integrated multi-room audio systems
  • Eight channels of audiophile-grade Class D amplification, bridgeable and 4-ohm capable, featuring a unique ground loop/hum-free circuit design
  • Four audio buses and included jumpers allow for wide variety of speaker configurations
  • Interlocks power on/off with XDA-QS5400RK via Trigger I/O
  • Integration-friendly features include audio sensing inputs, IR I/O and more

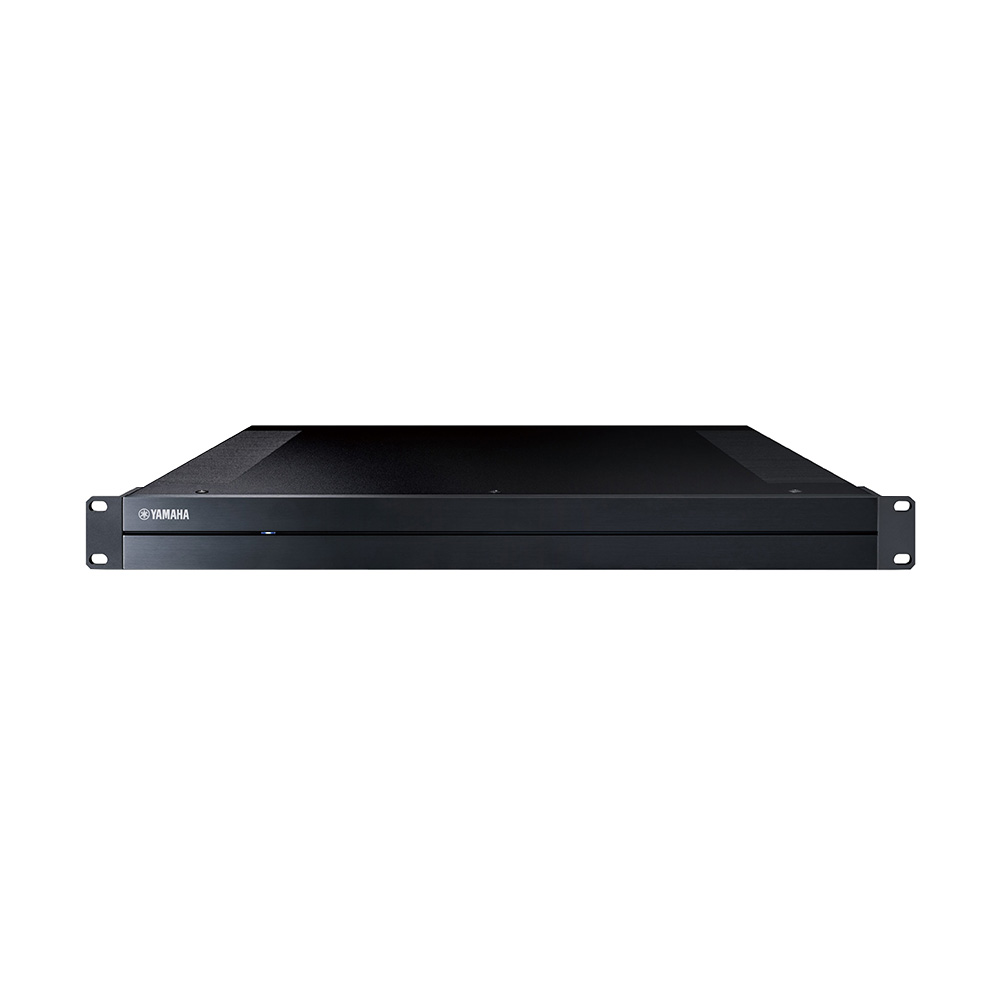

  • 1U high, rack-wide enclosure; removable rack ears and faceplate included

Description

 The Perfect Whole Home Audio Companion



The XDA-AMP5400RK – the “AMP” – was conceived as a companion to the Yamaha XDA-QS5400RK as a way to provide additional speaker coverage and/or additional speaker output power in a custom integrated multi-room home audio system. It also pairs nicely with Yamaha AV receivers that offer Zone pre outs.



Slim Yet Powerful

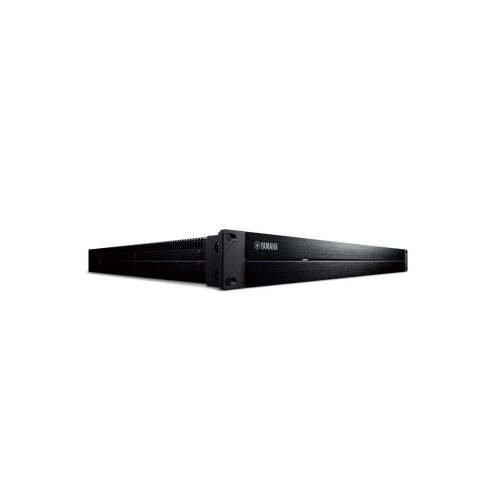

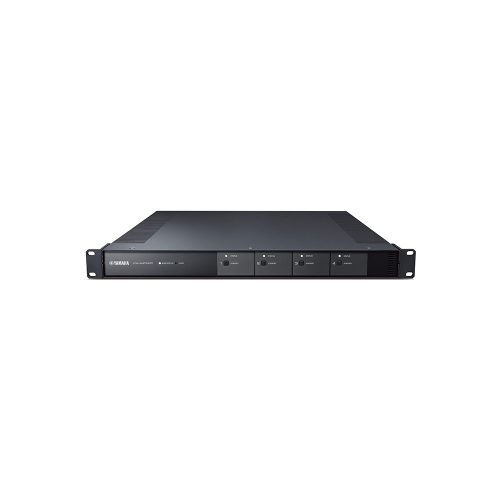

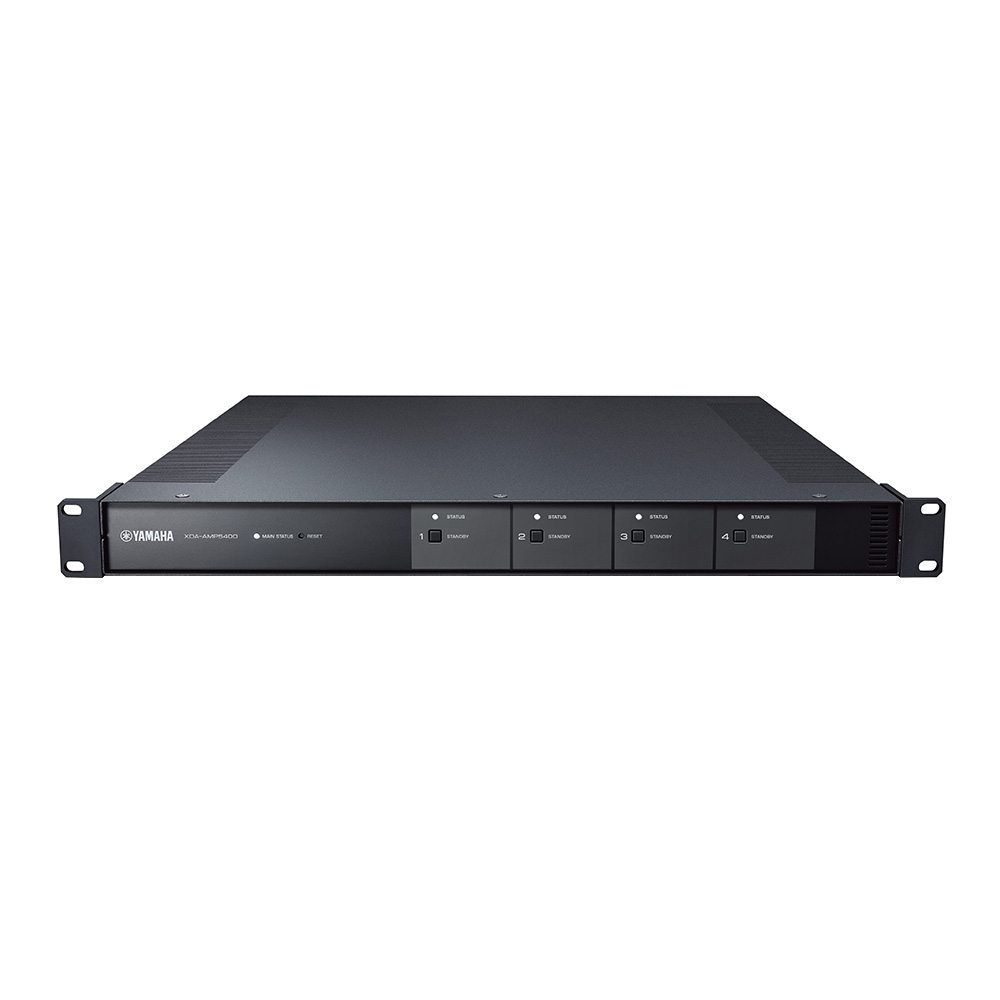

The AMP packs eight channels of audiophile-grade amplification into a remarkably-slim 1U-high enclosure, allowing you to fully optimise your valuable rack real estate.

Slim Yet Powerful



Phenomenal Flexibility

Feed up to four sources from QS pre outs into the AMP – its four audio I/O buses can be patched together to handle a wide array of speaker/zone configurations. The AMP comes with a set of jumper plugs and cables, making it ultra-versatile right out of the box. The audio outs can alternatively be used to connect powered subwoofers or subwoofer amps.

Phenomenal Flexibility



More Power on Demand

Each of the four amplifier zones is also bridgeable, giving you the option to increase power output to select speakers if needed.

More Power on Demand



Engineered to Sound Extraordinary




The AMP employs ultra-efficient ICEpower integrated circuits to deliver eight channels of pristine, musically-dynamic digital amplification 50 watts/channel (8 ohms) with an outstanding 5 Hz to 40 kHz (+0/-3 dB) frequency response and 108 dB signal-to-noise ratio. It is 4 ohm capable at 100 watts/channel and bridgeable to 200 watts/channel (8 ohms).







The curse of the custom integrator: ground loop hum, a common and vexing side effect of connecting a bunch of electronics together in a rack. The AMP takes care of it with a brilliantly-engineered differential circuit design. Sometimes it’s what you don’t hear that sounds the most amazing.






The AMP employs a balanced audio circuit design and PML capacitors, which are also used in our flagship AVENTAGE AV separates. The result: greater realism and expressiveness for all of your favourite music.



Custom-Built for Custom

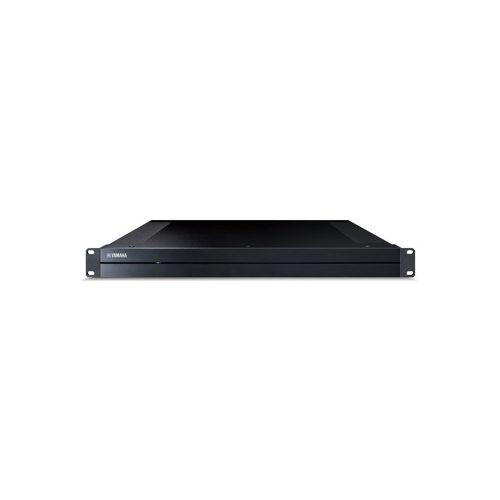

Mount it in a rack with the included ears or remove the ears for shelf installations. The included magnetic faceplate discourages tampering and provides the perfect cosmetic finish.






When a QS and AMP are used together, simply wire the trigger ports to automatically power on/off the desired amplifier zones – no additional control interface is needed. The AMP also works great as a companion to an AVENTAGE AV receiver. When using the AMP with other sources, audio sensing inputs and an infrared I/O provide additional control flexibility.

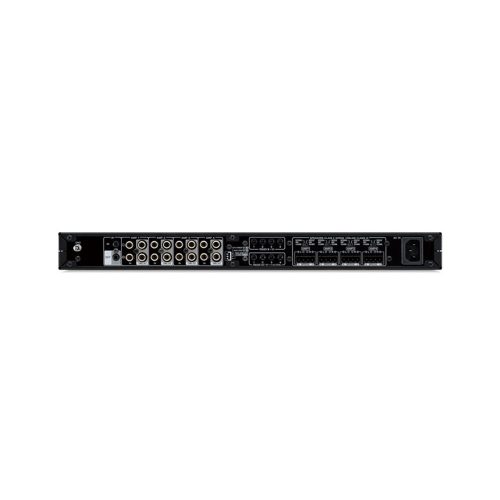

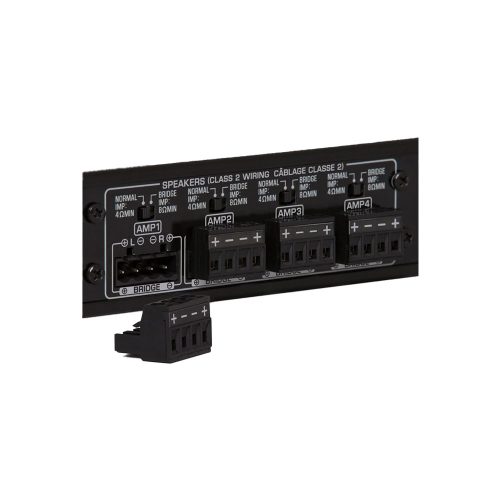

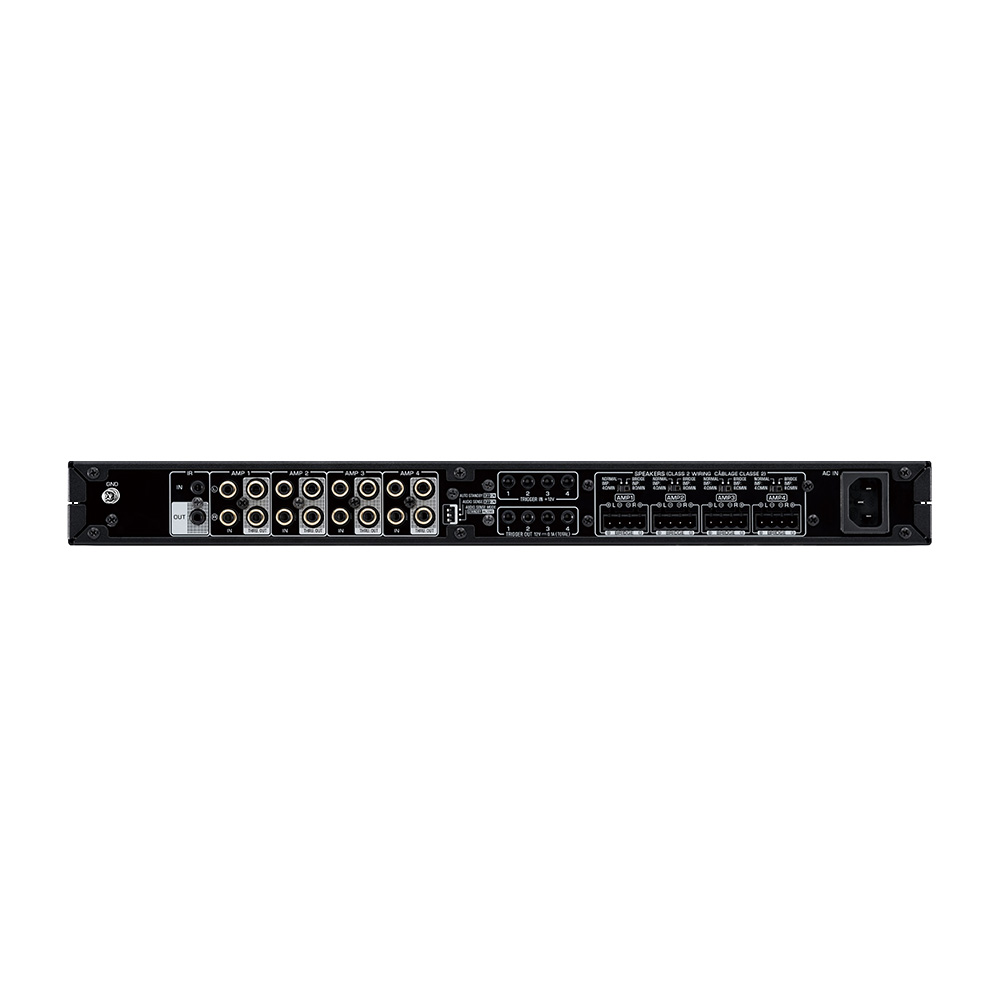

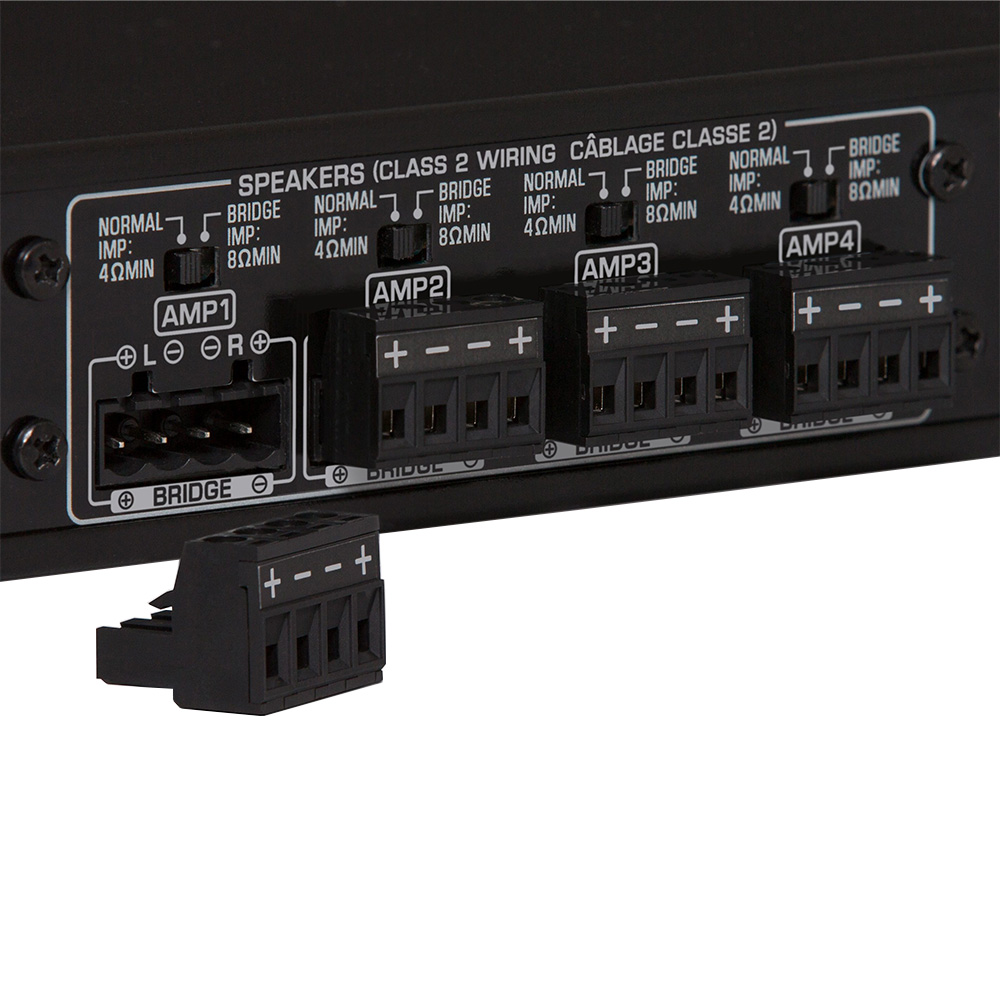

The AMP is truly made for custom integration, with Euroblock-style speaker connectors and a detachable AC cable for smart connectivity.


Audio SpecificationsChannel8 channel (2 channel x 4)
Minimum Speaker load Capability4 ohm
BTL ConnectionYes
Speaker Output Terminal4 (Euroblock)
Audio Input TerminalRCA: 4
Audio Output TerminalRCA (2-ch through out): 4
Trigger In / Out4 / 4
Remote In / Out1 / 1
Rated Output Power (1 kHz, 0.9% THD, 2ch driven)Normal (4 / 8 ohms): 90 / 50 W, Bridge (8 ohms): 100 W
Rated Output Power (1 kHz, 0.9% THD, 1ch driven)Normal (4 / 8 ohms): 100 / 50 W, Bridge (8 ohms):200 W
Dynamic Power (20 Hz-20 kHz, 0.08% THD, 2ch driven, 20 ms burst)Normal (4 / 8 ohms): 80 / 40 W, Bridge (8 ohms): 150 W
Dynamic Power (1 kHz, 0.9% THD, 2ch driven, 20 ms burst)Normal (4 / 8 ohms): 100 / 50 W, Bridge (8 ohms): 200 W
Dynamic Power (1 kHz, 0.9% THD, All ch driven, 20 ms burst)Normal (4 / 8 ohms): 80 / 50 W, Bridge (8 ohms):170 W
Maximum Effective Output Power[1-ch driven, 1 kHz, 10% THD] Normal (4 / 8 ohm):130 / 65 W, Bridge (8 ohm): 260 W
Total Harmonic Distortion[SP OUT, 20 Hz-20 kHz, 25 W, 8 ohm] 0.04%
Frequency Response[1 kHz + 0 / -3 dB] SP OUT AUX IN: 5 Hz-40 kHz
Signal to Noise Ratio[SP OUT AUX IN] 108 dB
Maximum Input Signal[PRE OUT L / R, 0.9% THD] 1 V
Gain[SP OUT 1 V Input] 25.8 dB
Input Sensitivity[1 W Power, 8 ohm] 150 mV, [MAX (50W) Power, 8 ohm] 1.0 V
GeneralPower Consumption130 W, [All Zone On] No Signal Condition: 32 W, [All Zone Off] Audio Sense On: 14.8 W
Standby Power ConsumptionAudio Sense Disable: 0.3 W, Audio Sense Enable / Mode Standby: 0.5W
Power Management (Auto Power Standby)Yes (On / Off)
Dimension (W × H × D) mm[Table Top Mount with Adhesive Feet] 437 x 46 x 443 mm; 17-1/4” x 1-3/4” x 17-3/8”, [Table Top Mount with Adhesive Feet and Faceplate] 437 x 46 x 453 mm; 17-1/4” x 1-3/4” x 17-7/8”, [Rack Mount] 481 x 44 x 443 mm; 18-7/8” x 1-3/4” x 17-3/8”, [Rack Mount with Faceplate] 481 x 44 x 453 mm; 18-7/8” x 1-3/4” x 17-7/8”
Weight6.0 kg; 13.2 lbs.
