Yamaha Pendant Speaker VXH6B / VXH6W

Yamaha Pendant Speaker VXH6B / VXH6W

Stunning sound from any ceiling

VXH series pendant speakers are an ideal choice for open-structure or sloped ceilings, adding versatility for a variety of environments and sonic needs.

Two models are available: the wide-dispersion 6.5-inch VXH6 for use where the speakers are to be suspended at a relatively low position, and the high-power 8-inch VXH8 with narrower dispersion for higher suspension positions. You can select or mix and match models to achieve the best sound and coverage in any application.

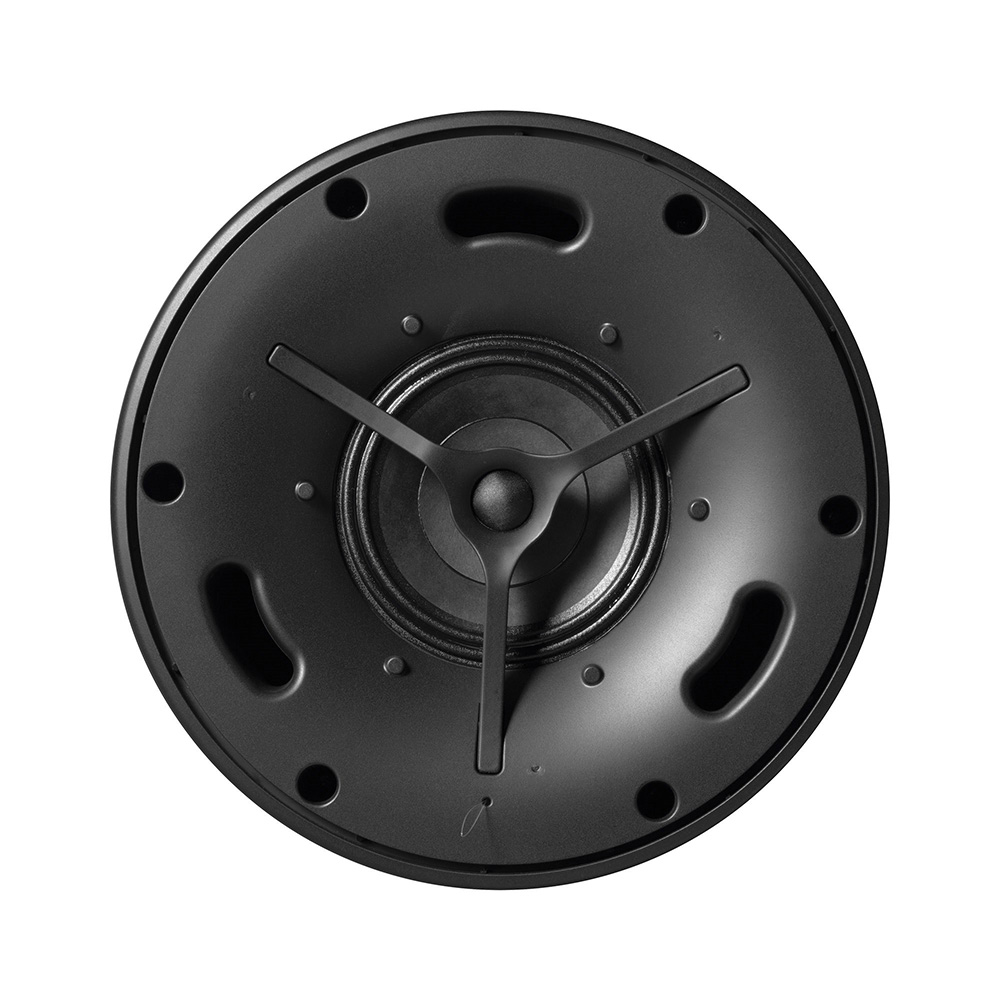

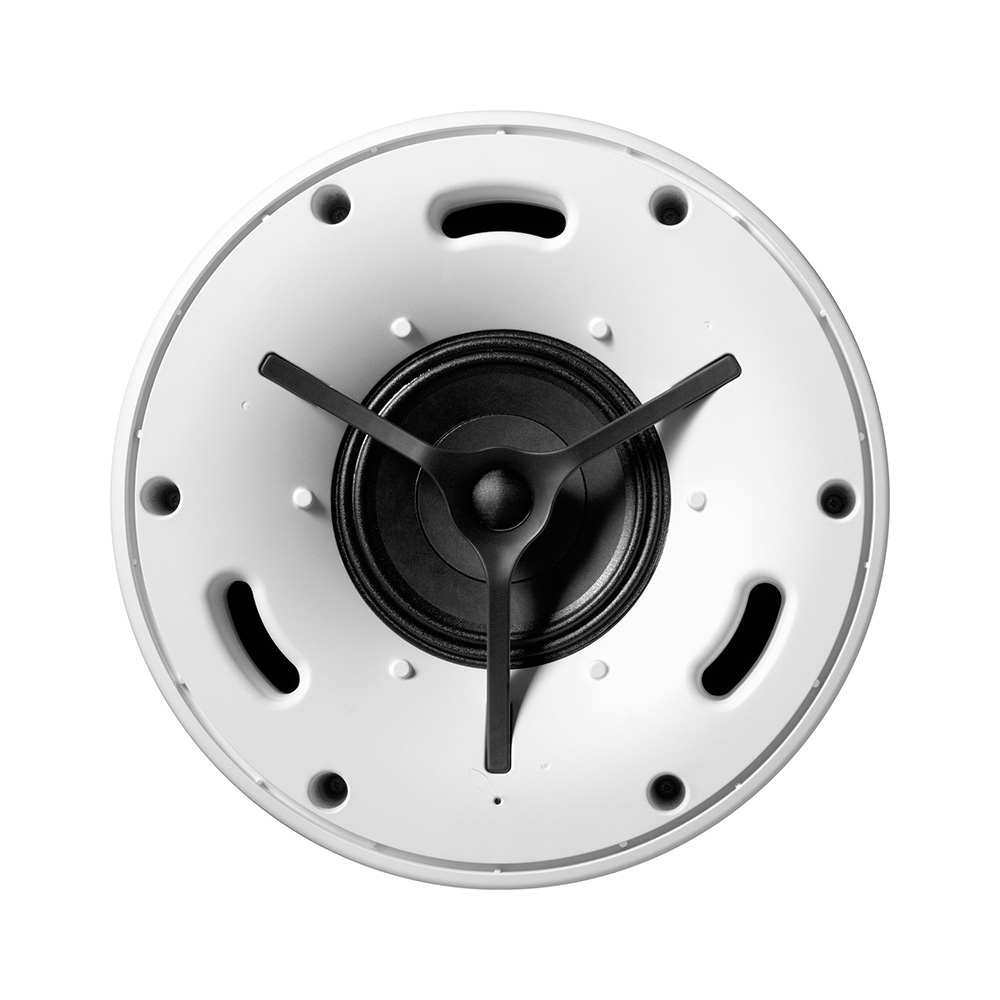

  • 2-way system with 6.5-inch woofer and 1-inch tweeter
  • Wide dispersion (120°) and 300W power handling
  • Engineered for optimum BGM and voice reproduction
  • Pendant speaker suitable for high, open structure or sloped ceilings
  • Direct support for low-impedance or high-impedance connections

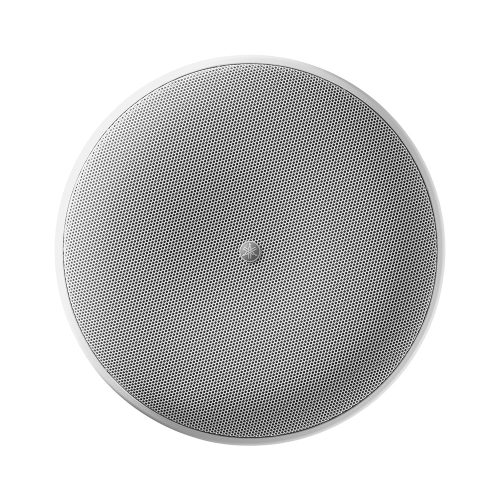

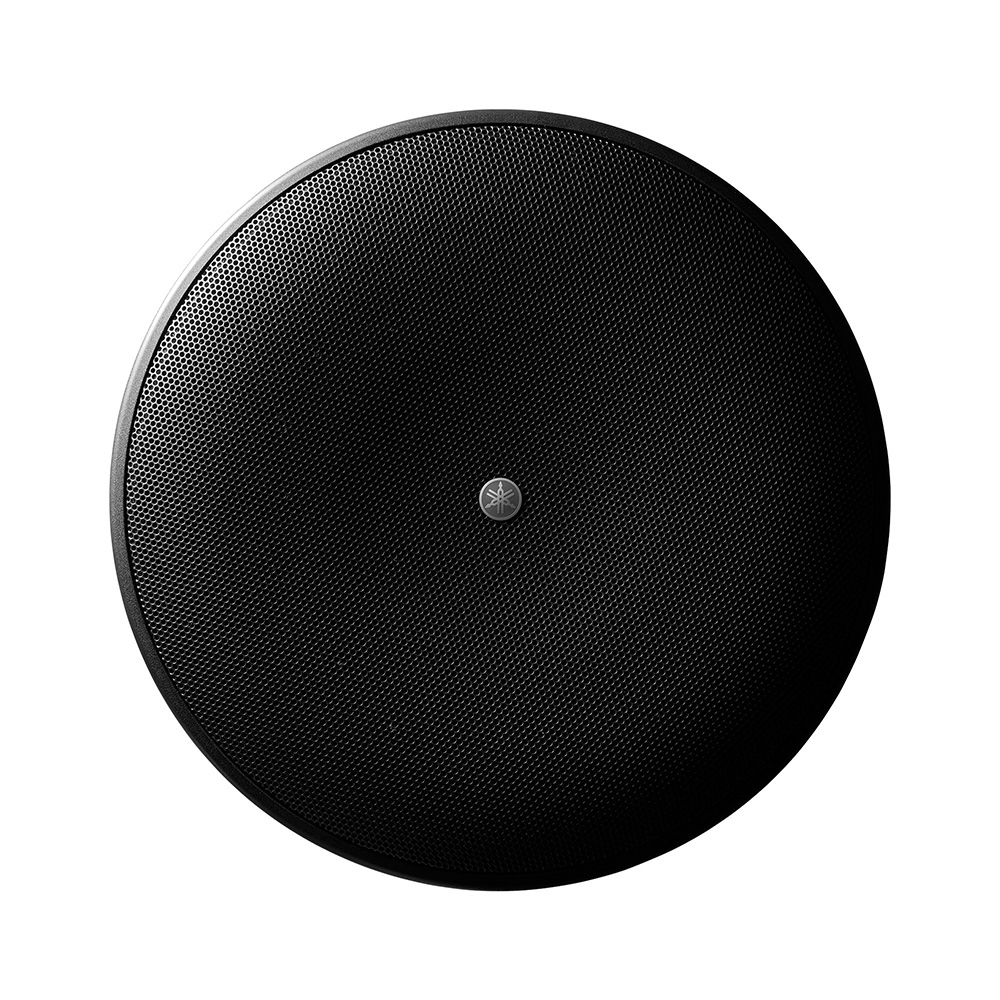

  • Paintable grilles with magnetic catches
  • 2 x 6m steel wire cables by Gripple

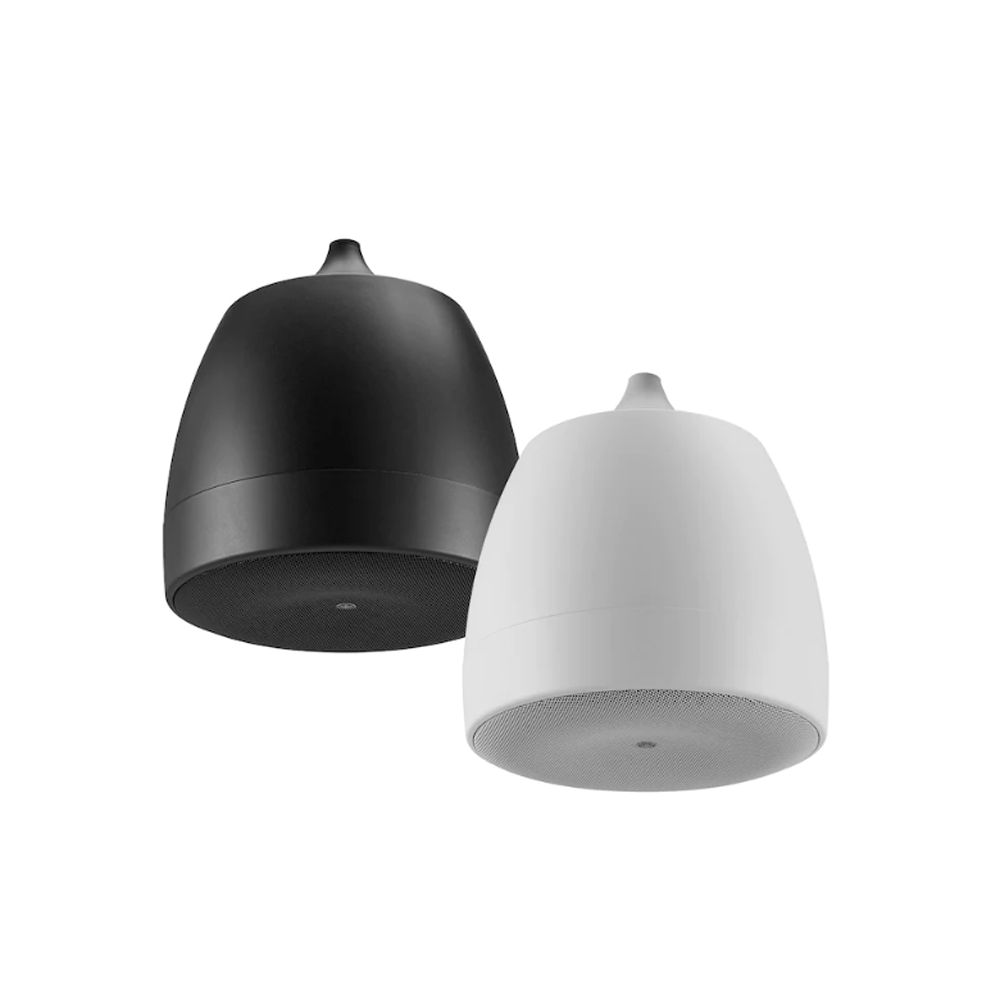

  • Black and white versions available
  • 5.7 kg (12.6 lbs), Ø340 x D368 mm (Ø13-3/8” D14-1/2”)
  • Single unit package
Categories: ,

Description

2-way system with 6.5-inch woofer and 1-inch tweeter
  • Wide dispersion (120°) and 300W power handling
  • Engineered for optimum BGM and voice reproduction
  • Pendant speaker suitable for high, open structure or sloped ceilings
  • Direct support for low-impedance or high-impedance connections
  • Paintable grilles with magnetic catches
  • 2 x 6m steel wire cables by Gripple
  • Black and white versions available
  • 5.7 kg (12.6 lbs), Ø340 x D368 mm (Ø13-3/8” D14-1/2”)
  • Single unit package
Yamaha VXH Series: Models for a wide range of applications

Two models are available to adapt varying heights in a wide range of applications. The wide-dispersion 6.5-inch VXH6 is ideal for use where the speakers are to be suspended at a relatively low position, while the high-power 8-inch VXH8 has narrower dispersion that is suited for high suspension positions.

Yamaha VXH Series: More compact, more beautiful, timeless shape

Clean architectural settings require fixtures that seamlessly blend into their environments while maintaining full functionality. VXH series combine unprecedented acoustical performance and a music instrument inspired design that will be at home in a wide variety of settings.

Yamaha VXH Series: World-class Installation Ease and Safety

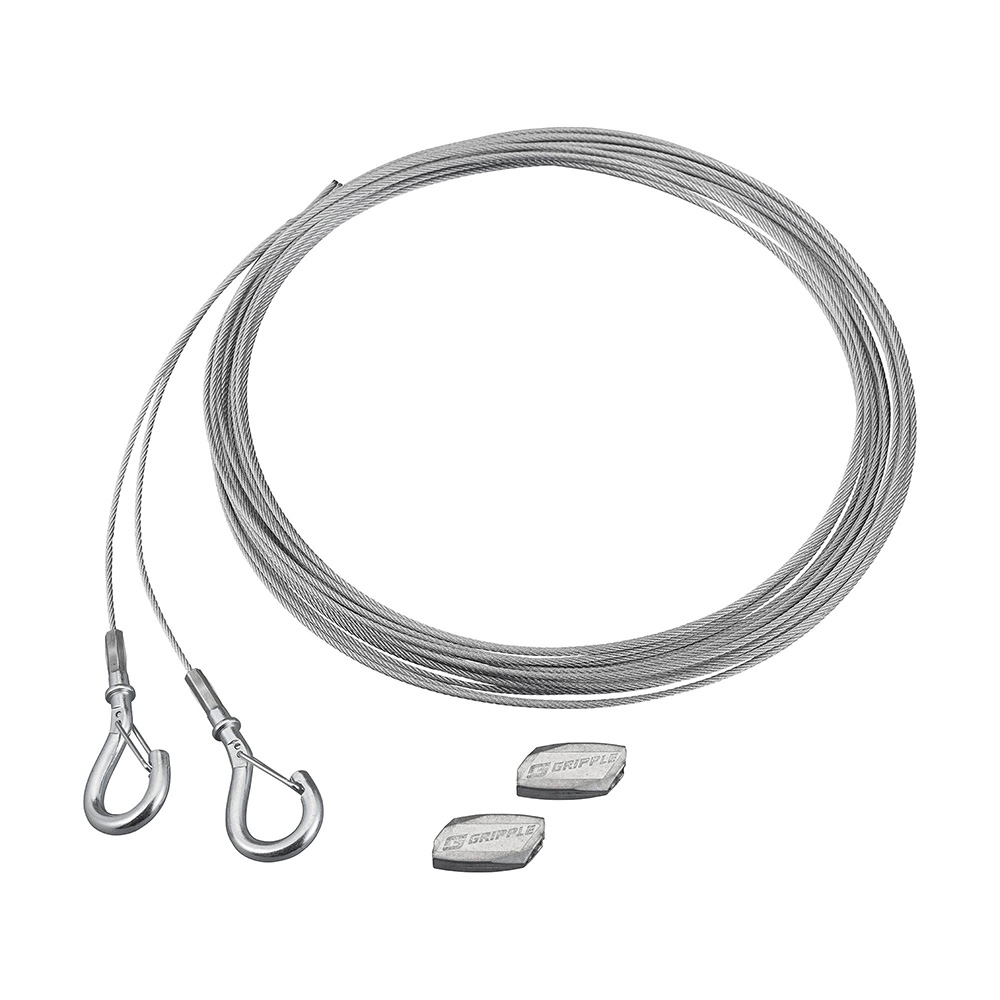

Gripple suspension hardware and wire kit included for easy, safe height adjustment during installation.

Yamaha VXH Series: High-impedance and low-impedance supported

Both high-impedance and low-impedance connections are supported, and speaker wattage can be easily switched even after installation. The need for additional units is minimized and systems can be designed to ideally meet the requirements of any application.

Secure Installation

  • Yamaha VXH Series: Secure Installation

A suspension hardware and wire kit from Gripple, the world standard in suspension products, ensure, safe height adjustment during installation.

Dust and Water Protection

  • Yamaha VXH Series: Dust and Water Protection

VXH Series speakers are IP45 rated for use in a wide range of environments, including outdoors.

* Not for use in humid places.

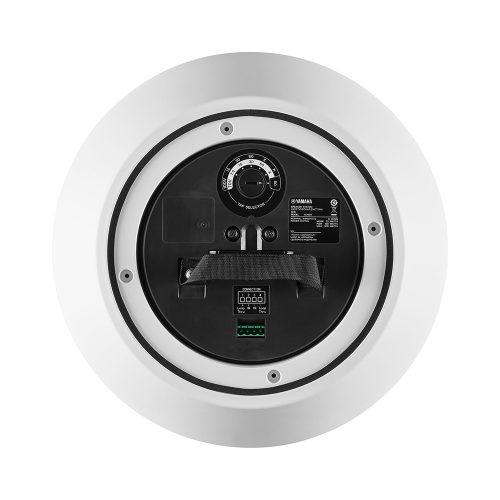

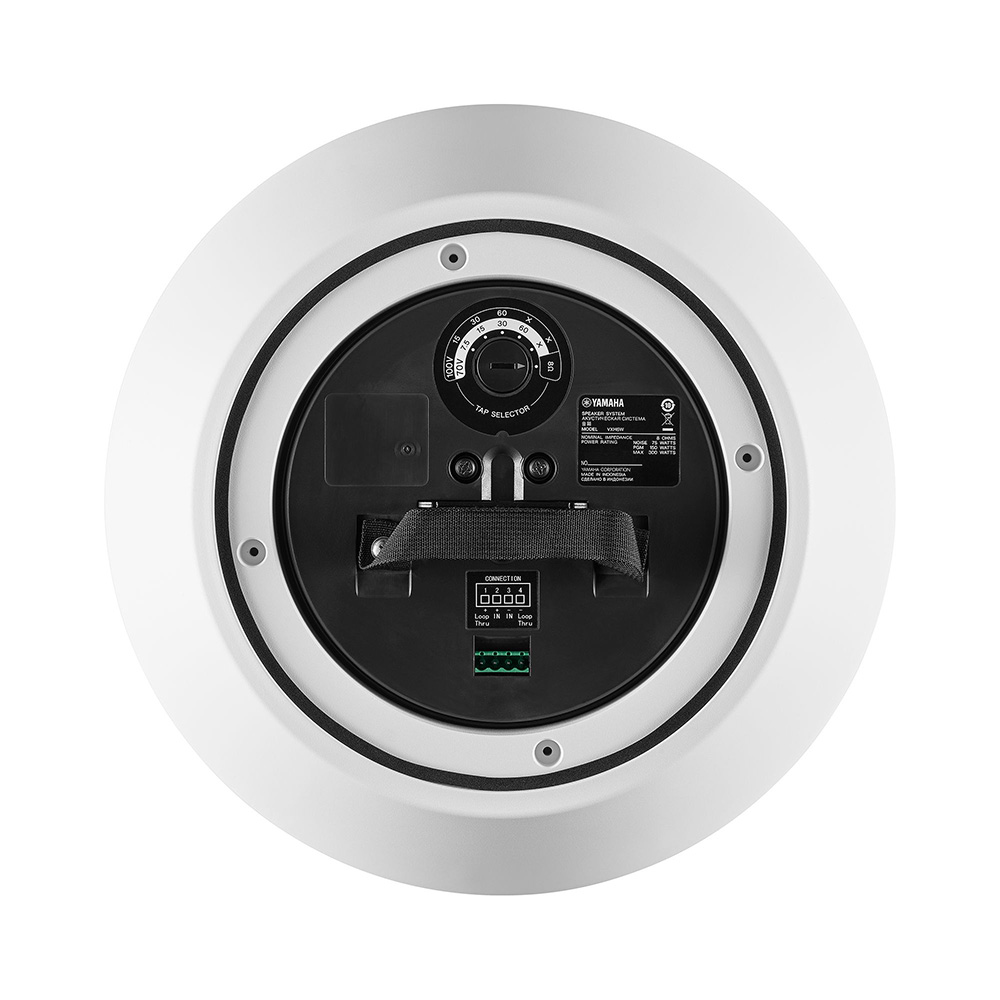

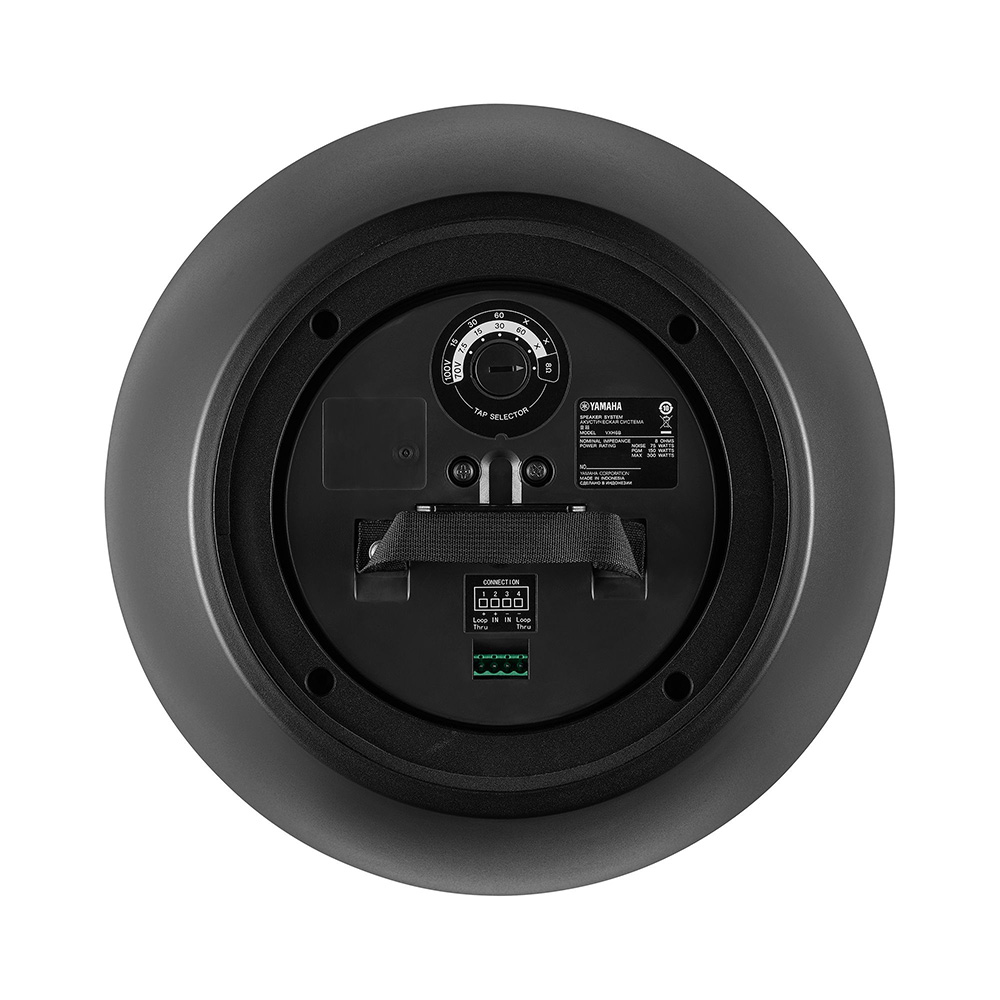

Hi-Z or Lo-Z

  • Yamaha VXH Series: Hi-Z or Lo-Z

Both high-impedance and low-impedance connections are supported, and speaker wattage can be easily switched even after installation.

Portable

  • Yamaha VXH Series: Portable

A built-in “carrying band” not only makes the speaker easy to carry around, but also increases safety when working on a stepladder.

Paintable

  • Yamaha VXH Series: Paintable

The supplied grilles can be painted any color to match interior decor.

VXH6B / VXH6W
General specifications
Speaker typeSpeaker typeCoaxial 2 way, Bass reflex type
Frequency range (-10dB)Frequency range (-10dB)55 Hz - 20 kHz (Full-space:4π)
Nominal coverageNominal coverage120゜ conical (Full-space:4π)
Crossover FrequenciesCrossover Frequencies3 kHz
ComponentsLF6.5" (16 cm) Cone
ComponentsHF1" (2.5 cm) Soft Dome
Power ratingNOISE75 W
Power ratingPGM150 W
Power ratingPEAK300 W
Nominal impedanceNominal impedance8 Ω
Transformer taps100V60 W, 30 W, 15 W
Transformer taps70V60 W, 30 W, 15 W, 7.5 W
SPLSensitivity (1W; 1m on axis)93 dB (Full-space:4π)
SPLPeak (Calculated)118 dB (Calculated, 1 m)
I/O connectorsI/O connectorsEuroblock (4 pin) × 1 (input: +/-, loop-thru: +/-): Min. wire size AWG 24 (0.2 sq), Max. wire size AWG 12 (3.5 sq)
Protection circuitLoad protectionFull-range power limiting to protect network and transducers
FinishFinishVXH6B Black powder coating (approximate value: Munsell N3), VXH6W White powder coating (approximate value: Munsell N9.3)
DimensionsDiameterØ341 mm (13 - 3/8")
DimensionsD379 mm (14 - 1/2")
Net weightNet weight5.7 kg
AccessoriesAccessoriesGripple Kit × 1, Euro Block (4 pin) × 1, Cushion Seal × 1, Back Cover Set × 1, Owner’s Manual × 1, GRIPPLE Kit Installation Guide × 1
Dust and water resistantDust and water resistantIP45 (when waterproofing the cover hole)
PackagingPackagingSingle package
CertificateCertificateUL1480A, NFPA70, CE, RoHS
General specificationsGeneral specificationsGeneral specifications
Speaker typeSpeaker typeCoaxial 2 way, Bass reflex type
Frequency range (-10dB)Frequency range (-10dB)55 Hz - 20 kHz (Full-space:4π)
Nominal coverageNominal coverage120゜ conical (Full-space:4π)
Crossover FrequenciesCrossover Frequencies3 kHz
ComponentsLF6.5" (16 cm) Cone
ComponentsHF1" (2.5 cm) Soft Dome
Power ratingNOISE75 W
Power ratingPGM150 W
Power ratingPEAK300 W
Nominal impedanceNominal impedance8 Ω
Transformer taps100V60 W, 30 W, 15 W
Transformer taps70V60 W, 30 W, 15 W, 7.5 W
SPLSensitivity (1W; 1m on axis)93 dB (Full-space:4π)
SPLPeak (Calculated)118 dB (Calculated, 1 m)
I/O connectorsI/O connectorsEuroblock (4 pin) × 1 (input: +/-, loop-thru: +/-): Min. wire size AWG 24 (0.2 sq), Max. wire size AWG 12 (3.5 sq)
Protection circuitLoad protectionFull-range power limiting to protect network and transducers
FinishFinishVXH6B Black powder coating (approximate value: Munsell N3), VXH6W White powder coating (approximate value: Munsell N9.3)
DimensionsDiameterØ341 mm (13 - 3/8")
DimensionsD379 mm (14 - 1/2")
Net weightNet weight5.7 kg
AccessoriesAccessoriesGripple Kit × 1, Euro Block (4 pin) × 1, Cushion Seal × 1, Back Cover Set × 1, Owner’s Manual × 1, GRIPPLE Kit Installation Guide × 1
Dust and water resistantDust and water resistantIP45 (when waterproofing the cover hole)
PackagingPackagingSingle package
CertificateCertificateUL1480A, NFPA70, CE, RoHS
