Yamaha Powered Monitor Speaker MS101-4

The standard model in our range of desktop utility powered monitors, the Yamaha MS101-4 offers portability in a compact design and simple but comprehensive functions for outstanding usability.

  • 30W of amplifier power provides clean, high output sound
  • Redesigned enclosure for an even lower profile
  • Combo Input jack accepts both XLR and 1/4″ connectors

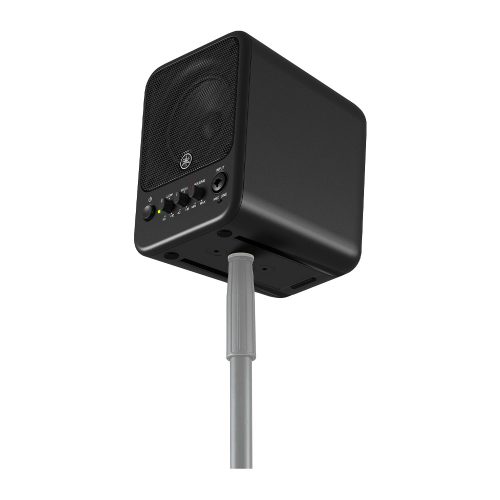

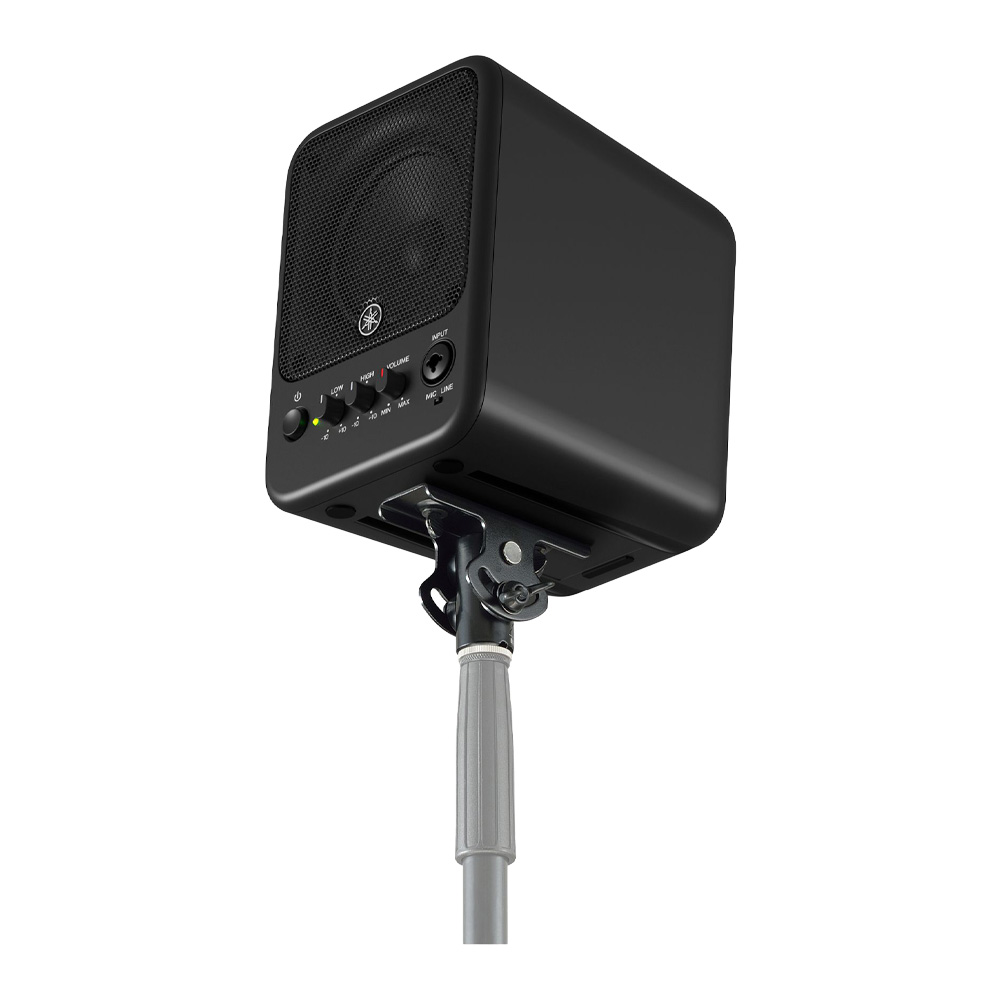

  • Directly mountable on Euro microphone stands (Optional mic stand adaptor BMS-10A is available for adjusting tilt angle)

Description

The de facto standard for compact monitoring in a simple form

The standard model in our range of desktop utility powered monitors, the MS101-4 offers portability in a compact design and simple but comprehensive functions for outstanding usability. The MS101-4 comes with a 3/8-16 threaded female mounting for direct attachment to a Euro microphone stand, and optional accessories can also be added for use in a wide range of applications.

Yamaha MS101-4: The de facto standard for compact monitoring in a simple form



A compact, convenient approach to high-quality monitoring anywhere

Yamaha’s smallest powered monitor speaker compatible with both line and mic inputs, the MS101-4 powered monitor speaker offers the flexibility needed for temporary or permanent use in applications requiring simple, compact monitors.

Yamaha MS101-4: AV Monitoring

AV Monitoring

Yamaha MS101-4: Communications between FOH and Monitor engineers

Communications between FOH and Monitor engineers

Yamaha MS101-4: Device Inspection Monitoring

Device Inspection Monitoring

Yamaha MS101-4: Facility Audio Management

Facility Audio Management



Simple, portable, durable design

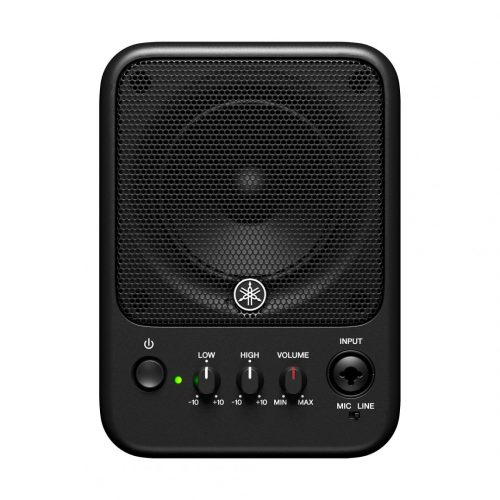

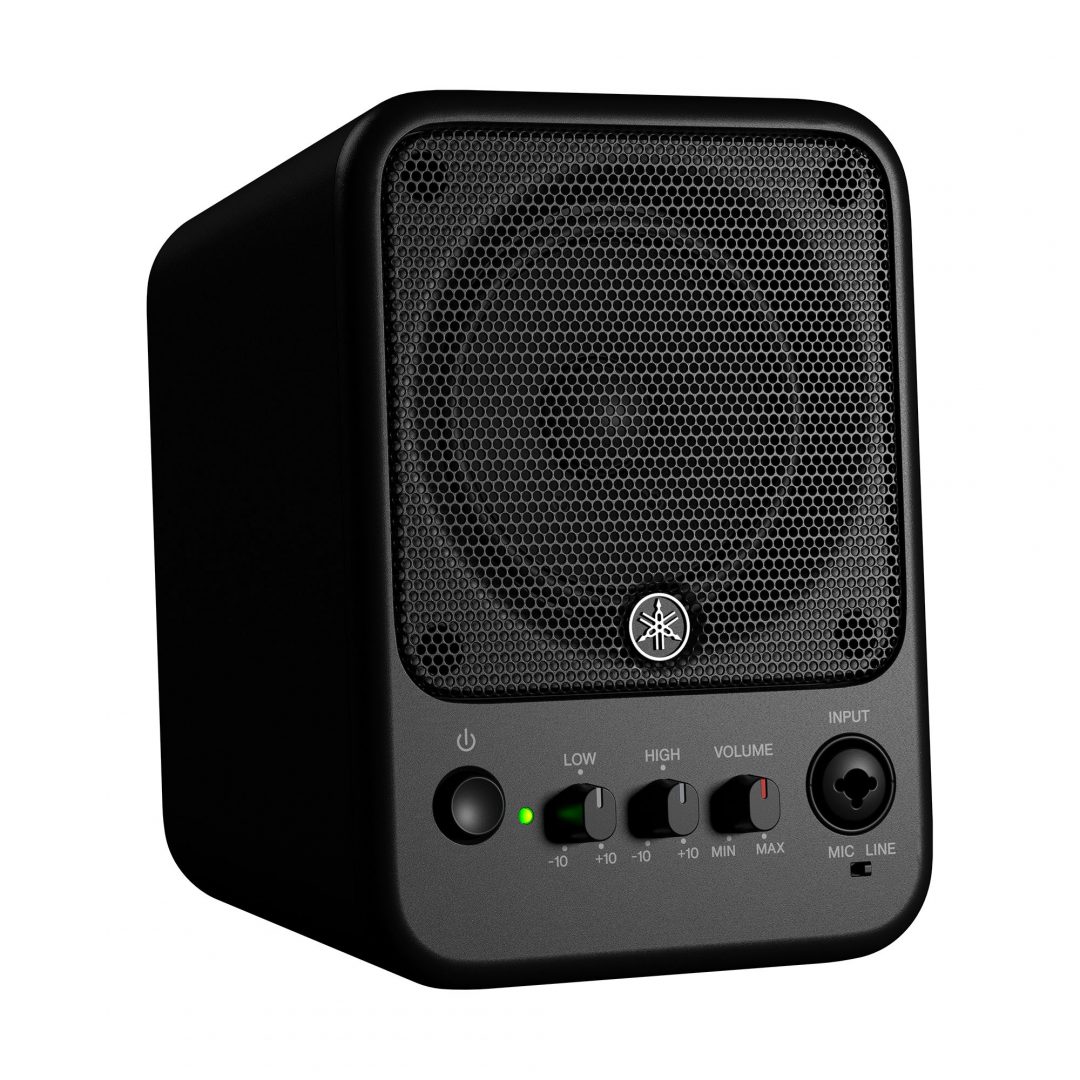

With the controls (power switch, volume and tone controls) and the combo jack input on the lower front panel, the MS101-4 is simple and easy to operate.

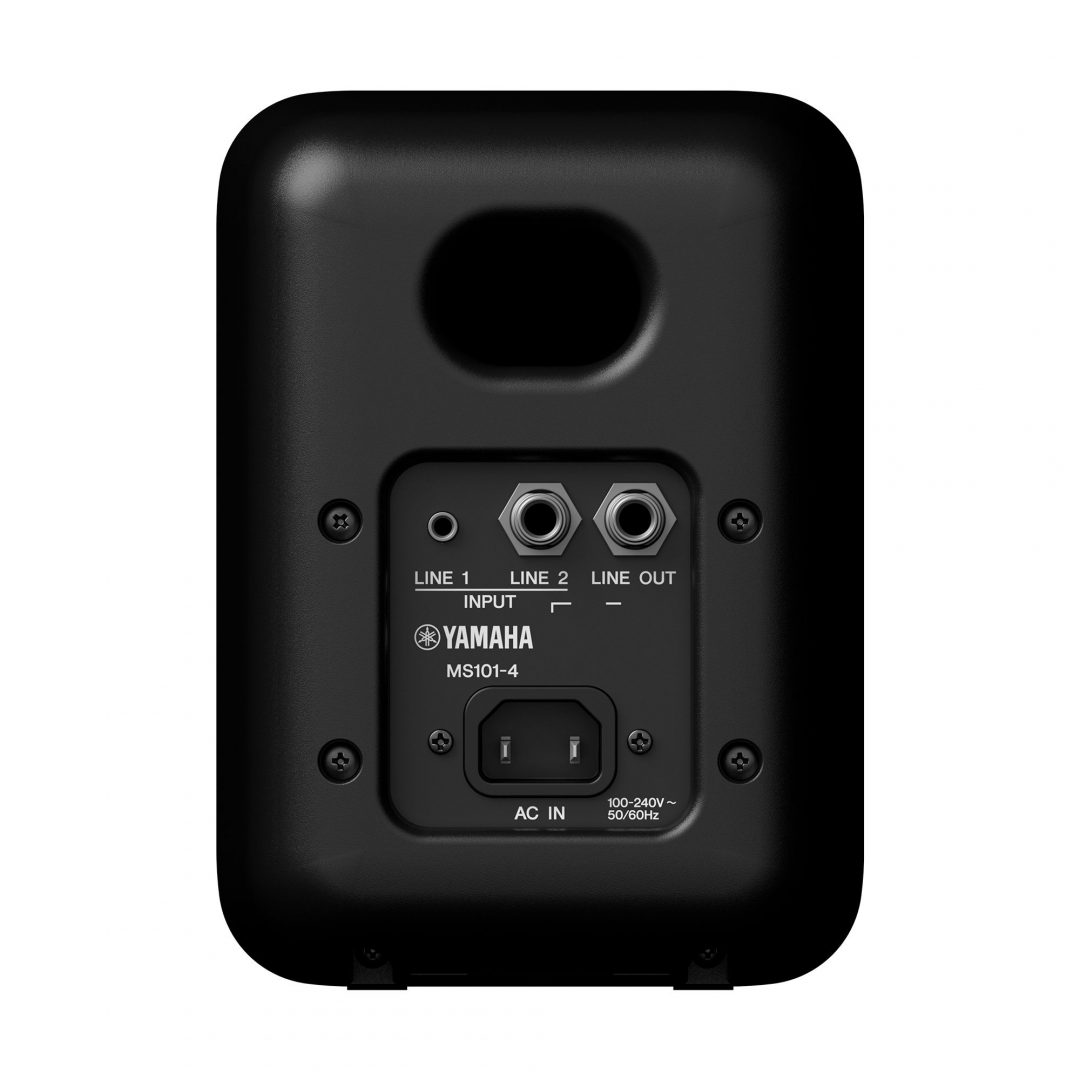

The sturdy metal grill offers complete protection for the four-inch cone driver, while the rear panel is equipped with one stereo mini and two TRS Phone input connectors, and an AC inlet for excellent portability. The bass reflex port is also located on the rear surface, resulting in a more compact chassis.

The MS101-4 offers a compact, lightweight form that is both portable and durable.

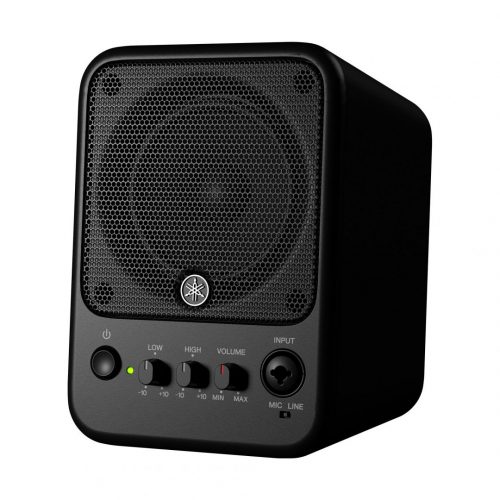

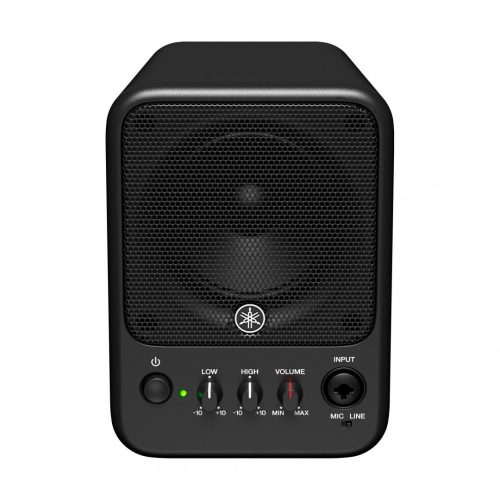

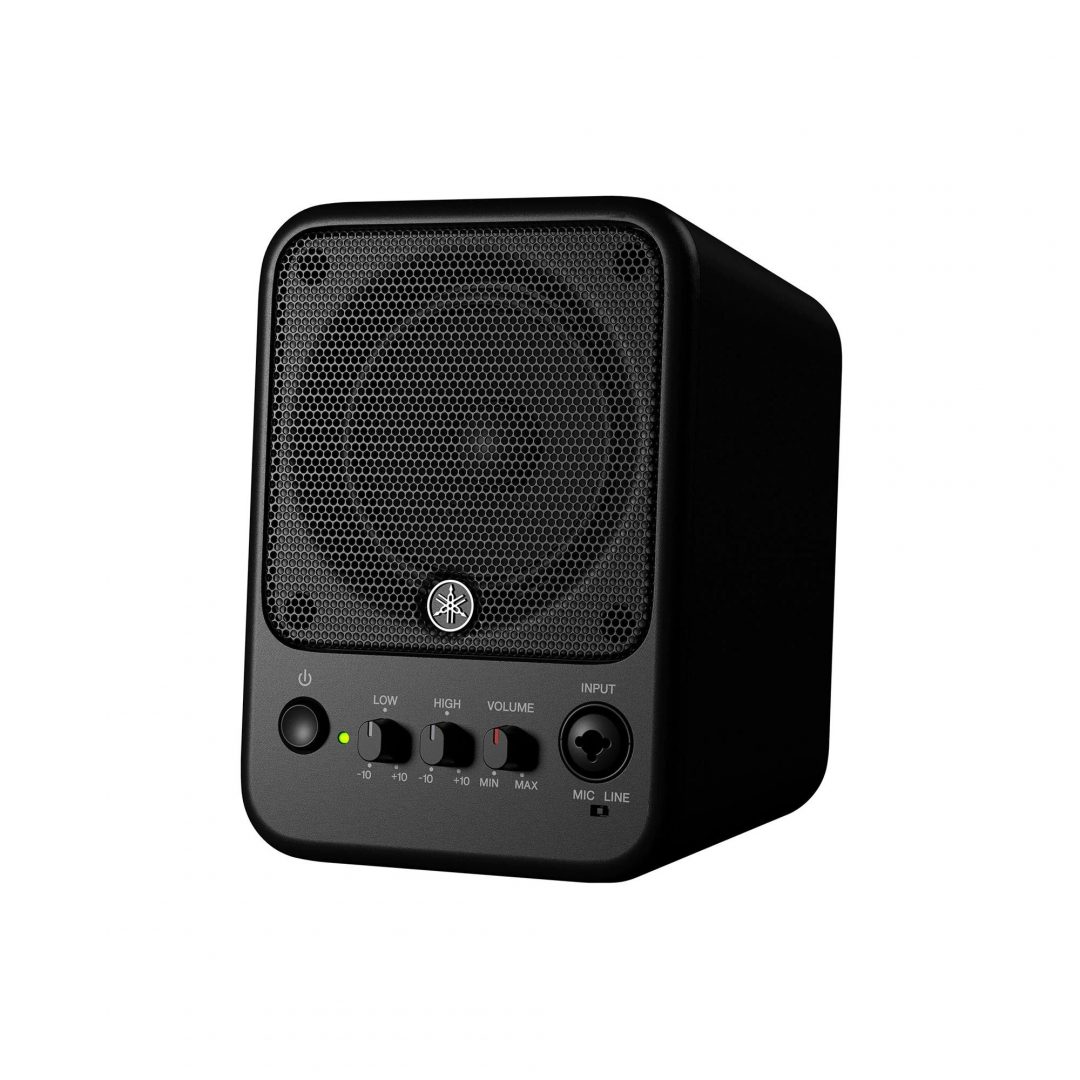

Yamaha Powered Monitor Speaker MS101-4: front and rear

Speaker typeFull range Powered Speaker, Bass-reflex Type
Frequency range (-10dB)77 Hz–20 kHz
Maximum output level (1m; on axis)115 dB SPL *1
ComponentsLF-HF4″ Cone, 1″ Voice coil, Ferrite magnet
DimensionsW142 mm
H196 mm
D187 mm
Net weight2.1 kg (4.6 lbs)

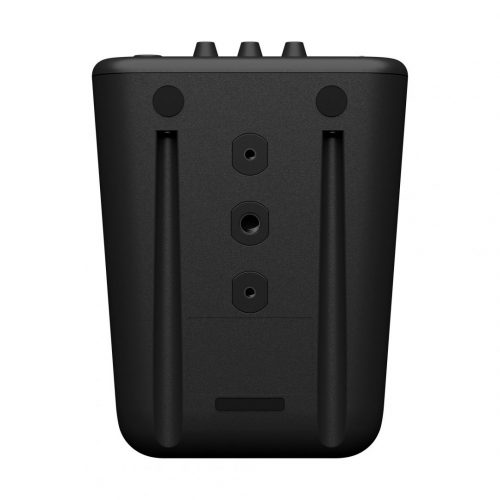

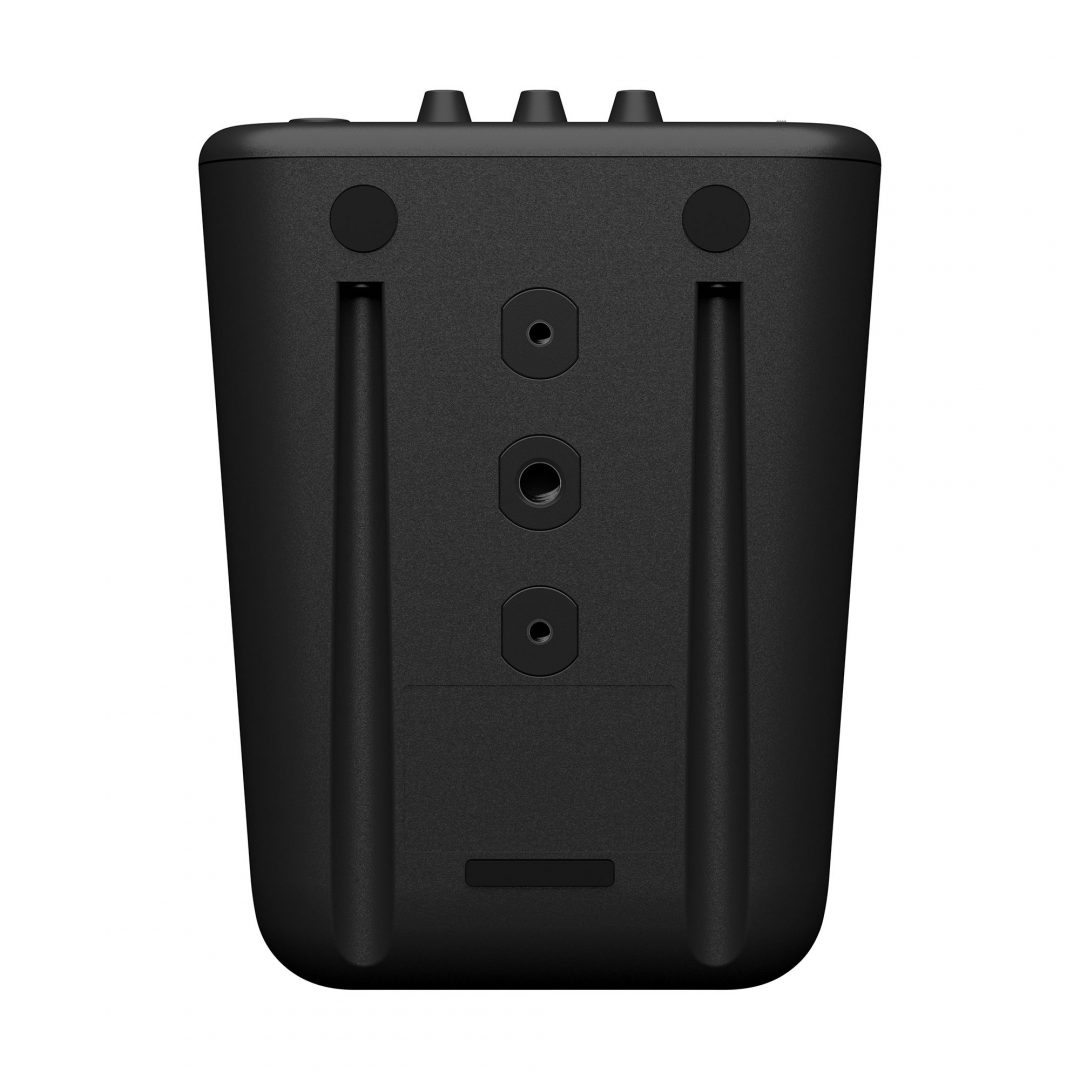

Flying and mounting hardwareScrew threads (bottom): 2 x M5 depth 11 mm pitch 60 mm (for 2, M5 x 6-10 mm screws), 1 x 3/8″ depth 12 mm (for 1 x 3/8″ x 9-11 mm screw)
Amplifier classClass-D
Power ratingDynamic30 W
Continuous20 W
CoolingNatural cooling (no fan)
I/O ConnectorsMic Input[Front] INPUT: Combo, [Rear] INPUT LINE 1: Stereo Mini, INPUT LINE 2: Phone (TRS)
Line Out1 x Phone (TRS)
AC1 x AC inlet
Input impedance[Front] INPUT: LINE=5.4 kΩ / MIC= 5.4 kΩ, [Rear] INPUT LINE 1,2: 10 kΩ
Input sensitivity[Front] INPUT: LINE=-10 dBu / MIC=-40 dBu, [Rear] INPUT LINE 1, 2: -10 dBu (VOLUME: Maximum)
Input Level[Front] INPUT: LINE=+5 dBu / MIC=-25 dBu, [Rear] INPUT LINE 1, 2: +5 dBu (Nominal Input Level / VOLUME: Center), [Front] INPUT: LINE=+20 dBu / MIC=-10 dBu, [Rear] INPUT LINE 1, 2: +20 dBu (Maximum Input Level)
OthersControls: 1 x VOLUME, 1 x LOW CONTROL, 1 x HIGH CONTROL, POWER
IndicatorsPOWER (Green LED)
Power consumption1/8 Power Consumption: 10 W, Idle Power Consumption: 3 W
Power requirements100 V – 240 V, 50/60 Hz

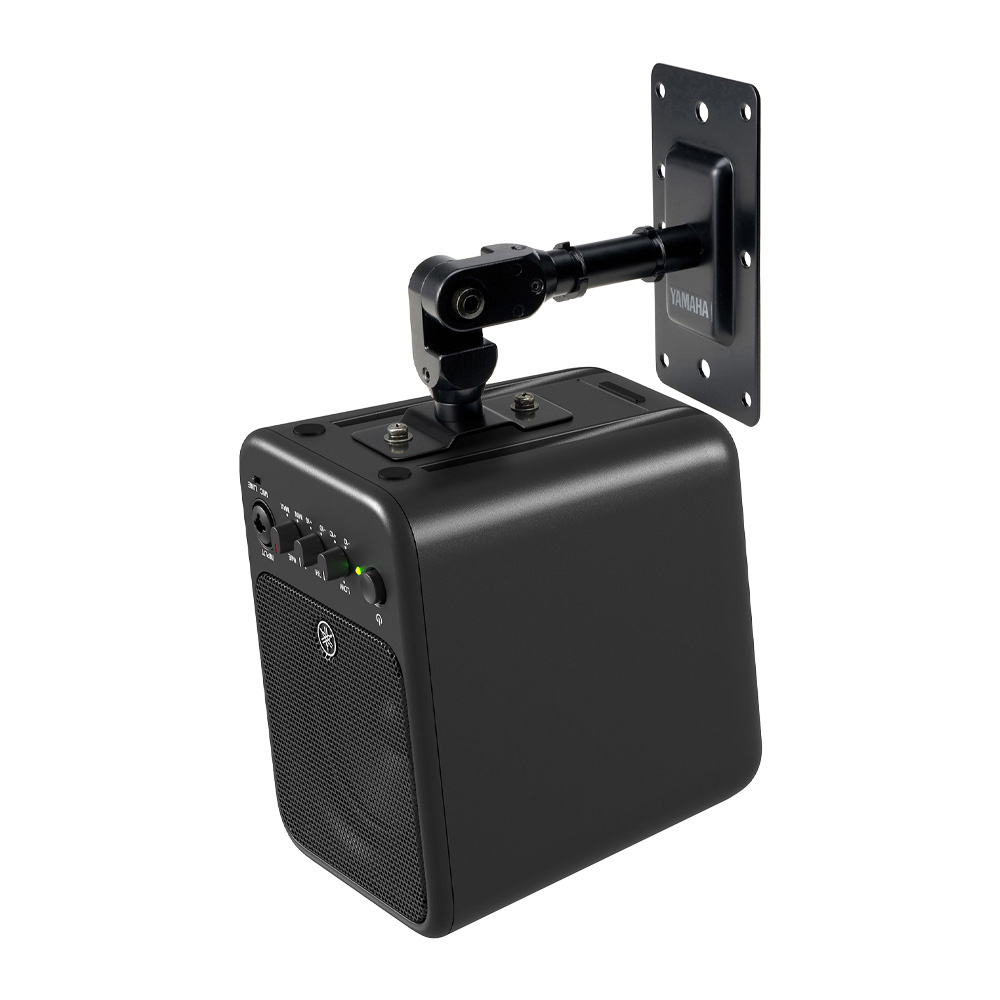

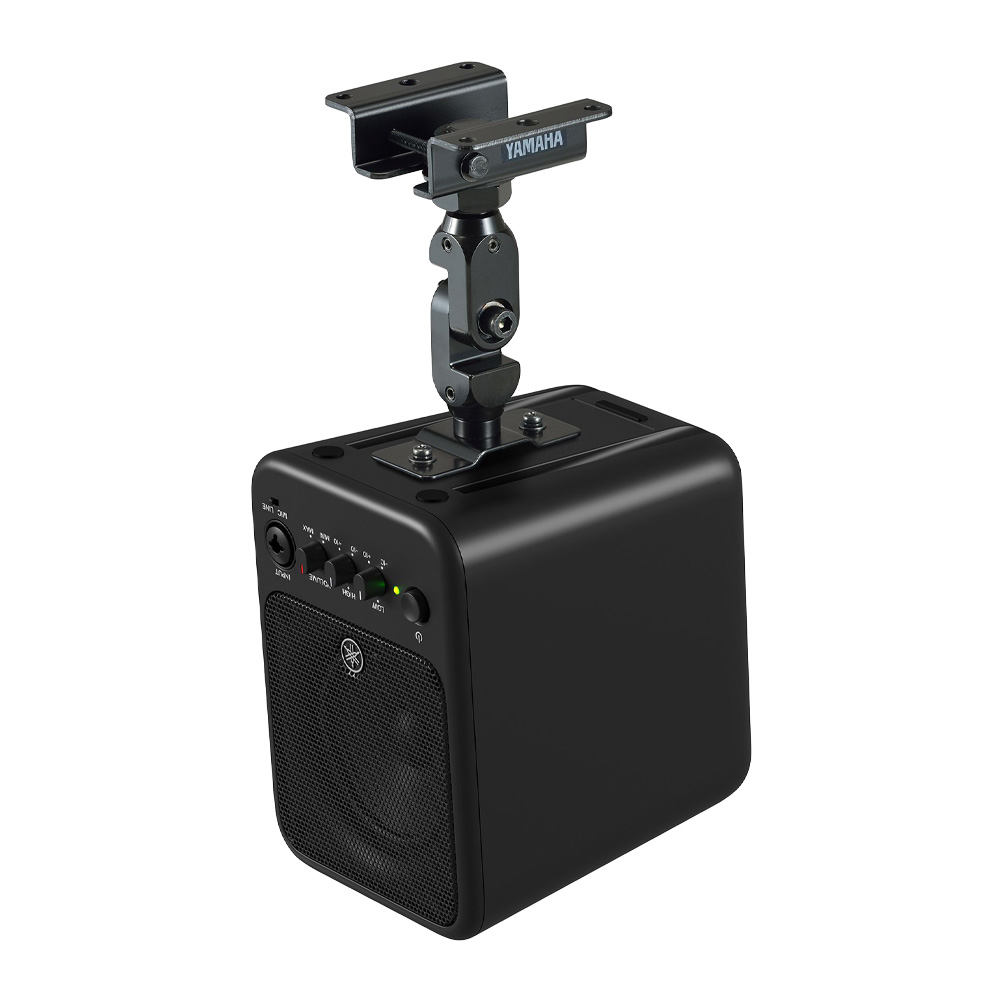

OptionsMic stand adaptor BMS-10A, Free-angle clamp BAS-10, Wall mounting bracket BWS20-190, Ceiling bracket BCS20-150 / BCS20-210
