Yamaha RIVAGE PM10 DSP-R10

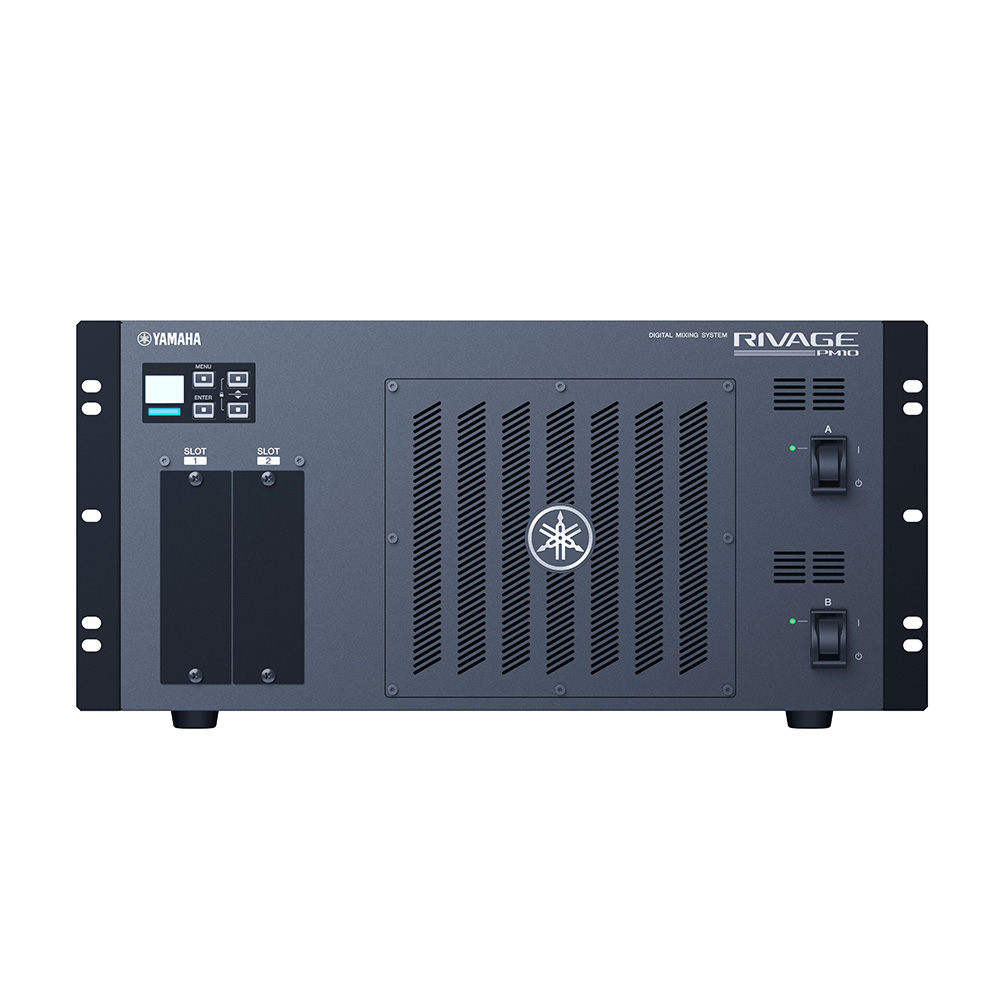

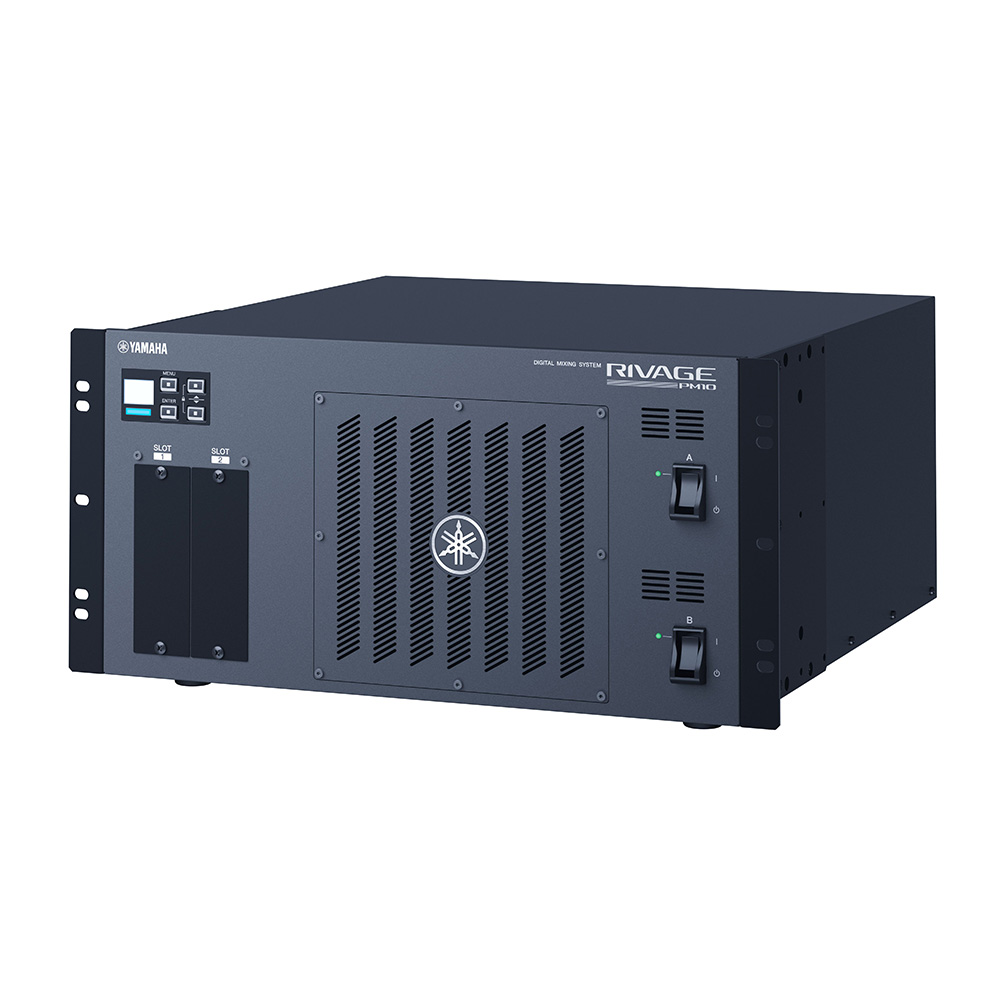

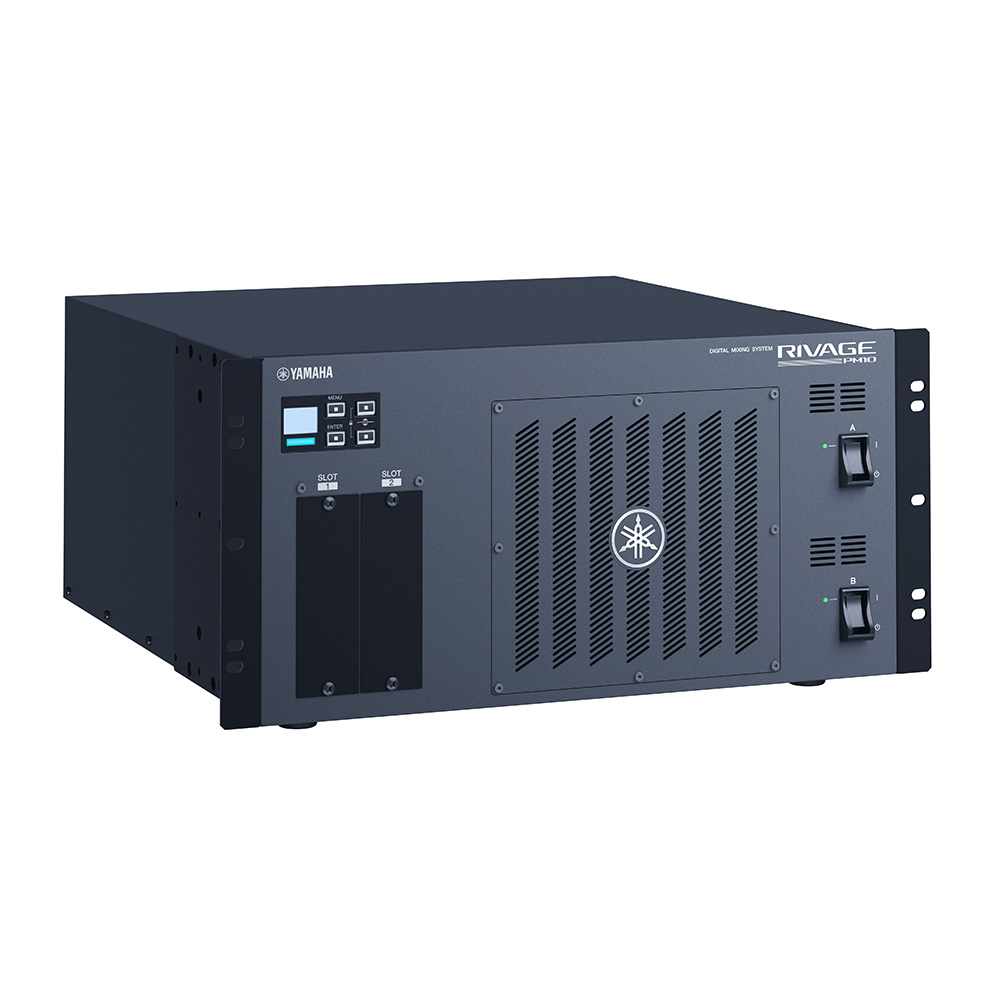

The DSP-R10 is a powerful DSP engine that serves as the core for signal processing and system control required for the RIVAGE PM10 system.

  • Compatible Control Surfaces: CS-R10, CS-R10-S, CS-R5, CS-R3
  • Superior capability of processing digital audio signals of up to 144 input, 72 MIX, 36 MATRIX, and two STEREO channels.

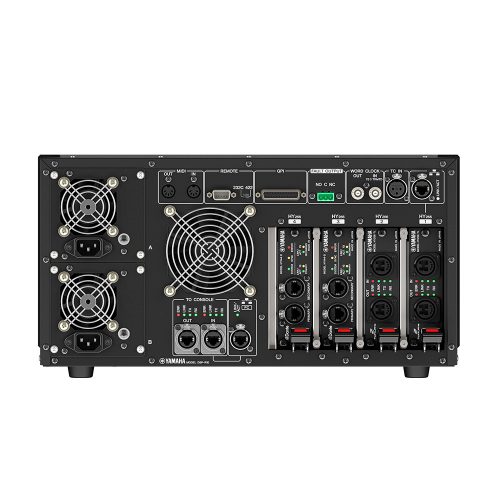

  • Four HY card slots that are capable of transmitting/receiving up to 256 ins/outs of digital audio signals/control signals.
  • Two Mini-YGDAI slots to support various audio formats.
  • Dual redundant power supply built-in
  • Power consumption: 190W
  • Dimensions (WxHxD): 480 x 232 x 490.8mm (18.9″ x 9.1″ x 19.3″) (5U rack size)
  • Net Weight: 20 kg (44 lbs)

Description

  • Superior capability of processing digital audio signals of up to 144 input, 72 MIX, 36 MATRIX, and two STEREO channels.
  • Four HY card slots that are capable of transmitting/receiving up to 256 ins/outs of digital audio signals/control signals.
  • Two Mini-YGDAI slots to support various audio formats.
  • Dual redundant power supply built-in
  • Dimensions (WxHxD): 480 x 232 x 490.8mm (18.9″ x 9.1″ x 19.3″) (5U rack size)
  • Net Weight: 20 kg (44 lbs)
