Yamaha Speaker Packages NS-PA160

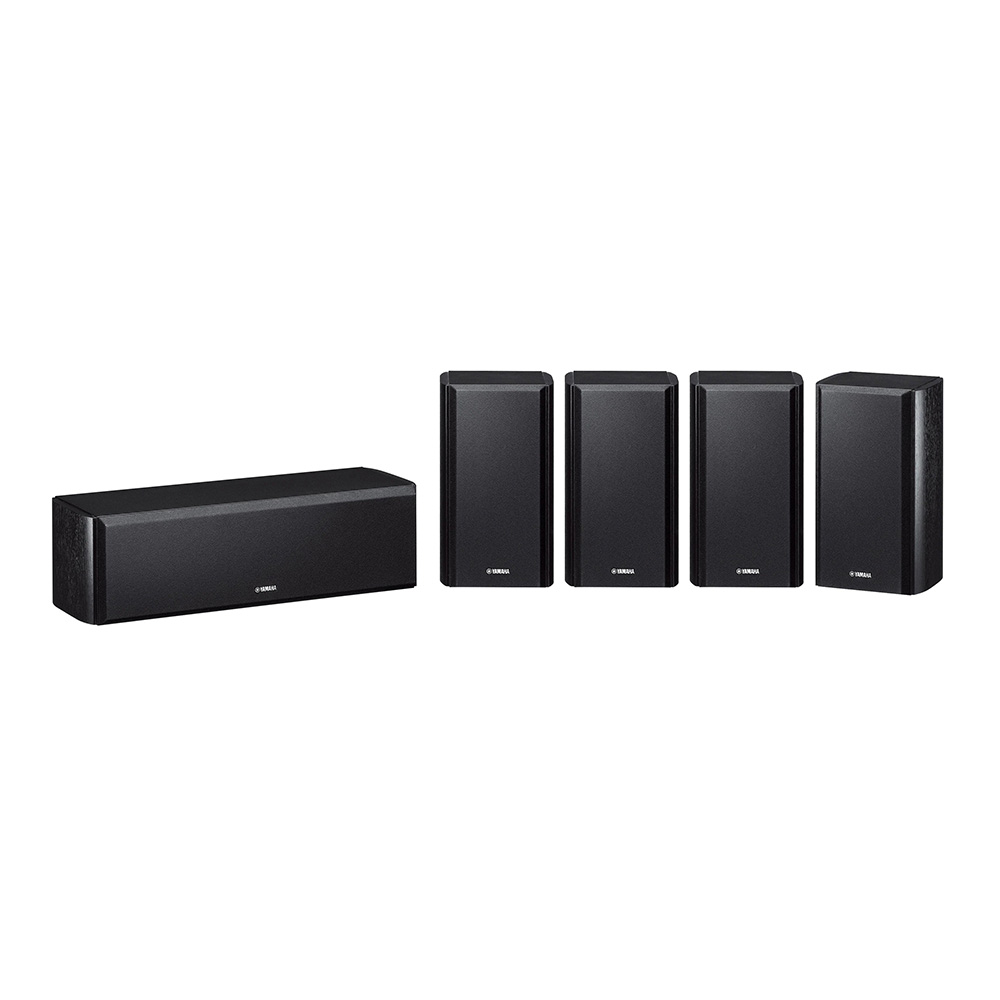

Four surround speakers and one centre speaker provide excellent sound quality for a multi-channel home theatre system. All have 2-way acoustic suspension designs with one (surround) or two (centre) 8cm cones and a 1.4cm balanced dome.

Description

Side Panels with Elegant Rounded Edges

The side panels, available in black or rosewood, provide a suave and sophisticated appearance, which is enhanced by rounded front and rear edges.

Perfectly Matched Home Theatre Speaker System

The NS-PA160 speakers will deliver superb home theatre sound, as they were specifically designed to match each other acoustically.

2-Way, 3-Speaker Centre Speaker for sharp and clear dialogue and vocals

Yamaha recognizes the importance of the centre speaker for both movies and music, and ensures accurate reproduction by using an acoustic suspension design with perfectly matched dual 8cm cone woofers and a 1.4cm balanced dome tweeter.

Large-size, Gold-plated Screw Terminals

The extra-large, screw-type terminals are gold-plated to ensure maximum signal transmission efficiency. They are capable of handling HD audio signals with no loss of sound quality.

Choice of Two Colours

The speakers are beautifully finished and are available in a choice of two colours: the natural look of Rosewood, and Black to match many TV monitors and interiors.

Wall Mountable

The centre and surround speakers have keyholes on the back so they can be quickly and securely wall mounted.

Type2-way acoustic suspension
Center SpeakerWoofersDual 8cm (3-1/4”) cone
Tweeter1.4cm (1/2”) balanced dome
Frequency Response60 Hz–38 kHz
Nominal Input Power30 W
Maximum Input Power80 W
Sensitivity86 dB/2.83 V/1 m
Impedance6 ohms
Dimensions (W x H x D)465 x 135 x 172 mm; 18-1/4” x 5-3/8” x 6-3/4”
Weight2.9 kg; 6.4 lbs./unit
Surround SpeakerWoofers8cm (3-1/4”) cone
Tweeter1.4cm (1/2”) balanced dome
Frequency Response60 Hz–38 kHz
Nominal Input Power20 W
Maximum Input Power60 W
Sensitivity82 dB/2.83 V/1 m
Impedance6 ohms
Dimensions (W x H x D)150 x 265 x 152 mm; 5-7/8” x 10-3/8” x 6”
Weight1.8 kg; 4 lbs./unit
