Yamaha VS Series VS6

Yamaha 6.5″ cone woofer with a 1″ balanced dome tweeter

Description

Easily adaptable to virtually any environment with its sleek, compact and functional design

The VS Series’ smart and compact construction makes them well suited to locations where interior design is a consideration. Black and white models are available to choose from to match your applications. The speakers also feature waterproof enclosures and transducers which meet IPX3 rating requirements, allowing them to be used outdoors under cover.

Yamaha

Internal transformer allows operation in 70V or 100V distributed sound systems

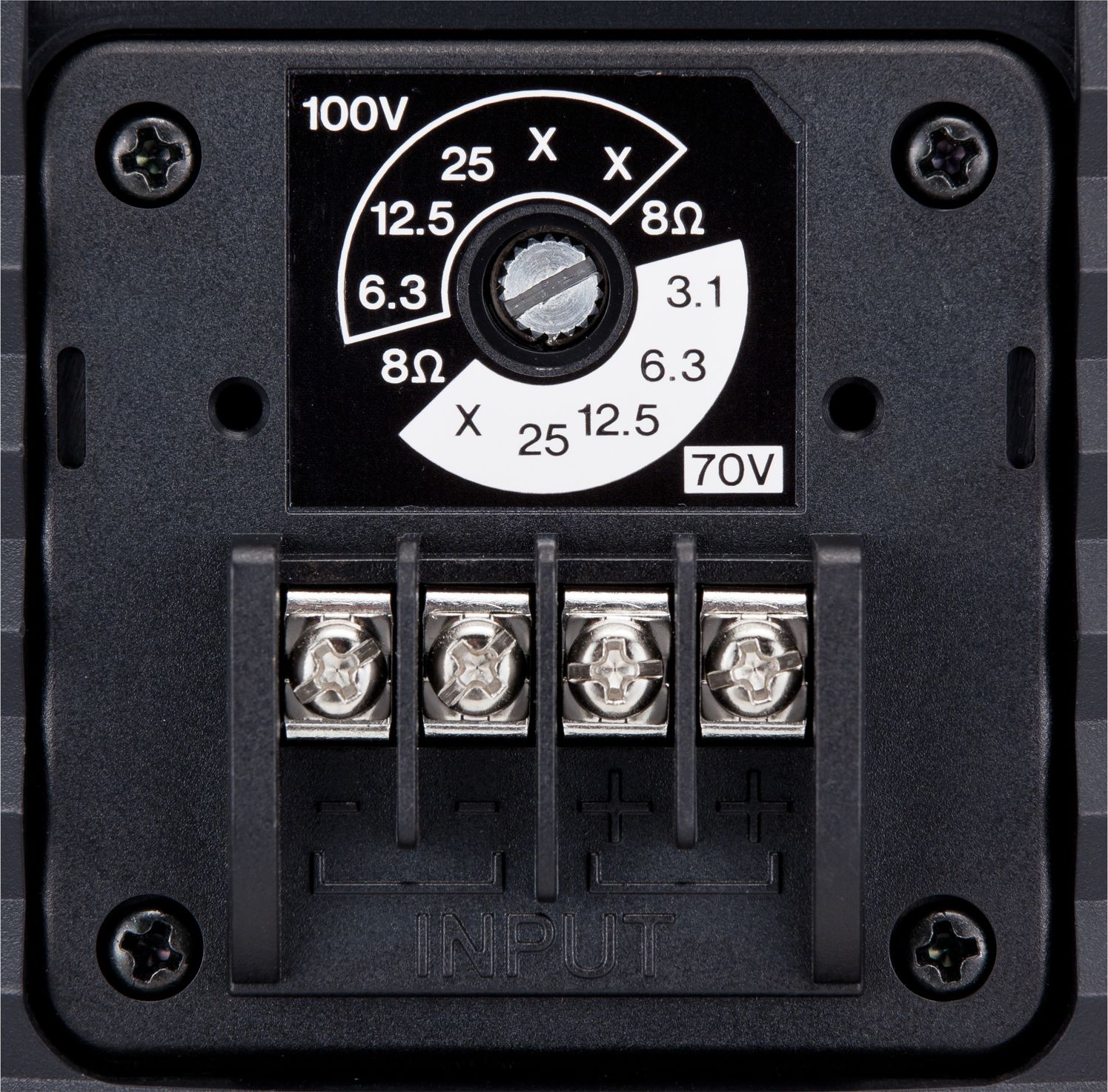

Tap selector switch is located on the rear panel to select the power tap of 70V/100V line distributed system or 8Ω sound system. The setting can be easily adjusted by rotating the tap selector with a screwdriver. The terminals and tap selector can be protected using the supplied cover.

Flexible setting of the speakers with the dedicated U-brackets

The speakers are supplied with dedicated, color-matched brackets for fast and easy installation. The brackets can be set either horizontally or vertically, depending on where you want to mount the speakers.

Frequency range (-10dB)80Hz – 20kHz
Nominal coverageH90
V90
ComponentsLF6,5″(160mm) cone driver
HF1″(25mm) balanced dome tweeter
Crossover15kHz
Power ratingNOISE25W
PGM50W
PEAK100W
Nominal impedance
Transformer taps100V25W, 12.5W, 6.3W
70V25W, 12.5W, 6.3W, 3.1W
SPLSensitivity (1W; 1m on axis)90dB SPL
Peak (Calculated)110dB SPL (100W)
I/O connectors2 pairs of barrier strip (parallel-wired * Screw size: M3, Terminal Space: 6mm)
ShapeRectangular
Cabinet materialHIPS, 94-HB

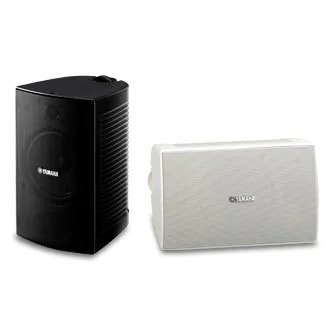

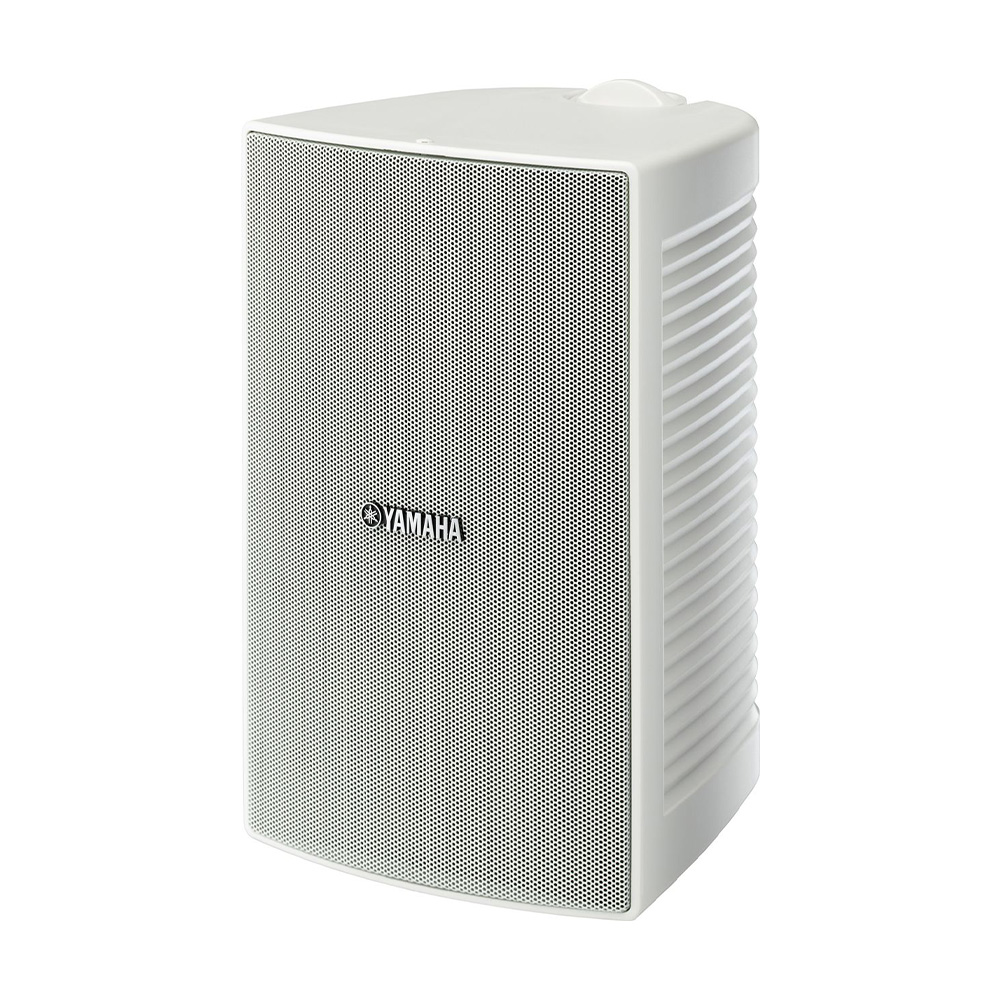

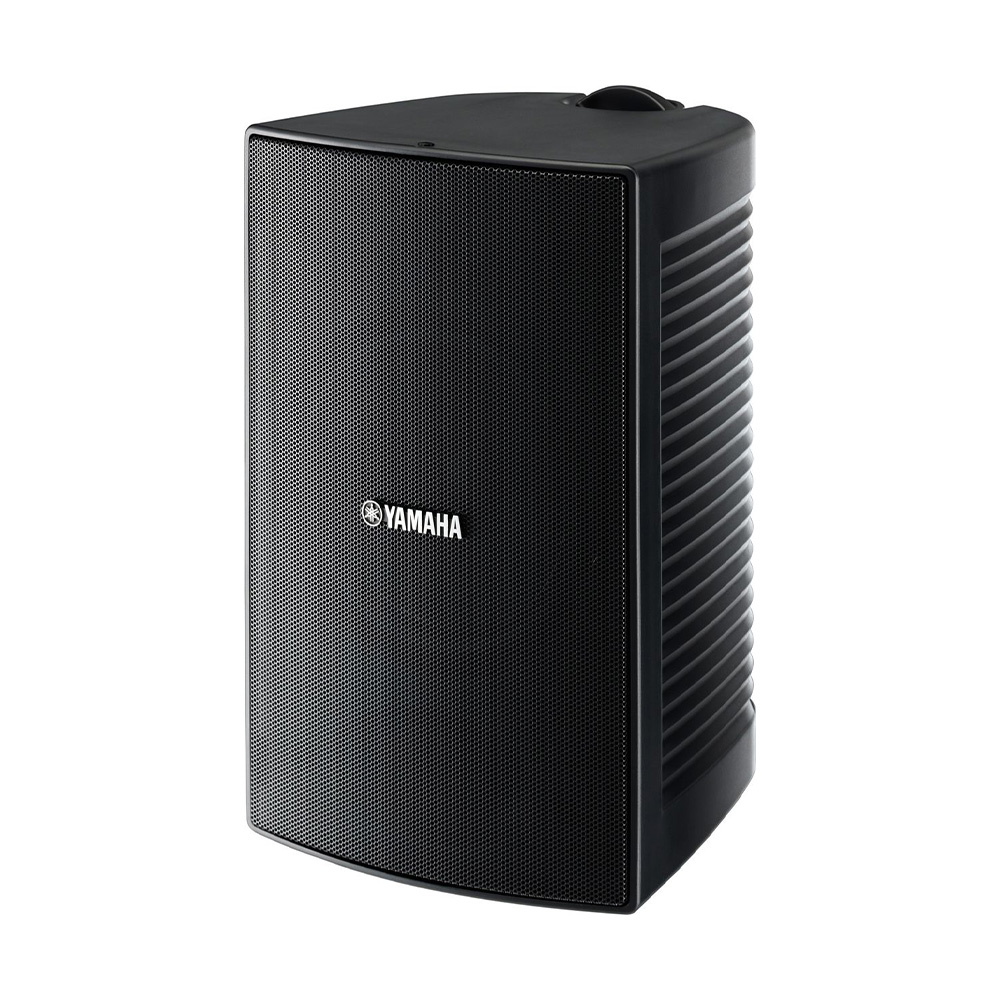

FinishVS6: Black, VS6W: White
Flying and mounting hardwareU-bracket (4 x Φ5.5mm and 2 x Φ11mm holes)
WaterproofIEC60529 IPX3 splash proof rating
DimensionsW190 mm (7 1/2″)
H308 mm (12 1/8″)
D219 mm (8 5/8″)
Net weight2.8kg (6.2lbs)
AccessoriesU-bracket, Owner’s Manual, Retaining knob, Terminal cover, Terminal cover screw, SPECIFICATIONS
OthersPackaged in pair
