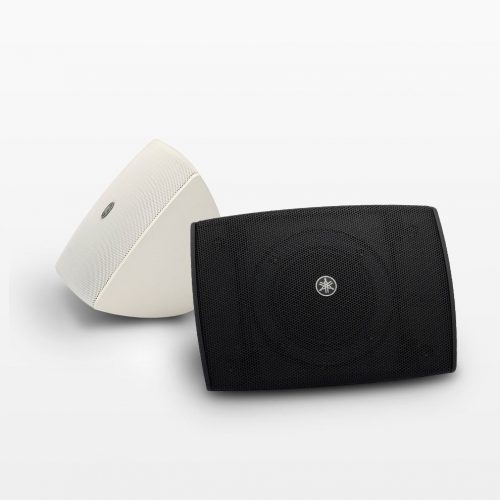

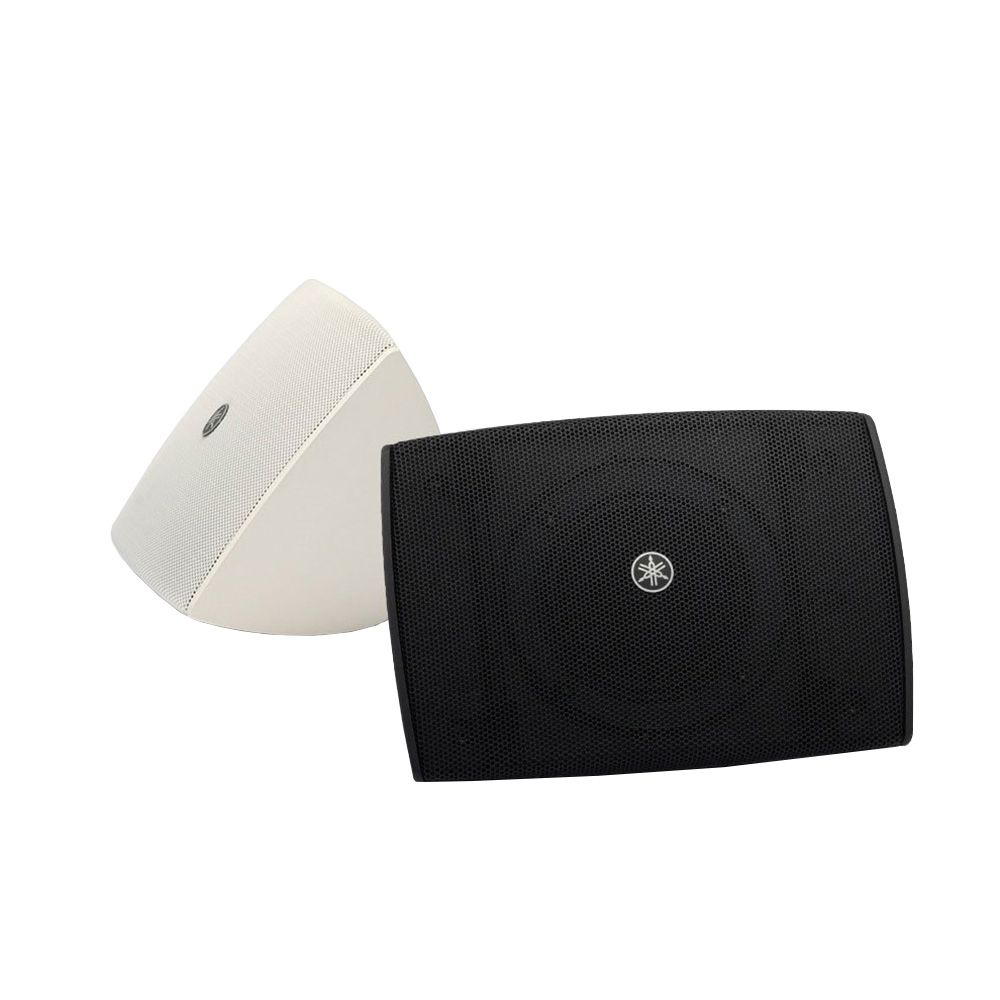

Yamaha VXS Series “F model” VXS3F / VXS3FW

Compact surface-mount speakers elegantly blend into any interior décor (Low-impedance models)

  • 3.5” full-range speaker units
  • Low-impedance model for small installations
  • Attractive, discreet design complements elegant décor

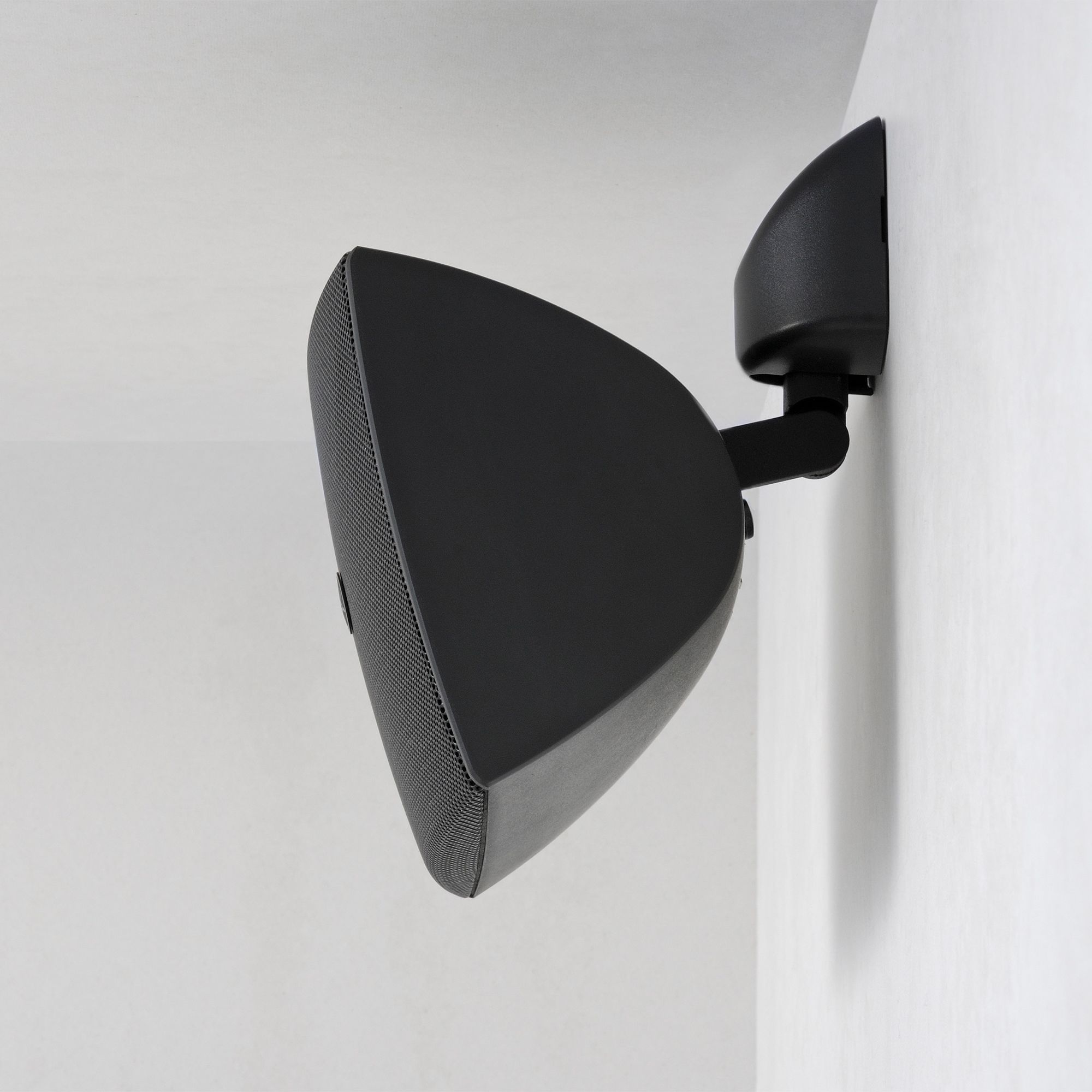

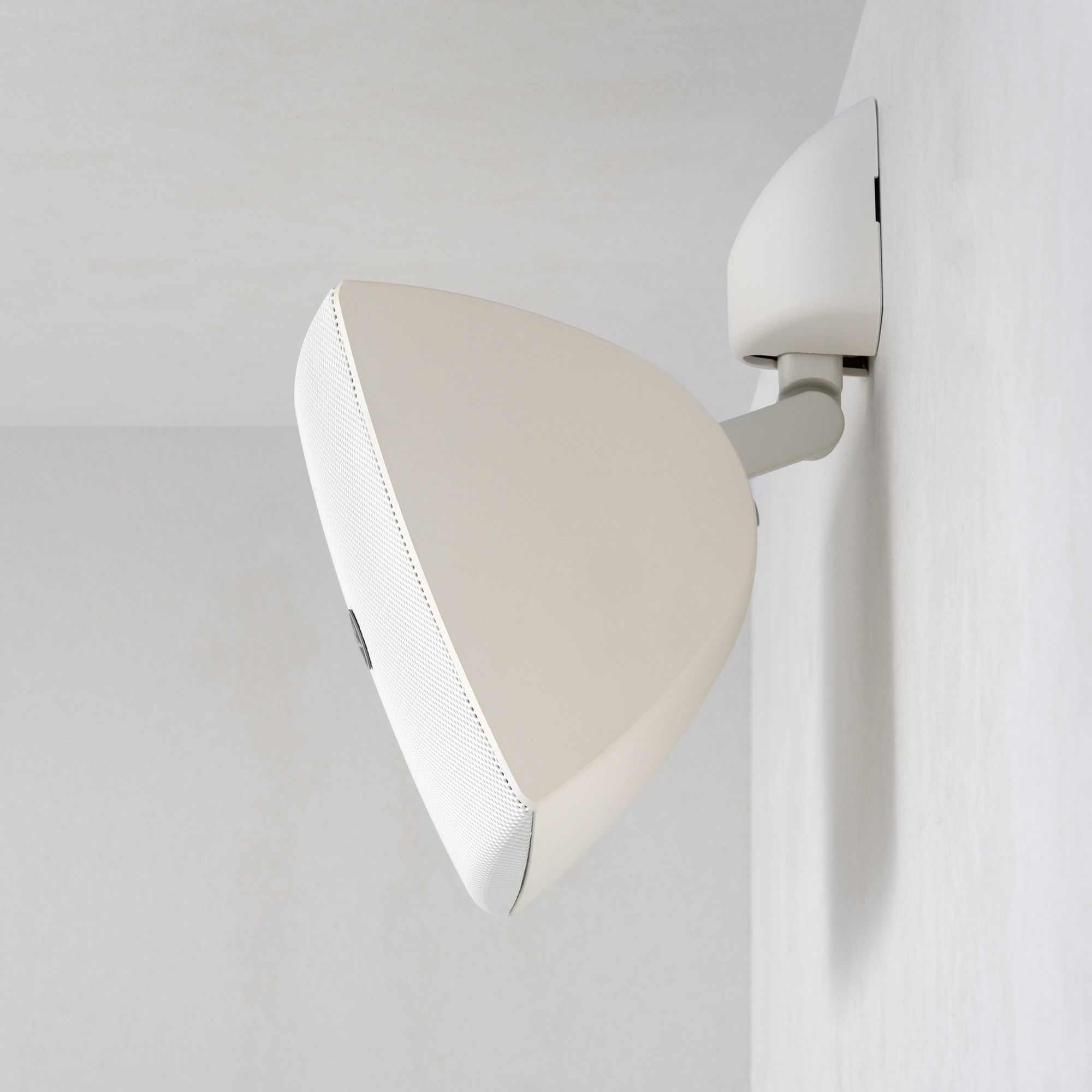

  • Dedicated design-enhancing bracket included
  • Acoustic design for sophisticated, natural reproduction
  • Individual speakers cover a wide angle
  • Paintable enclosures and grilles
  • 1.1kg (2.4 lbs)*, W 184mm x H 130mm x D 134 mm (W 7.3″ x H 5.1″ x D 5.3″)* *Including bracket

Description

Attractive, Discreet Design for Elegant Spaces

The polished presence of the VXS3F or VXS3FT can add stylish appeal to any environment. These speakers present a slim installed profile that appears to float in space, blending easily with just about any décor. The size of the speaker enclosure has been reduced as much as possible, while smoothly flowing lines and surfaces add visual charisma.

Sophisticated Natural Sound

The VXS3F and VXS3FT deliver refined, naturally pleasing sound. In order to provide richly expressive music playback even at low volume, Yamaha has applied years of accumulated skill and experience in tuning the system for the most natural reproduction of musical instruments as well as human voices. Careful selection of the highest quality drivers and components also elevates overall quality.

Choose the Model that Meets Your Needs

The VXS3F and VXS3FT are designed to deliver the same outstanding performance in different installed settings*. The VXS3F is ideal for smaller installations such as retail stores where just a few speakers will be used to cover the service area. Wide dispersion allows effective coverage with a minimum number of speakers. The VXS3FT is preferred when a large number of speakers will be required to cover an expansive or complex area. Connection taps allow volume (output watts) to be adjusted after installation for added flexibility. * The VXS3F and VXS3FT feature the same enclosure, but are supplied with different mounting brackets.



Designer’s Comments

The compact VXS3F and VXS3FT feature an elegantly sculpted exterior design that visually expresses the outstanding quality and clarity of their sound. Gracefully flowing curves from rear to front represent the directness of the sound, while the triangular cross section makes optimum use of the space between walls and ceiling for seamless, efficient installation. With a design that creates the illusion of floating gently in space rather than appearing as a mechanical “unit” attached to a surface as an afterthought, these speakers are ideal for owners and proprietors who want to provide the highest sound quality without disrupting their interior décor.- Takenori OMACHI, Yamaha Design Laboratory –

Speaker typeFull-range, Acoustic suspension
Frequency range (-10dB)130Hz -20kHz
Nominal coverageH150°
V160°
ComponentsLF-HF3.5″ Cone
Power ratingNOISE20W
PGM40W
PEAK80W
Nominal impedance
SPLSensitivity (1W; 1m on axis)86dB SPL *1
Peak (Calculated)105dB SPL

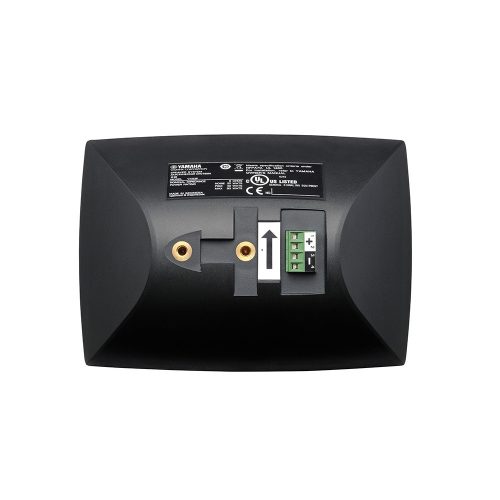

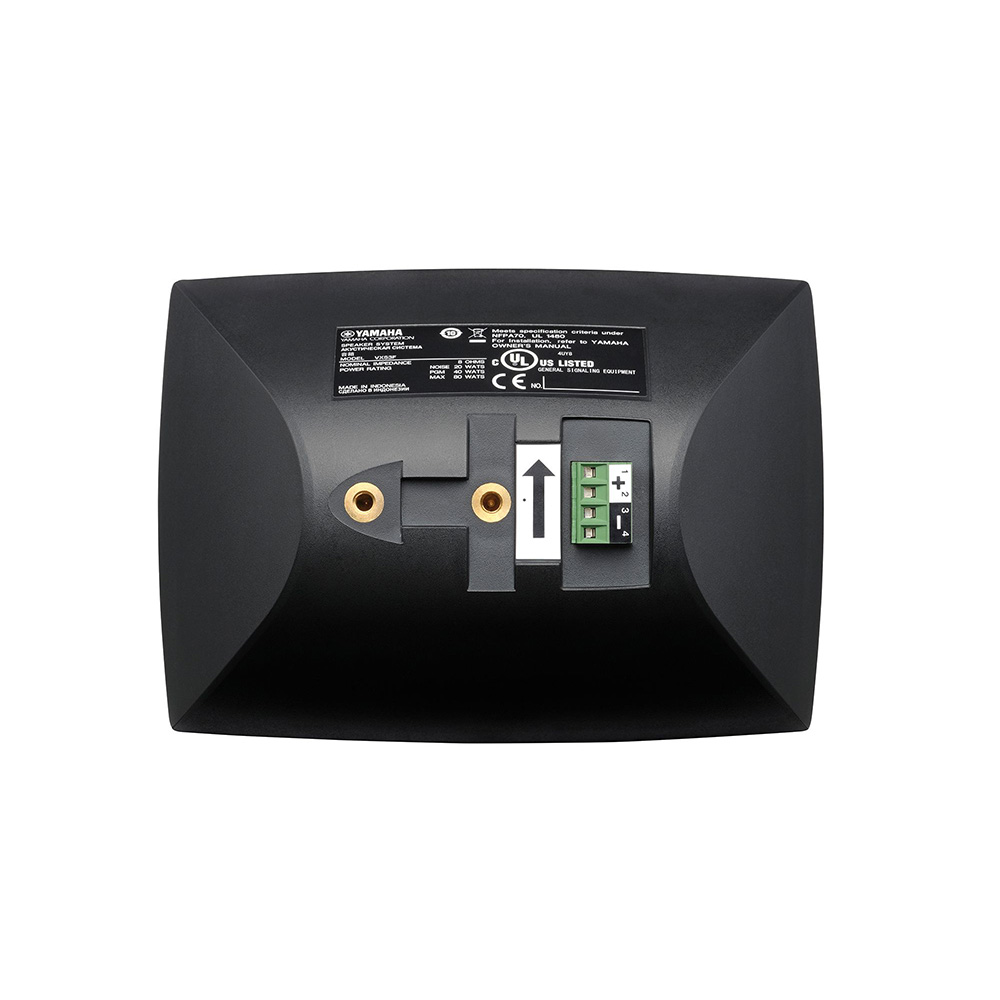

I/O connectors1x Euroblock (4P) (Input: + / -, Loop Thru: + / -)
Protection circuitLoad protectionFull-range power limiting for protecting network and transducers

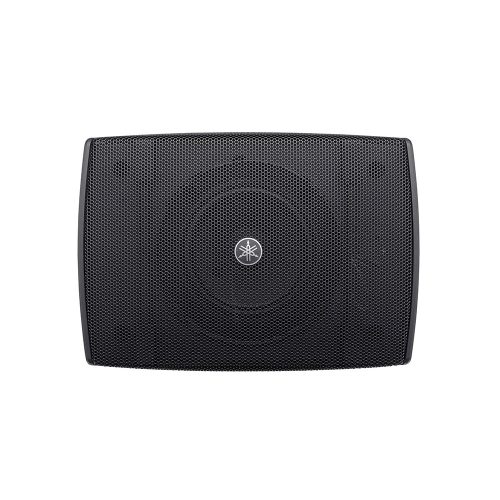

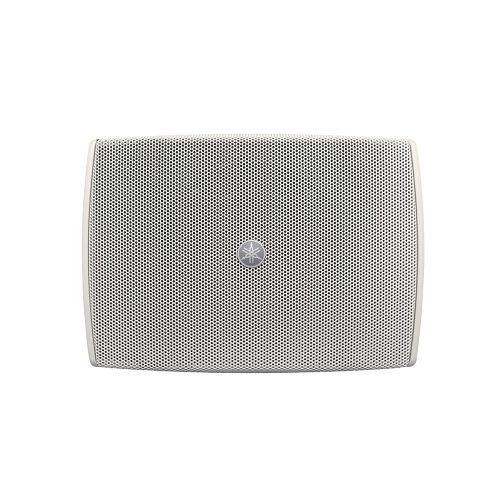

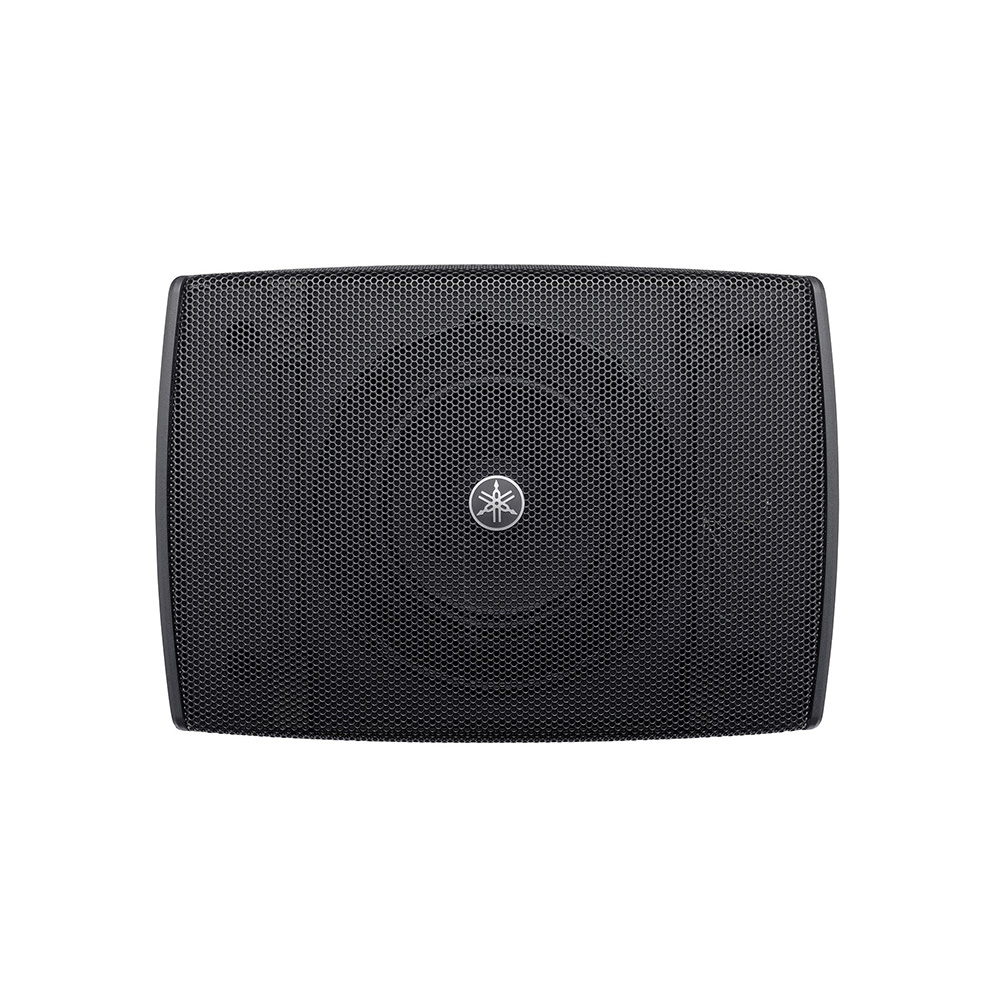

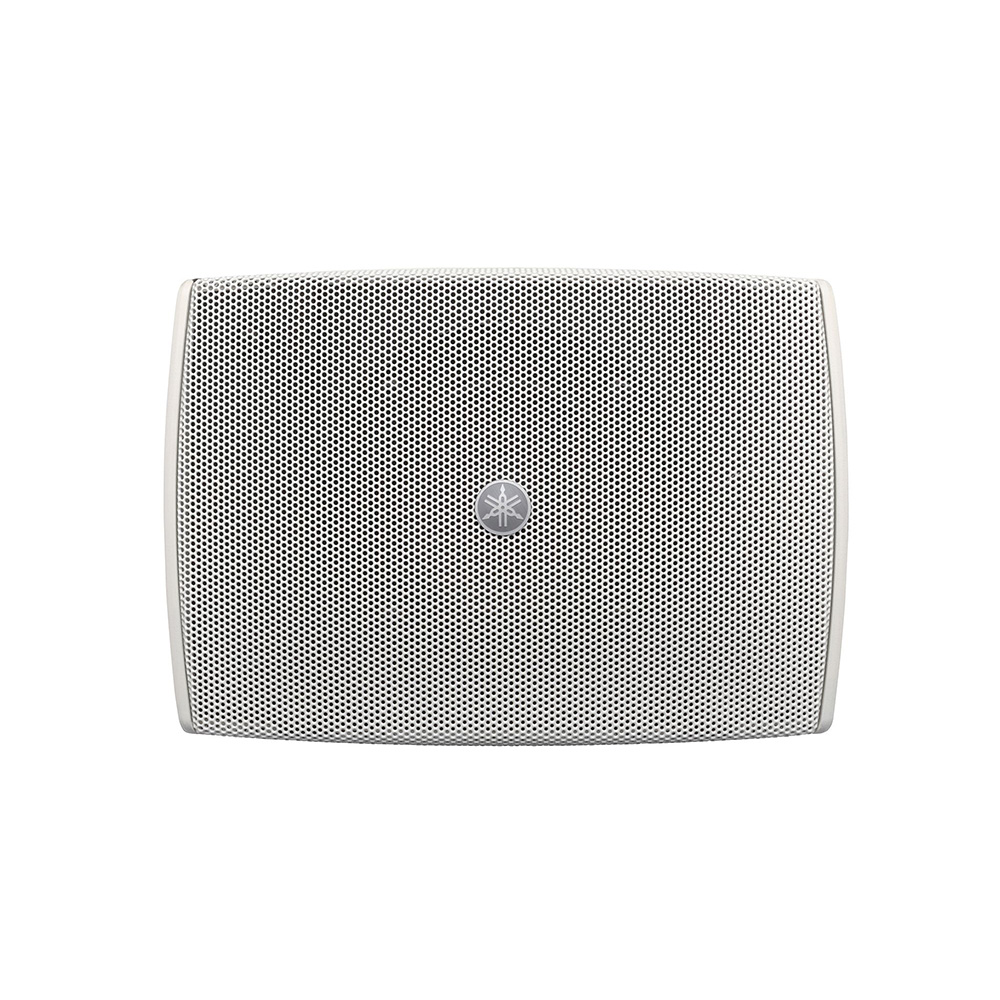

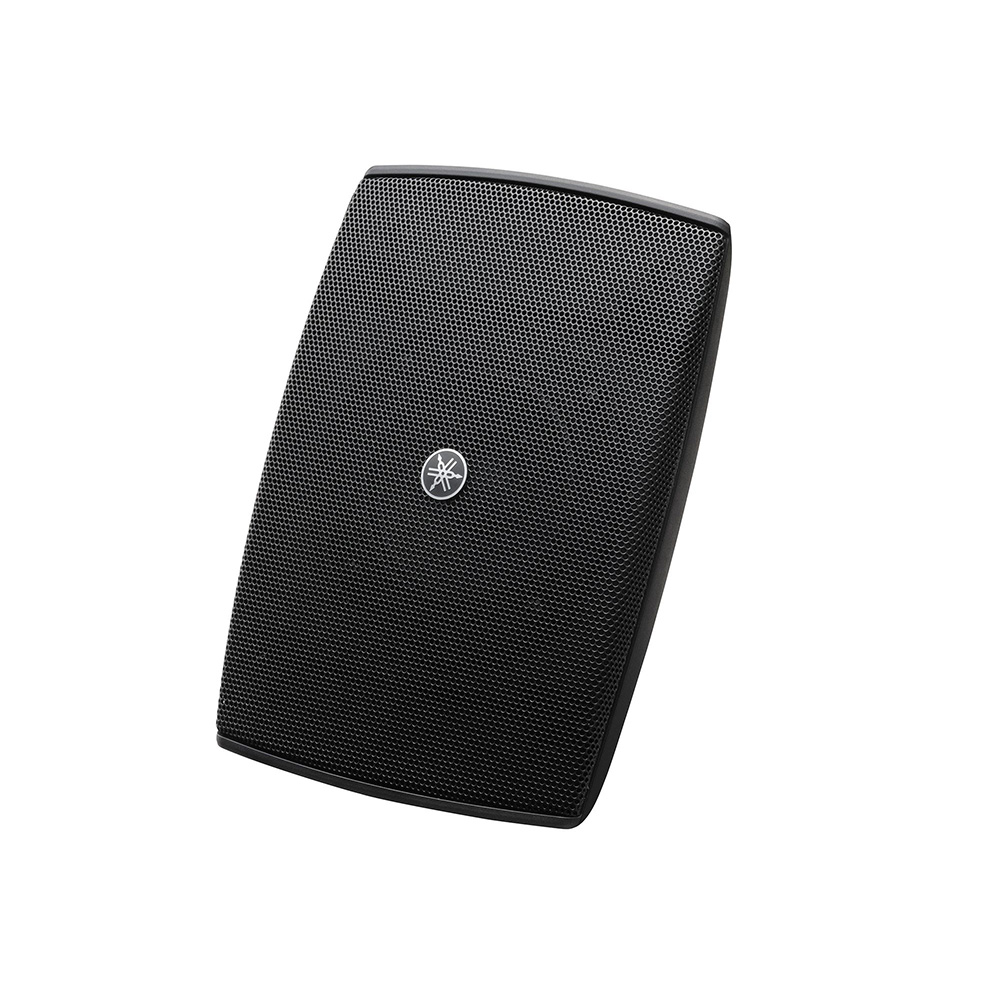

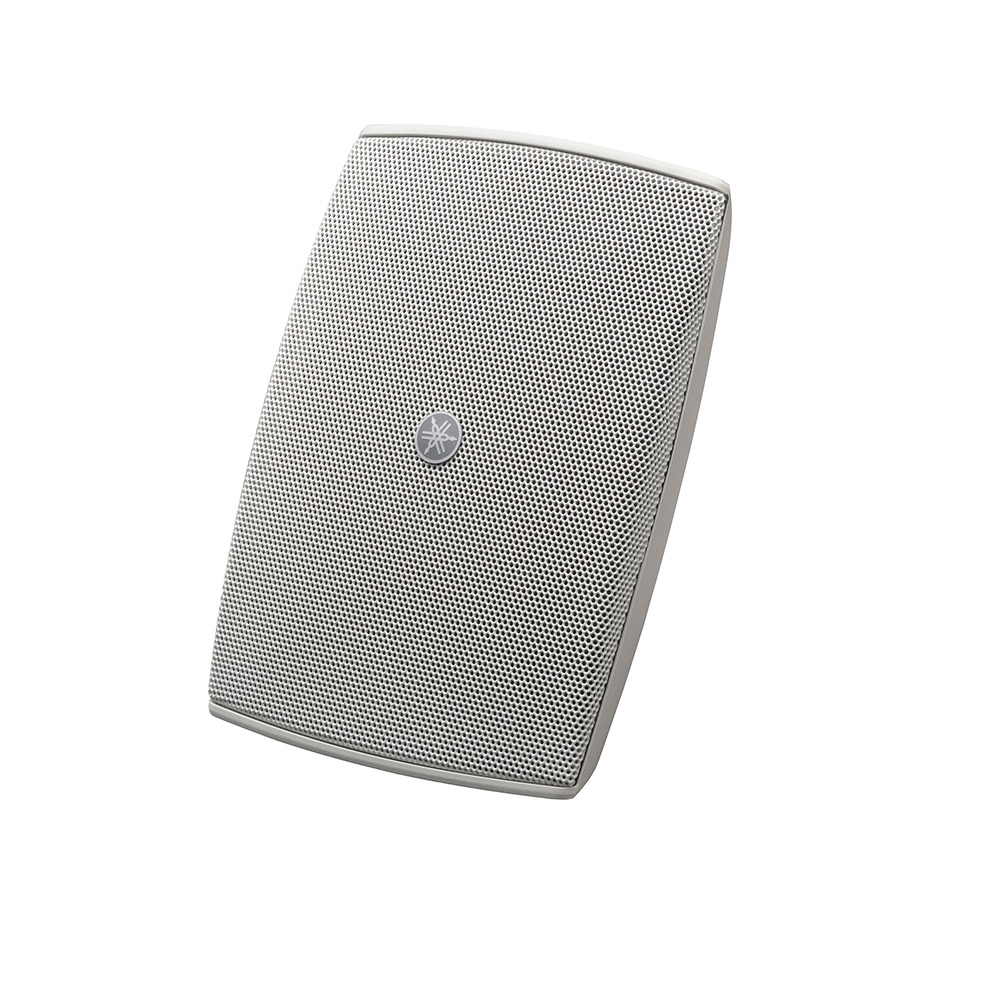

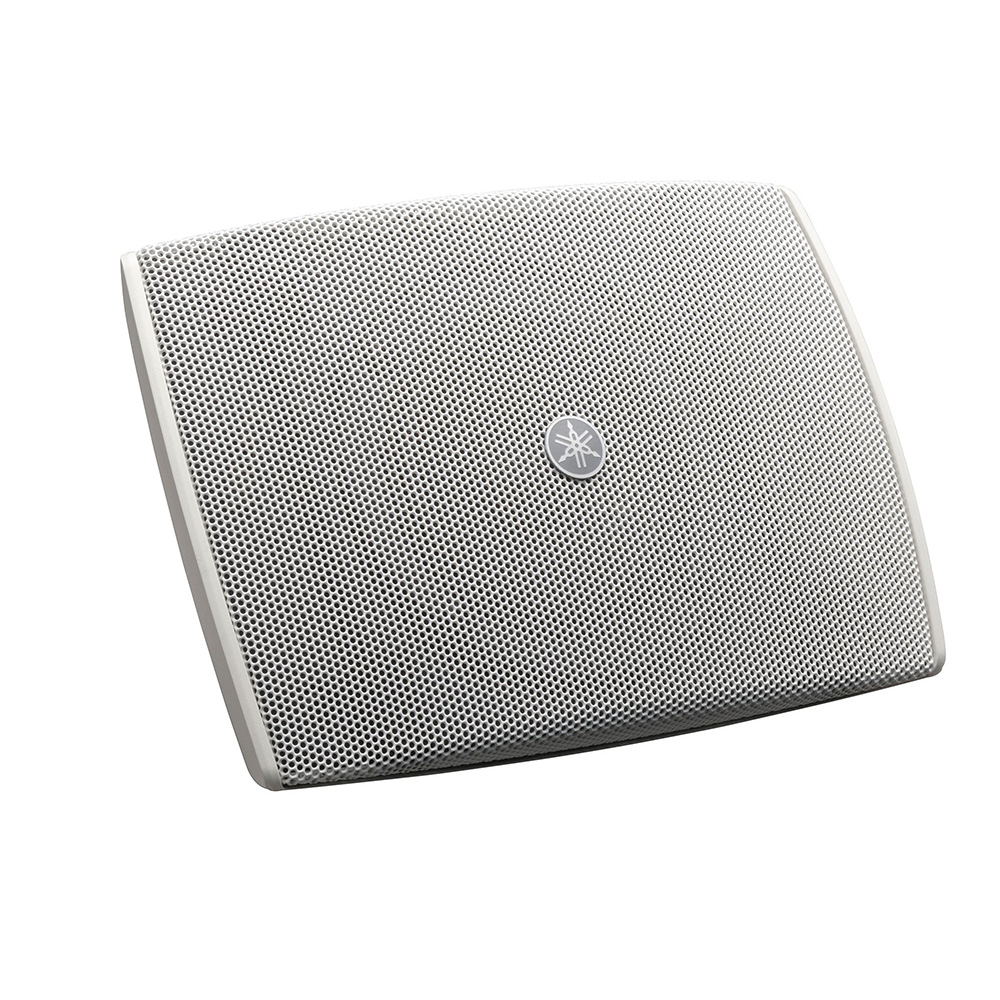

FinishVXS3F: Black (approx. Munsell N3), VXS3FW: White (approx. Munsell N9)
DimensionsW184mm (7.3″) *2
H130mm (5.1″) *2
D94mm (3.7″) *2, 134mm (5.3″) *2,*3
Net weight1.0kg (2.2lbs), 1.1kg (2.4lbs)*4
AccessoriesBracket Gear, Bracket Base, Bracket Cover, Safety Wire
PackagingPackaged in pairs
CertificateUL1480, NFPA70, CE, RoHS
Transformer taps100V
70V
