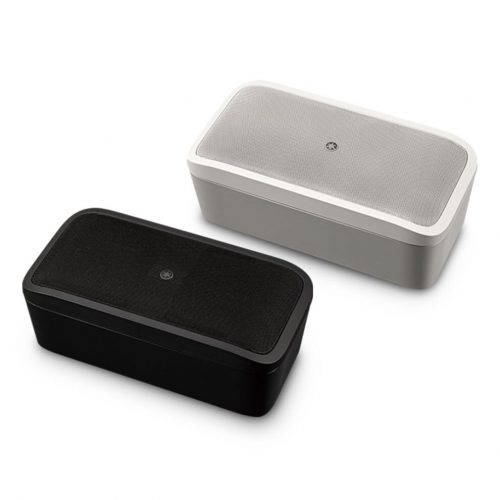

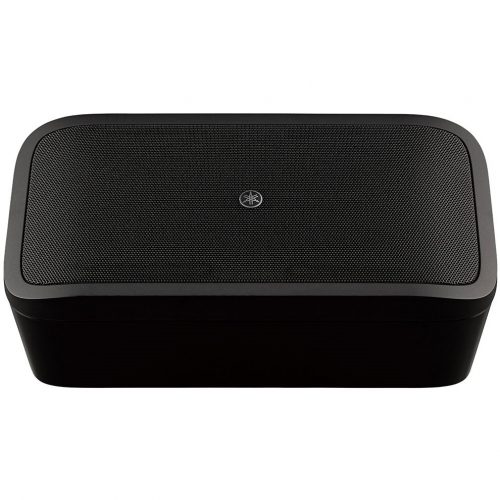

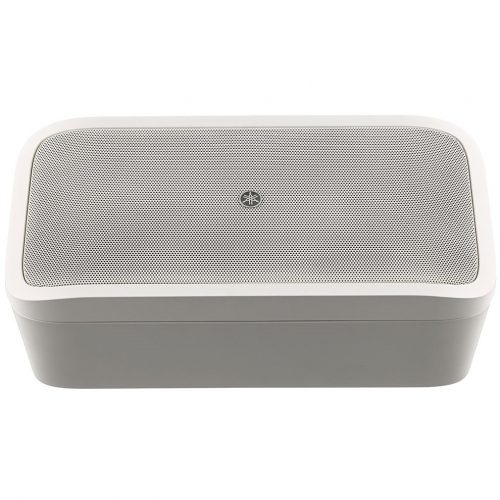

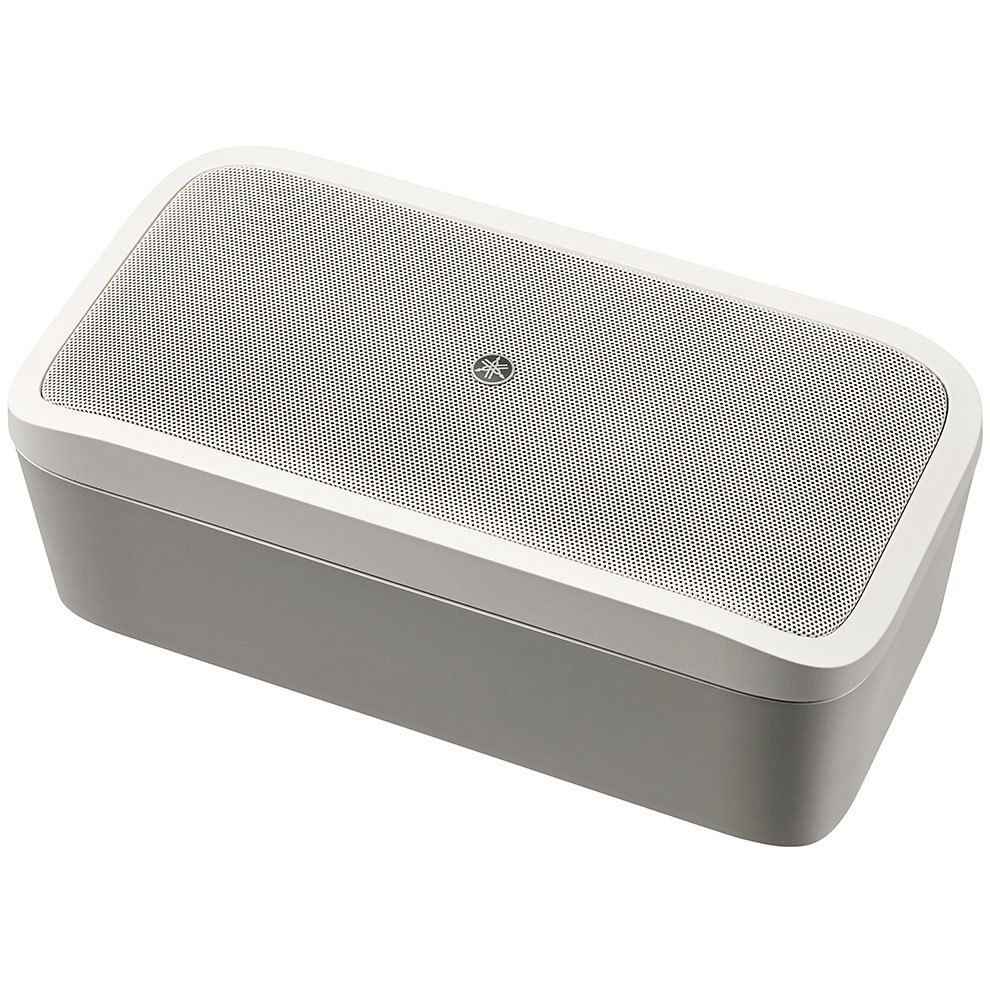

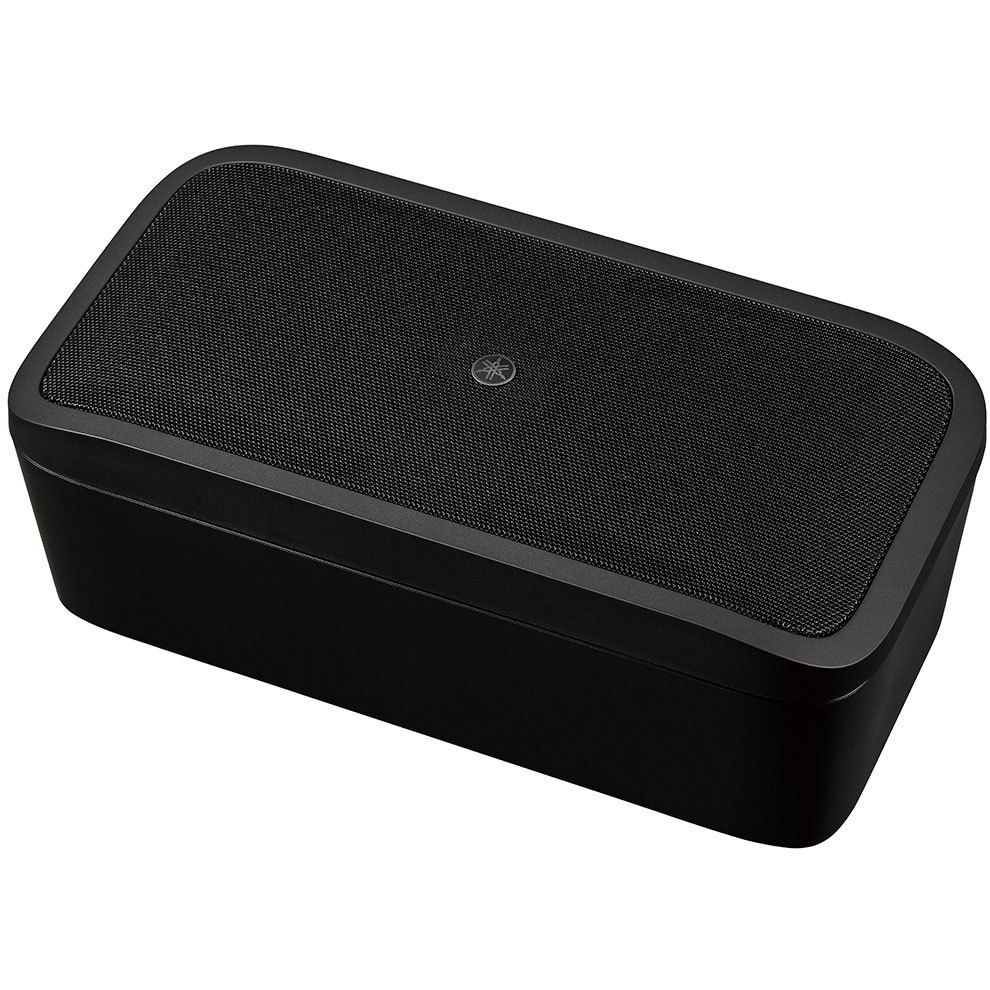

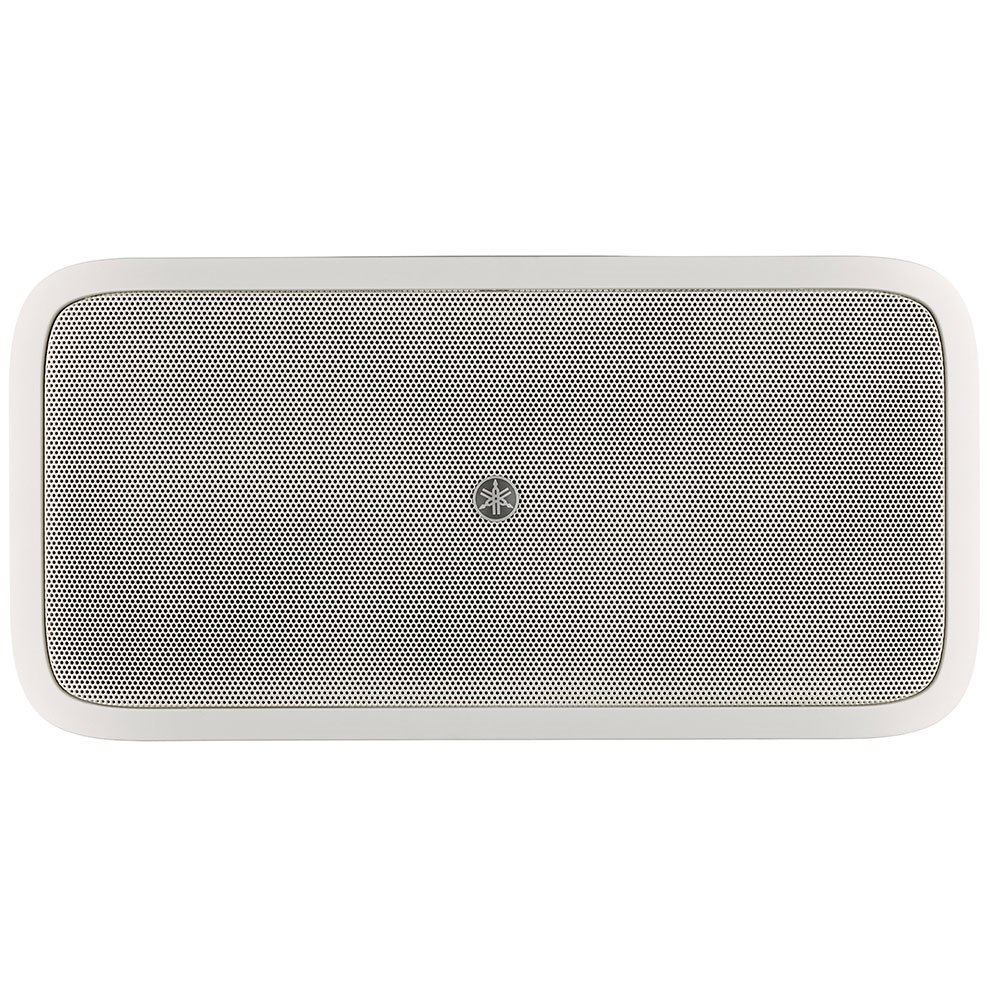

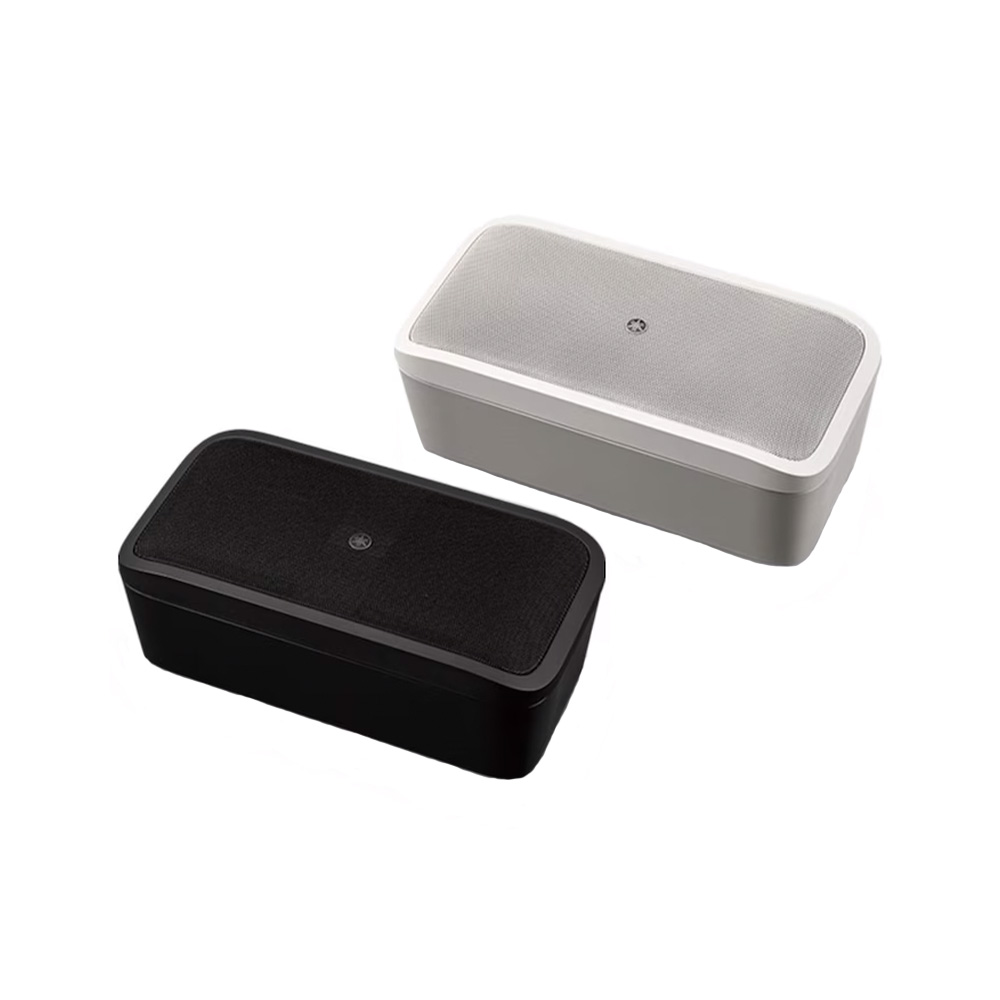

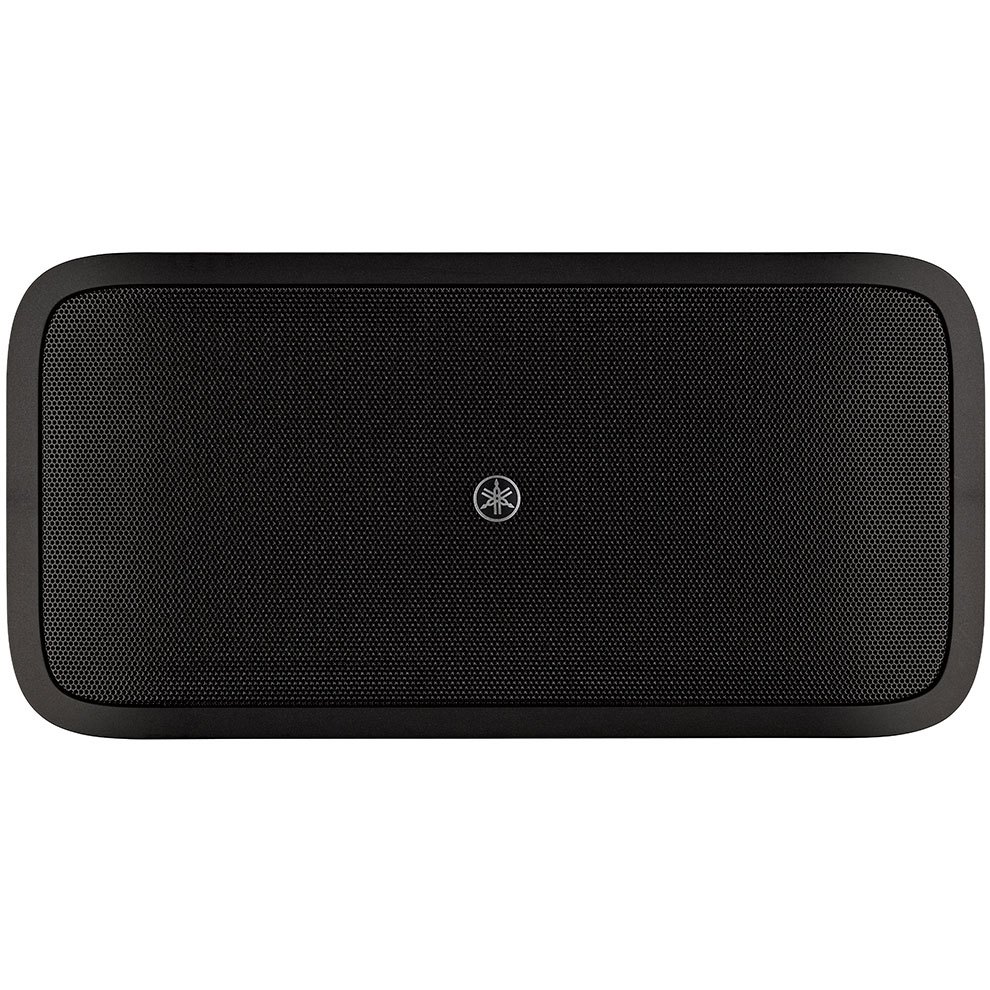

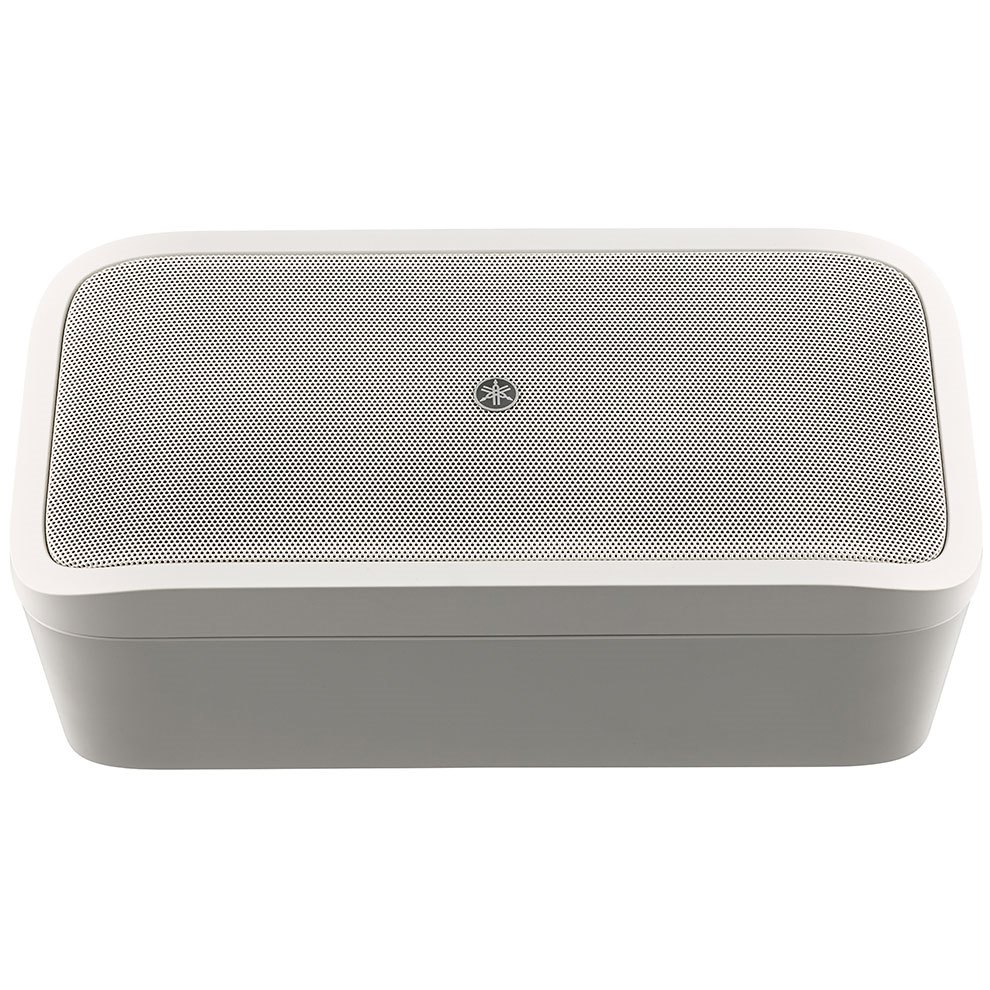

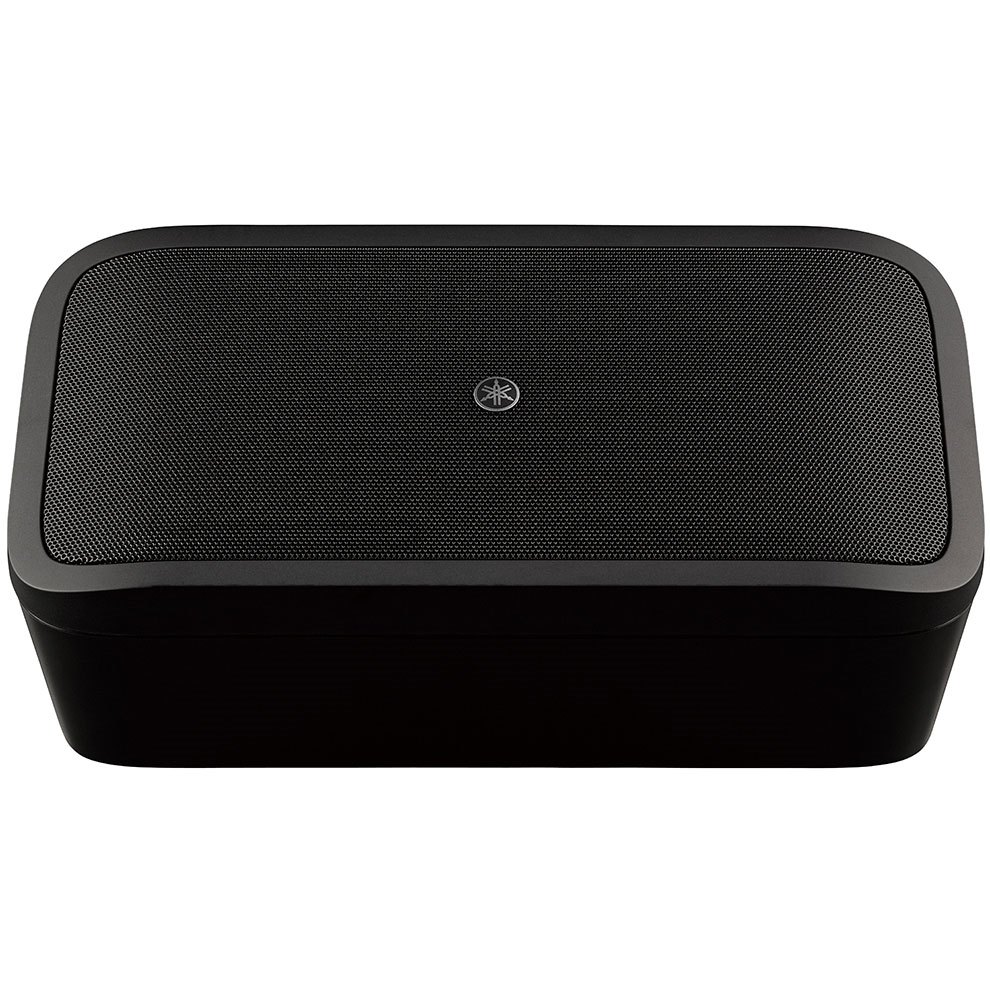

Yamaha VXS Series “S model” VXS3SB / VXS3SW

3.5″ Dual SR-Bass™ subwoofer for high and low impedance systems

  • Versatile subwoofer compatible with low and high impedance systems
  • Sound and size ideally matched to the VXS1ML
  • SR-Bass™ technology delivers solid bass in a compact unit
  • Satellite connectors for easy setup
  • Dedicated wall/ceiling mount hardware supplied

Description

A Choice of Models for All Low-frequency Needs

Luxurious bass response can enhance musical presence and realism in a big way. Yamaha offers the VXS3S for smoothly extended low-end power, and the VXS10S and VXS10ST for applications that require maximum bass impact. Choose the model that best suits the size of the system and the full-range speakers used.



Low-frequency Enhancement Methods

A number of methods are used to enhance low frequency response in speaker enclosures. In bass reflex designs, a tuned port in the enclosure boosts low frequencies emanating from the rear of the speaker unit. The VXS10S adopts this method, specializing in more powerful low frequency reproduction. The problem with this approach is that as the enclosure becomes smaller or thinner, the size of the port must be reduced accordingly, resulting in increased resistance and correspondingly reduced bass enhancement. Bass reflex designs are not always suitable for compact enclosures.

Passive radiator designs avoid the use of a port, instead boosting bass response with a tuned passive “drone cone.” The passive radiator method is more suitable for compact enclosures, but the passive cone tends to be heavy, requiring some form of firm, durable suspension that can reduce efficiency. The directivity of the passive radiator also places restrictions on where and how the system can be installed.

Original Yamaha SR-Bass™ technology employed in the VXS3S suspends a four-sided diaphragm on only one of its sides, using the resonance of the diaphragm to enhance the system’s low-frequency output. There are no limitations on the shape and materials used for the diaphragm, making SR-Bass™ technology applicable to a wide range of speaker designs, including compact models.

Yamaha offers 2 choices. That is compact VXS3S and powerful VXS10S. Please select the best model for your application.



Satellite Connectors Optimize Balance

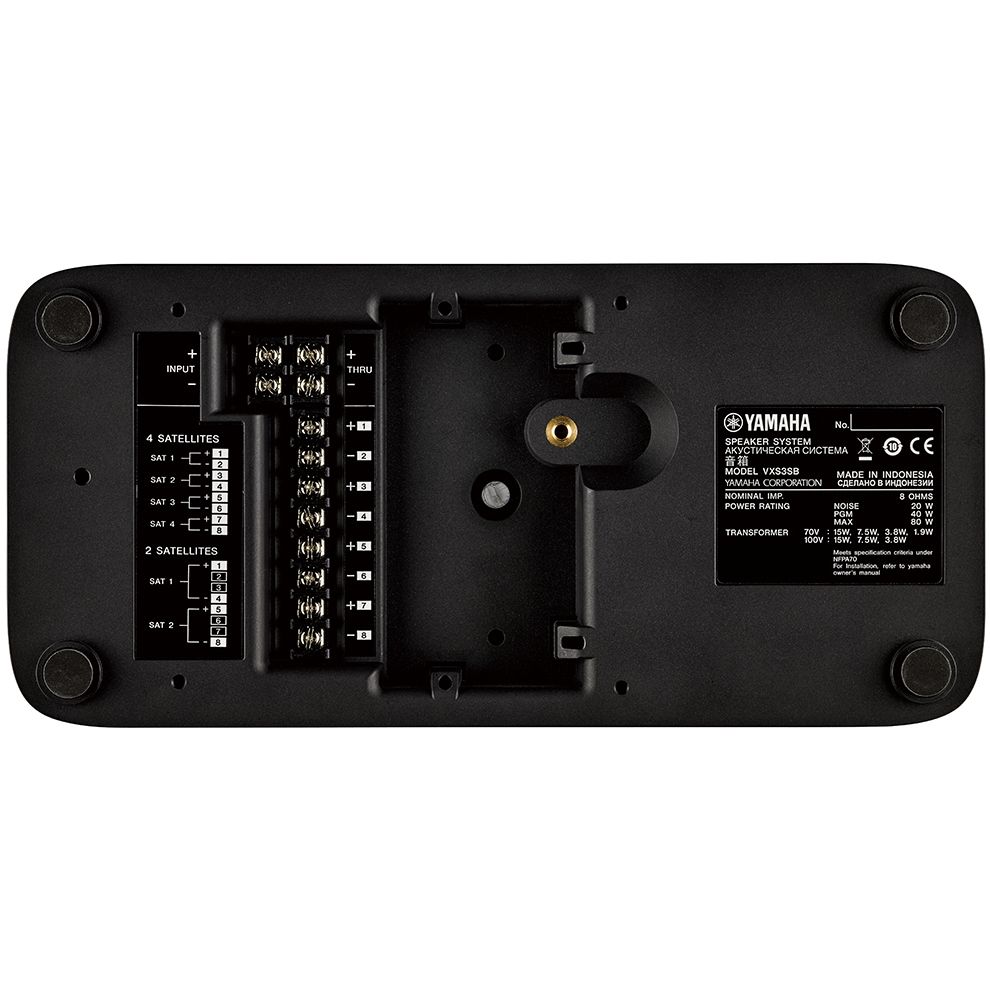

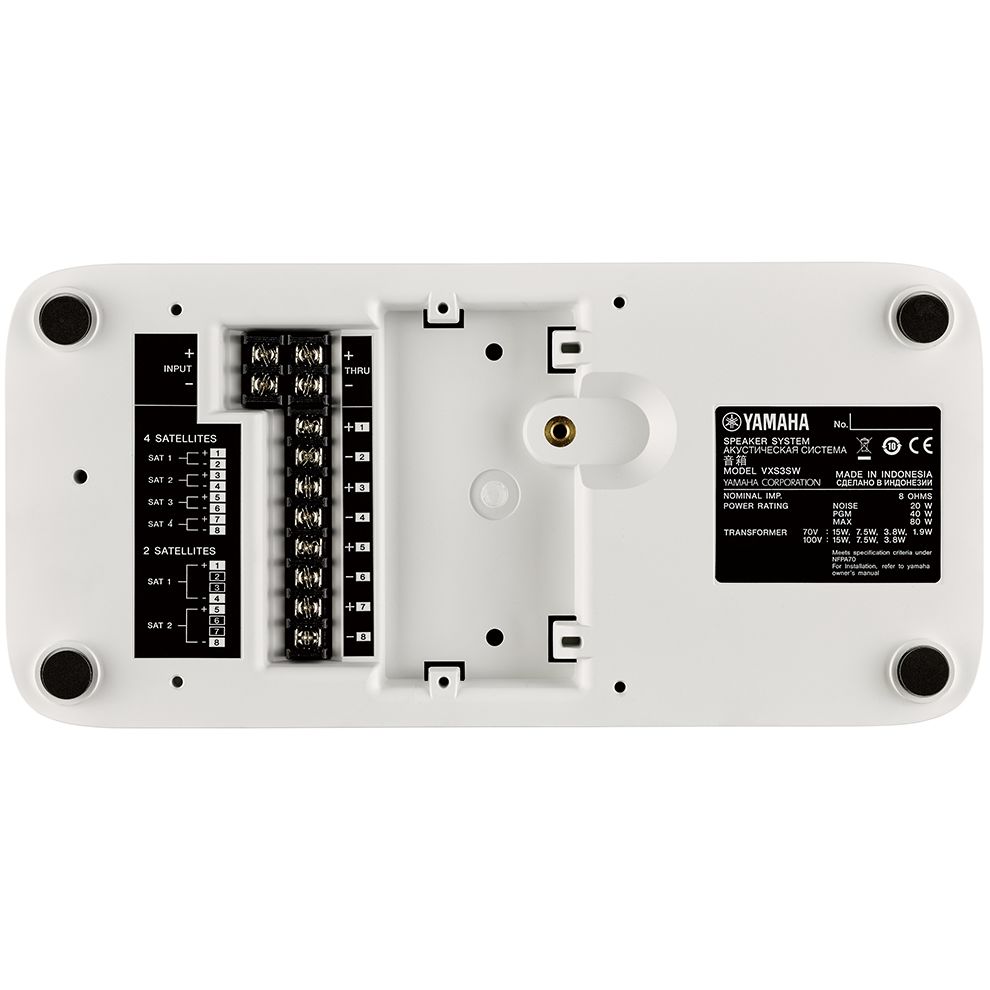

The VXS3S and VXS10S/VXS10ST have satellite connectors on the rear panel, minimizing the number of amplifier channels required to get a system up and running. And since the VXS3S and VXS10ST support high-impedance connections, it is possible to connect low-impedance satellites while the subwoofer is connected to a high-impedance system, for example. A built-in high-pass filter is automatically applied to the satellite speakers, providing exceptionally smooth, natural frequency crossover from subwoofer to satellites.

Yamaha
Speaker typeSR-Bass™ type Subwoofer
Frequency range (-10dB)65Hz-180Hz
ComponentsLF3.5″ Cone
Power ratingNOISE20W
PGM40W
PEAK80W
Nominal impedance
Satellite impedance8Ω load per satellite output recommended *1
Transformer taps100V15W, 7.5W, 3.8W
70V15W, 7.5W, 3.8W, 1.9W
SPLSensitivity (1W; 1m on axis)79dB SPL *3
Peak (Calculated)98dB SPL *4
I/O connectorsTERMINAL BLOCKS(4pin) Input: +/-, Loop-thru: +/-, TERMINAL BLOCKS(8pin) Satellite output:+/- (ST1~ST4)
Protection circuitLoad protectionFull-range power limiting for protecting network and transducers
ShapeRectangular
Cabinet materialABS
FinishVXS3SB:Black (approximate value:Munsell N3) VXS3SW:White (approximate value:Munsell N9)
DimensionsW322mm (12.7″) *5
H162mm (6.4″) *5
D118mm (4.6″) *5
Net weight2.7kg (6.0 lbs) *5
AccessoriesMounting bracket, Safety wire, Spacer, Screw, Masking sheet
PackagingPackaged each
CertificateNFPA70, CE, RoHS
OptionsCMA3SB / CMA3SW: Ceiling Mount Adapter
EN54-24 compliance
