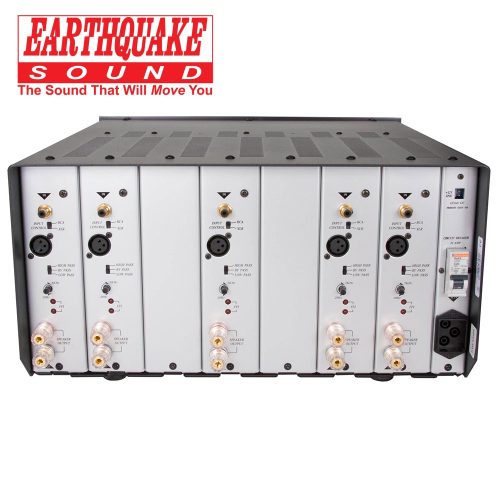

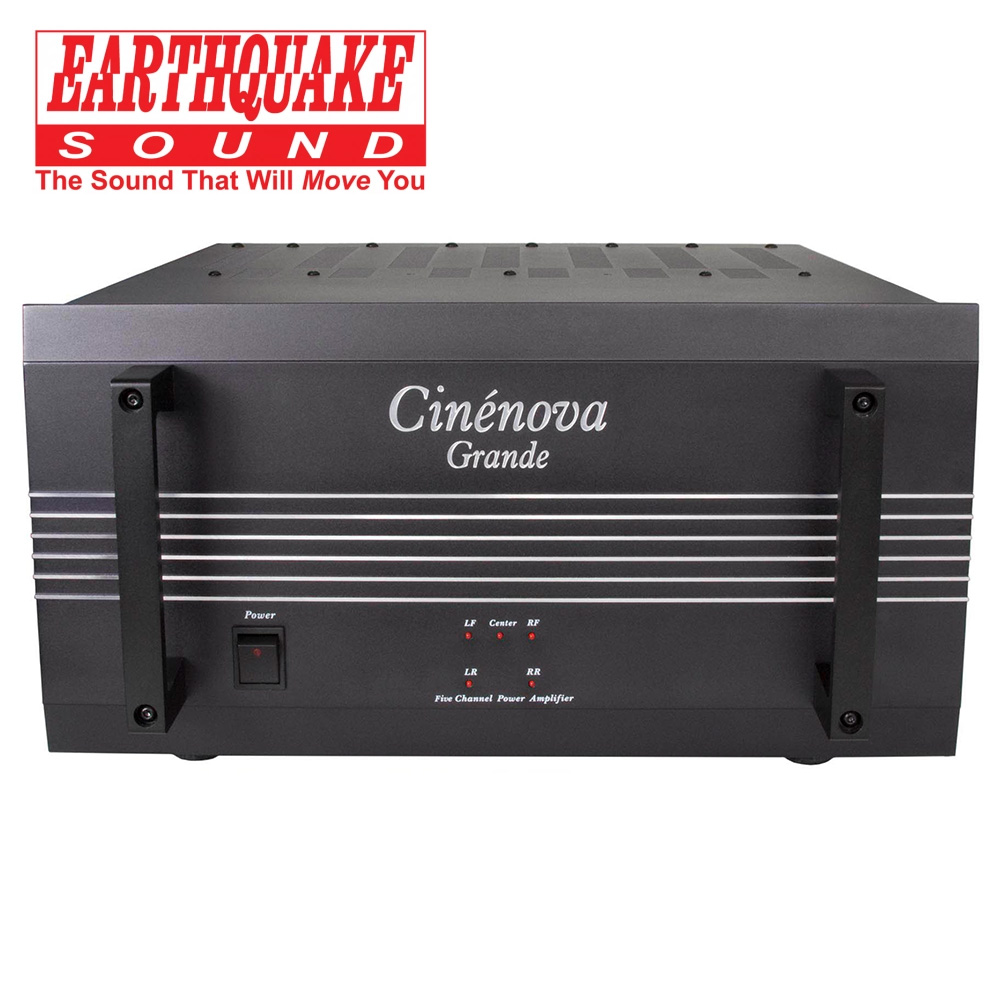

Amplifier Cinenova Grande 5 Black

Like the best things in life, Cinénova Grande is created with love for detail, passion for strength and respect for grace. Cinénova Grande conveys audio without interpretation, coloring or compression – True to life.

Immaculate sound quality matched with massive power and performance places Cinénova Grande at the top in the heavyweight class of high end multi-channel amplifiers. With 2000 watts dynamic and 1000 watts continuous power per channel, Cinénova Grande is the world’s most powerful multi-channel amplifier. It is ideal for both the two-channel high-end enthusiast who wants the benefits of bi-amping, and the serious home theater owner who demands unlimited power even during the most explosive movie sequences.

All aspects of Cinénova Grande is designed to enthuse the listener with clear audio quality, unlimited power and unsurpassed value. Precision- built quality in harmony with aesthetic design ensures enduring owner pride and lifelong enjoyment.

  • Modular monoblock configuration
  • 4 kVa transformer that has five secondaries
  • XLR and RCA input jacks
  • Built-in adjustable crossover for bi-amping
  • FFI (Fuse Fault Indicators)
  • EZXS amplification blocks
  • 5-way binding posts

Description

Number of Channels5
Power Rating Per Channel(8-ohm load), all channels driven: 360W
(4-ohm load), all channels driven: 610W
(2-ohm load), all channels driven: 810W
Output Load ImpedanceSafe with all loads from 2-Ohm to 16-Ohm
Input ImpedanceRCA: 28-kOhms
XLR: 48-kOhms
Input SensitivityRCA: 1.6V
XLR: 2.4V
Voltage Gain (Av)42V Gain Relative to 1W
Frequency ResponseUp to 50kHz ±0.1dB
Crossover Filter (low-pass/highpass)Variable Selector from 20Hz – 5kHz with a slope of 12dB/Octave
Total Harmonic Distortion + Noise0.003% at 1W
S/N Ratio (A-Weighted)Greater than -121 dB
Cross Talk / Channel SeparationGreater than -110 dB from 17Hz to 40kHz
Slew Rate55V/microsecond
Damping Factor1600 at 8-Ohm
800 at 4-Ohm
400 at 2-Ohm
DC Output OffsetLess than 0.004V
Power Requirement120 VAC/240 VAC Factory Pre-set
ColorBlack
Dimensions
Height238mm (9-3/8″) w/ 1/2″ legs
Width438mm (17-1/4″) w/ faceplate
Depth495mm (19-1/2″) w/o handles
