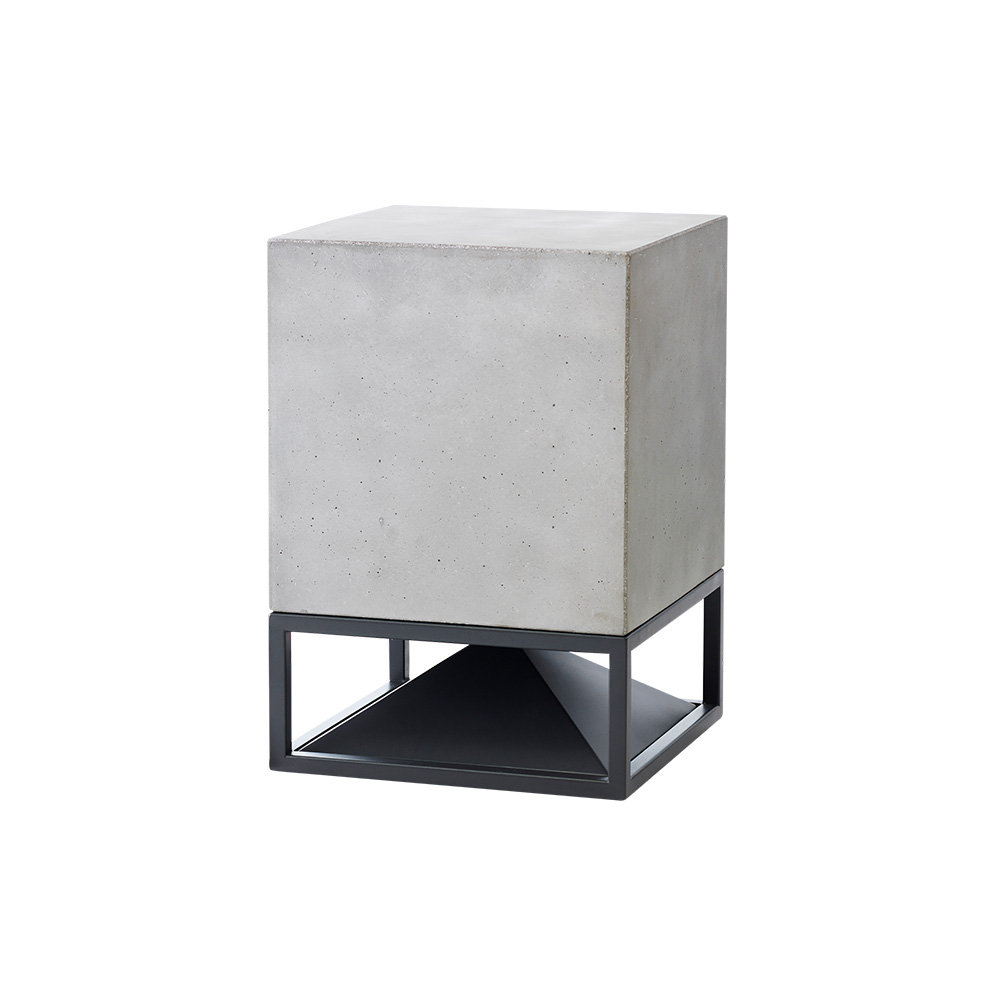

Architettura Sonora Cubes Cube_400

Architettura Sonora Cubes Cube_400

Full and Warm Sound

An omnidirectional loudspeaker characterized by a full and warm tonal balance, Cube_400 represents the top of the AS range.

Available in both full-range and sub version, it is ideal for environments requiring superiorsound quality and elegant design.

Categories: ,

Description

Full and Warm Sound

An omnidirectional loudspeaker characterized by a full and warm tonal balance, Cube_400 represents the top of the AS range.

Available in both full-range and sub version, it is ideal for environments requiring superiorsound quality and elegant design.

Architettura Sonora

LIGHTING MOOD SOLUTIONS

Light option, consisting of a Led Strip in a special notch around the loudspeaker area.

The Light spreads in the lower part of the product, due to the reflection of the deflector.

Lighting Mood designed by Giulia Archimede.



Lamp Specs

Light source: LED module: 1x22W

Rated output: 22W

Led colour temperature: 3000K

Power supply: 90-260V

Version Full range Subwoofer without crossoverSubwoofer with crossover on board
Speaker Type6″ coaxial (dual concentric)6″ woofer 6″ woofer
Nominal Impedance 8Ω8Ω8Ω
Crossover2 ways on board Recommended DSP setting:
HP=35Hz; 12dB/oct
LP=100Hz; 12dB/oct		LP=150Hz; 12dB/oct
Frequency Range 40-20,000Hz _-6dB)40-150Hz (-6dB)
(recommended DSP setting) 		40-150Hz (-6dB)
Sensitivity (1W – 1m)89dB89dB89dB
Speaker Peak Power300W300W300W
Speaker RMS Power 150W150W150W
Lighting Mood OptionalOptionalOptional
High-z Board Optional
(voltage: 70-100V
Power: 30-60W)		Optional
(voltage: 70-100V
Power: 30-60W)		Optional
(voltage: 70-100V
Power: 30-60W)
Dimensions400 x 400 x 570 mm
Weight133 Kg Concrete; 139 Kg Marble

Materials
