Control4 8-CHANNEL ADAPTIVE PHASE DIMMER

Control4 8-CHANNEL ADAPTIVE PHASE DIMMER

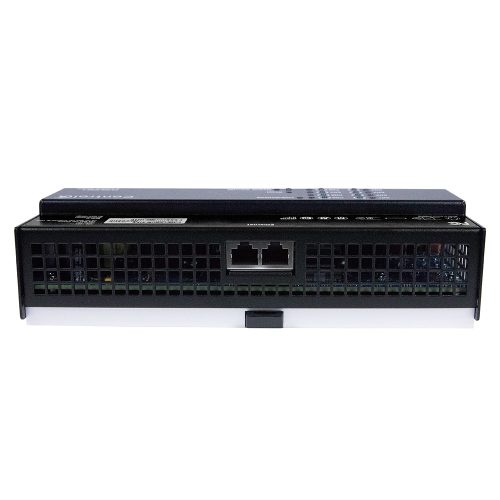

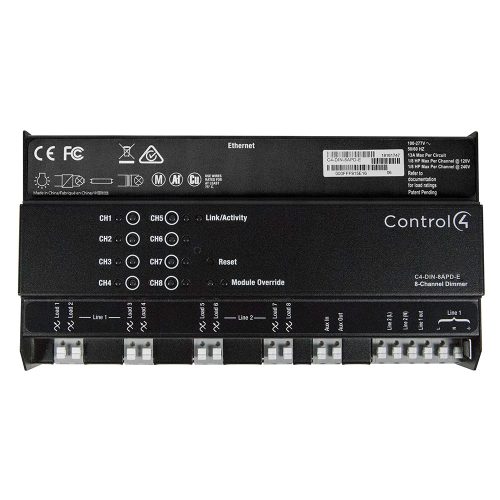

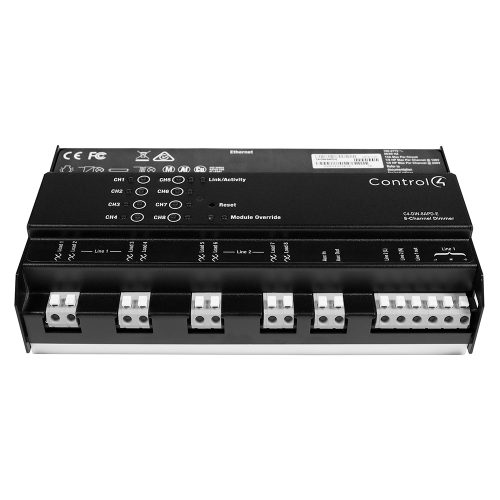

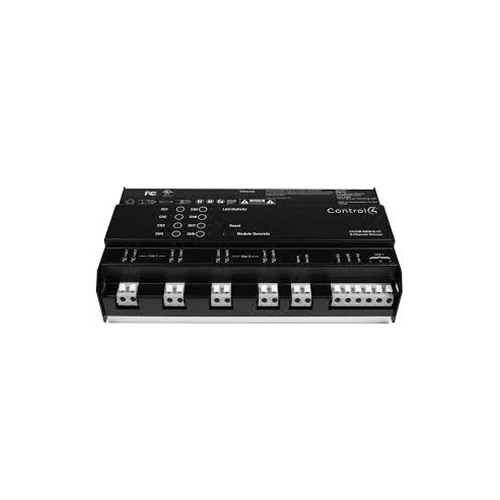

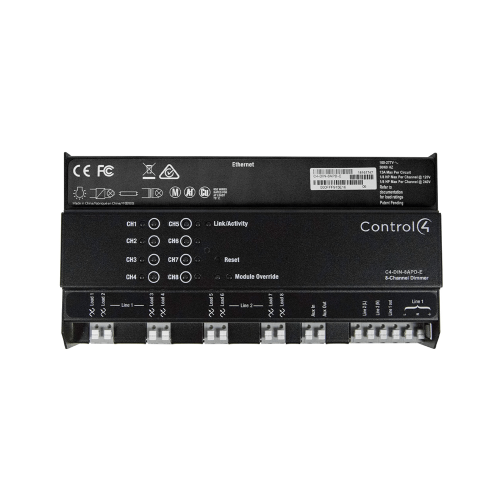

The Control4® 8-Channel Adaptive Phase Dimmer controls up to eight loads from one module in the Control4 system. It is an adaptive phase dimmer, so each channel supports a variety of load types including incandescent, halogen, electronic low-voltage (solid-state) transformer, magnetic (iron core) low-voltage transformer, fluorescent, compact fluorescent, LED, and motor. The 8-Channel Adaptive Phase Dimmer automatically detects the load type and sets the appropriate dimming mode.

Category:

Description

• Controls up to eight loads and supports a variety of load types
• Each channel can be set to different dimming modes including Switch mode, Forward Phase mode,
Reverse Phase mode, and Autodetect mode
• Channel buttons allow for toggling on/off or ramping up/down a load
• Channel Status LEDs indicate whether a load is on, off, or in short-circuit fault
• Module Override button allows toggling between the module override scene and all channels off or
setting the module override scene to current channel levels
• Module Status LED indicates if module power is on with normal operation, off, or in thermal overload
• Link/Activity LED indicates system link status, communication activity, or firmware update status
• Reset button can be used for factory default or network configuration settings
• Auxiliary override connection allows a standard line-voltage toggle switch to control the attached lights
before the control system is installed or in case the controller malfunctions
• Module can be installed in either a Control4 5- or 2-slot panel or a third-party DIN rail panel

Model numberC4-DIN-8DIM-E-V2
Power requirements100-120VAC, 50/60 Hz, single phase only
Line in (circuits)1 or 2
Power consumption5W
Supported load typesIncandescent, halogen, electronic low-voltage transformer (ELV), magnetic (iron
core) low-voltage transformer (MLV)*, fluorescent, compact fluorescent, LED, motor
Control communcationsEthernet
Module max with two lines in3200W
Line 1 in max1920W
Line 2 in max1920W
Module max with one line-in1920W

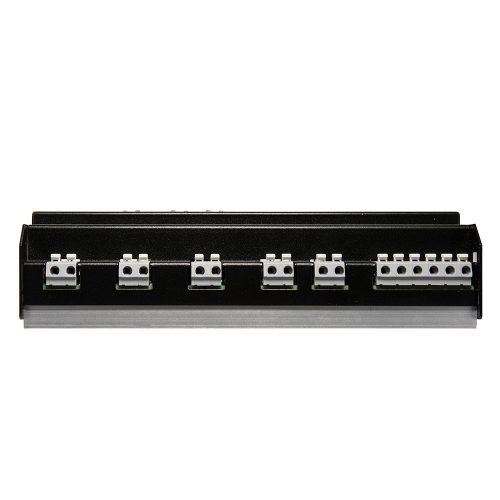

Line voltage screw terminals16 (Line 1, Line 1 Neutral, Earth Ground, Line 1 Out, Line 2 Neutral, Line 2, Loads 1-8, Aux
In, Aux Out)
Recommended wiring sizeOne 26 AWG to 12 AWG (0.12 mm2 to 2.5 mm2) per terminal
RJ-452 ports—1 Ethernet in, 1 Ethernet passthrough
Operational temperature32˚F to 104˚F (0˚C ~ 40˚C)
Humidity5% to 95% Non-condensing
Storage-4˚F to 158˚F (-20˚C ~ 70˚C)
Heat dissipation 175 BTU/hr @120VAC
H × W × D8.6 × 4.5 × 2.2 in.
(219 × 115 × 57 mm)
DIN module width12M
Weight2.7 lbs (1.2 kg)
Shipping weight3.2 lbs (1.4 kg)
