Control4 Chime Video Doorbell Satin Nickel/Black PoE/Wi-Fi

Chime is the first video doorbell designed for the Control4 smart home. Chime allows homeowners to see and talk to visitors while controlling the most important smart home features. Customers can see and hear who’s at the door through the Control4 mobile app or touchscreen, and a 5MP camera with a 180-degree field of view ensures every inch of the property is covered in crystal-clear HD. Using Composer Pro, you can configure five adjustable motion zones, keeping your customer’s most critical areas protected.

Chime also features sensitivity controls to avoid unwanted notifications caused by faraway traffic or passersby. You can trigger a snapshot notification when someone arrives on the porch, or simply set Chime to begin recording without a notification when there’s movement in the yard. For additional peace of mind, Chime stores seven days of recordings in the cloud for playback. Chime offers PoE models for new construction or Wi-Fi for retrofit applications and is available in an elegant black or satin-nickel finish to blend in seamlessly with any Control4 smart home.

FEATURE AND BENEFIT HIGHLIGHTS

  • Video doorbell that fully integrates with Control4 Smart Home
  • 5MP HD camera with 180-degree field of view
  • Two-way audio, no push and release required
  • Five customizable motion zones with sensitivity control
  • Night mode and IR LEDs
  • Stores seven days of event recordings in the cloud
  • Wi-Fi and PoE models
  • Available in black and satin-nickel finishes

Description

Control4

ANSWER FROM ANYWHERE, CONTROL FROM EVERYWHERE

Chime is a convenient way to keep your home safe and secure. Running late? Answer a guest’s ring and disarm the alarm, turn on lights, or open the garage for them to enter.

Package being delivered? Unlock the door for it to be placed safely inside, and then lock the door behind them as they leave—all from the same app. No other video doorbell offers this level of integration with Control4. See you later, porch pirates!

IN THE KNOW WITH NOTIFICATIONS

With motion detection, be instantly notified that a package has been delivered, even if the bell is not pressed.

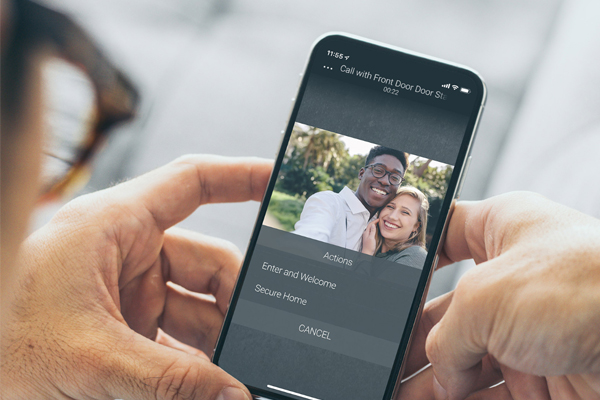

Video snapshots can be delivered directly to your mobile device or Control4 Touchscreen when someone rings Chime, whether you’re inside or on the go.

Miss a notification? No problem. Access a history of seven days of snapshots and video recordings.

ModelChime Video Doorbell (PoE)Chime Video Doorbell (Wi-Fi)
Model numbersC4-VDB-E-SN (satin nickel)C4-VDB-W-SN (satin nickel)
C4-VDB-E-BL (black)C4-VDB-W-BL (black)
Camera resolution5MP5MP
Video resolutionMain: up to 1600 × 1200Main: up to 1600 × 1200
Substream: up to 1024 × 768Substream: up to 1024 × 768
Frames per secondUp to 24 FPSUp to 24 FPS
Video substreamYY
Video codecH.264 or MJPEGH.264 or MJPEG
Night modeIntegrated IR LEDs for night modeIntegrated IR LEDs for night mode
Aspect ratio4:3, nearly 180-degree horizontal FoV4:3, nearly 180-degree horizontal FoV
Motion detection5 configurable motion zones5 configurable motion zones
MicBuilt-in omnidirectionalBuilt-in omnidirectional
SpeakerYY
CodecG.711G.711
Dimensions (H × W × D)130 × 40 × 28 mm (5.12 × 1.58 × 1.10 in.)130 × 40 × 28 mm (5.12 × 1.58 × 1.10 in.)
Weight159 g (0.35 lb)136 g (0.30 lb)
Available colorsSatin NickelSatin Nickel
BlackBlack
Mechanical chime supportYesYes (with adapter)
Power sourcePoE 802.3af16-24V
PoE power draw15WN/A
Operating temperature-40 ˚C to 60 ˚C (-40 ˚F to 140 ˚F)-40 ˚C to 55 ˚C (-40 ˚F to 131 ˚F)
Storage temperature-45 ˚C to 70 ˚C (-49 ˚F to 158 ˚F)-45 ˚C to 70 ˚C (-49 ˚F to 158 ˚F)
Humidity20% to 100% RH (non-condensing)20% to 100% RH (non-condensing)
Outdoor ratingIP65IP65
JboxC4-VDB-JBOX 1/2 Gang Junction BoxN/A
FOV Wedge and BackplateC4-VDB-E-ACC contains a 15-degree left andC4-VDB-W-ACC contains a 15-degree left and right
right wedge and wall platewedge and wall plate
CertificationsFCC class B, CE, ICFCC class B, CE, IC
