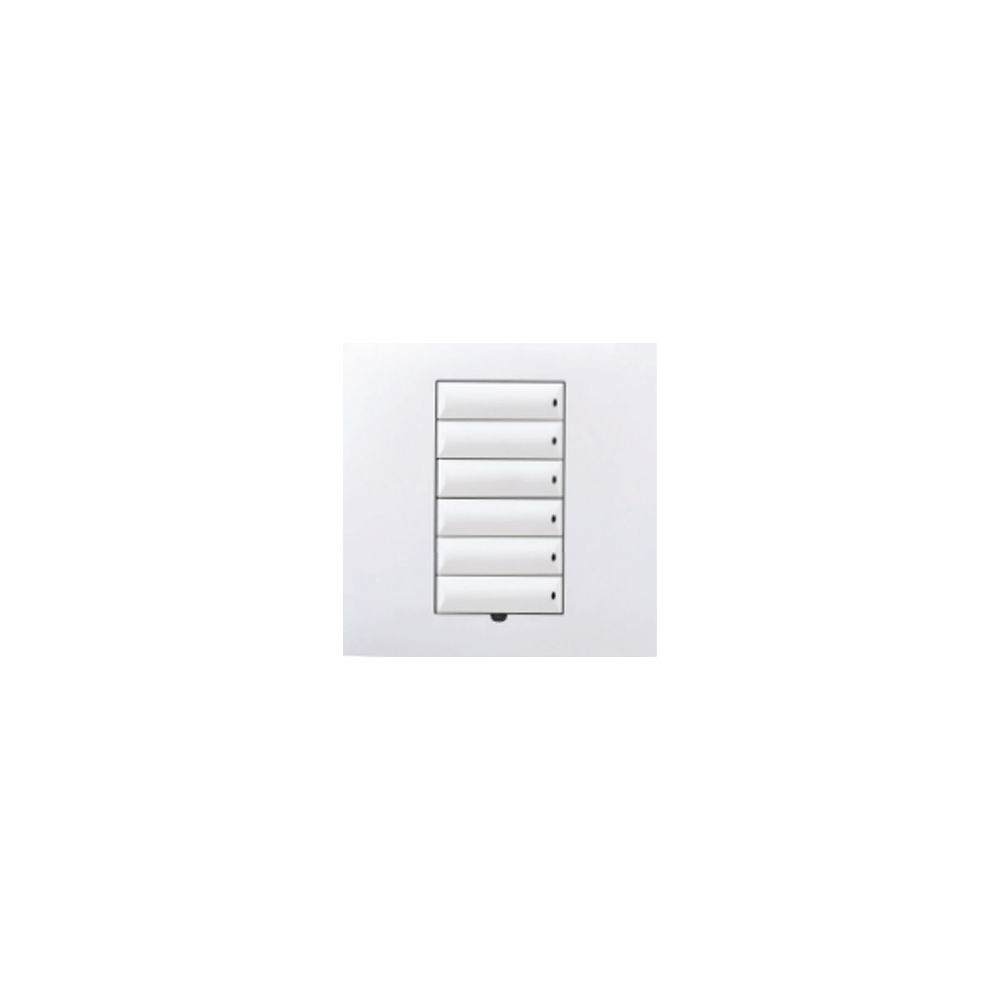

Control4® Square Wireless Adaptive Phase Dimmer

The Control4® Square Wireless Adaptive Phase Dimmer combines elegant dimming with a configurable keypad for the ultimate in
lighting control. Unlock the power of one-touch automation simply by replacing an existing light switch with a Keypad Dimmer.



• Turns a standard light switch or dimmer into a fully customizable keypad and dimmer.
• Wireless communication and standard wiring provide easy installation in new construction and retrofit environments.
• Compatible with a variety of load types including LEDs, Incandescent, Halogen, Electronic Low Voltage (solid state)
Transformers, Magnetic (iron core) Low Voltage Transformers, Fluorescents, Compact Fluorescents.
• Supports both forward phase (leading edge) and reverse phase (trailing edge) dimming.
• Automatically detects load type and determines the appropriate dimming type.
• Protection circuitry prevents device damage in case of short circuit or excessive load.
• Continuously measures energy being used by the attached load.
• Configure with two to seven buttons using five different button sizes for a total of 38 possible configurations.
• Easy reconfiguration means there’s no need to worry about how many buttons will be needed on a specific dimmer before (or even
after) installation.
• Elegant, sophisticated design makes a beautiful addition to any home or business.
• Custom engraving available to clearly identify each button.
• Backlit button engraving with programmable color control for easy readability regardless of time of day or light level.
• Programmable RGB LEDs provide status feedback for lighting and other devices in the system.
• Ambient light sensor automatically adjusts backlight and status LED brightness depending on the light level in the room.
• Ships as “Neutral” device with no buttons included. Keypad-style button kit and Rocker-style button kits sold separately in a variety
of colors (see “Available accessories”).
• Control4® screw-less faceplates, sold separately, provide a sleek profile (see “Available accessories”).
• Installs in standard square (UK/China-style) or round (EU-style) wall boxes. Round (EU-style) wall boxes require trim ring (see
“Available accessories”).

Model numberC4-SAPD240-xx
Power requirements220VAC-240VAC +/-10%, 50/60 Hz
This device can function with or without a neutral AC connection
depending on load type. Wiring with a neutral is always the
preferred wiring method (if possible). See load types and “Sample
wiring configurations” below.
When wired without a neutral, loads may appear dimmer.
Power consumption600mW
Load types and ratings
Supported load typesIncandescent, halogen, electronic (solid state) low-voltage (ELV)
transformer, magnetic (iron core, inductive) low-voltage (MLV)
transformer^{1} , phase-dimmable fluorescent, compact fluorescent, and
Important: Do not use with non-dimmable loads.
Maximum load
Reverse phase
Incandescent (tungsten)350W
Compact fluorescent (CFL)^{2}100W
Minimum load (with neutral)
All load types^{1,2}1W
Minimum load (without neutral)
Incandescent (tungsten)7W
Fluorescent^{1,2}20W (see note 2 below)
Compact fluorescent (CFL)^{1,2}20W Varies (see note 2 below)
LED^{1,2}20W Varies (see note 2 below)
Operational temperature0˚C ~ 40˚C (32˚F ~ 104˚F)
All load ratings are based on an ambient
temperature of 25˚C (77˚F).
Humidity5% to 95% non-condensing
Storage-20˚C ~ 70˚C (-4˚F ~ 158˚F)
Control communicationsZigBee, IEEE 802.15.4, 2.4 GHz, 15-channel spread spectrum radio
Wires per connectorOne 0.5 mm^{2} – 2.5 mm^{2}
Two 0.5 mm^{2} – 1.5 mm^{2}
Dimensions83 × 71 × 33 mm (3.3 × 2.8 × 1.3 in.)
Depth in wall box25.8 mm (1.0 in.)
Weight0.06 kg (2.1 oz.)
Shipping weight0.12 kg (4.2 oz.)
