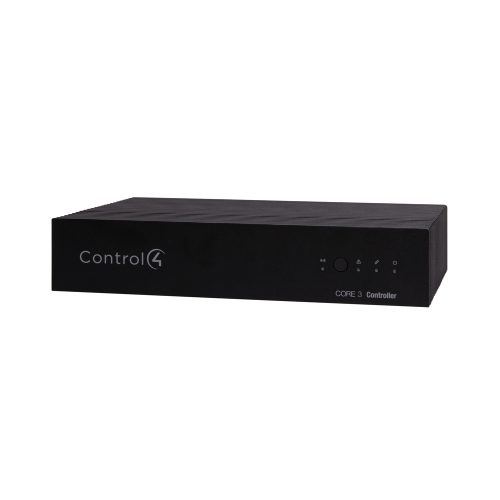

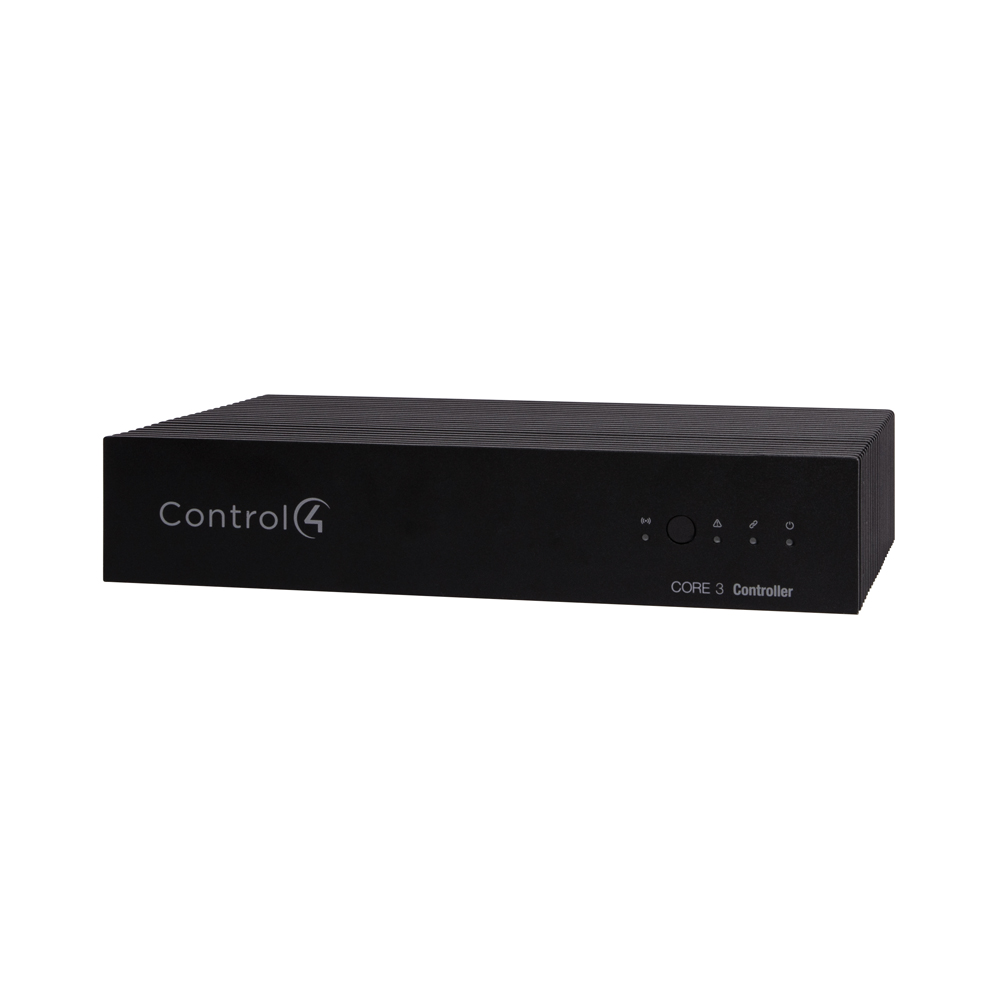

Control4 CORE 3 Controller (C4-CORE3)

The Control4 CORE 3 Controller is designed to be the direct replacement for the EA3 Controller. CORE 3 is the perfect fusion of multi-room, high resolution audio and smart installment automation for mid-size projects.

Powered by a next-generation multi-core processor, CORE 3 delivers a new level of speed and performance for instantaneous, interactive on-screen access to all the systems on the job. A built-in music server with three audio outputs delivers high-resolution audio throughout the your customer’s space from their local music library, popular streaming music services, and AirPlay-enabled devices using native Control4 ShairBridge technology.

CORE 3 includes a variety of I/O to automate audio and video, lighting, climate control, door locks, and other devices controlled by IP, infrared (IR), serial, and ZigBee. With PoE+ for power, a port for Ethernet out, and its optional mounting bracket, the compact form factor of CORE 3 makes it easy to install behind any TV or projector.

OvrC Pro remote management is built-in, giving you access to the entire network of IP devices, including third-party products. OvrC delivers enhanced troubleshooting capabilities and diagnostic data that makes remote support easy, eliminating unnecessary truck rolls and enabling you to streamline your business and tackle more jobs – all from the OvrC web or mobile app.

New DACs (digital audio converters) and additional audio outputs put the Control4 series of CORE Controllers at the center of our high-resolution audio platform: Ryff. And with OvrC Pro built-in, CORE will be the foundation for networking monitoring and management, remote connections and troubleshooting. This unique feature lets you improve your customer service, streamline your business, and have more control.

Description

Control4

The controller is the brain of your smart home. It manages your home automation system, allowing the electronic devices in your home to work together—from lighting and security, to music and video, and pretty much anything else in between. No matter the size of your home, whether you’re automating a single room or a sprawling mansion, Control4 controllers are capable of powering your entire home automation system.

  • New, updated multi-core processors allow CORE 3 to run OS 3 faster and more efficiently, with power to spare for new features and functionality currently in development
  • Four audio outputs—two stereo analog outputs, one digital audio output, and one HDMI—distribute up to four simultaneous, high-resolution audio streams from native streaming services, AirPlay-enabled devices, and local music libraries
  • Ryff high-resolution audio server built-in, with native support for popular streaming services including Qobuz, TIDAL, Pandora, Spotify, SiriusXM, SOUNDMACHINE, TuneIn, and more
  • Elegant 4K on-screen interactive menu for easy access to entertainment sources, device control, scene selection, comfort settings, surveillance monitoring, and more

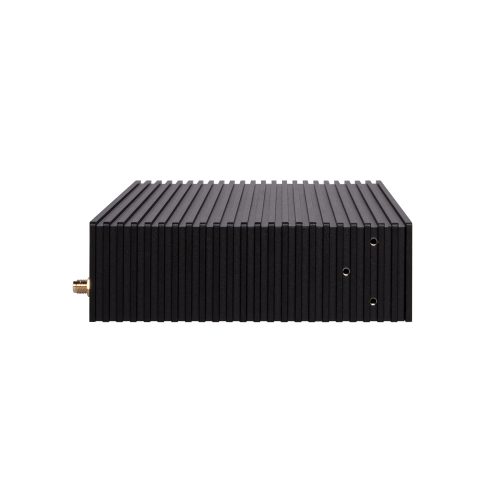

  • 1U, fan-less design features a heat-sink chassis and integrated power supply, for a simple, silent and reliable installation
  • PoE+ provides power and network connectivity over a single CAT5/CAT6 cable
  • Built-in two-port Ethernet switch simplifies installation by connecting an additional device to the local network
  • Included ears in the box to allow for mounting inside a rack
  • Optional mounting bracket allows easy mounting to the back of a TV, on the wall, or to a standard wall box
  • Integrated Zigbee and Zwave* radios with external antennas simplify installation while delivering reliable low-bandwidth communication for other smart/connected devices
  • USB port enables connection to external hard drives for easy access to music content, or use of a WI-FI dongle
  • Registration to customer.control4.com enables access and control from multiple mobile devices through the Control4 App for Android and iOS – including Apple Watch – while connected to the local network
  • Active 4Sight subscription enables remote access with the Control4 App, Intercom Anywhere, Notifications, integration with Alexa and Google voice assistants, When>>Then access, and automatic cloud backups
  • Communication server built-in for audio/video intercom between Control4 touchscreens, Chime Video Doorbells and door stations
  • OvrC Pro built in for advanced remote management and monitoring, device and network configurations, and simplified troubleshooting solutions including the OvrC Connect app for customers



Embedded servicesControl4 appSupports up to 50 iOS and Android devices
OvrC HubBuilt-in OvrC Pro functionality
Music ServicesPandora, Napster, Spotify, TuneIn, TIDAL, Deezer, SiriusXM,
SOUNDMACHINE, iHeartRadio, Amazon Music, Radio.com, Qobuz
Apple SupportAirplay-enabled devices

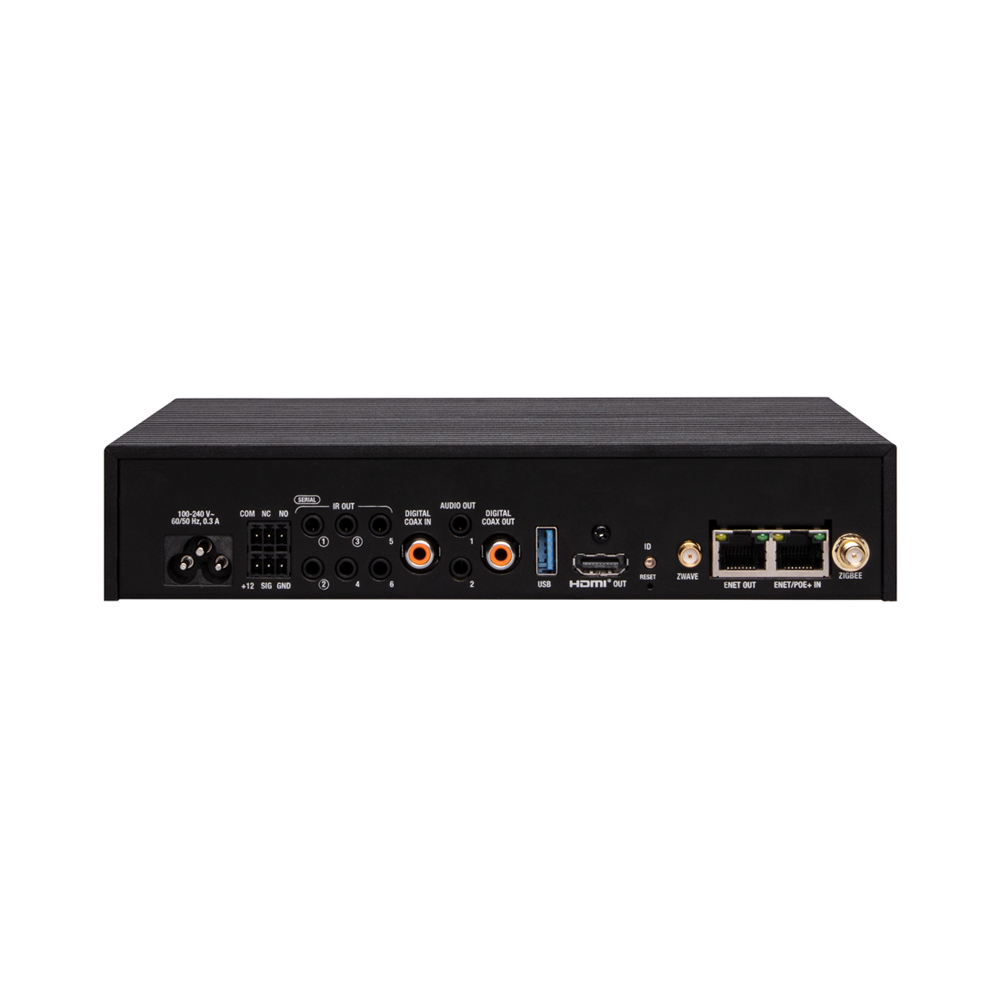

Inputs/Outputs – AVVideo Out1 video out—HDMI
HDMI 2.0a output; 4K @ 60Hz
Audio Out4 audio out – HDMI, 2 stereo analog, and Digital Coax
Audio In1 audio in – dig coax
Audio PlaybackAAC, AIFF, ALAC, FLAC, M4A, MP2, MP3, MP4/M4A, Ogg Vorbis,
PCM, WAV, WMA
Audio ResolutionUp to 192 kHz / 24 bit
Inputs/Outputs – NetworkEthernet10/100/1000BaseT compatible (required for controller setup)
1 Ethernet/POE+ in port, 1 Ethernet out port
WiFiAccessory only via USB
WiFi SecurityWPA/WPA2
WiFi AntenaAccessory only via USB
Zigbee Pro802.15.4
Zigbee AntennaExternal reverse SMA connector
ZwaveZwave 700 series
Zwave AntennaExternal reverse SMA connector
USB Port1 USB 3.0 port
Inputs/Outputs – ControlIR out6 IR out – 5V 27ma max output
IR capture1 IR receiver—front; 20-60 kHz
Serial out3 serial out (shared with IR out 1-3)
Contacts1x; 2-30VDC input, 12VDC 125mA max output
Relays1x; AC: 36V, 2A max across relay; DC: 24V, 2A max across relay
PowerPower requirements100-240VAC, 60/50Hz, POE+
Power consumptionMax: 18W, 61 BTUs/hour, Idle: 12W, 41 BTUs/hour
OtherOperating temperature32 – 104 F (0 – 40 C)
Storage temperature4 – 158 F (-20 – 70 C)
Fan dB levelNo fan
Dimensions (H x W x D)3.7” (94mm) x 7.36” (187mm) x 11.65” (296mm)
Weight3.55 lbs (1.61 kg)

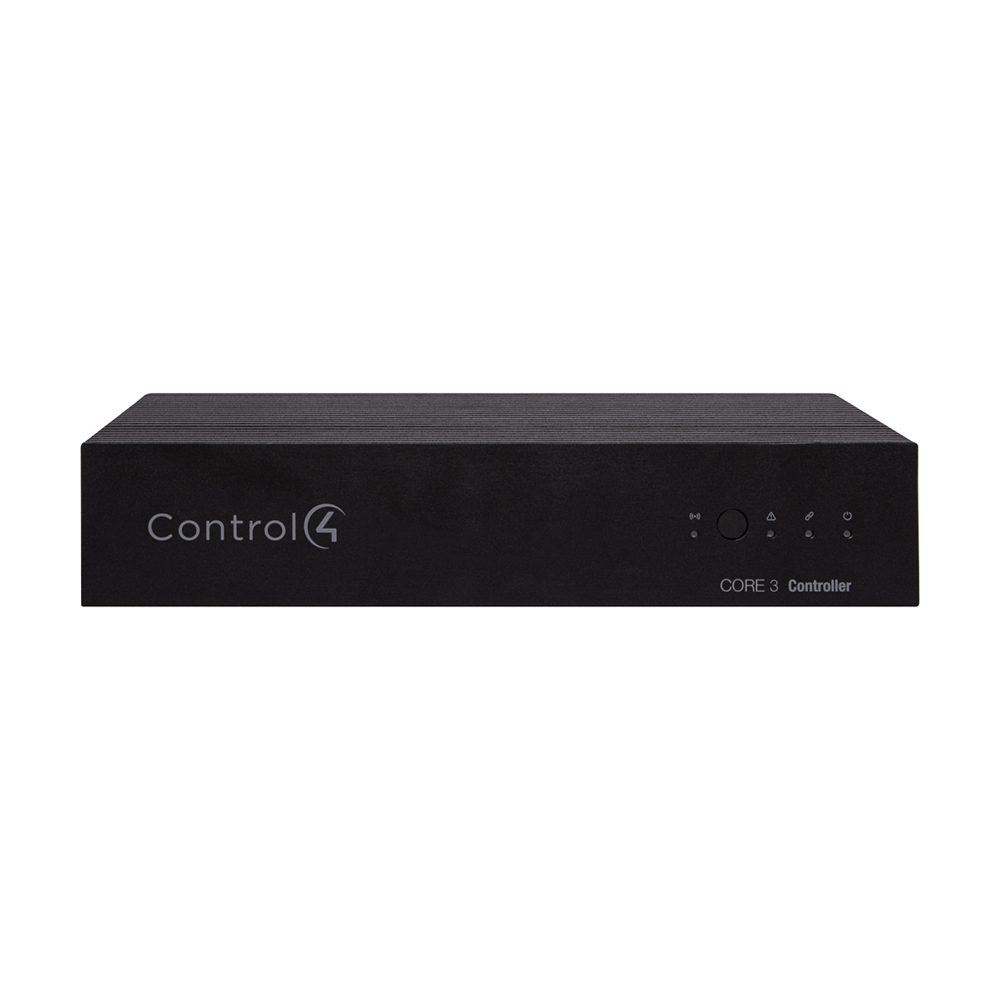

Other – Mechanical and HardwareFront Panel LEDsStatus LEDs (listed left to right): music streaming, warning, link, power
ID ButtonIncludes LED that mimics the power LED on the front panel
CPUi.MX8Mi
RAM2GB Minimum
Flash Disk16GB eMMC
SecuritySecure Boot
OSDQT OSD
AccessoriesWall-Mount BracketC4-CORE3-WM
3.5mm to DB9 Serial CableC4-CBL3.5-DB9
Remote for OnScreen MenuC4-SR260-B
4Sight Subscription (1 Year)C4-4Sight-E
