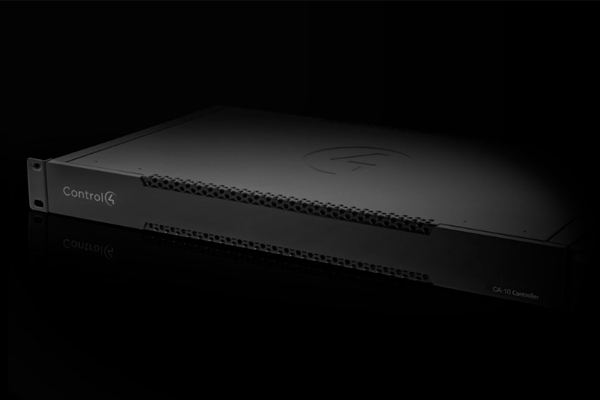

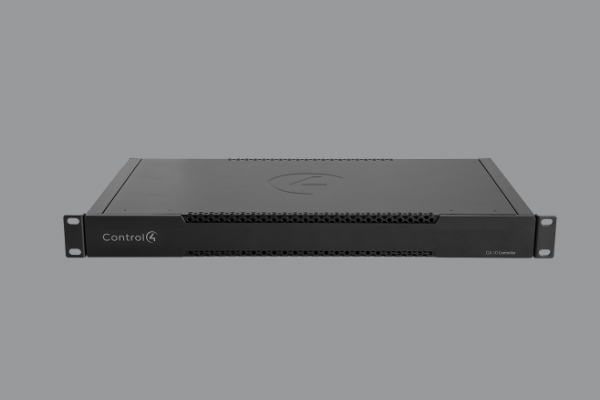

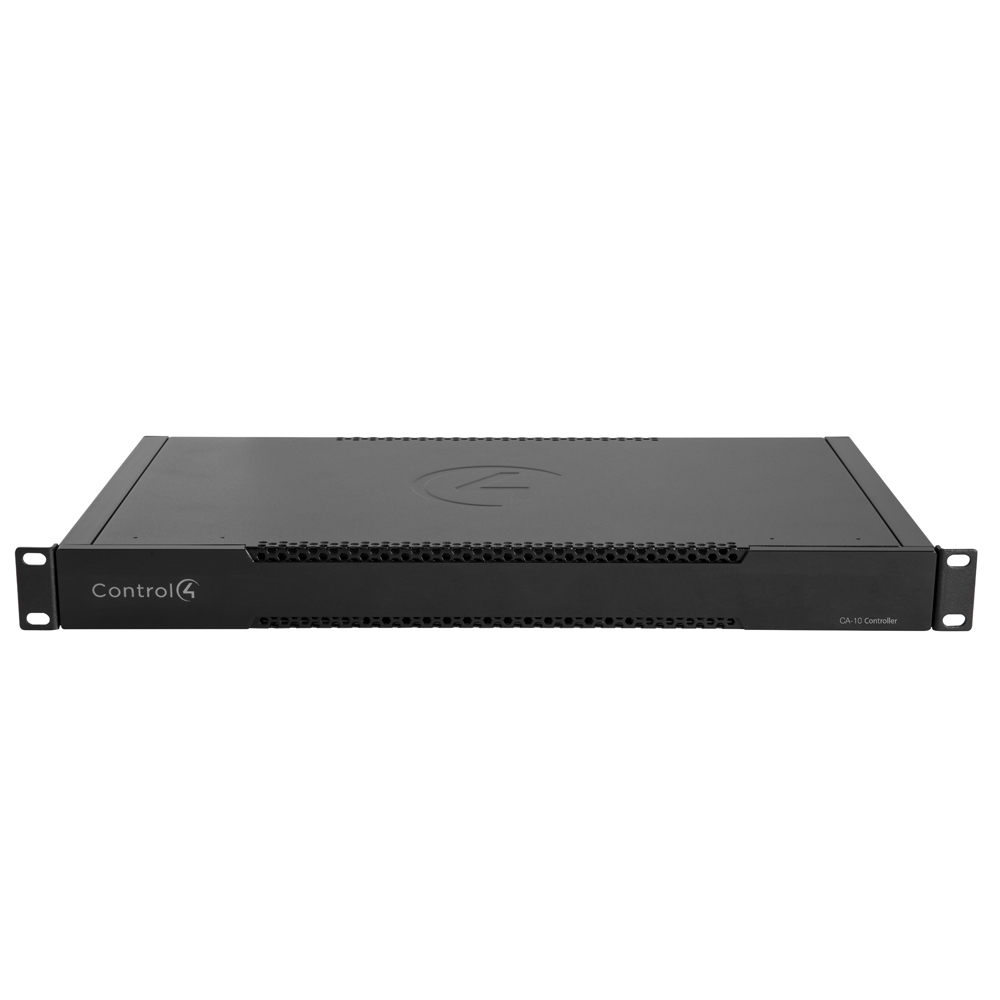

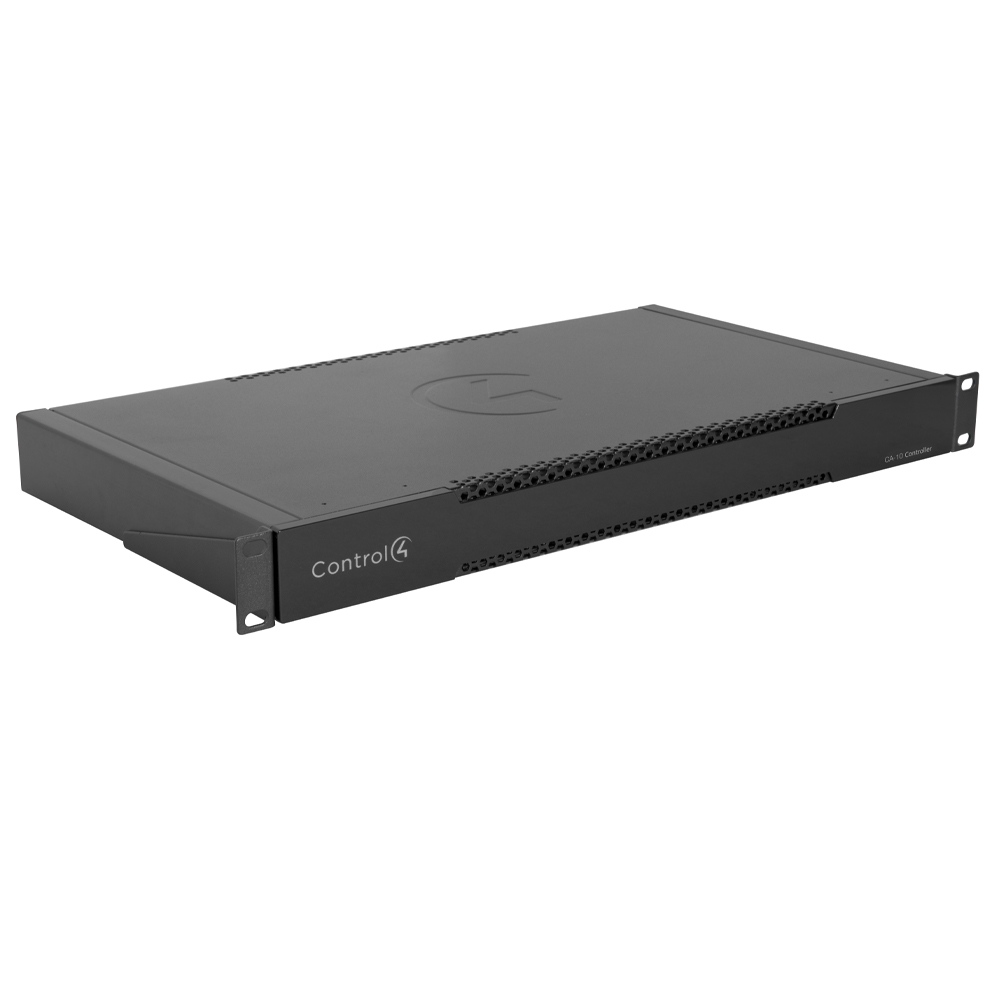

Control4 CA-10 Automation Controller (C4-CA10)

The CA-10 Automation Controller is the newest and most powerful member of the award-winning line of Control4 controllers. It is purpose built for big jobs, delivering 4× the processing power and memory of the EA-5 to provide great performance even when controlling thousands of devices. The CA-10 is fault tolerant, engineered with multiple fail-safes to protect the system and keep it up and running even if a power supply, network port, solid-state drive (SSD), or fan fails. Fail-over notifications are also available through programming events so the system can automatically notify the dealer. The CA-10 works as the primary controller to provide the muscle for the project. Secondary controllers like the EA-5 and EA-3 provide streaming music and I/O; and EA-1 controllers behind every TV provide the on‑screen TV interface. The CA-10 is also the perfect controller for small business applications, where service agreements require the most reliable solution possible—including a standard five-year warranty.

OvrC Pro remote management is built-in, giving you access to the entire network of IP devices, including third-party products. OvrC delivers enhanced troubleshooting capabilities and diagnostic data that makes remote support easy, eliminating unnecessary truck rolls and enabling you to streamline your business and tackle more jobs – all from the OvrC web or mobile app.

Description

The controller is the brain of your smart home. It manages your home automation system, allowing the electronic devices in your home to work together—from lighting and security, to music and video, and pretty much anything else in between. No matter the size of your home, whether you’re automating a single room or a sprawling mansion, Control4 controllers are capable of powering your entire home automation system.

  • Purpose-built for big jobs, delivering 4x the processing power and memory of the EA-5 to provide great performance even when controlling up to thousands of devices.
  • Engineered with multiple fail-safes to protect the system and keep it up and running even if a power supply, network port, solid state drive (SSD), or fan fails.
  • Fail-over notifications are also available through programming events so the system can automatically notify the dealer of fail-over events.
  • The CA-10 works as the primary controller in the project to provide the muscle for the project and comes with a 5-year warranty.

Model numberC4-CA10

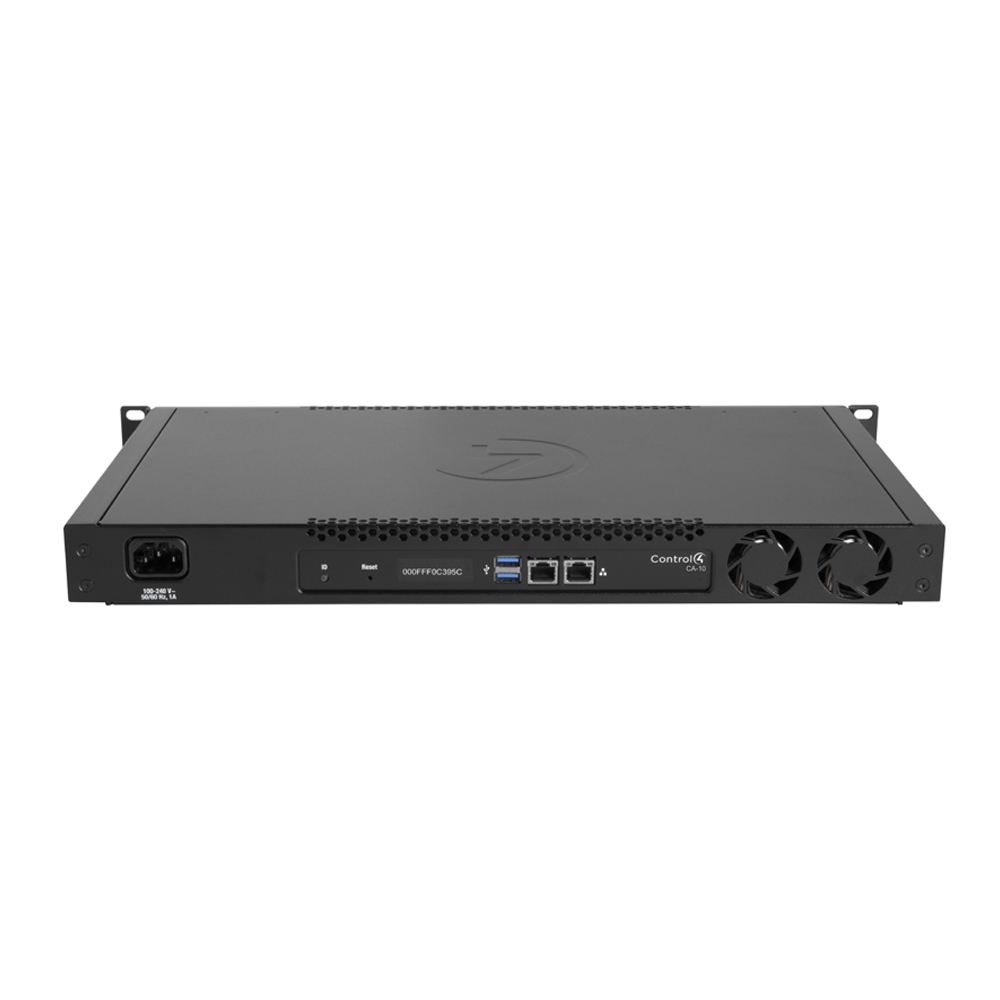

ConnectionsNetwork2 × Ethernet—10/100/1000BaseT (redundant connections)
StorageDual 32 GB (minimum) solid-state drives (SSD) in RAID 1
configuration
USB port2 USB 3.0 ports-1A
PowerPower requirementsAC power supply accepts 100-240V at 50-60 Hz (1A)
Power suppliesDual redundant power supplies with auto failover
Power consumptionMax 70W (239 BTU/hr)
MiscellaneousOperating temperature0 ˚C to 40 ˚C (32 ˚F to 104 ˚F)
Storage temperature-20 ˚C to 70 ˚C (4 ˚F to 158 ˚F)
Fans2 redundant fans
Dimensions444 × 258 × 44 mm (17.5 × 10.125 × 1.72")
Weight4.33 kg (9.55 lb)
Shipping weight5.44 kg (12 lb)
Minimum OS versionRequires Control4 Smart Home OS 3.1 or newer
