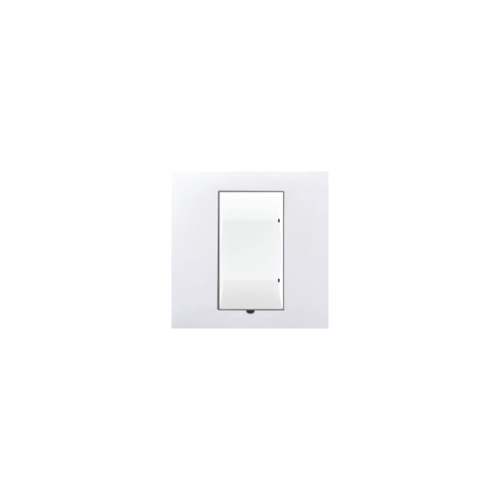

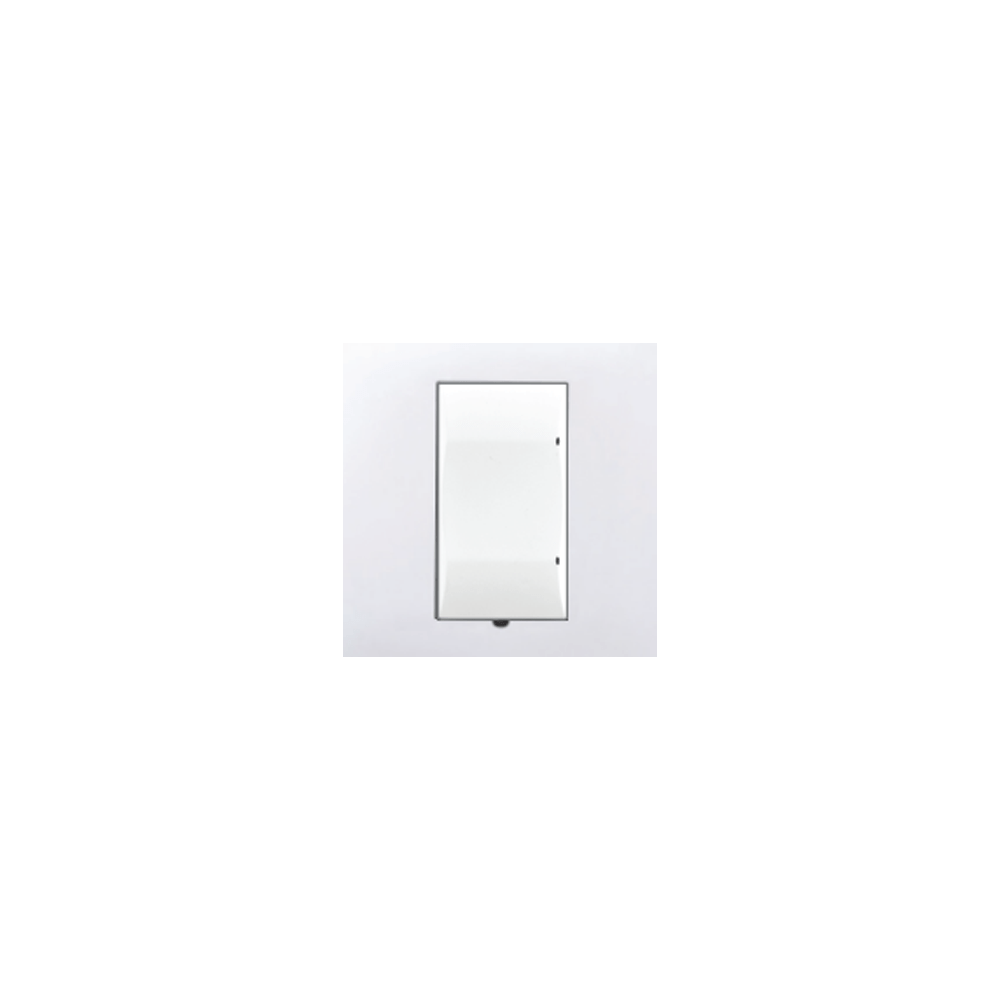

Control4® Square Wireless Switch

The Control4® Square Wireless Switch combines a relay and configurable keypad for on/off control of a variety of load types. The
keypad can be configured with two to seven buttons using five different buttons sizes for a total of 38 possible configurations.

Category:

Description

Wireless communication and standard wiring provide easy installation in new construction and retrofit environments.
• Compatible with a variety of load types including Incandescent, Halogen, Electronic Low Voltage (solid state) Transformers,
Magnetic (iron core) Low Voltage Transformers, Fluorescents, Compact Fluorescents, LEDs and Motors .
• Continuously measures energy being used by the attached load.
• Elegant, sophisticated design makes a beautiful addition to any home or business.
• Custom engraving available to clearly identify each button.
• Backlit button engraving with programmable color control for easy readability regardless of time of day or light level.
• Programmable RGB LEDs provide status feedback for lighting and other devices in the system.
• Configure with two to seven buttons using five different button sizes for a total of 38 possible configurations.
• Easy reconfiguration means there’s no need to worry about how many buttons will be needed on a specific switch before (or even
after) installation.
• Ships as “Neutral” device with no buttons included. Keypad-style button kit and Rocker-style button kits sold separately in a variety
of colors (see “Available accessories”).
• Ambient light sensor automatically adjusts backlight and status LED brightness depending on the light level in the room.
• Control4® screw-less faceplates, sold separately, provide a sleek profile (see “Available accessories”).
• Installs in standard square (UK/China-style) or round (EU-style) wall boxes. Round (EU-style) wall boxes require trim ring (see
“Available accessories”).

Control4® Square Wireless Switch
Model numberC4-SSW240-N
Power requirements220VAC-240VAC +/-10%, 50/60 Hz
This device requires a neutral connection.
Power consumption950mW
Load types and ratings
Supported load typesIncandescent, halogen, electronic (solid state) low-voltage (ELV)
transformer, magnetic (iron core, inductive) low-voltage (MLV)
transformer, compact fluorescent, LED, and motor.
Maximum load
Incandescent (tungsten)4A
Halogen4A
Fluorescent3A
Compact fluorescent (CFL)3A
LED1A
Motors1/8 HP
Environmental
Operational temperature0˚C ~ 40˚C (32˚F ~ 104˚F)
Humidity5% to 95% non-condensing
Storage-20˚C ~ 70˚C (-4˚F ~ 158˚F)
Miscellaneous
Control communicationsZigBee, IEEE 802.15.4, 2.4 GHz, 15-channel spread
spectrum radio
Wires per connectorOne 0.5 mm^{2} - 2.5 mm^{2}
OR
Two 0.5 mm^{2} - 1.5 mm^{2}
Dimensions83 × 71 × 33 mm (3.3 × 2.8 × 1.3 in.)
Depth in wall box25.8 mm (1.0 in.)
Weight0.08 kg (2.8 oz.)
Shipping weight0.14 kg (4.9 oz.)
Available accessories
Square Device Keypad Button Kit (C4-CKSK-xx)WH, SW, BL, MB, AU
Square Device Rocker Button Kit (C4-CKSR-xx)WH, SW, BL, MB, AU
Square Faceplate (C4-SFP1-xx)WG, BG, WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB, CH, MS
Glass95 × 95 × 8.0 mm (3.7 × 3.7 × 0.3 in.)
Metal and plastic85 × 85 × 7.5 mm (3.3 × 3.3 × 0.3 in.)
Square Dual Faceplate (C4-SFP2-xx)WH, BL, SW, MB, AU
Square Trim Ring (C4-SSTR-xx)WH, BL, SW, MB, AU
Square Dual Trim Ring (C4-SDTR-xx)WH, BL, SW, MB, AU
Engraved Button, Single High (C4-EBD1H-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU
Engraved Button, Double High (C4-EBD2H-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU
Engraved Button, Triple High (C4-EBD3H-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU
Engraved Button, Rocker (C4-EBDR-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU
Glass colors: WG=White, BG=Black
Gloss colors: WH=White, LA=Light Almond, IV=Ivory, BR=Brown, BL=Black
Satin colors: SW=Snow White, MB=Midnight Black, BI=Biscuit, AU=Aluminum
Metal finishes: SN=Satin Nickel, SS=Stainless Steel, VB=Venetian Bronze, CH=Chrome, MS=Matte Stainless
