Episode Home Theater Series 4” In-Room Height Speaker (BLK / WAL / WHT)

The new Episode Home Theater lineup will deliver performance-based, value-added speakers for multipurpose and dedicated home theater spaces. With refreshed design, upgraded driver technology, and support for the latest immersive surround formats like Dolby Atmos, Home Theater is on pace with today’s market needs for home theater audio.

• Unparalleled sonic performance
• High fidelity, 2-way design
• Timbre matched to other Episode speakers
• Available in Black, White or Walnut finishes

Description

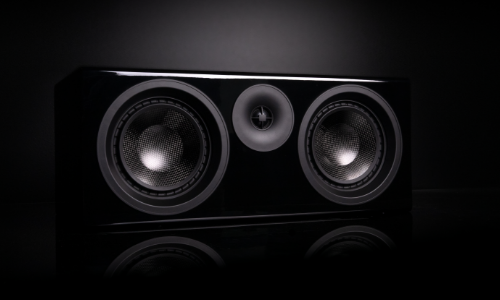

Episode cabinet speaker all blackRIGID MDF CABINETS

All Episode Home Theater products feature rigid MDF (Medium Density Fiberboard) construction. Unlike inexpensive particle board, MDF is dense and reduces vibration, preventing SPL (sound pressure level) loss and delivering cleaner sound.

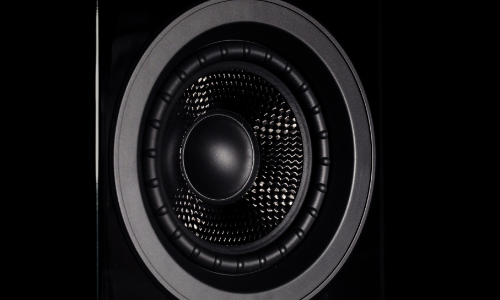

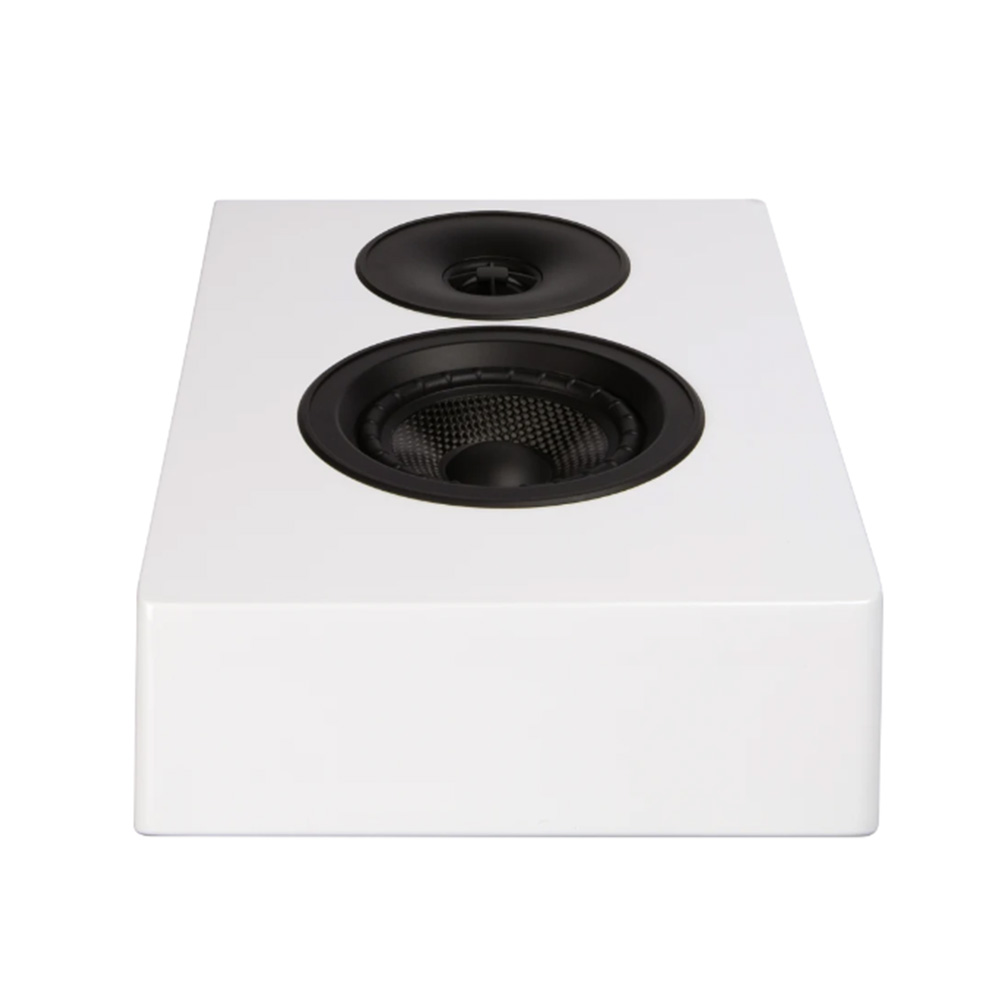

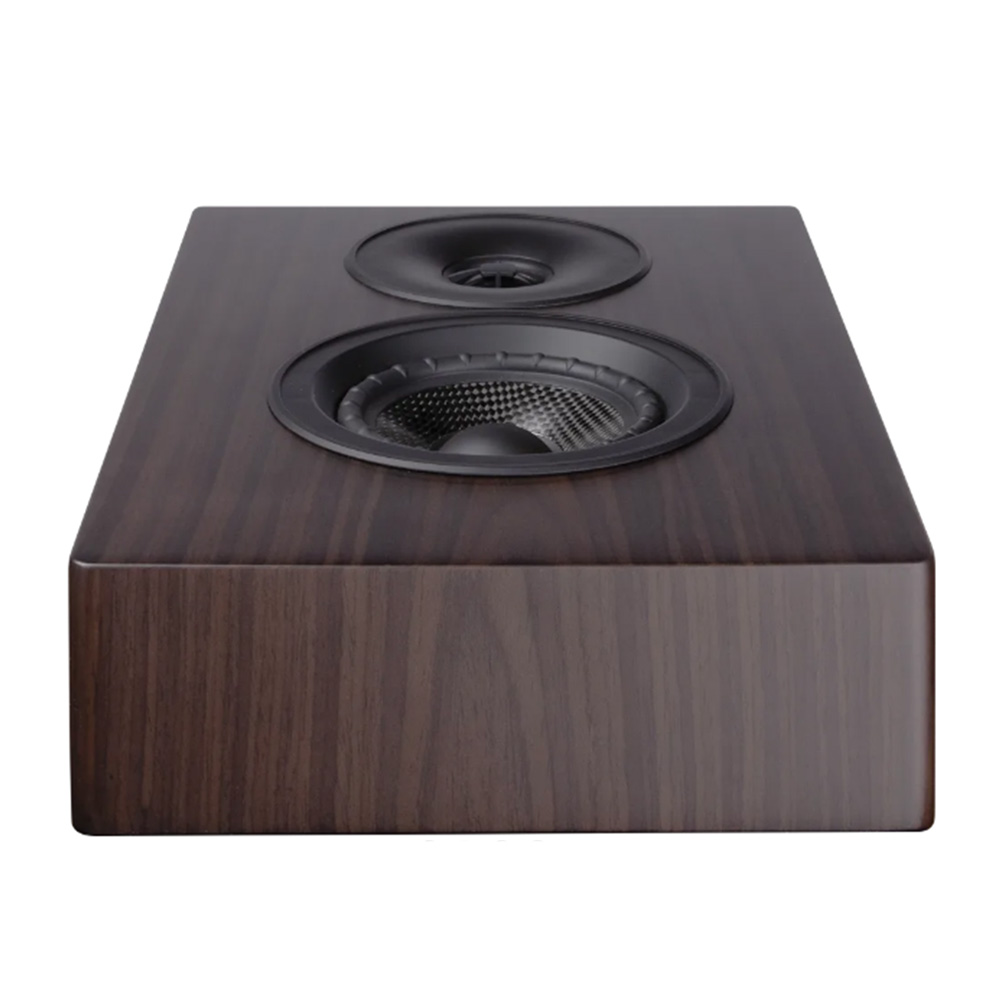

Image of the carbon fiber woofer on the Episode Home Theater speakerCARBON FIBER WOOFERS WITH 1″ VOICE COIL

Carbon fiber, one of the strongest cone materials available for speaker construction, allows for higher volume while resisting deformation that would result in sound distortion.

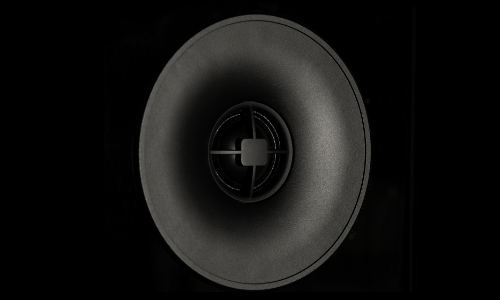

IMage of the Episode Home Theater dome tweeter1″ ALUMINUM DOME TWEETER

Aluminum tweeters are strong, lightweight, and react well to changes in music. We’ve chambered the tweeter and paired it with a copper shorting ring to improve sound quality by reducing the fundamental resonance and distortion.

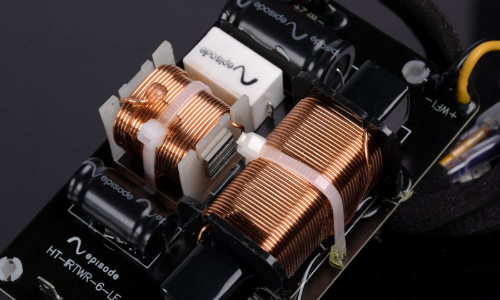

Interior image of the Linkwitz-Riley filters that work with the tweeter and woofer2ND ORDER LINKWITZ–RILEY FILTERS

Linkwitz-Riley filters, designed together to perform in a paired tweeter and woofer, use a crossover network to support summing at the crossover point so that frequency response remains flat and to create a smoothly changing phase response.

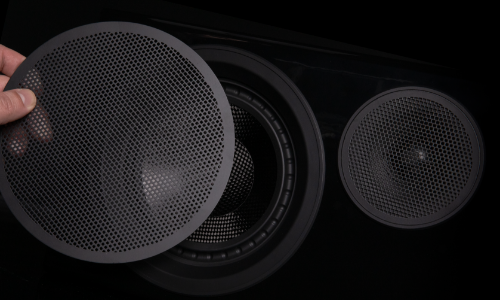

Transparent magnetic grillsACOUSTICALLY TRANSPARENT LOCAL MAGNETIC GRILLES

Local grilles minimize the acoustical interaction with the speaker, for better sound quality with less interference. Optional traditional full cloth grille available.*

*Coming soon

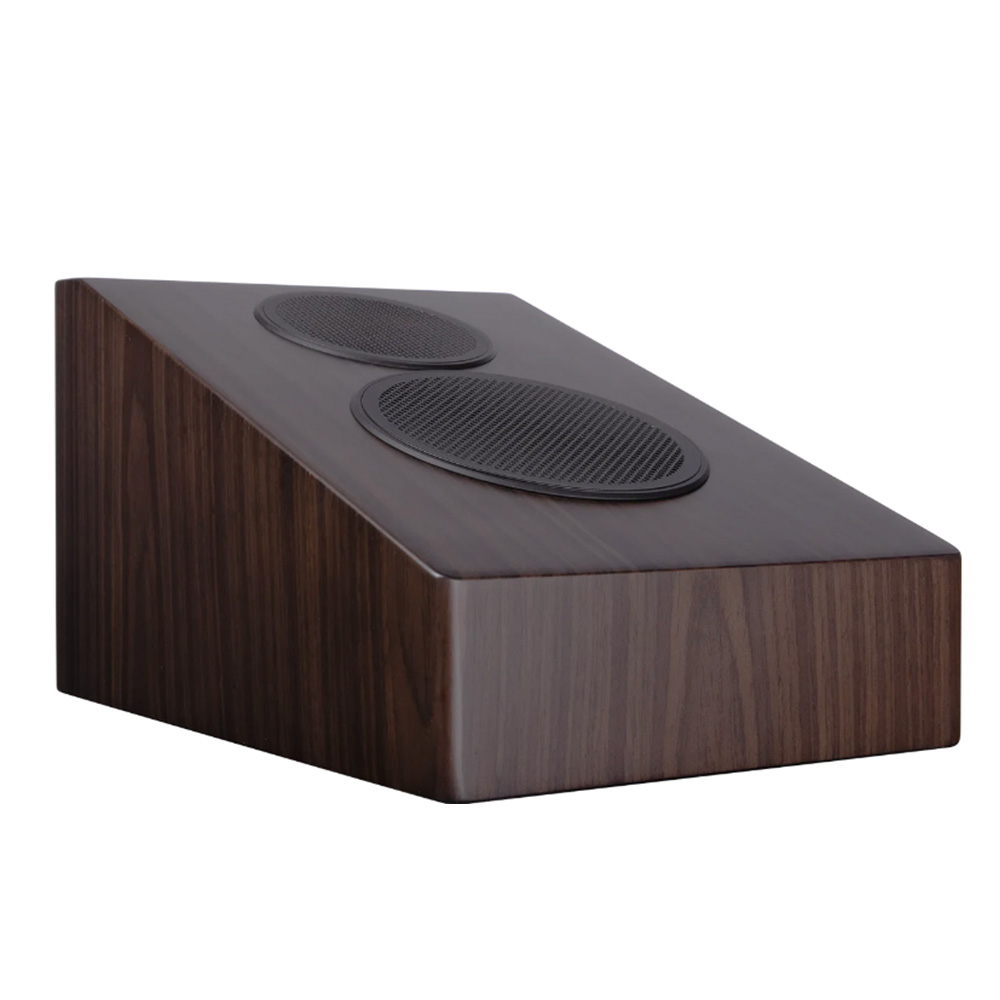

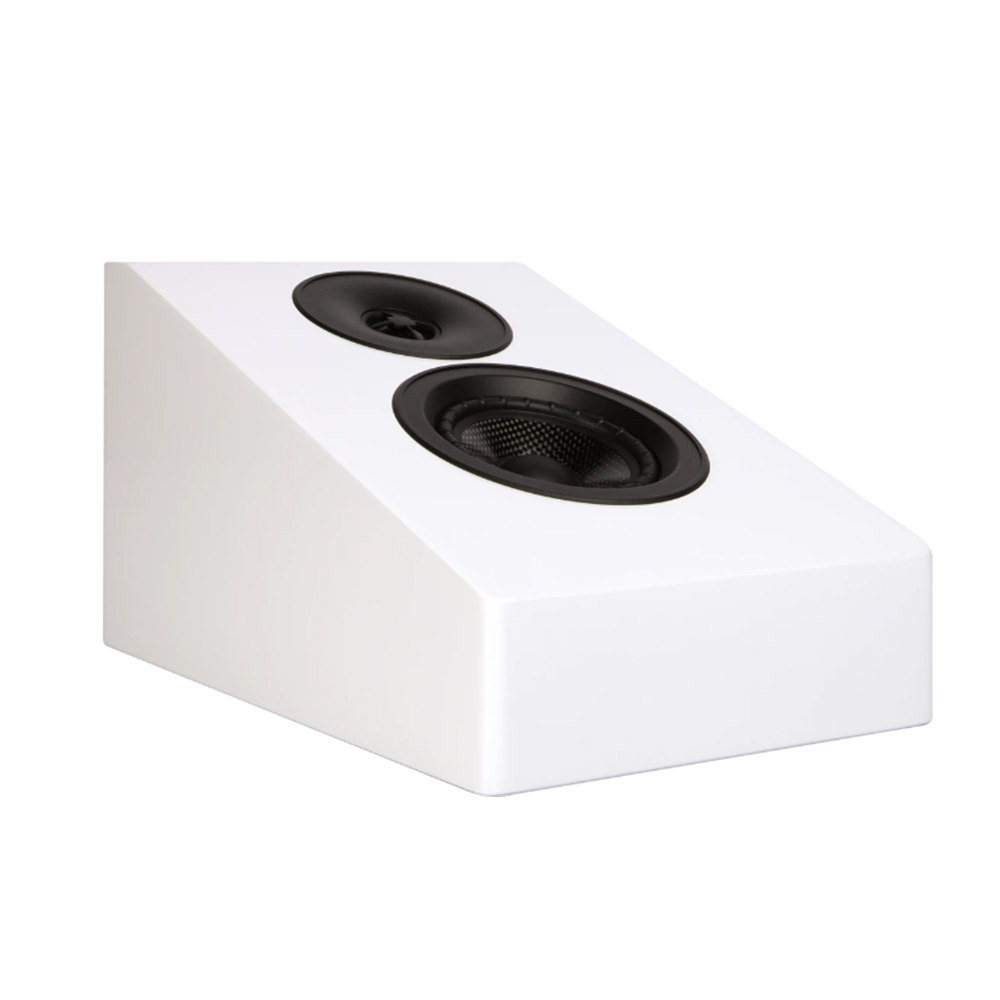

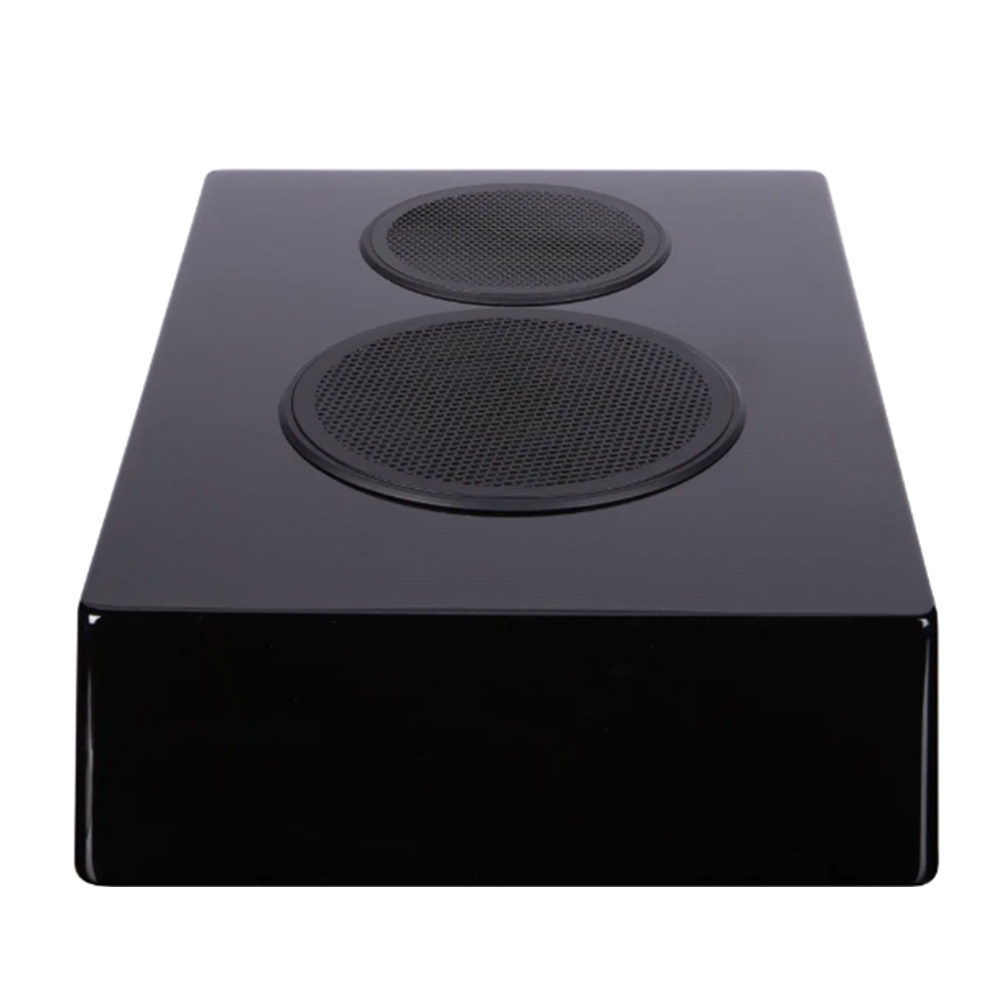

A variety of Episode HT series speakers including a subwoofer and cabinet speaker.MULTIPLE COLOR OPTIONS

Available in High Gloss Black, High Gloss White, and Walnut colors to coordinate with a wide variety of décor and match other Episode products.

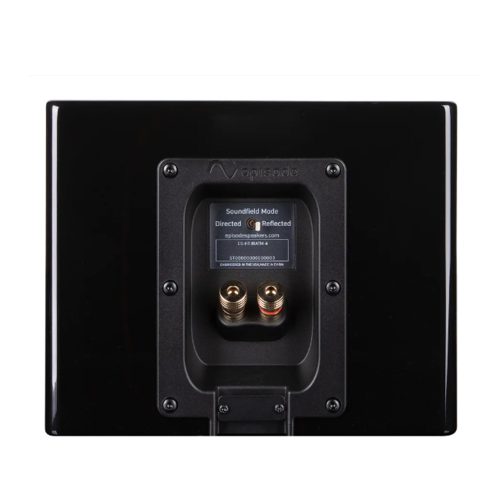

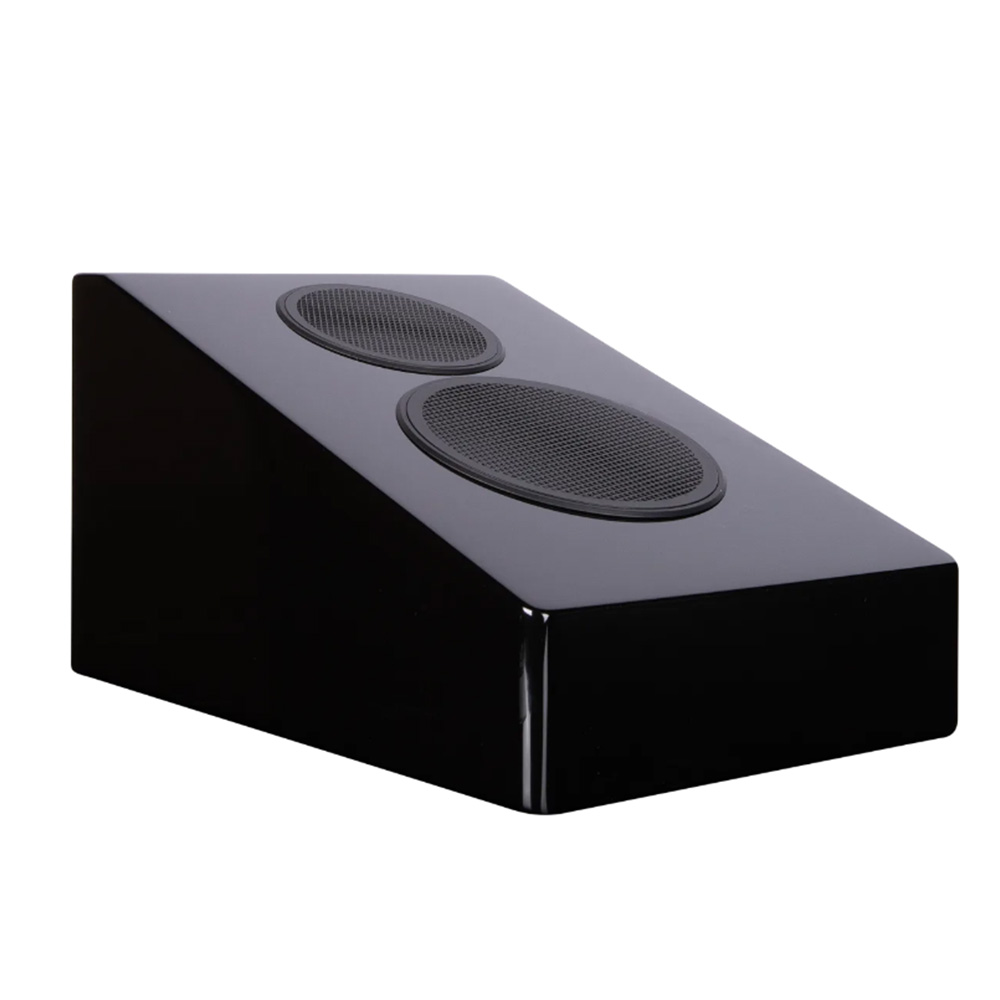

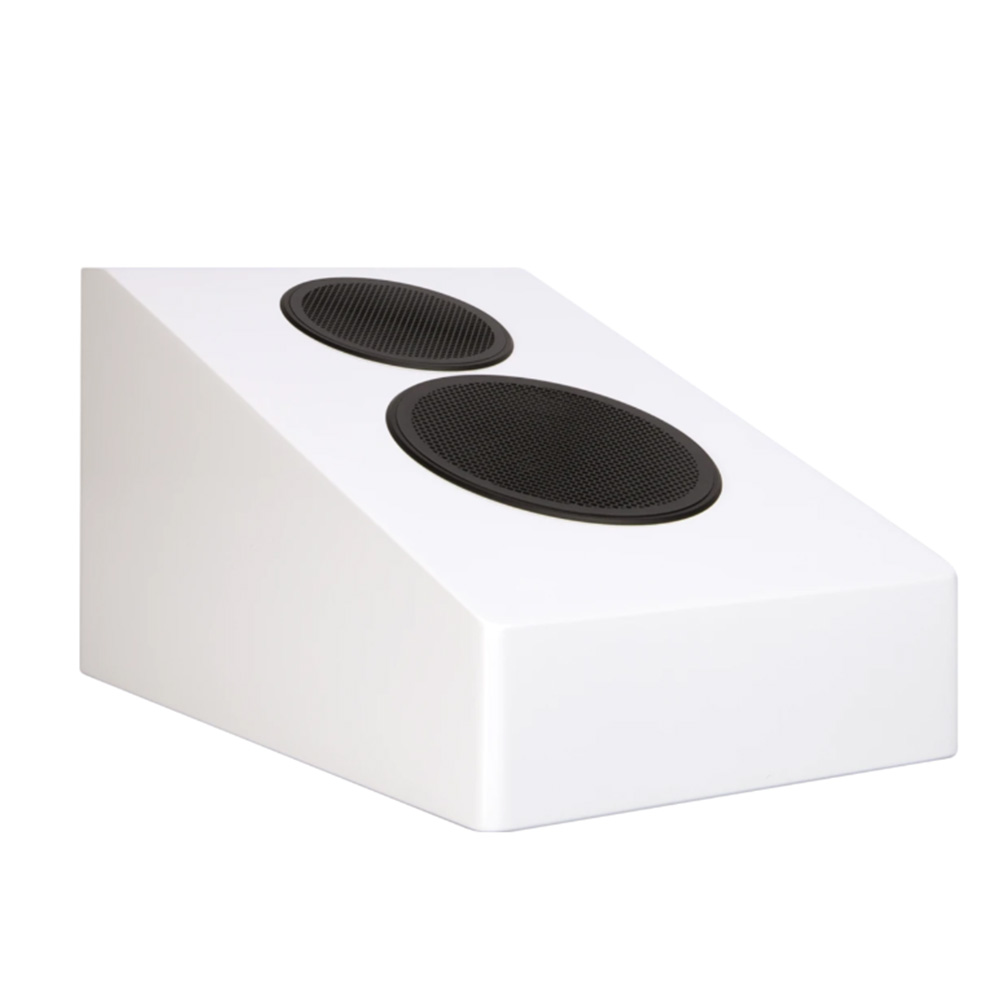

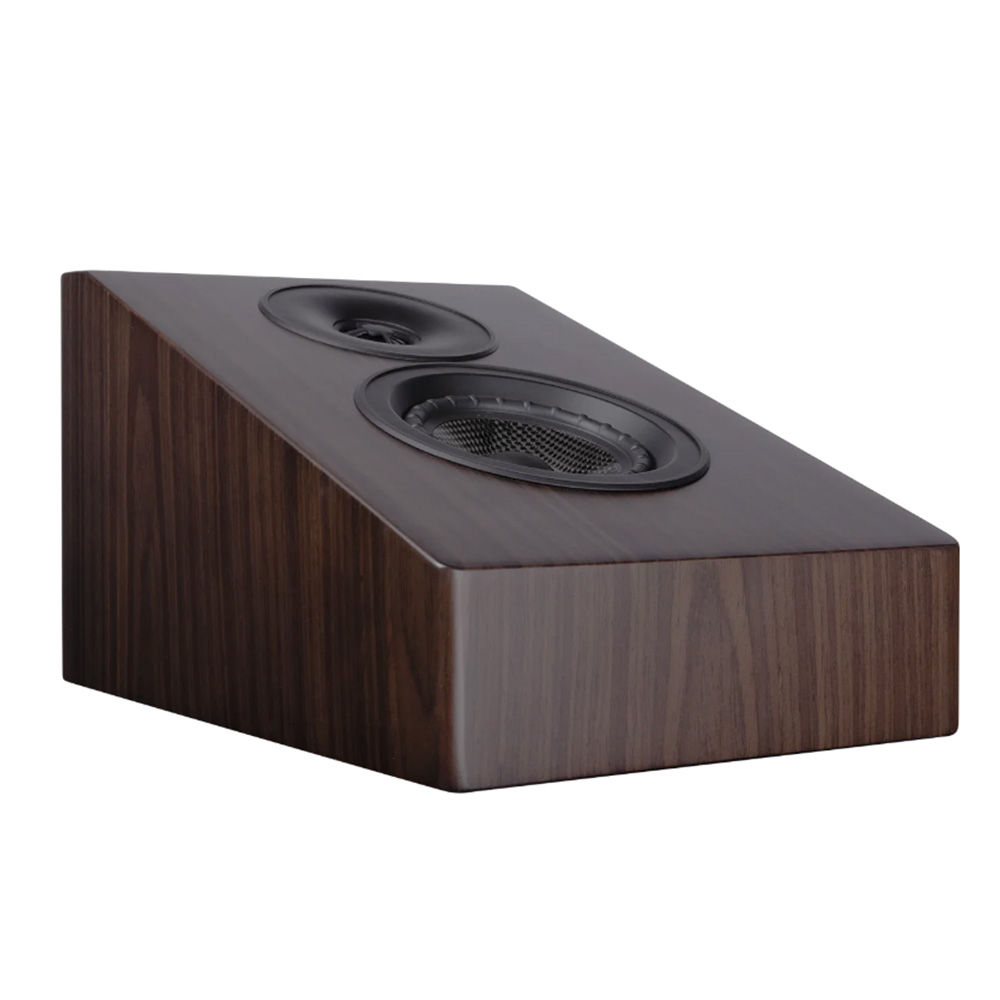

HEIGHT MODULE WITH ACOUSTICAL COMPENSATION SWITCH

The Episode Home Theater Series height module can be placed on top of our in-room speakers, surface mounted, or mounted on a wall or ceiling with the included mounting hardware for object-based surround sound. The direct sound/reflected sound switch optimizes the effects of the speaker in different system layouts.

Compatible with speaker top, surface mount, wall mount, or ceiling mount.

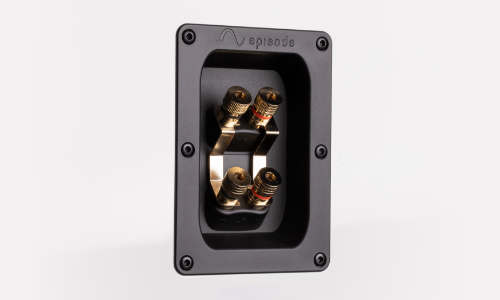

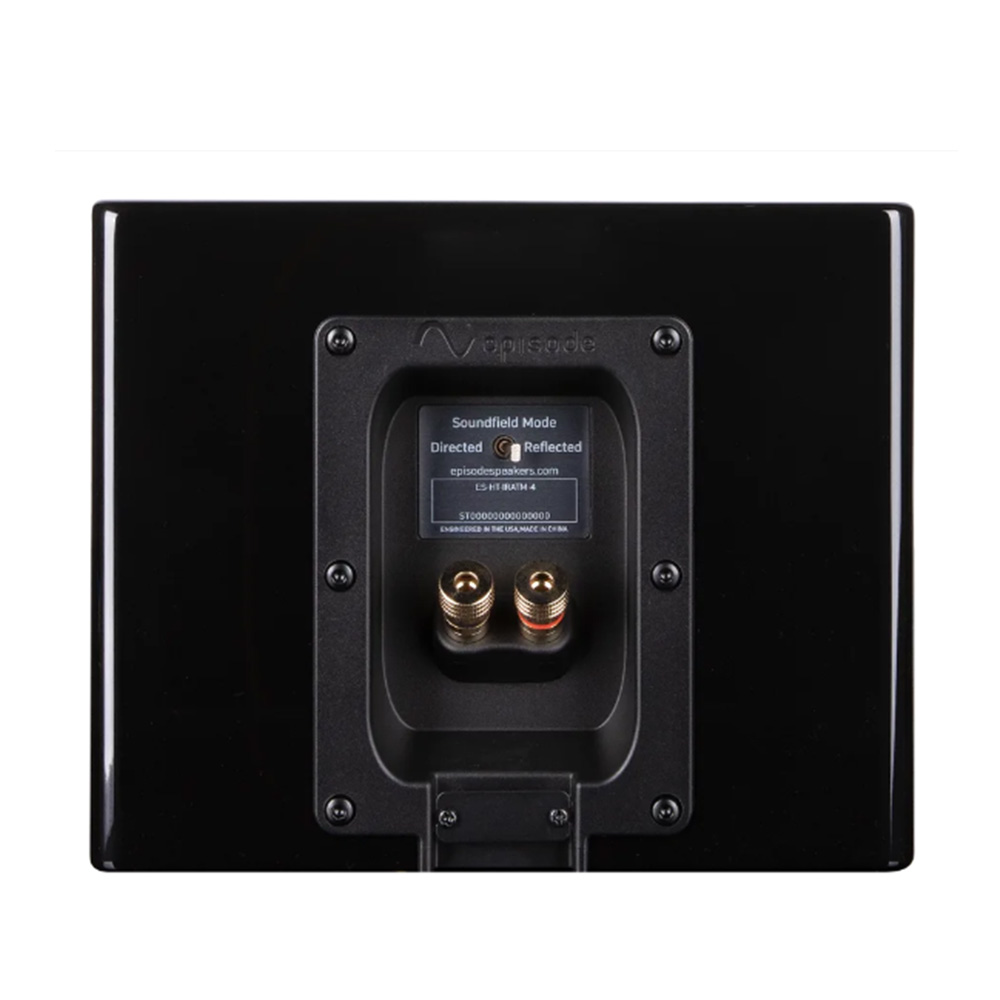

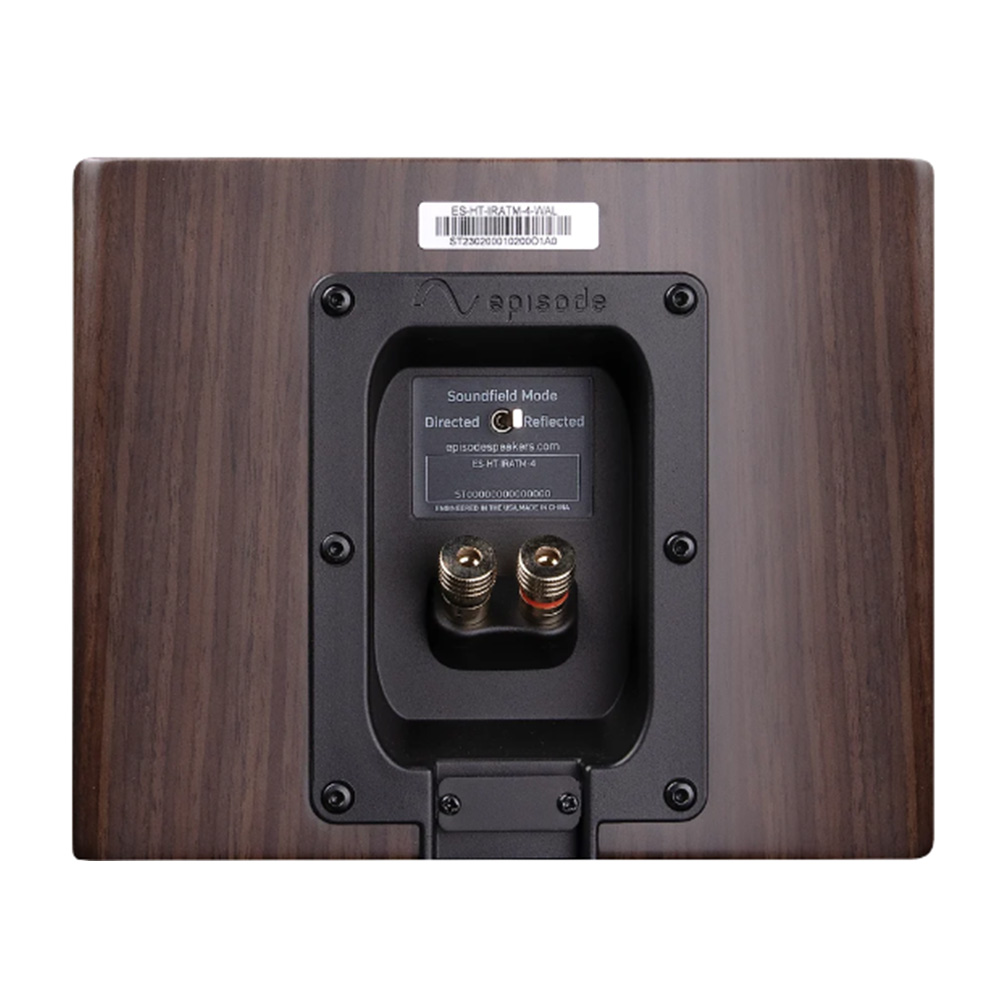

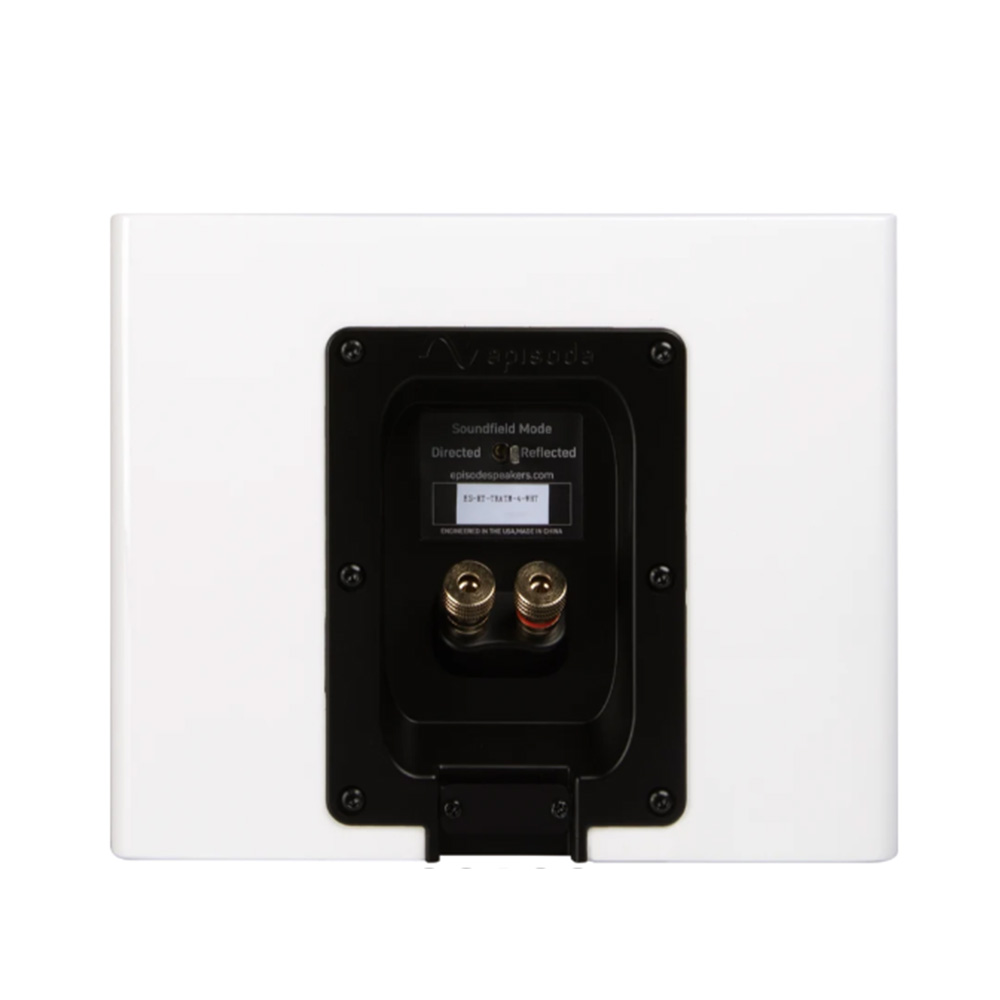

Gold plated 5 way binding posts on the back of the Episode HT series speakerGOLD PLATED 5-WAY BINDING POSTS

High quality 5-way gold-plated binding posts ensure a secure connection.

Dimensions (W x H x D)
incl. supplied feet,
w/o full size grille
210 x 172 x 316.5 mm
(8.27″ x 6.77″ x 12.46″)
Weight4.29kg (9.44lbs)
Anechoric Frequency Response95Hz to 25kHz
Low Frequency Cutoff60Hz
Nominal Impedance6 Ohms
Crossover Frequency1.8kHz
Power Peak200W
Power RMS100W
Sensitivity88dB
Voice Coil1″ (25.4mm)
Woofer Excursion (Peak to Peak)5.5mm
ConnectorsGold plated 5-way binding posts
Operating TemperatureN/A
