Episode Home Theater Series 6” In-Room Monitor Speaker (BLK / WAL / WHT)

The new Episode Home Theater lineup will deliver performance-based, value-added speakers for multipurpose and dedicated home theater spaces. With refreshed design, upgraded driver technology, and support for the latest immersive surround formats like Dolby Atmos, Home Theater is on pace with today’s market needs for home theater audio.

• Unparalleled sonic performance
• High fidelity, 2-way design
• Timbre matched to other Episode speakers

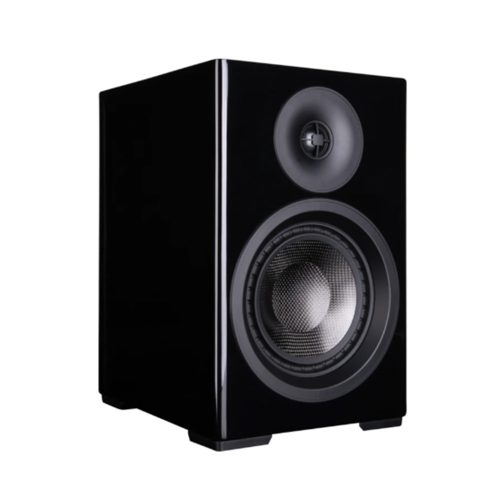

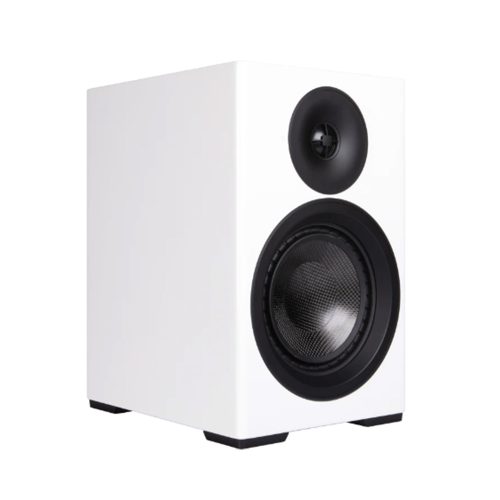

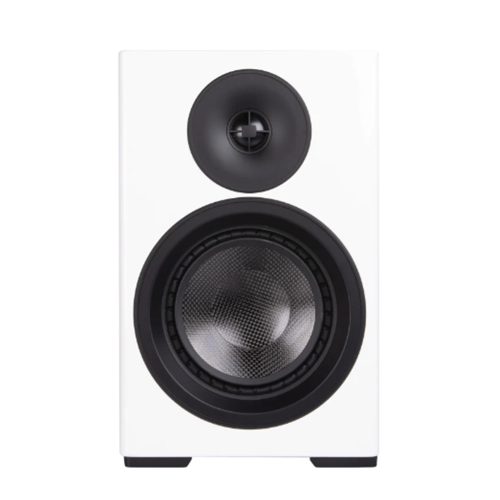

• Available in Black, White or Walnut finishes

Description

Episode cabinet speaker all blackRIGID MDF CABINETS

All Episode Home Theater products feature rigid MDF (Medium Density Fiberboard) construction. Unlike inexpensive particle board, MDF is dense and reduces vibration, preventing SPL (sound pressure level) loss and delivering cleaner sound.



Image of the carbon fiber woofer on the Episode Home Theater speakerCARBON FIBER WOOFERS WITH INVERTED SURROUNDS

Strong carbon fiber cone resists deformation that would result in sound distortion, while the rigid die-cast basket reduces mid-bass distortion and increases cooling. Inverted ribbed surrounds increase effective piston area and excursion while ribbing further reduces distortion and behaves like an accordion to allow stretching and more linear cone excursion.



Image of the Episode Home Theater dome tweeter1″ ALUMINUM DOME TWEETER

Aluminum tweeters are strong, lightweight, and react well to changes in music. We’ve chambered the tweeter and paired it with a copper shorting ring to improve sound quality by reducing the fundamental resonance and distortion.



Interior image of the Linkwitz-Riley filters that work with the tweeter and woofer2ND ORDER LINKWITZ–RILEY FILTERS

Linkwitz-Riley filters, designed together to perform in a paired tweeter and woofer, use a crossover network to support summing at the crossover point so that frequency response remains flat and to create a smoothly changing phase response.

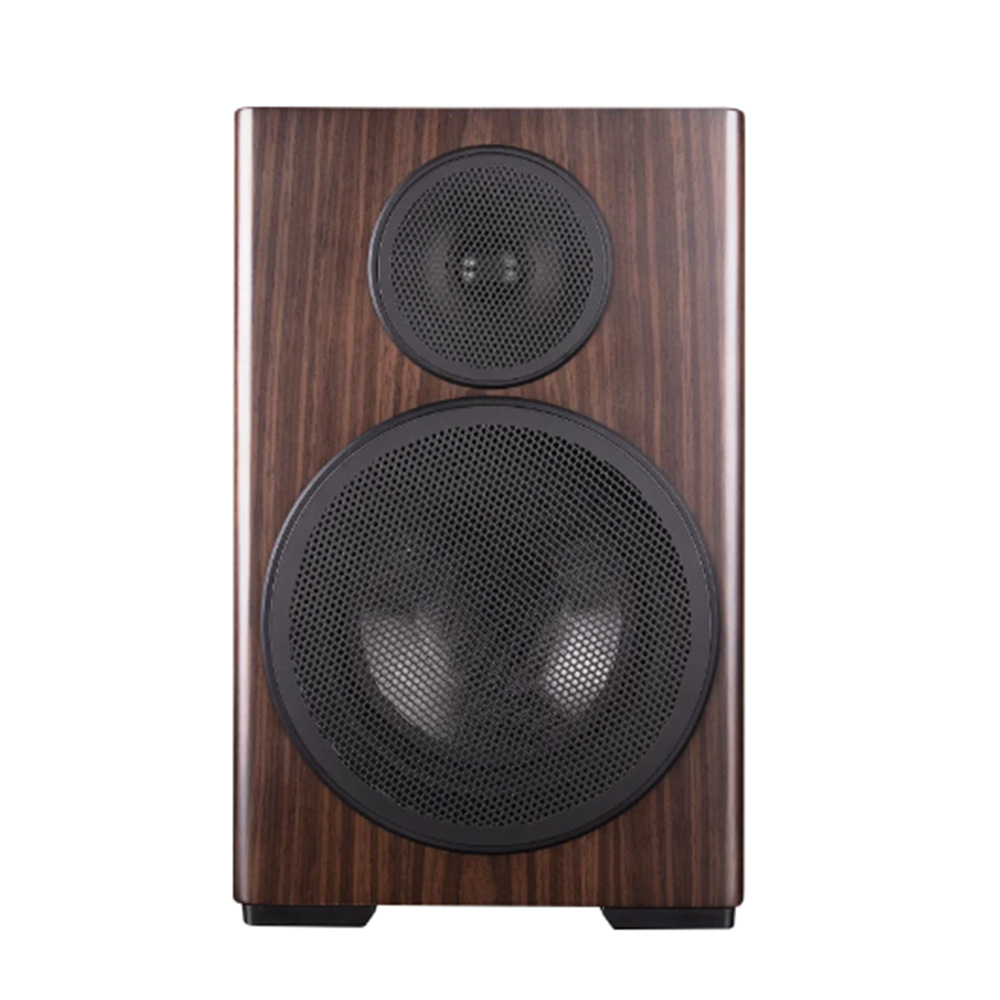

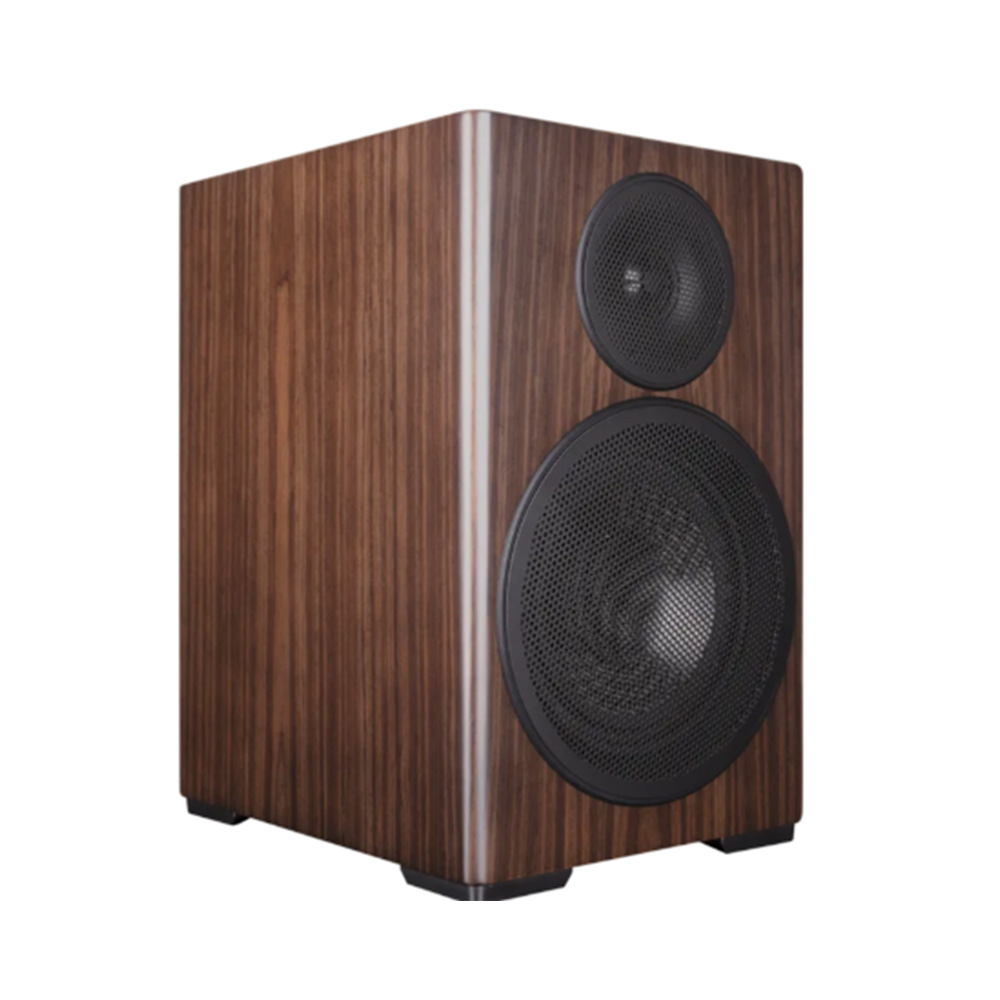

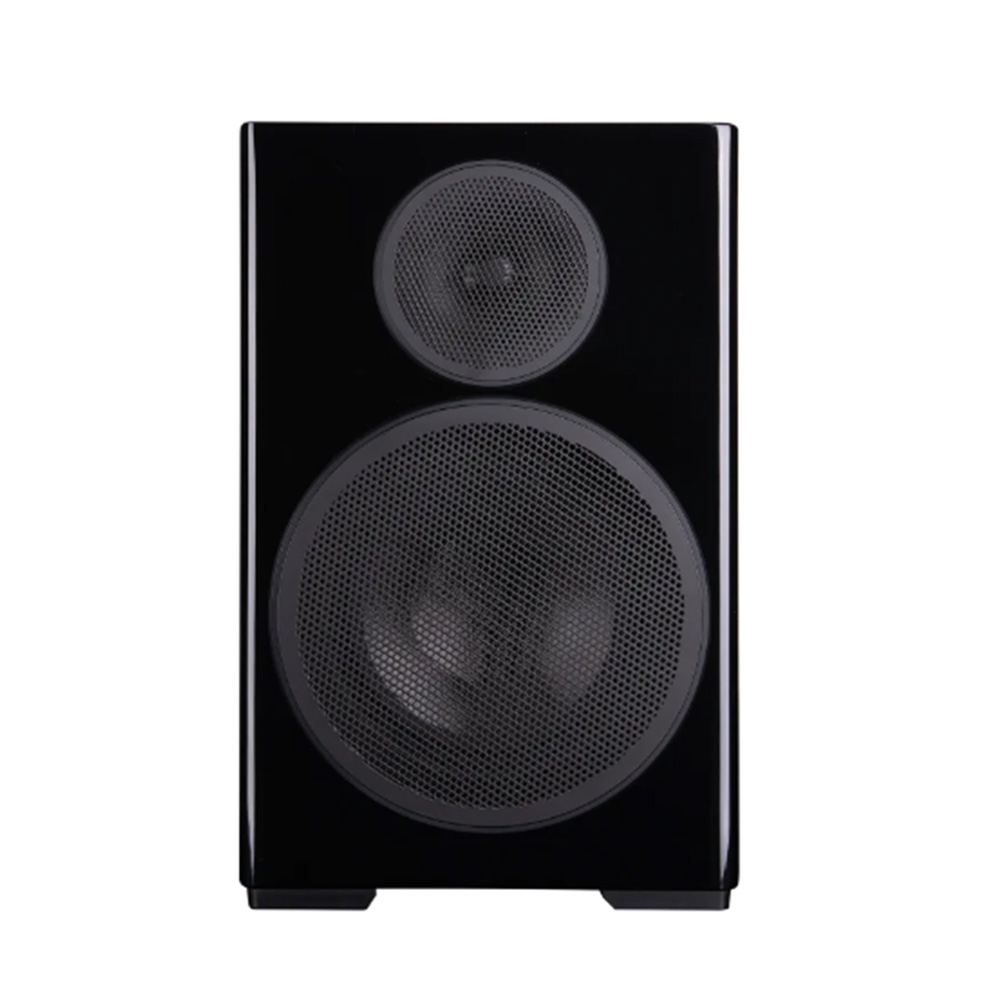

Transparent magnetic grillsACOUSTICALLY TRANSPARENT LOCAL MAGNETIC GRILLES

Local grilles minimize the acoustical interaction with the speaker, for better sound quality with less interference. Optional traditional full cloth grille available.*

*Coming soon

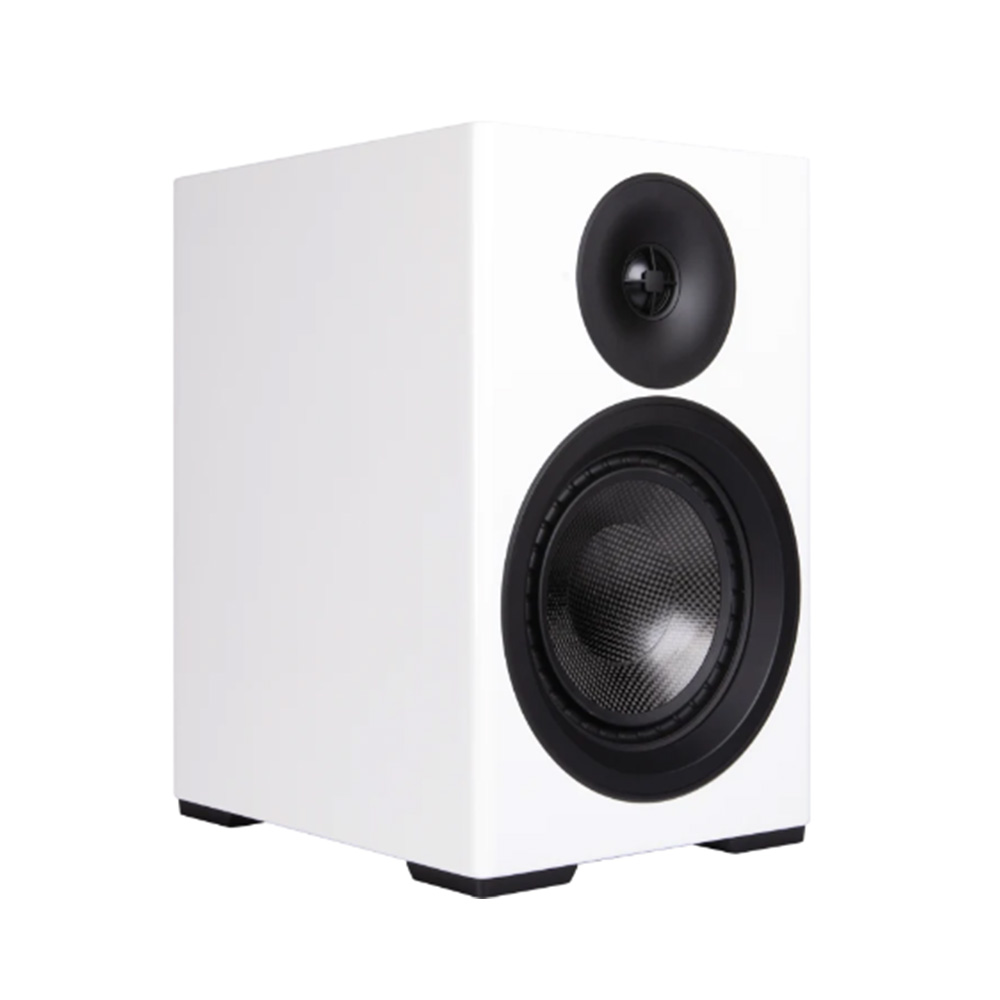

A variety of Episode HT series speakers including a subwoofer and cabinet speaker.MULTIPLE COLOR OPTIONS

Available in High Gloss Black, High Gloss White, and Walnut colors to coordinate with a wide variety of décor and match other Episode products.

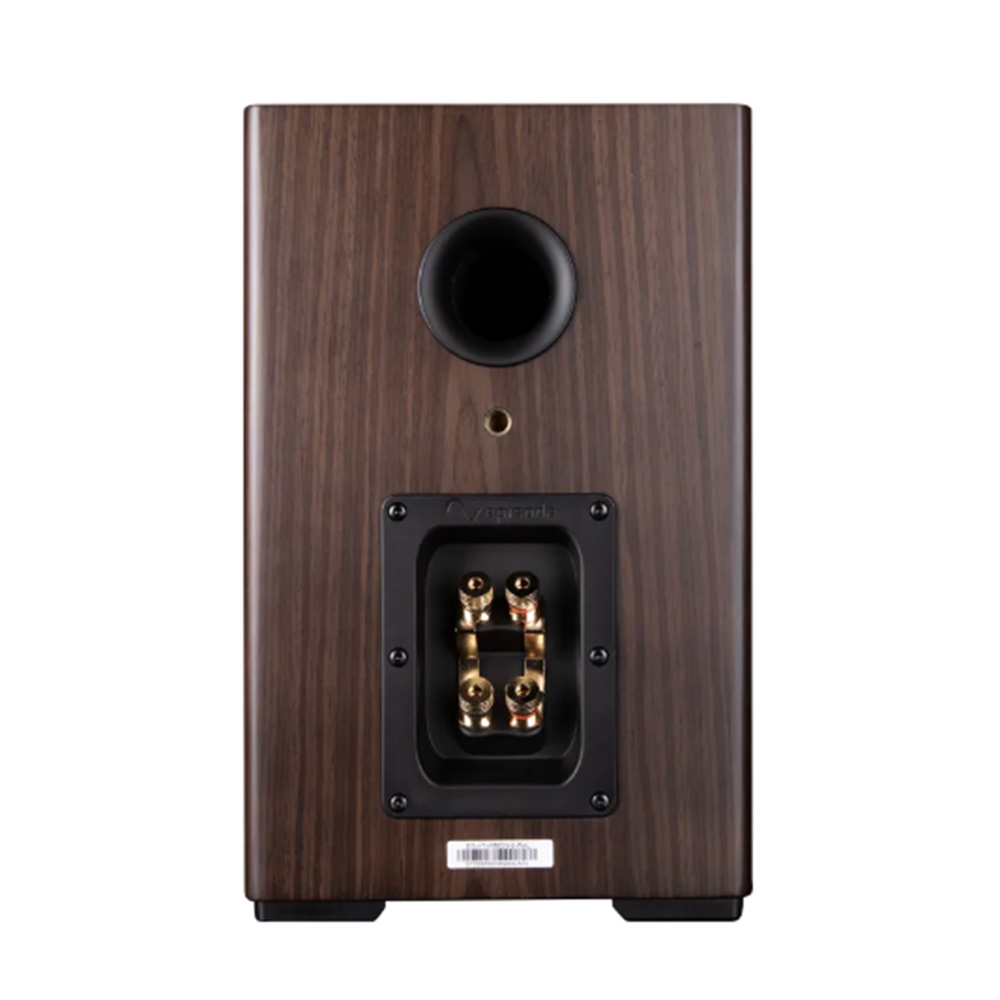

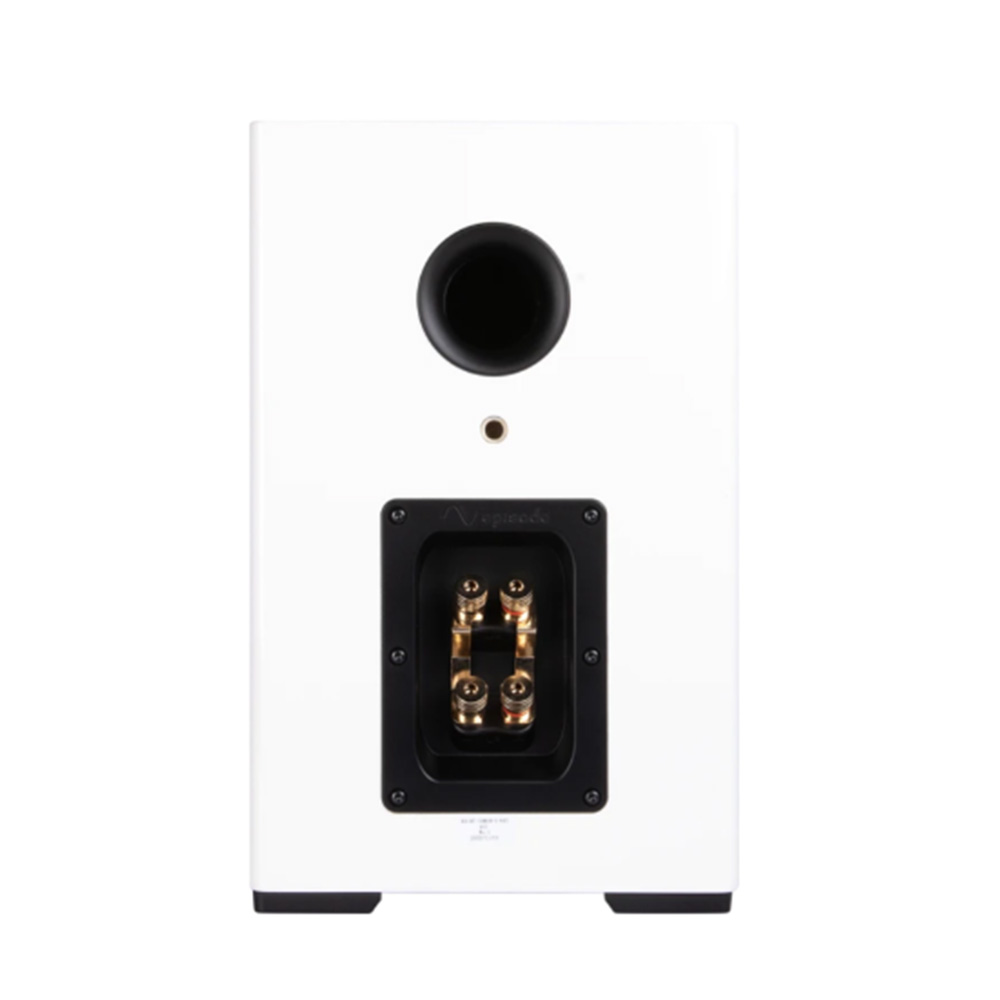

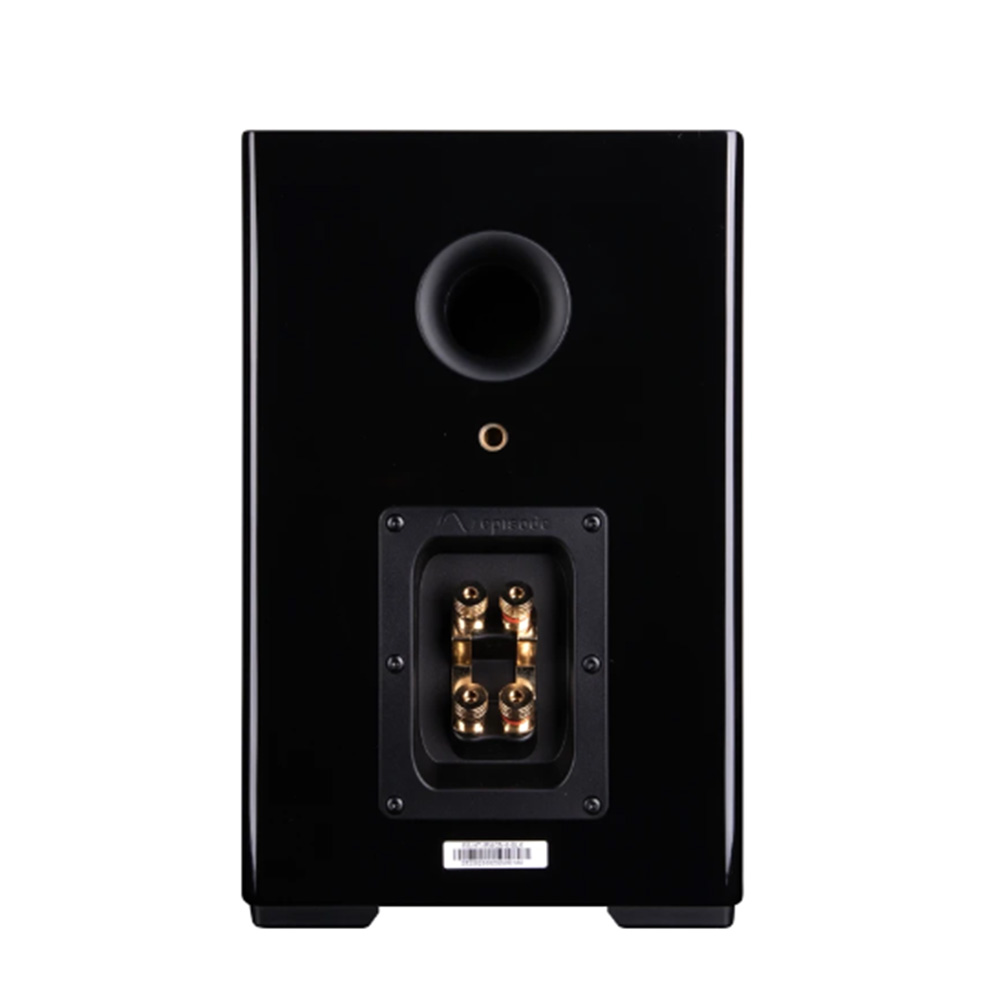

Gold plated 5 way binding posts on the back of the Episode HT series speakerBIAMP / WIREABLE GOLD PLATED 5-WAY BINDING POSTS

High quality 5-way gold-plated binding posts ensure a secure connection depending on your wiring method. The speaker can even be bi-amped for the ultimate flexibility.

Dimensions ( W x H x D) Incl. supplied feet, w/o full size grille8.27” x 13.17” x 10.55”
(210 x 334.5 x 268 mm)
Weight6.84kg (15.05lbs)
Anechoic Frequency Response47Hz to 25kHz
Low Frequency Cutoff38Hz
Nominal Impedance6 Ohms
Crossover Frequency2.1kHz
Power Peak260W
Power RMS130W
Sensitivity89dB
Voice Coil1-1/4′ (31.75mm)
Woofer Excursion (Peak to Peak)8.6mm
ConnectorsBiamp / wireable gold plated 5-way binding posts
Operating TemperatureN/A
