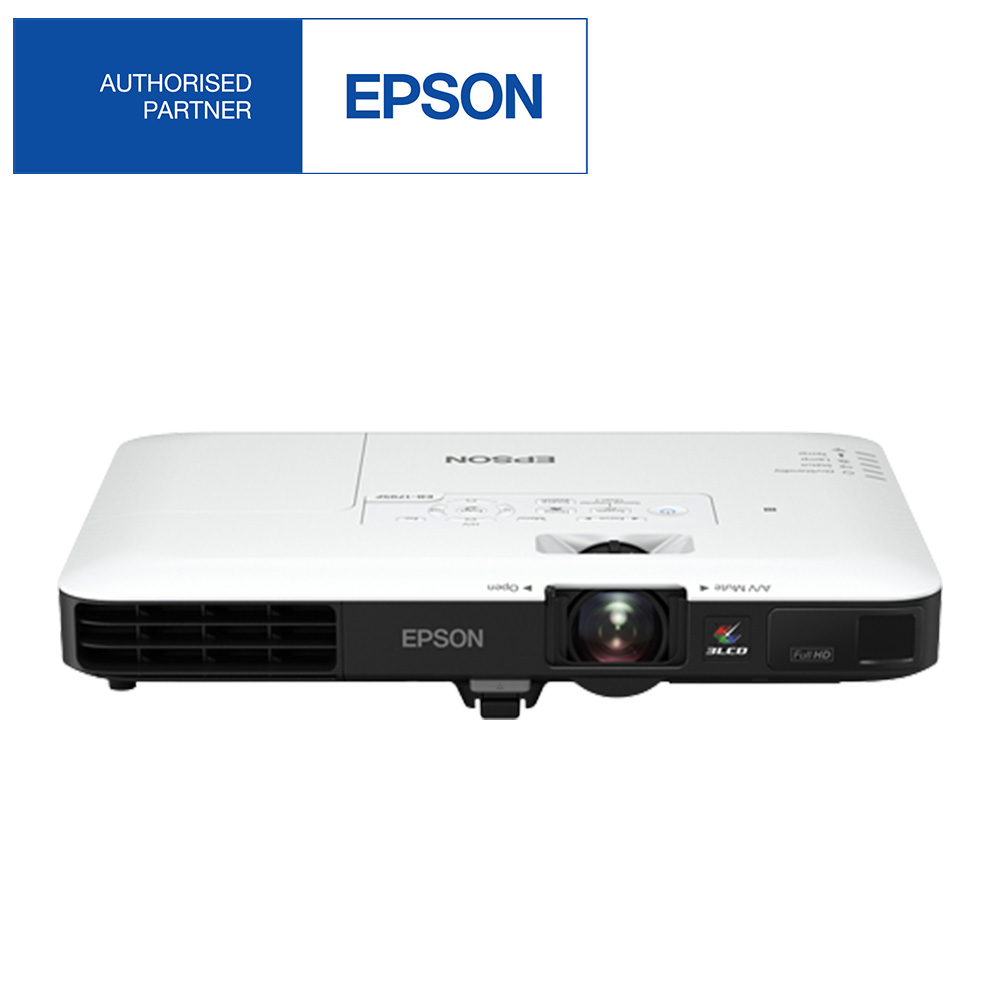

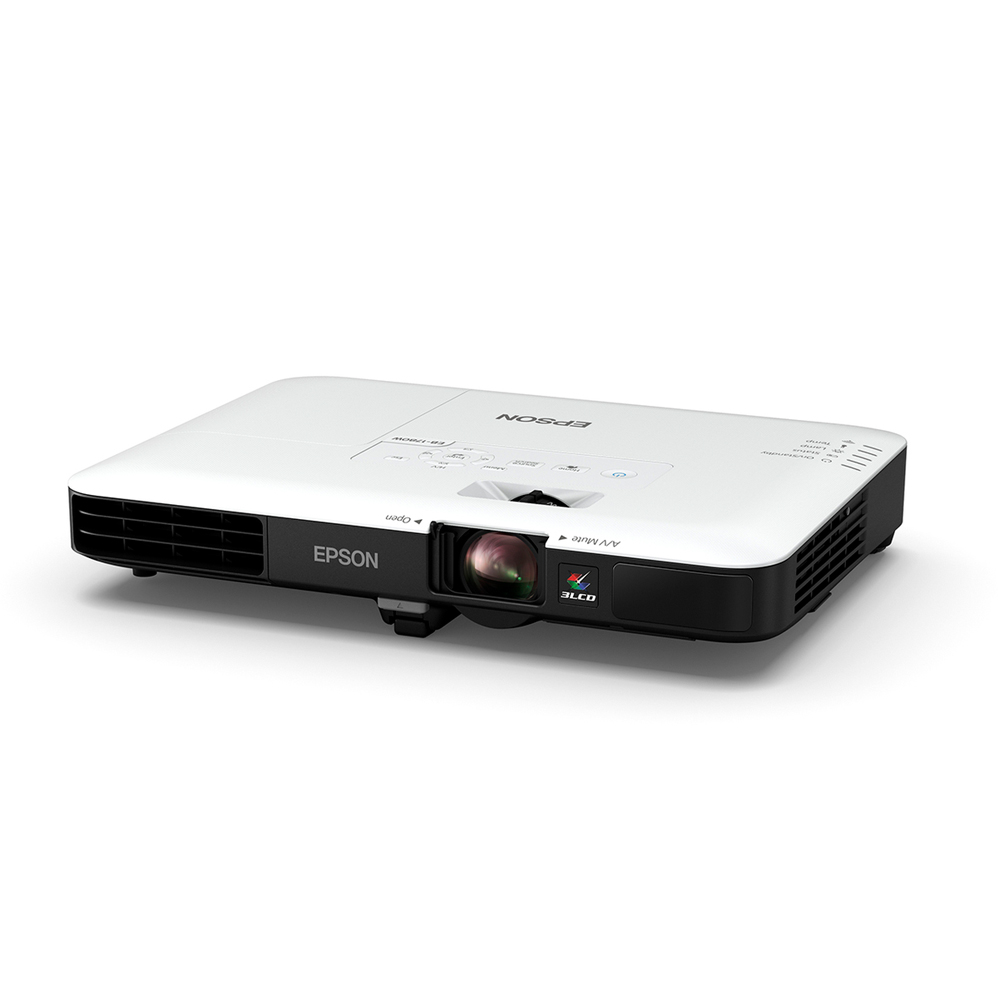

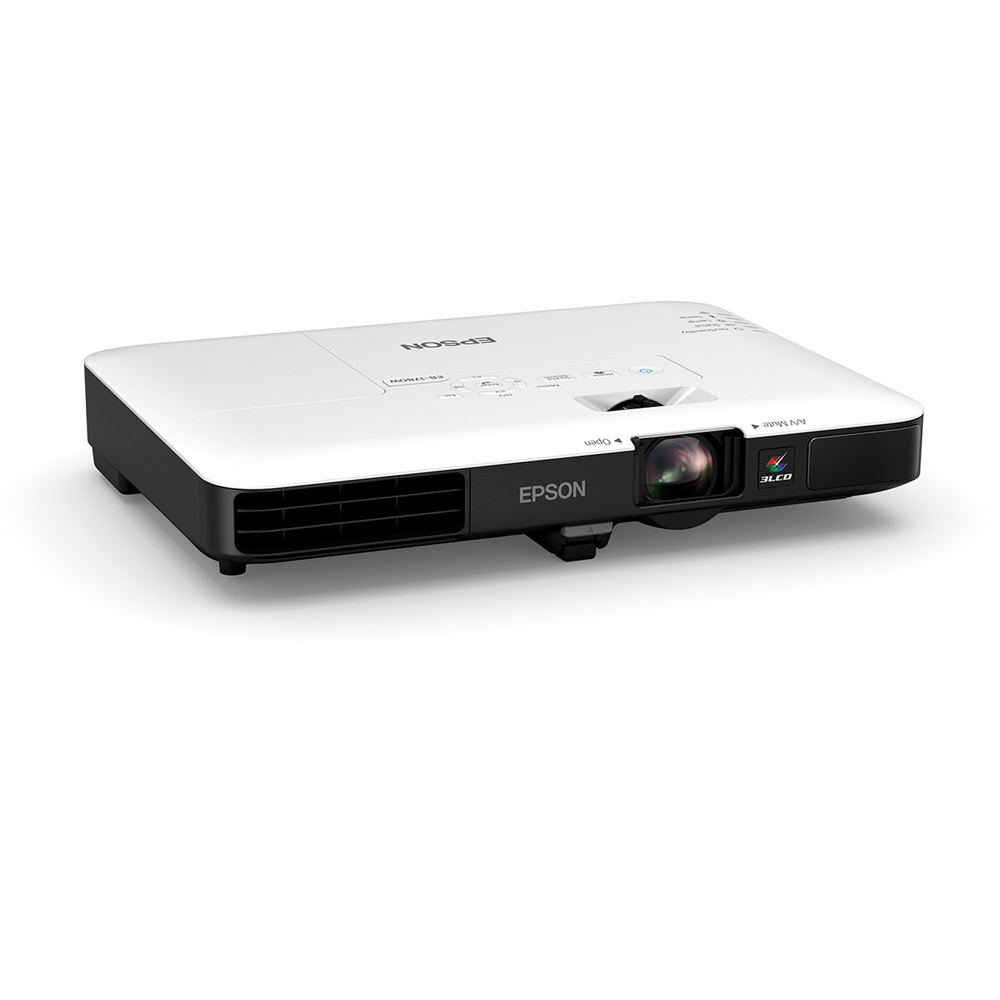

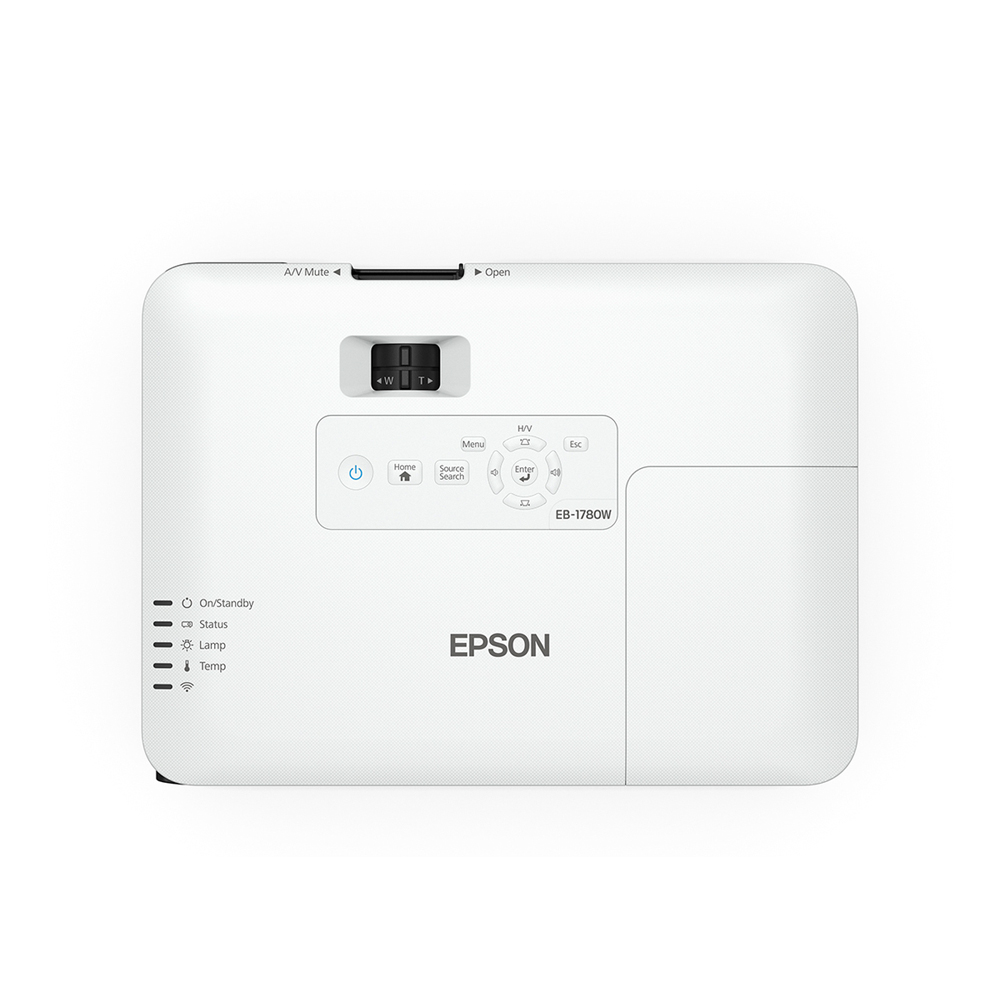

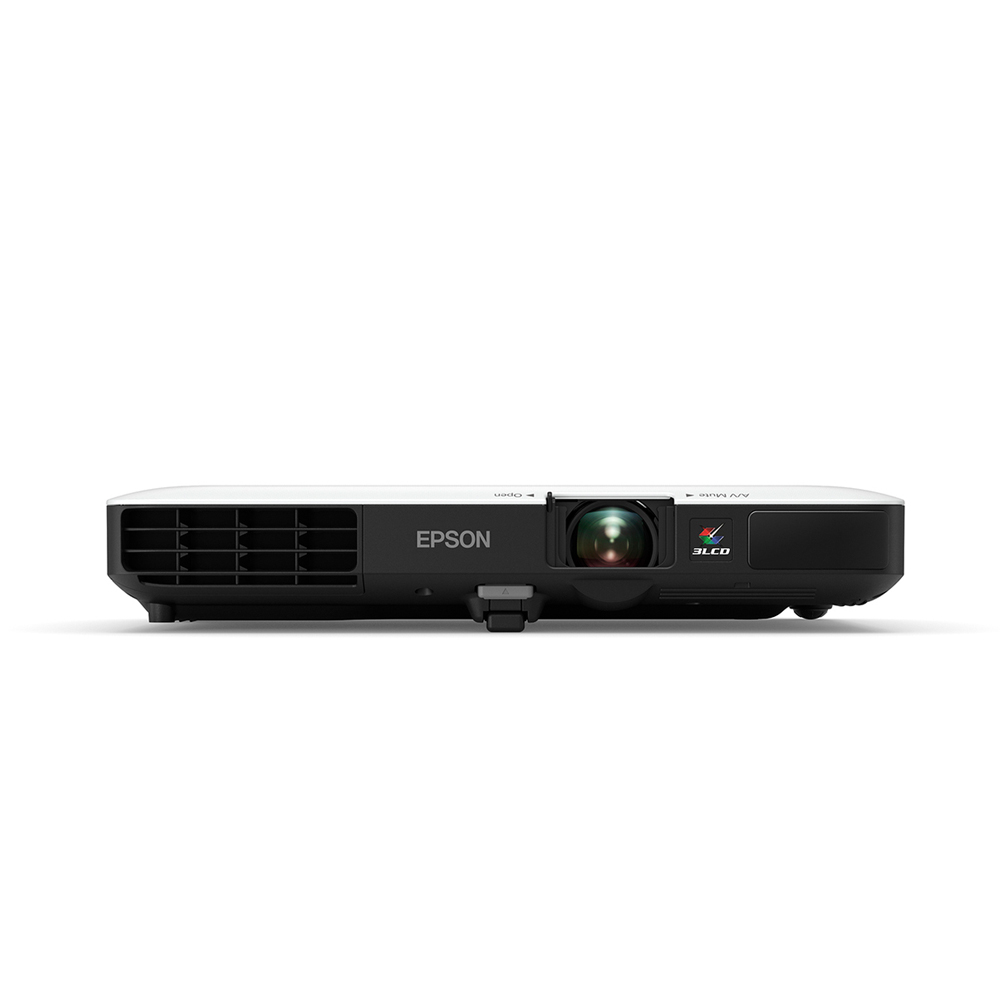

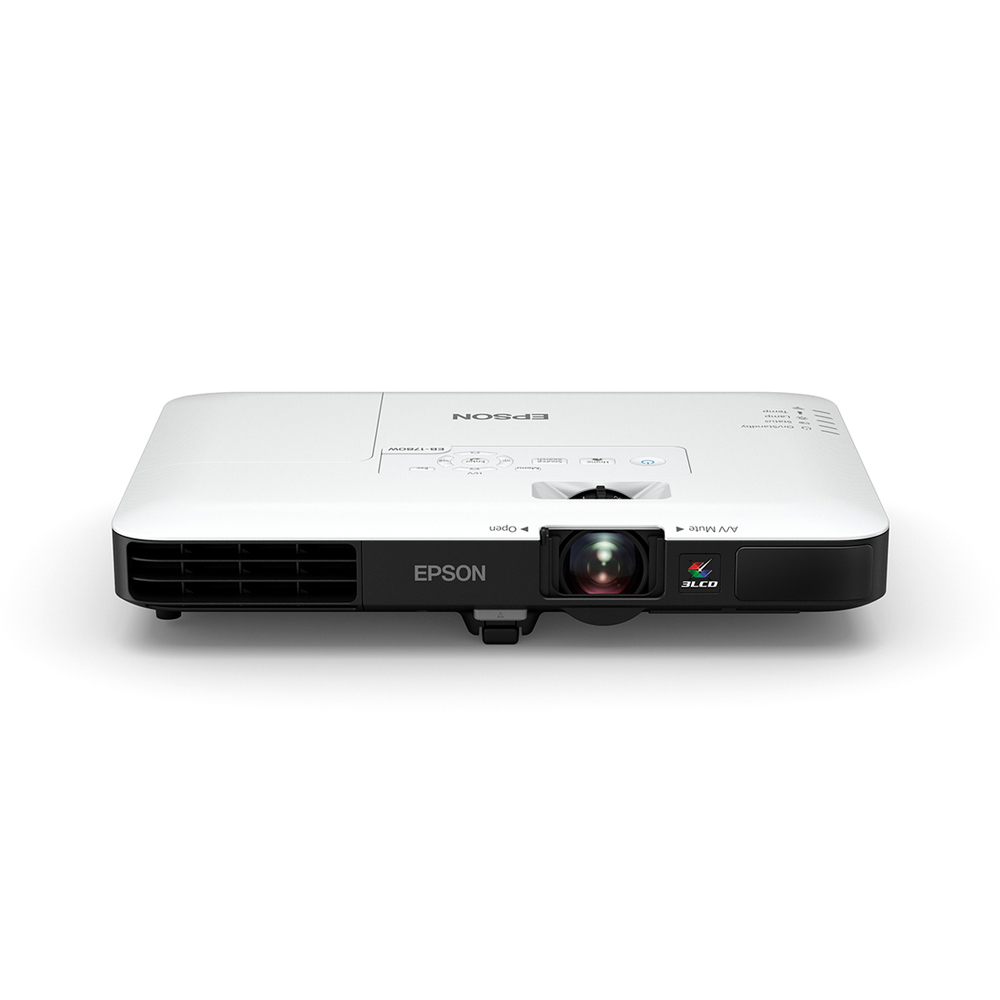

Epson EB-1785W Wireless WXGA 3LCD Ultra-Portable Projector

The Epson EB-1785W packs superior imaging quality along with a suite of connectivity and usability features into a body weighing only 1.83kg and 44mm slim. Wirelessly connect your smart devices to the projector via Wi-Fi, Miracast, iProjection application or NFC technology. The EB-1785W comes with Gesture Presenter technology, which allows you to transit between slides without a clicker. Lastly, with Epson’s 3LCD technology that delivers up to 3 times wider colour gamut and brightness, you can astound audiences anywhere you go.

  • White Light Output 3,200 lumens, Colour Light Output 3,200 lumens
  • WXGA Resolution
  • Real-Time Auto Keystone Correction
  • Split Screen Projection
  • Hassle-Free Presentation with USB 3-in-1 Display Feature and Epson iProjection


Wireless Transmission

Enjoy enhanced connectivity and flexibility with in-built Wi-Fi connectivity. Easily share and transmit images, texts and files from your smart devices using the “Epson iProjection” application for smooth and smart projections.


Convenient Wireless Mirroring Projection

Project contents wirelessly from compatible smart devices and laptops without any software installation with the Miracast. The technology enables easy wireless transmission of Full HD video and sound from PCs and smart devices, eliminating the hassle of a physical connection and eradicating issues with setting up. With support for screen mirroring, projecting your tablet and laptop screens has never been easier.

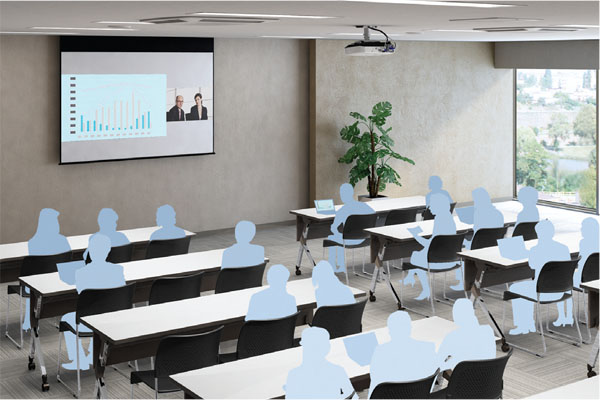

Split Screen

Split screen allows inputs from two separate sources to be displayed side by side on the same screen. In a video conference, for example, images of presentation materials and remote participants can be shown simultaneously.


Projection TechnologyRGB liquid crystal shutter projection system
LCDSize0.59” (D9, C2 fi ne)
Native ResolutionWXGA
Projection LensTypeOptical Zoom (Manual) / Focus (Powered)
F-Number1.58 - 1.70
Focal Length13.52 - 16.22 mm
Zoom Ratio1 - 1.2
Throw Ratio1.04 - 1.26 (Wide to Tele)
LampType214 W UHE
Life (Normal / Eco)4,000 / 7,000 hours
Zoom: Wide30” - 300” [0.67 - 6.81 m]
Zoom: Tele30” - 300” [0.80- 8.18 m]
Standard Size60” screen 1.35 - 1.62 m
White Light Output (Normal)3,200lm
Colour Light Output (Normal / Eco)3,200lm / 1,900lm
Auto Iris: On10,000:1
Video Quality3D Y/C Separation, Noise Reduction Motion Compensated Interlace-Progressive Conversion (2-2,3-2 fi lm detection)
Colour ModeDynamic, Presentation, Cinema, sRGB, Blackboard, DICOM SIM
Vertical / Horizontal Keystone±45° / ±30°
Auto Keystone CorrectionYes (Horizontal and Vertical)Yes (Vertical only)

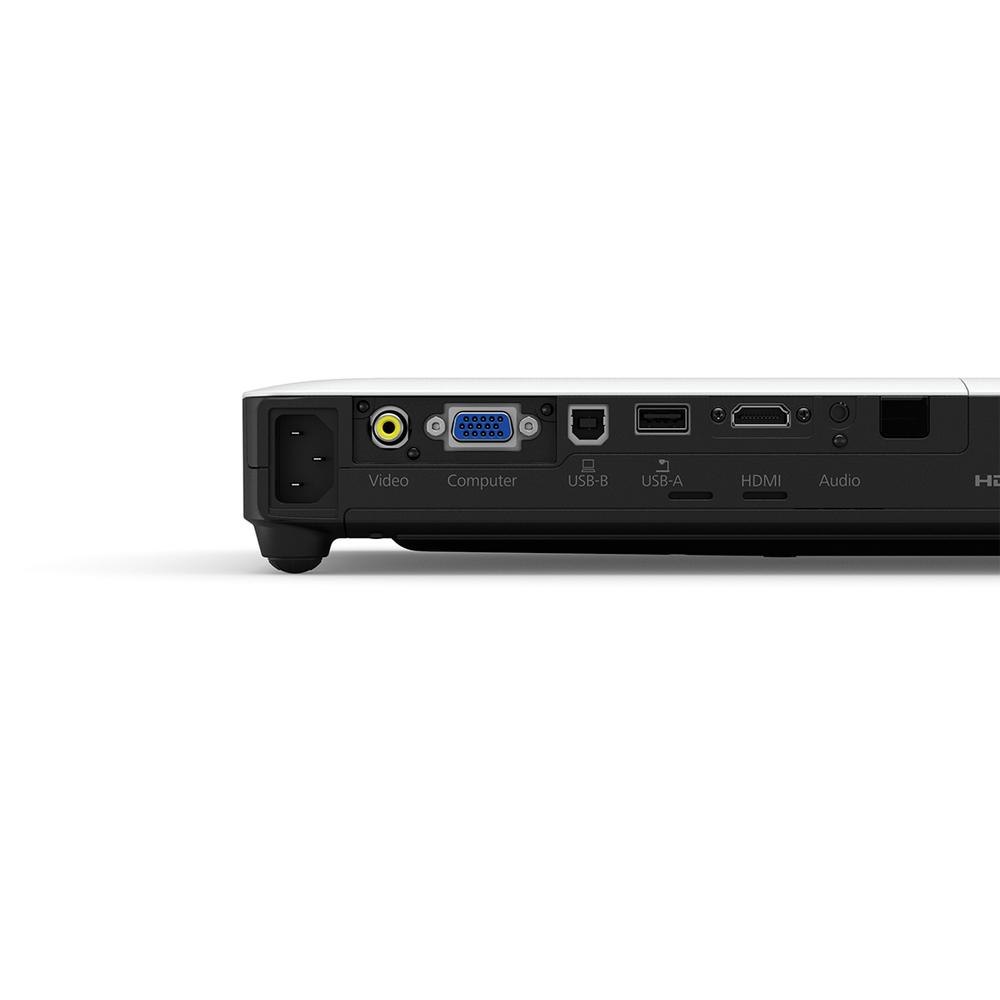

Analog RGB InputD-Sub 15Pin1 (Blue)
Video InputCompositeRCA x 1
Digital InputHDMI1 (MHL)
Audio InputStereo Mini Jack1
USB InputUSB Type A1 (USB Memory, USB Document Camera, Wireless LAN Firmware Update)
USB Type B1 (USB Display, Mouse, KB, Control, Firmware Update)
NetworkWireless LANIn-built
Supported ModeInfrastructure, Access Point
Wireless LAN SecurityQuick Mode: WPA2-PSKQuick Mode: WPA2-PSK
Advanced Mode: WPA2-PSK, WPA/WPA2-PSK, WPA2-EAP, WPA/WPA2-EAPAdvanced Mode: WPA2-PSK
Supported ModeWi-Fi DirectN/A
Operating Temperature5 - 40 °C <41 - 104 °F> ( 0 m / 0 ft to 2,286m / 7,500ft )
5 - 35 °C <41 - 95 °F> ( over 2,286m / 7,500ft) (20% - 80% humidity, No condensation )
Operating Altitude0 - 3,000 m (0 - 9,842 ft) (over 1,500m / 4,921ft: with high altitude mode)
Direct Power On / OffYes / Yes
Start-Up PeriodAbout 7.2 seconds, Warm-up Period: 30 seconds
Cool Down PeriodInstant Off
Power Supply Voltage100 - 240 V AC ±10%, 50/60 Hz
Lamp On (Normal / Eco)295W / 208W
Dimension Excluding Feet (D x W x H)213 x 292 x 53 mm
WeightApprox. 1.81 kg
Fan Noise (Normal / Eco)39dB / 30dB
