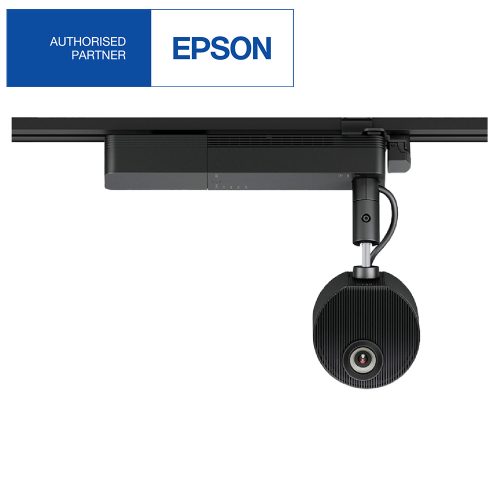

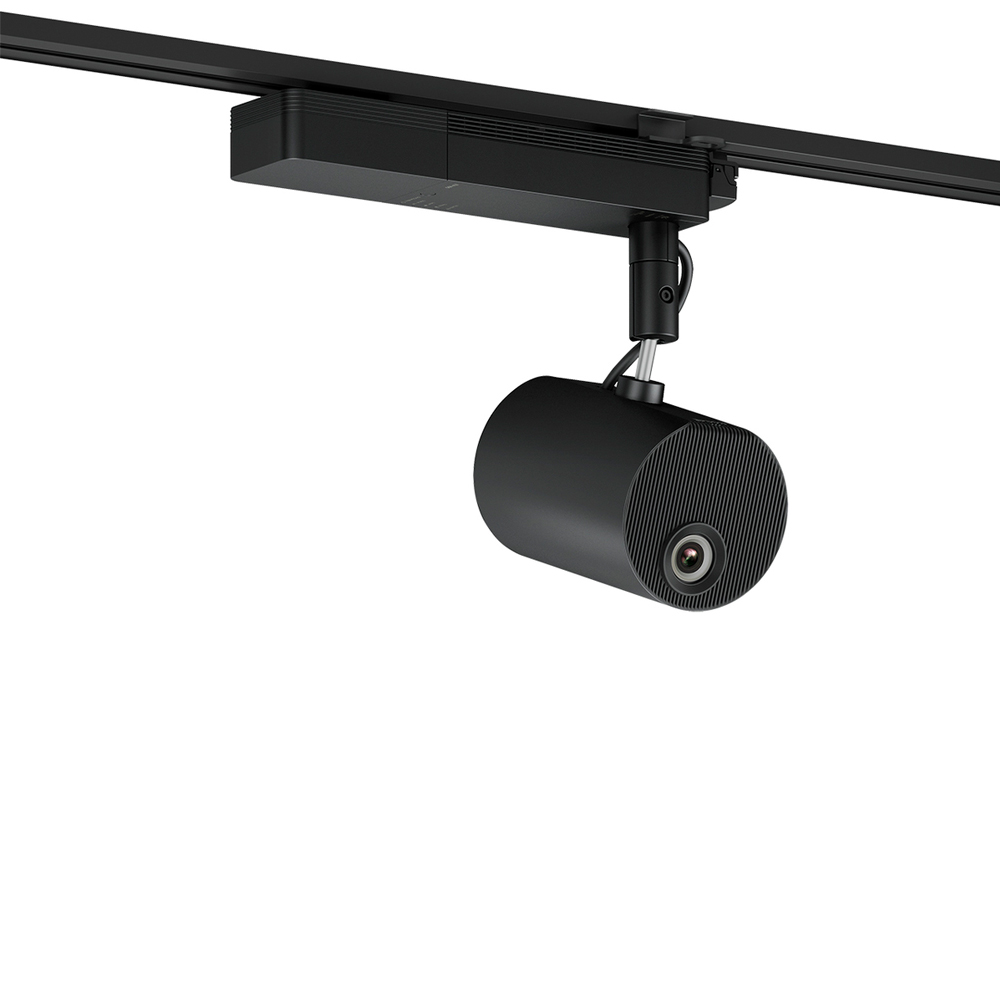

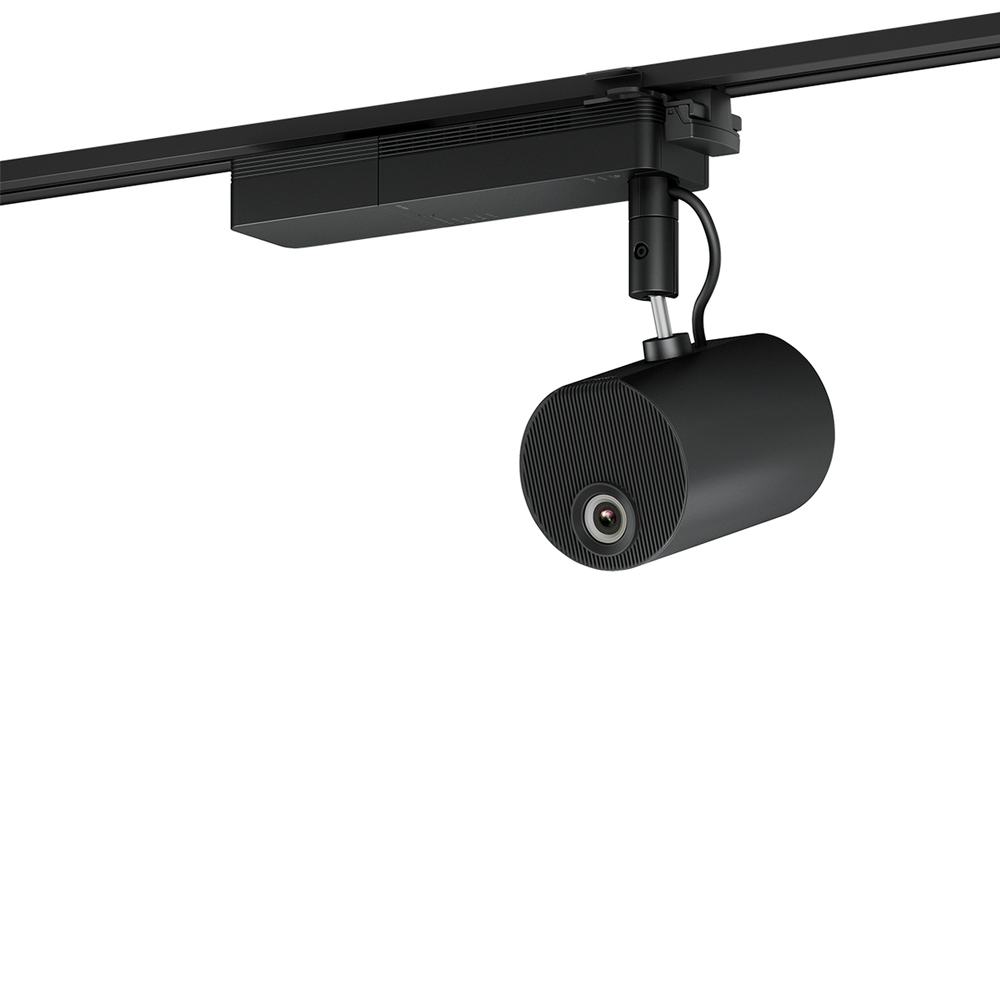

Epson EV-115 Lightscene Laser Projector

Epson EV-115 Lightscene Laser Projector

The dynamic laser projector for digital art and signage.

Create stunning visual displays and immersive environments Epson EV-115 Lightscene Laser Projector with the EV-115 Lightscene Laser Projector, the cutting-edge projection signage solution from Epson. A convergence of lighting and display technology, Epson’s latest range of LightScene range of projectors captivate audiences by simultaneously illuminating and projecting on virtually any surface or material, unleashing dynamic, experiential content for digital art, commercial signage and décor applications. Designed to blend in discreetly to any setting — from retail, hospitality and event spaces to showrooms and museums — EV-115 Lightscene Laser Projector offers a sleek black spotlight design, with an array of configuration, mounting and programming options.

  • Laser projector with up to 20,000 hours of virtually maintenance-free operation
  • Sleek spotlight design that seamlessly blends into any environment
  • Basic interactivity with GPI input function
  • Suite of software to support projection and content management functions
  • Flexible installations with 360 degree ball-joint structure
Categories: , ,

Description

Product Brochure

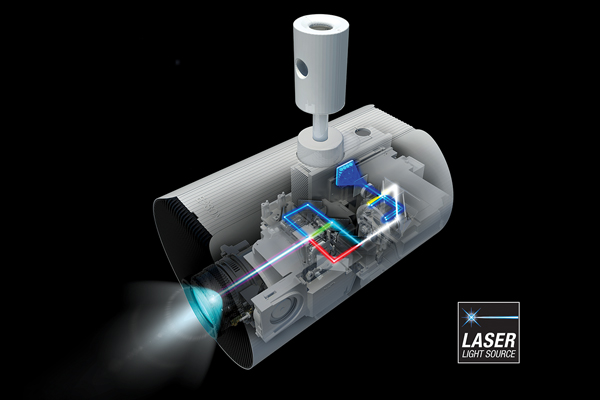

Laser Light Source Technology
With key components such as the laser diode, inorganic 3LCD panels, and phosphor wheel fully sealed, you can now project with a peace of mind for 20,000 hours without any downtime for maintenance. The EV-110 LightScene Laser Projector’s durable build allows it to work longer without disruption. Most importantly, there are no lamps to replace, reducing operation cost, time, and hassle.

Epson

Sensor Integration With General Purpose Interface

With its GPI function, users are able to enhance engagements with customers by connecting sensors to the projector. With the sensors integrated to the EV-110 LightScene Laser Projector, you can easily program it to detect motions and project dynamic contents simultaneously, in turn, elevating both guests and customers’ experience.

Epson

Rich and clear audio via bluetooth connectivity

The EV-110 LightScene Laser Projector has bluetooth connectivity function, allowing fuss-free connection to external speakers without complicated and messy cable management. Enjoy the flexibility in the placement of your audio system to create a rich and soothing ambience for your space.

Epson

SKU NumberV11HA22152
Projection TechnologyRGB liquid crystal shutter projection system
LCDSize0.59 inch (D8, C2fine)
ResolutionWXGA
Projection LensTypeOptical Zoom (Powered) / Focus (Powered)
F-Number1.51 – 1.92
Focal Length18.2 – 28.4 mm
Zoom RatioOptical Zoom: 1.0 – 1.58 /
Digital Zoom: 1.0 – 1.4
Throw Ratio1.38 – 2.19
Light SourceTypeLaser Diode
Life (Normal/Quiet/Extended) 20,000 / 20,000 / 30,000 hours
Zoom: Wide30” to 150” [0.88 to 4.51 m]
Standard60” screen @ 1.79 m
White Light Output (Normal / Eco)2,200 / 1,100 lm
Colour Light Output2,200 lm
Contrast RatioOver 2,500,000:1
Colour ModeDynamic / Normal
Adjustment AngleVertical Upper: 90º to Lower: 90º
Horizontal360º
Rotary0º – 90º (Portrait Projection)
KeystoneVertical ±45º
Horizontal±40º
Quick CornerYes
Digital InputHDMI1
Audio OutputStereo Mini Jack1
USB InputUSB Type A1 [For GPI IN (2Ch) or 5V/2A power supply]
USB Type B1 [For Firmware Update]
Memory I/ORS-232C1 (SDHC, up to 32GB, more than Class 10)
NetworkWired LANRJ45 x 1 (100Mbps)
WirelessBuilt-in
Supported Speed for Each mode IEEE 802.11b (2.4GHz): 11 Mbps*2, IEEE 802.11g (2.4GHz): 54 Mbps*2,
IEEE 802.11n (2.4GHz): 72.2 Mbps*2, IEEE 802.11a (5GHz): 54 Mbps*2,
IEEE 802.11n (5GHz): 150.0 Mbps*2
Wireless LAN SecurityInfrastruture: Open, WPA2/WPA3-PSK, WPA2 / WPA3-EAP
Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast
Supported Connection ModeLow Altitude: 0 – 40 °C <32 - 104 °F>
High Altitude: 0 – 35 °C <32 - 95 °F>
20% – 80% Humidity, No Condensation
Bluetooth Audio (In-built)Version4.2
Communication DistanceApprox. 10m
Content ProtectionSCMS-T
Supported CodecsSBC, Qualcomm, aptX audio
Contents PlayerPlaylistYes
Timetable (Scheduled Playlist)Yes
SD Viewer Yes
Playlist ContentsMovie (Motion JPEG compressed AVI format),
and Photo (JPEG, PNG, GIF, BMP)
Operating TemperatureLow Altitdue (0 to 2,286m / 7,500ft): 5
C to 40 C (41
F to 104
F)
High Altitude (Over 2,286m / 7,500ft): 5
C to 35 C (41
F to 95
F)
20% – 80% Humidity, No Condensation
Operating Altitude0 m to 3,048 m (0 ft to 10,000 ft)
(Over 1,500 m / 4,921 ft: with High Altitude Mode)
Direct Power On / OffYes / Yes
Start-Up PeriodLess than 9 seconds
Cool Down PeriodInstant Off
Power Supply Voltage100 – 240 V AC +/- 10%, 50/60 Hz
Power Consumption (220 – 240V)Laser Diode On (Normal / Quiet)149W / 112W
Standby (Network On / Off)2.0W / 0.40W
Dimension Excluding Feet (D x W x H)Main Unit: φ175 x D260
Power supply unit: D110 x W361 x H65 (without cable cover
Weight (with cable cover)Approx. 6.9 Kg
Fan Noise (Normal / Eco)34 / 22 dB
