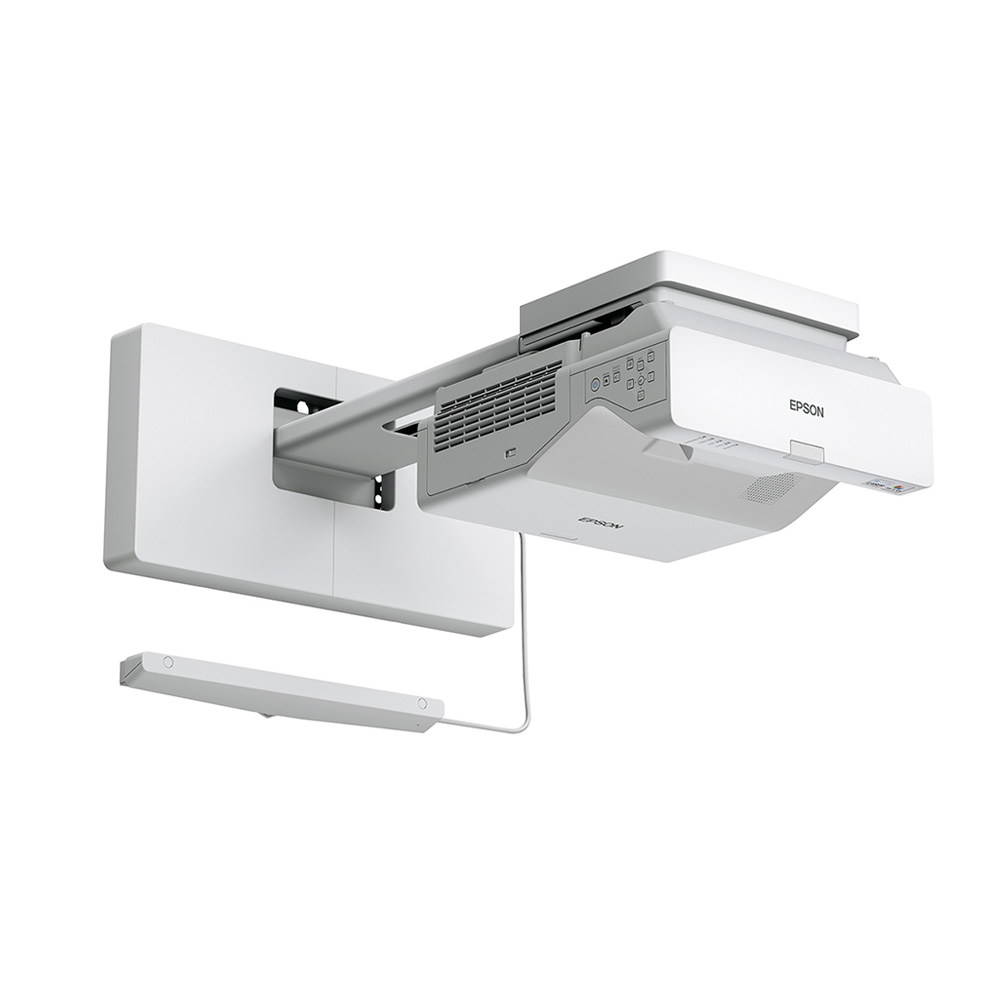

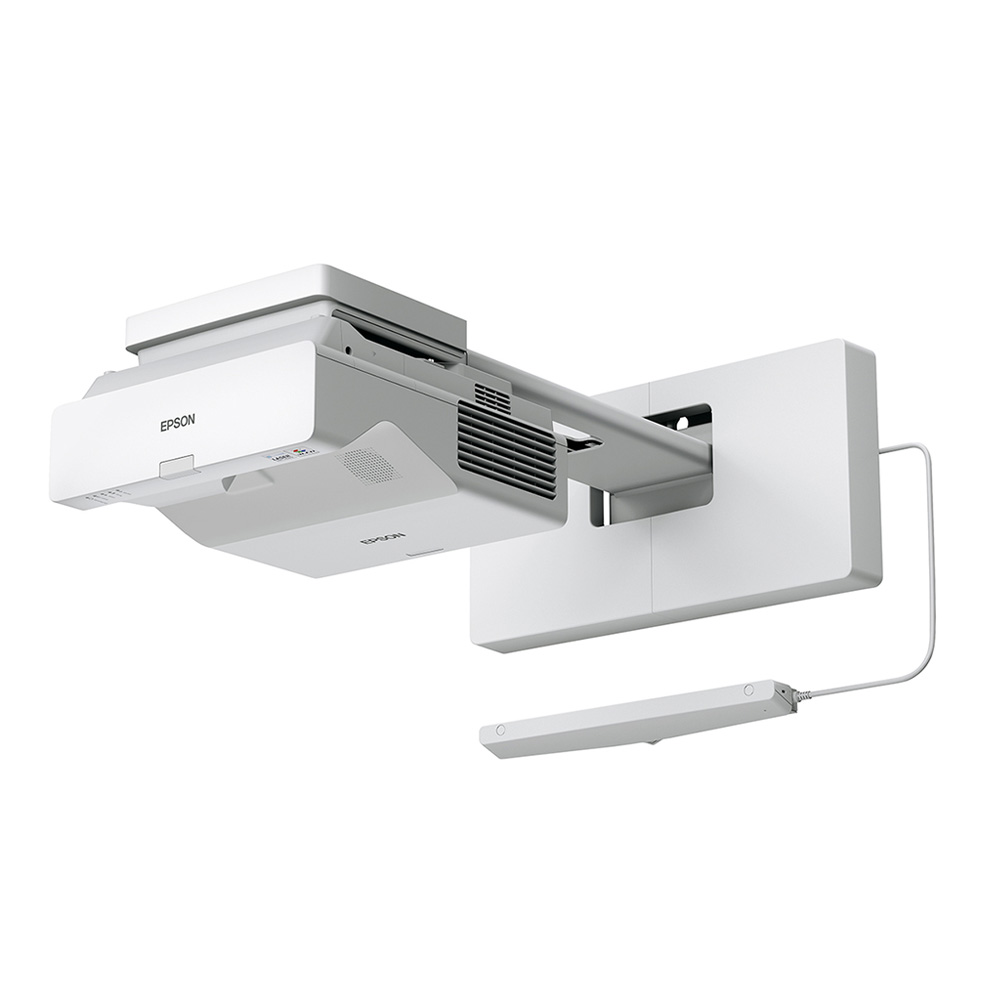

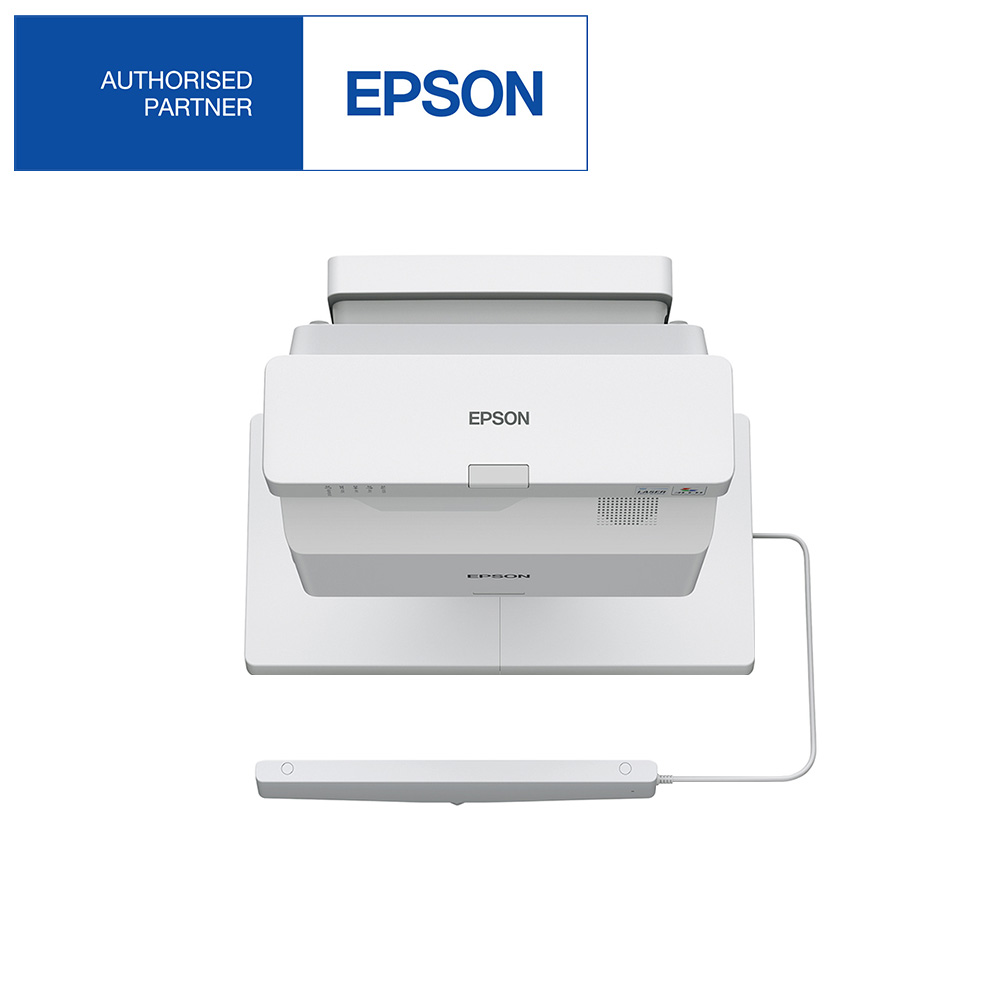

Epson EB-760Wi WXGA 3LCD Laser Projector

Epson EB-760Wi WXGA 3LCD Laser Projector

Lamp-free interactive display projects easy-to-read images for collaborative classrooms



Offering a high-quality 16:10 WXGA display up to 100″, the EB-760Wi interactive display delivers easy-to-read images that provides up to 85 percent more interactive space than a 75″ flat panel—for a low cost per square inch. With 4,100 lumens of color and white brightness and proprietary 3-chip 3LCD technology, this display delivers a remarkably bright and colorful picture that can be easily viewed in ambient light conditions from nearly anywhere in the classroom. It also includes a 20,000-hour, virtually maintenance-free laser light source, so there are no lamps to purchase or replace—ever.

  • 4,100 lumens of colour and white brightness
  • Large interactive display up to 100″
  • Multi-user capability for easy collaboration
  • 16:10 WXGA resolution for true-to-life images
Categories: , , ,

Description

Maximise your collaboration, with minimal footprint at a close distance
With our ultra-short throw projectors, deliver clear and impactful presentations. Cast a larger image from less than an arm throw distance, stay game on in your business and learning. Throw ratio of 0.27-0.37 allows you to project up to 150″ at 92.8cm.* Comes with 16W speaker to enhance your collaboration experience too!

* with no interactive function, up to 100″ with interactive function






Interactive function
Using Epson EB-760Wi Interactive function, explore meaningful collaboration and discussion of big ideas. Comes with Advance Whiteboard function, two pens and six finger touch point to make collaborations a breeze.





PC-free digital whiteboard
Draw, save, print and email without a PC; share whiteboard content with other networked projectors3





Brilliantly rich, crystal-clear detail
With excellent contrast ratio of over 2,500,000:1, EB-760Wi delivers well-defined image to you – whether it is numbers, pictures, graphs or videos.It’s all about seeing the little details in a better light.


Projection TechnologyRGB liquid crystal shutter projection system
Brightness
White Light Output (Normal / Eco)4,100lm / 2,800lm
Colour Light Output4,100lm
Contrast RatioOver 2,500,000 : 1
Specifications of main parts
LCD (Size)0.59″ (C2Fine)
LCD (Resolution)WXGA (1280 x 800)
Projection Lens (Type)No Optical Zoom / Focus (Manual)
Projection Lens (F-Number)1.60
Projection Lens (Focal Length)3.7mm
Projection Lens (Zoom Ratio)1.0 – 1.35 (Digital Zoom)
Projection Lens (Throw Ratio)0.27 – 0.37
Light Source
TypeLaser Diode
Life (Normal / Quiet / Extended)20,000 / 20,000 / 30,000 hrs
Screen Size (Projected Distance)
Standard74.3″ screen @ 43.3cm
Zoom (Wide):53″ to 132″ screen (33.7 – 92.8cm) 4:3
58″ to 146″ screen (33.7 – 92.8cm) 16:9
60″ to 150″ screen (33.7 – 92.8cm) 16:10
Geometric Correction
Vertical / Horizontal Keystone±3° / ±3°
Quick CornerYes (Manual)
Connectivity
Analog InputD-Sub 15Pin: 2
Composite: RCA x 1 (Yellow)
Digital Input (HDMI)3 (HDCP 2.3)
Finger Touch Unit ControlMini Din 8pin x 1
Control I/ORS-232C: D-Sub 9pin x 1
NetworkWired LAN: RJ45 x 1 (100Mbps)
Wireless: Built-in and Optional (using ELPAP11)
Operating Temperature
Single Use0 – 2,286 m (0 – 7,500 ft): 0 °C – 40 °C [32 °F – 104 °F ] ; 20% to 80% Humidity, No Condensation
Over 2,286 m (7,500 ft): 0 – 35 °C [32 °F – 95 °F] ; 20%-80% Humidity, No Condensation
Operating AltitudeOver 1,500 m / 4,921 ft, with High Altitude Mode: 0 – 3,048 m (0 – 10,000 ft)
Direct Power On / OffYes
Start-Up PeriodLess than 10 seconds, Warm-up Period: 30seconds
Quick Start-UpLess than 5 seconds (Display)
Cool Down PeriodInstant Off
Air FilterType: Electrostatic Filter
Maintenance Cycle: 20,000 hours
Power Supply Voltage100 – 240 V AC ±10%, 50/60 Hz
Power Consumption (220 – 240V)Lamp On (Normal/Extended): 263W/199W
Standby (Network On/Off): 2.0W/0.5W
Dimensions Excluding Feet (W x H x D)356 x 133 x 395mm
Weight (with cable cover)Approx. 6.0kg
Fan Noise (Normal / Eco)37dB / 27dB
