Epson EB-800F Ultra-short Throw Full HD Laser Projector

Create Your Own Customer Experience!

Wow your customers and strengthen marketing messages with Epson EB-800F Full HD ultra-short throw laser projector! Create stunning video content easily and instantly project your information wirelessly to your audience. EB-800 series projectors’ laser light source allows it to be placed in any orientation, even in tight spaces, and are the ideal companion for your digital signage needs.

Description

Remarkable Image Quality

With an optimum brightness of 5,000 lumens and dynamic contrast of over 2,5000,000:1, be assured that your images will be vivid and attention-grabbing even under a variety of ambient lightings. The ultra-short-throw laser projector is able to project beautiful and sharp images even in the tightest retail spaces up to a maximum of 130-inch.

Multi-directional Projection
Thanks to its laser light source, EB-800 series projectors can rotate 360° in any direction — horizontally, vertically and rotationally — without any loss in image brightness and quality. An ideal companion to businesses that require vivid projections on a variety of surfaces such as floors and ceilings.
Flexible Projection Image
The black background in images will not be projected on surface, allowing non-rectangular images. This allows flexibility and great creativity in creating content. Thus, this gives users the ability to form sleek and eye-catching designs, without being confined to a rectangular image.

SKU NumberV11H923552
Projection TechnologyRGB liquid crystal shutter projection system (3LCD)
LCDSize0.62” (C2Fine)
Resolution1080p (1366 x 768 x 2)
Projector LensTypeFocus (Manual) / No Optical Zoom
F-Number1.50
Focal Length3.90 mm
Zoom Ratio1 – 1.35 (Digital Zoom)
Throw Ratio0.27 – 0.37 (Wide to Tele)
LightsourceTypeLaser Diode
Life (Normal / Extended)20,000 / 30,000 hours
Zoom: Wide65” – 130” [39.2 – 80.3 cm] @ 16:9 / 61” – 120” [39.5 – 79.6 cm] @ 16:6
Zoom: Tele48” – 96” [39.2 – 80.3 cm] @ 16:9
Standard80” [48.7 cm]
White Light Output (Normal / Extended)5,000 lm / 3,500 lm
Colour Light Output (Normal / Extended)5,000 lm / 3,500 lm
Contrast RatioOver 2,500,000:1
Sound Output8W x 8W [Stereo]
Vertical / Horizontal Keystone±3° / ±3°
Quick CornerYes

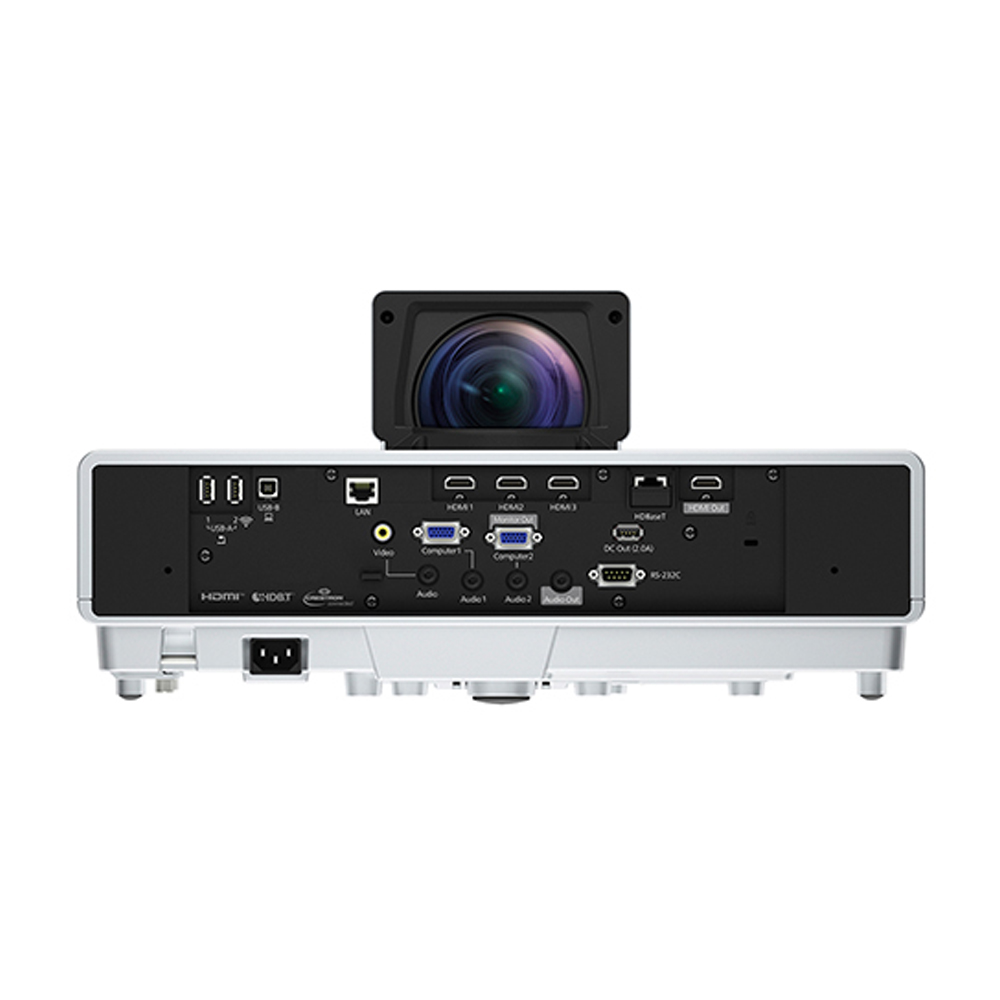

Analog InputD-Sub 15Pin2
CompositeRCA x 1 (Yellow)
Digital InputHDMI3 (HDCP2.3)
HDBaseT1 (HDCP2.3)
Output TerminalD-Sub 15Pin1 (Black)
HDMI1
Audio InputStereo Mini Jack3
Audio OutputStereo Mini Jack1
Control I/ORS-232CD-Sub 9pin x 1
USB I/OType A2 (for Saving and Reading* data via USB Memory, USB Document Camera)
Type B1 (for USB Display, mouse, K/B, Control, Firmware Update, Interactive, Copy OSD Settings)
NetworkWired LANRJ45 x 1
Wireless LAN1 x USB Type A (In common with Memory I/O)
Supported ModeInfrastructure, Access Point (Wi-Fi Direct)
Wireless LAN SecurityInfrastructure: OPEN, WPA2/WPA3-PSK, WPA2/WPA3-EAP
Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast
Access Point (Wi-Fi Direct): WPA2-PSK(AES)
Operating TemperatureSingle use: 0 - 45 °C <41 - 113 °F> [20% – 80% Humidity, No Condensation]
Operating Altitude (Base on low altitude)Single use: 0 - 45 °C <41 - 113 °F> [20% – 80% Humidity, No Condensation]
Multi Projection use: 0 - 40 °C <41 - 104 °F> [20% – 80% Humidity, No Condensation]
Direct Power On / OffYes
Start-Up PeriodLess than 8 - 10 seconds (Epson Logo), Warm-up Period: 30 seconds
Cool Down PeriodInstant Off
Air FilterMaintenance Cycle20,000 hours^{*3}
Power Supply Voltage100 - 240 V AC ±10%, 50/60 Hz
Power Consumption (220 - 240V)Laser Diode ON (Normal / Extended)366W / 262W
Standby (Network / Energy Saving)2.0W / 0.5 W
Dimension Excluding Feet (D X W X H)375 x 458 x 209.5 mm
WeightApprox. 9.4 kg (Without Cable Cover) / Approx. 9.7 kg (With Cable Cover)
Fan Noise (Normal / Quiet)36dB / 27dB
