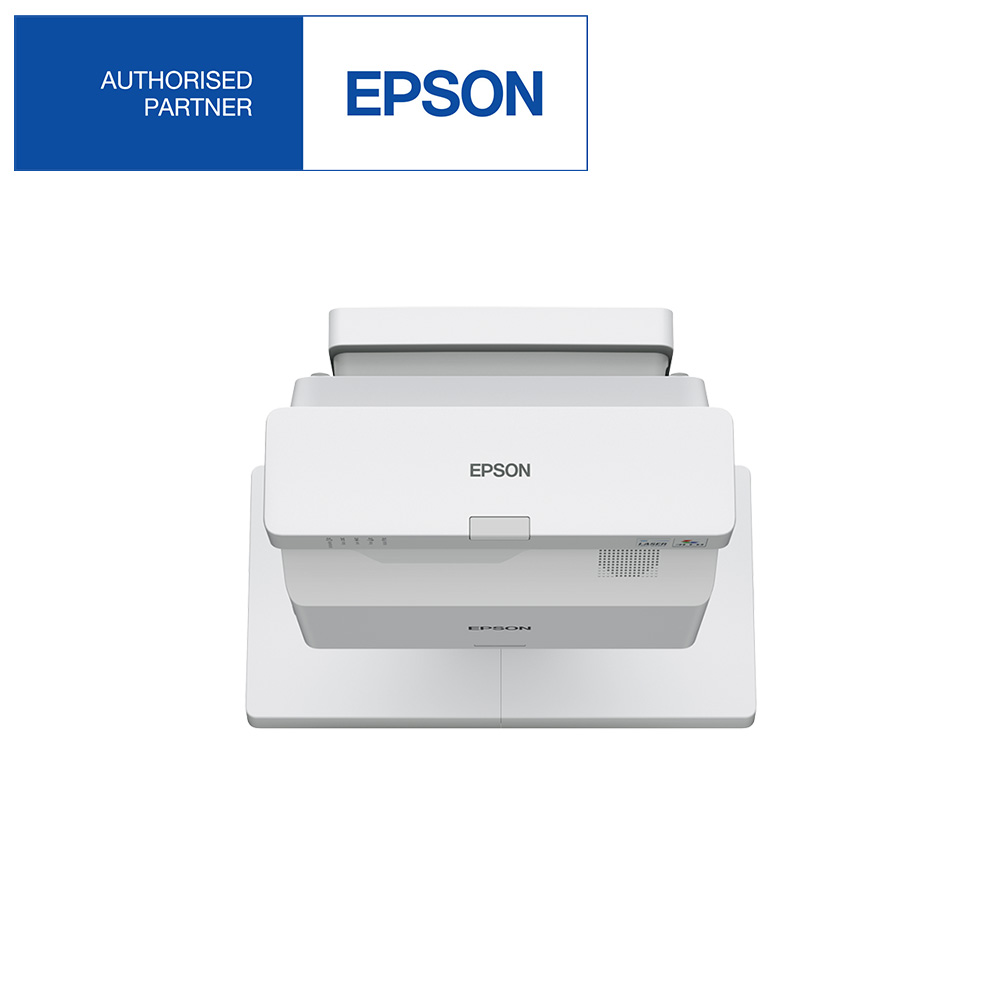

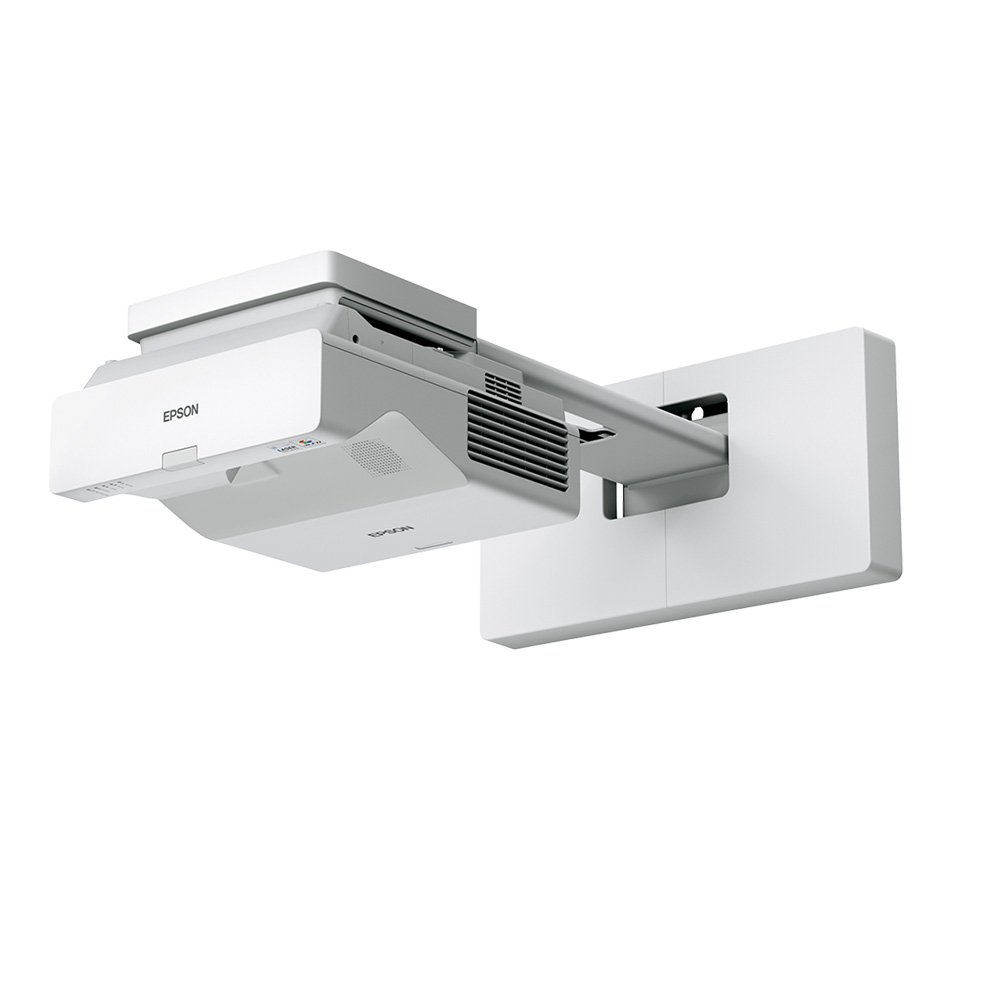

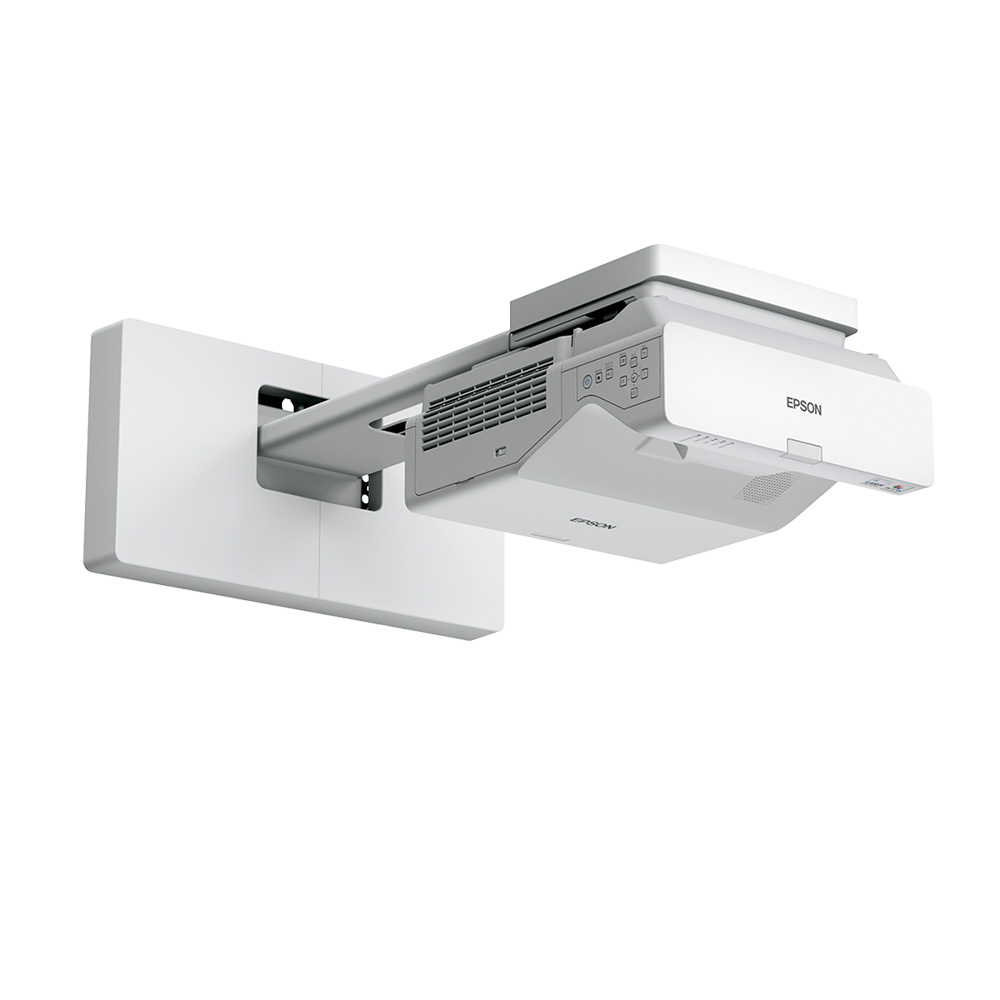

Epson EB-770F Full HD 1080P 3LCD Laser Projector

The large, easy-to-read HD display for dynamic classroom environments.



Captivate and inspire students with the eye-catching, easy-to-read display of the EB-770F. With its intelligent ultra short throw design, the dynamic EB-770F delivers stunning HD images up to 150″—which is 2.4 times larger than a 75″ flat panel—and can be easily seen from nearly anywhere in the classroom. Engineered for reliability, this incredibly bright 4,100-lumen display has a 20,000-hour, virtually maintenance-free laser light source, which means there are no lamps to purchase or replace—ever. Providing wireless connectivity with casting capability and convenient split screen functionality, the EB-770F makes it easy for teachers and students to display up to four screens simultaneously. EB-770F supports a variety of aspect ratios, including 16:9 as well as ultra wide 21:9 and 16:6. Offering the flexibility to display on existing whiteboards, the versatile EB-770F delivers even more value by allowing teachers to retain valuable whiteboard space when not in use.

  • 4,100 lumens of colour and white brightness
  • Full HD 1080p resolution for exceptional image quality
  • No lamps to replace ever with solid-state laser light source
  • Convenient ultra short throw design
  • 16:9 display with additional support for ultra wide 21:9 & 16:6

Description

Massive, wide clear content for a full, uncompromised learning/ meeting experience
Enjoy a dynamic wide screen viewing experience with our Ultra short-throw EB-770F. You may easily change the projection aspect depends on your working space. Maximum screen size is improved up to 150 inch (Diagonal). Have all the content well-viewed with our 21:9 aspect ratio at up to 142" - newly available for 770F.




Incredible Image Quality
Full HD 1080P Resolution at an exceptional value; accepts 4K content.





Brilliantly rich, crystal-clear detail
With excellent contrast ratio of over 2,500,000:1, EB-760W delivers well-defined image to you - whether it is numbers, pictures, graphs or videos. It's all about seeing the little details in a better light.





Connect up to 50 devices3
Free downloadable Epson iProjection™ software makes it easy to project up to 4 devices at a time wirelessly from Chromebooks, iOS® and Android™ devices, Mac® computers and PCs3; with moderator feature6, teachers never lose control of the displayed content.



Projection TechnologyRGB liquid crystal shutter projection system
Brightness
White Light Output (Normal / Eco)4,100lm / 2,800lm
Colour Light Output4,100lm
Contrast RatioOver 2,500,000 : 1
Specifications of main parts
LCD (Size)0.62" (C2Fine)
LCD (Resolution)Full HD (1080p)
Projection Lens (Type)No Optical Zoom / Focus (Manual)
Projection Lens (F-Number)1.60
Projection Lens (Focal Length)3.7mm
Projection Lens (Zoom Ratio)1.0 - 1.35 (Digital Zoom)
Projection Lens (Throw Ratio)0.25 - 0.35
Light Source
TypeLaser Diode
Life (Normal / Quiet / Extended)20,000 / 20,000 / 30,000 hrs
Screen Size (Projected Distance)
Standard77" screen @ 43.3cm
Zoom (Wide):49" to 123" screen (32.5 - 89.3cm) 4:3
56" to 140" screen (32.5 - 89.3cm) 16:6
60" to 150" screen (32.5 - 89.3cm) 16:9
55" to 139" screen (32.5 - 89.3cm) 16:10
57" to 142" screen (39.4 - 85.3cm) 21:9
Geometric Correction
Vertical / Horizontal Keystone±3° / ±3°
Quick CornerYes (Manual)
Connectivity
Analog InputD-Sub 15Pin: 2
Composite: RCA x 1 (Yellow)
Digital Input (HDMI)3 (HDCP 2.3)
Finger Touch Unit ControlN/A
Control I/ORS-232C: D-Sub 9pin x 1
NetworkWired LAN: RJ45 x 1 (100Mbps)
Wireless: Built-in and Optional (using ELPAP11)
Operating Temperature
Single Use0 - 2,286 m (0 - 7,500 ft): 0 °C - 40 °C [32 °F - 104 °F ] ; 20% to 80% Humidity, No Condensation
Over 2,286 m (7,500 ft): 0 - 35 °C [32 °F - 95 °F] ; 20%-80% Humidity, No Condensation
Operating AltitudeOver 1,500 m / 4,921 ft, with High Altitude Mode: 0 - 3,048 m (0 - 10,000 ft)
Direct Power On / OffYes
Start-Up PeriodLess than 10 seconds, Warm-up Period: 30seconds
Quick Start-UpLess than 5 seconds (Display)
Cool Down PeriodInstant Off
Air FilterType: Electrostatic Filter
Maintenance Cycle: 20,000 hours
Power Supply Voltage100 – 240 V AC ±10%, 50/60 Hz
Power Consumption (220 - 240V)Lamp On (Normal/Extended): 263W/199W
Standby (Network On/Off): 2.0W/0.5W
Dimensions Excluding Feet (W x H x D)356 x 133 x 395mm
Weight (with cable cover)Approx. 5.9kg
Fan Noise (Normal / Eco)37dB / 27dB
