Epson EB-760W WXGA 3LCD Laser Projector

Bright, easy-to-read, lamp-free classroom display projects up to 150″

The EB-760W will change the way you think about classroom displays. Delivering 4,100 lumens of color and white brightness and a high-quality 16:10 WXGA display up to 150″—more than three times larger than a 75″ flat panel—this ultra short throw laser display encourages engagement with large, bright and easy-to-read images from nearly anywhere in the classroom. Engineered for reliability, the EB-760W has a 20,000-hour, virtually maintenance-free laser light source, so there are no lamps to purchase or replace—ever. It also features wireless connectivity from PCs, Mac® computers, Chromebooks, and Android™ and iOS® devices, as well as convenient split screen functionality, making it easy for teachers and students to wirelessly display up to four screens simultaneously. With the ability to display on virtually any wall, the feature-rich EB-760W allows teachers to maintain valuable whiteboard space while delivering stunning images that engage and inspire young learners.

  • 4,100 lumens of colour and white brightness
  • 16:10 WXGA resolution for images up to 150″
  • 20,000-hour laser lamp-free light source
  • Images more than three times larger than a 75″ flat panel
  • Quick startup with laser light source
  • Supports 4:3 and widescreen 16:9 aspect ratios

Description

Experience vivid and lifelike images

Using Epson’s very own original designed fixed phosphor unit, coupled with the innovative optimized design, the projector is now more compact yet images remain bright and sharp. Thanks to the new heatsink design, the projector has efficient heat conductivity, resulting in improved heat resistance, all while delivering high-quality vivid images.





Large screen size – Easy to see

Creating a large screen environment that can be seen clearly in presentations and classes, project images large enough for everyone in the room to read and maximize productivity. Laser projector with affordable price that looks clear even with the room lights on.





Connect up to 50 devices

Free downloadable Epson iProjection™ software makes it easy to cast up to 4 devices at a time wirelessly from Chromebooks, iOS® and Android™ devices, Mac® computers and PCs; with moderator feature, teachers never lose control of the displayed content.






Brilliantly rich, crystal-clear detail



With excellent contrast ratio of over 2,500,000:1, EB-760W delivers well-defined image to you – whether it is numbers, pictures, graphs or videos. It’s all about seeing the little details in a better light.



Projection TechnologyRGB liquid crystal shutter projection system
LCDSize0.59” (C2Fine)
Native ResolutionWXGA (1280 x 800)
TypeNo Optical Zoom / Focus (Manual)
F-Number1.60
Focal Length3.7mm
Zoom Ratio1.0 – 1.35 (Digital Zoom)
Throw Ratio 0.27 – 0.37
LightsourceTypeLaser Diode
Life (Normal / Quiet / Extended) 20,000 / 20,000 / 30,000 hrs
Screen Size (Projected Distance)60” to 150” (33.7 – 92.8cm) @ 16:10
57.9” to 100” (33.7 – 68.7cm) @ 16:10 (With Interactive Function)
White Light Output (Normal / Extended)4,100lm / 2,800lm
Colour Light Output (Normal / Extended)4,100lm
Contrast RatioOver 2,500,000:1
Sound Output16W Mono
Vertical / Horizontal Keystone±3° / ±3°
Quick CornerYes (Auto / Manual)

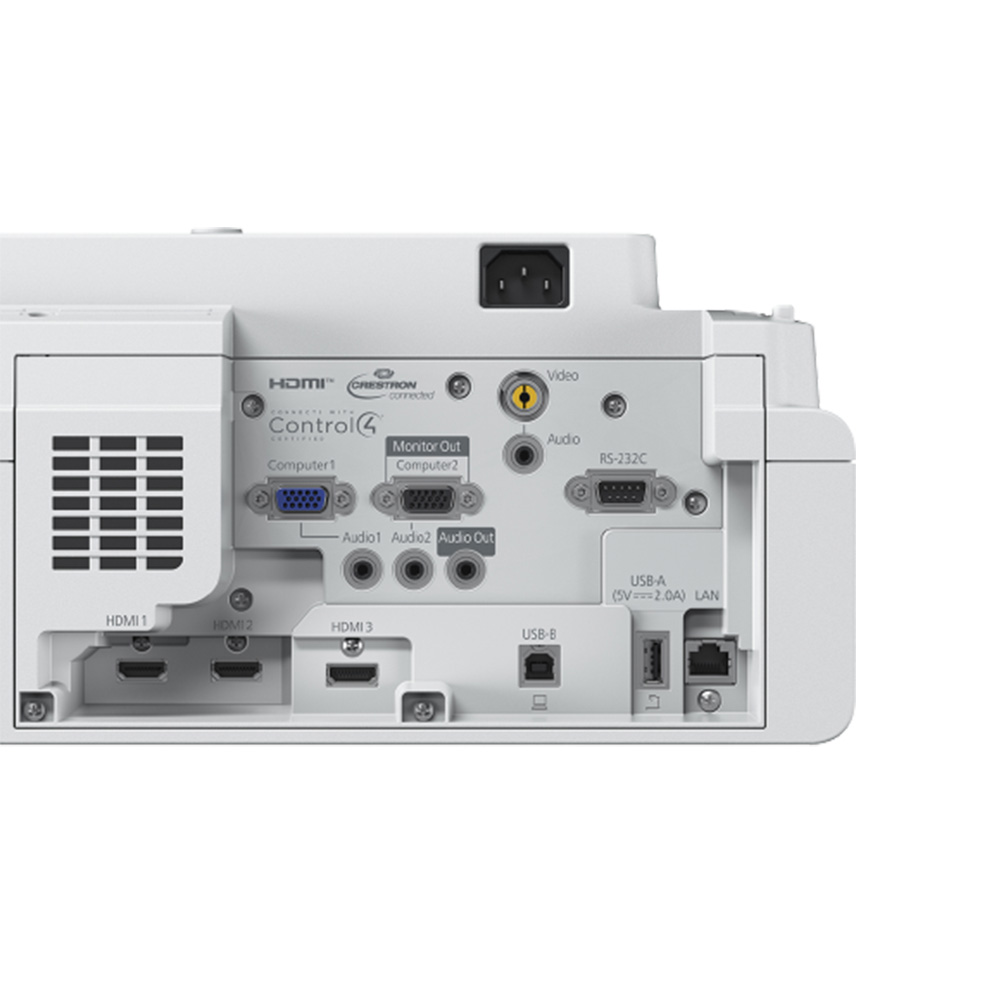

Analog InputComputer In2
Composite1
Digital InputHDMI In3 (HDCP 2.3)
Analog Output TerminalComputer Out1 (Share with Computer2)
Audio InputAudio In3 (Stereo Mini)
Audio OutputAudio Out1 (Stereo Mini)
OthersUSB Type A2 (1 (Side): For PC Free, FW Update, Copy OSD Settings; 1 (Rear): For PC Free, FW Update, Copy OSD Settings or 5V/2A Power Supply)
USB Type B2 (For FW Update, Copy OSD Settings, USB Display)
Mic I/O1 (Stereo Mini)
Control I/ORS-232C1 (D-sub 9pin)
Interactive Sync1 (Stereo Mini)
Touch Unit Control1 (Mini DIN 8pin)
NetworkWired LAN1 (RJ45)
Wireless1 (Built-in and Optional)
Operating Temperature0 – 2,286 m (0 – 7,500 ft): 0 °C – 40 °C [32 °F – 104 °F ] ; 20% to 80% Humidity, No Condensation
Operating AltitudeOver 1,500 m / 4,921 ft, with High Altitude Mode: 0 – 3,048 m (0 – 10,000 ft)
Direct Power On / OffYes
Start-Up PeriodLess than 10 seconds (Epson Logo)
Quick Start-UpLess than 5 seconds (Display)
Cool Down PeriodInstant Off
Air FilterTypeElectrostatic Filter
Maintenance Cycle12,000 hours / 20,000 hours
Power Supply Voltage100 – 240 V AC ±10%, 50/60 Hz
Lamp (Normal / Extended263W / 199W
Standby (Network On / Off)2.0W / 0.5W
Dimension Excluding Feet (D X W X H)395 x 356 x 133
Weight (with cable cover)Weight: Approx. 6kg
Fan Noise (Normal / Eco)37dB / 27dB
