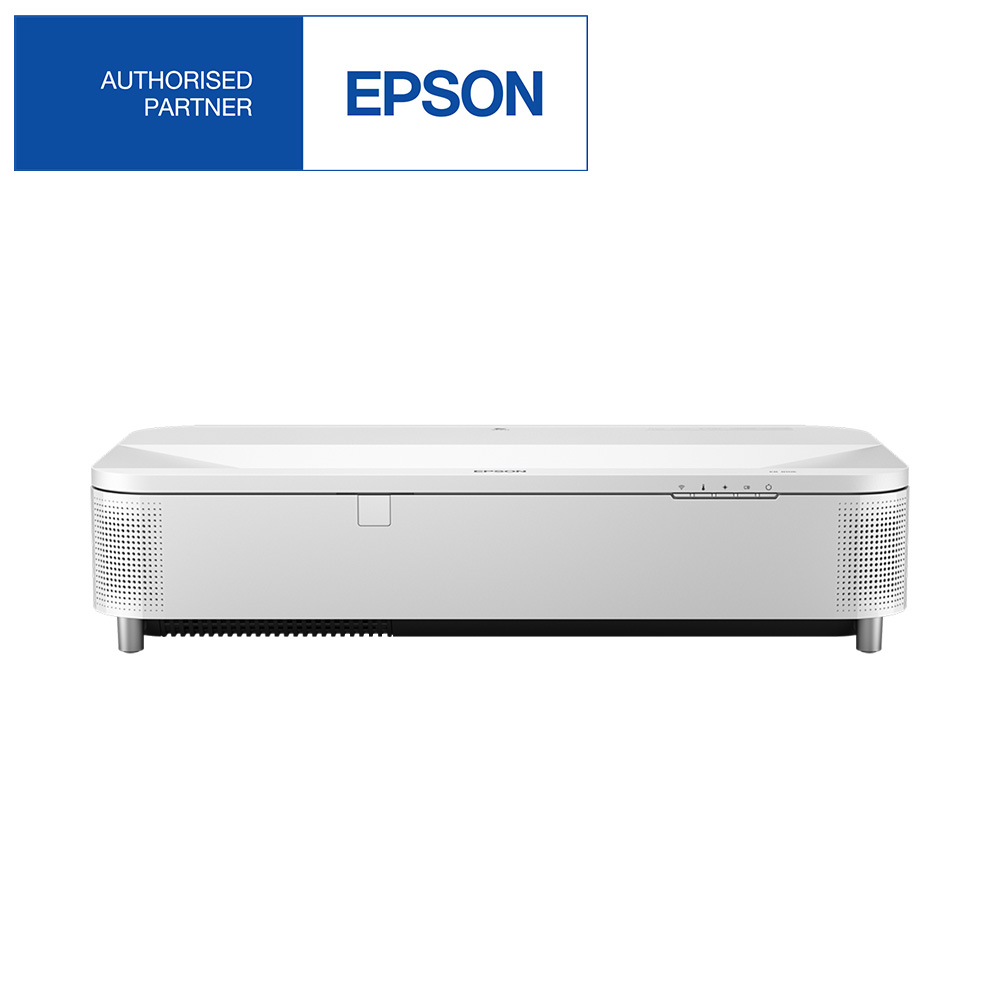

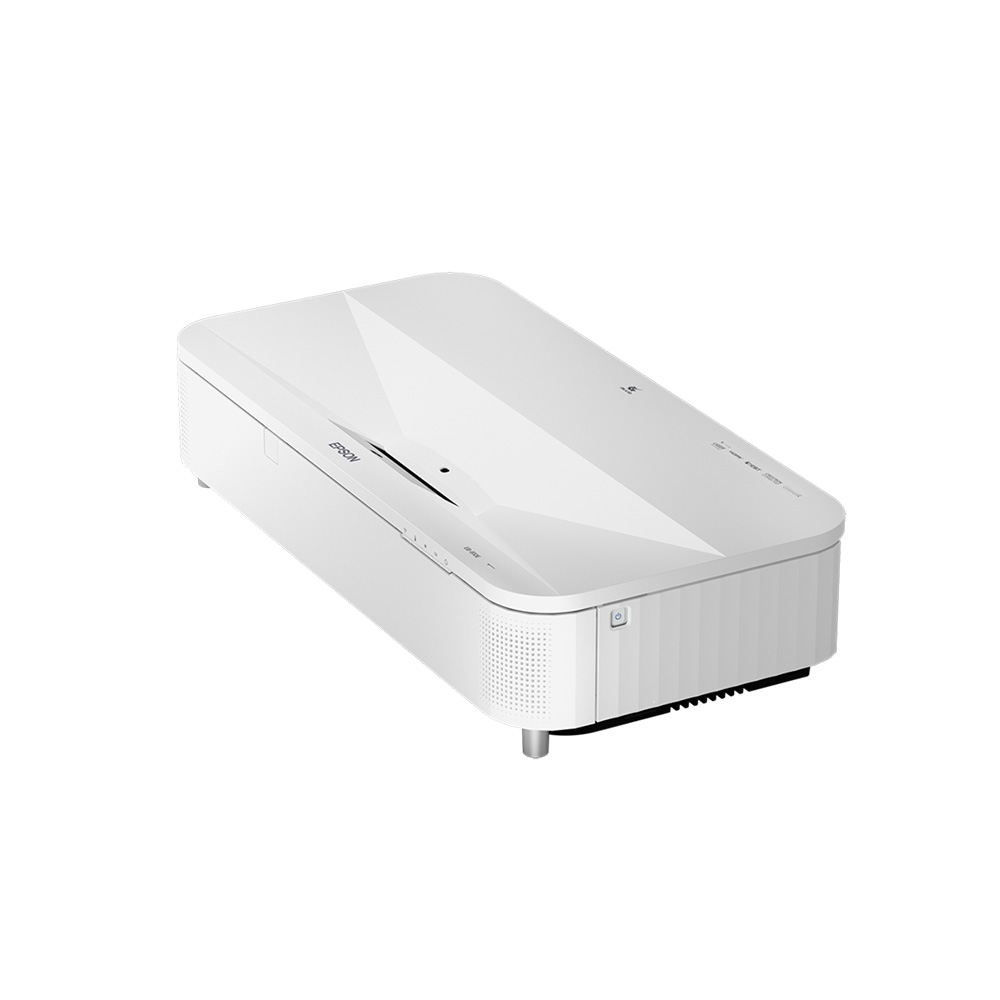

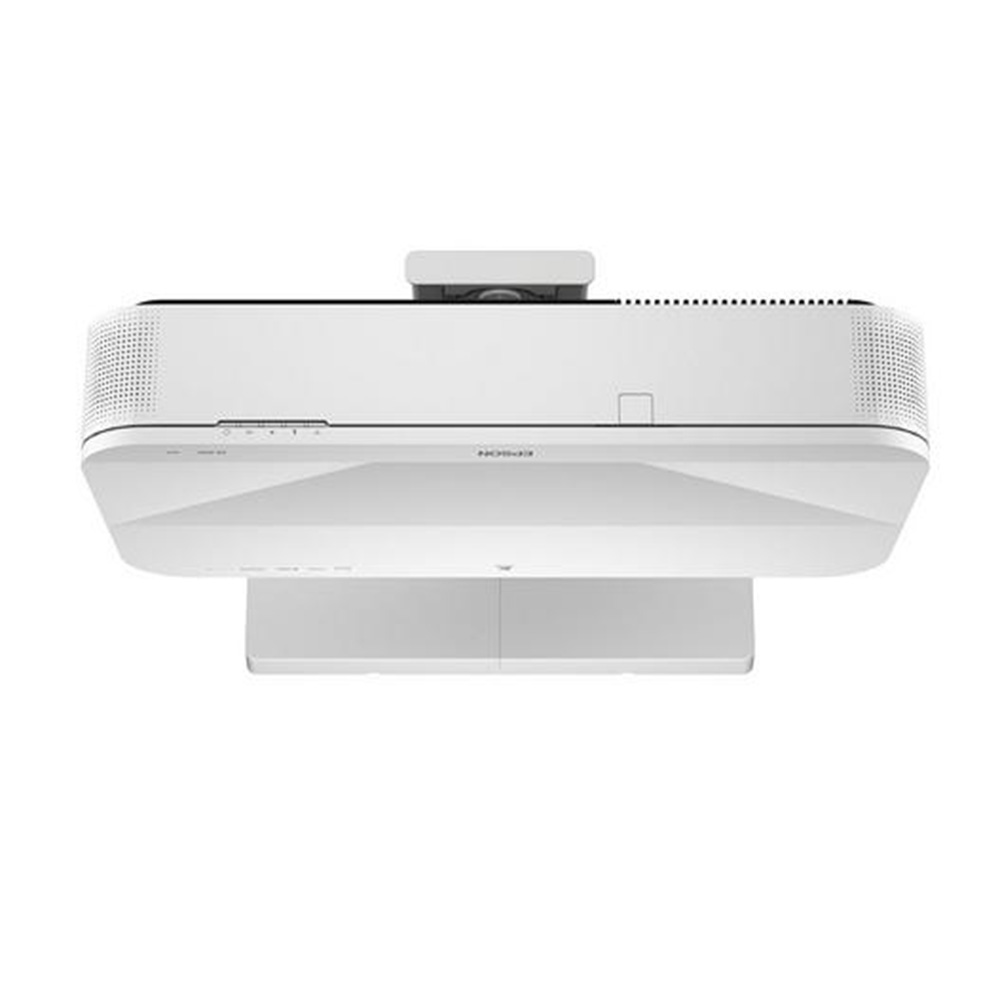

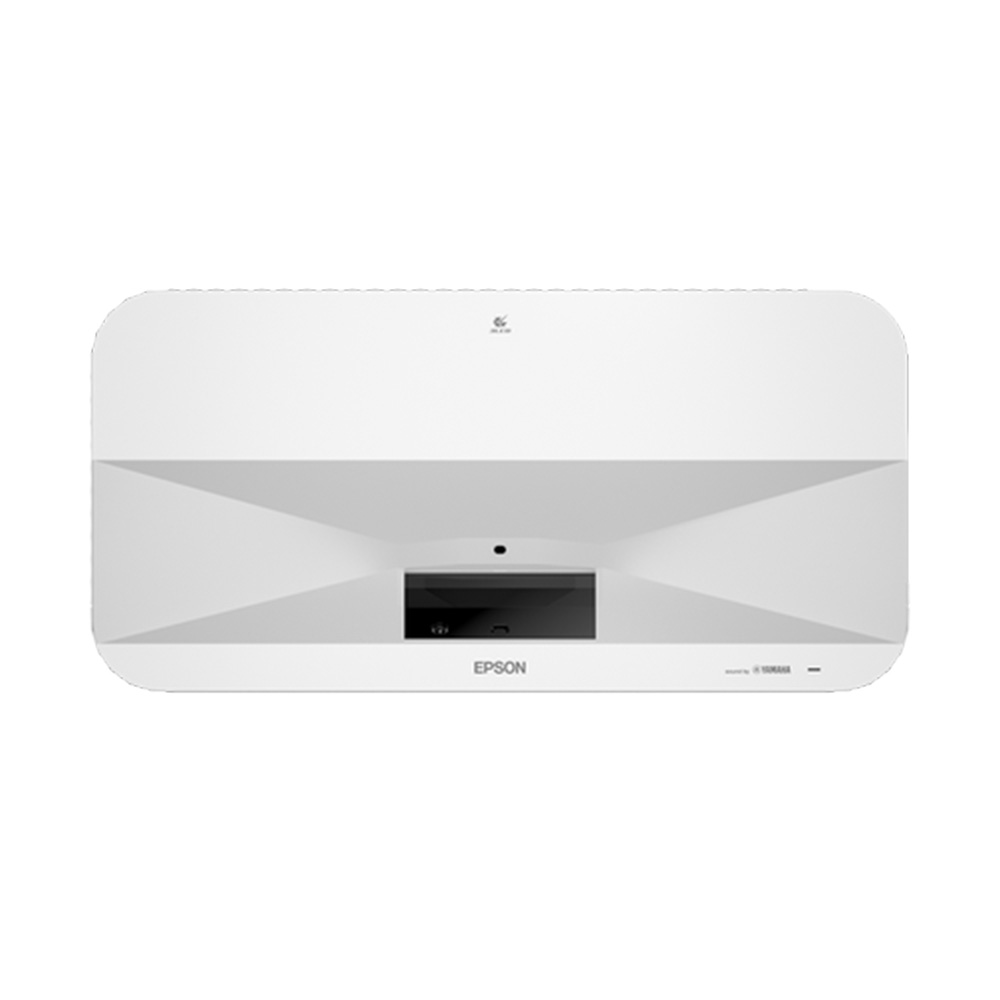

Epson EB-810E Extreme Short Throw 4K Enhancement Laser Projector

Take classroom and meeting room displays beyond the limits of flat panels.



The EB-810E Extreme Short Throw 4K Enhancement Laser Projector is an innovative lamp-free laser display, offering a flexible solution for classrooms and hybrid workspaces. It delivers a bright, glare-free display up to 160″ from just a few centimeters away from the wall, with built-in split-screen and multi-device support for casting.

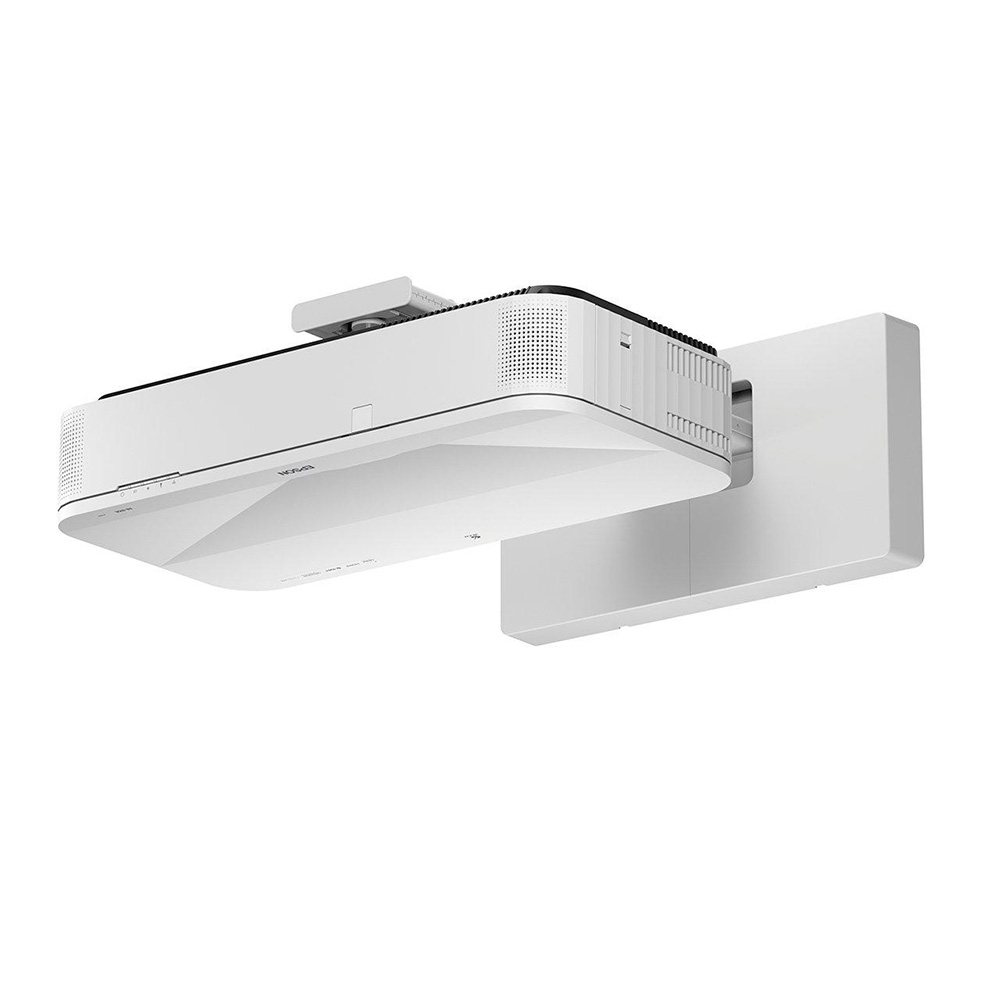

It supports various display ratios for hybrid meetings, has a long-lasting laser light source, and offers versatile connectivity. With an optional wall mount, it can transform traditional whiteboards into vibrant displays, and installation is easy with the Epson Setting Assistant app. Elevate your display beyond ordinary flat panels with the Epson EB-810E.

  • 3LCD technology; 5,000 lumens of colour/white brightness
  • 1080p with 4K Enhancement1 for stunning image clarity
  • Up to 160-inch screen size; 4.5x larger than a 75-inch flat panel
  • Easy integration with native 16:9 aspect ratio, supports 16:10, 21:9, 16:6

Description

Built-in flexible digital canvas for easy integration

16:9 native aspect ratio with additional support for ultra wide 16:6 and 21:9 for equitable conferencing experience in meeting rooms and collaborative hybrid workspaces, as well as captivating digital signage

The EB-810E Extreme Short Throw 4K Enhancement Laser Projector can be placed just centimetres away from a wall to create bright 4KE images up to 160”. It projects content in stunning clarity and offers a low-cost, energy-efficient large display solution with a convenient and quick set up.

Lamp-free technology
Laser diode technology combined with a sophisticated re-engineered cooling system offers up to 30,000 hours of virtually maintenance-free operation

Extreme short throw- large, up to 160" diagonal image
80" image from just 2.3cm away from the wall or 100" from 9.8cm away; at approximately 12.5kg, this lightweight projector can deliver an image up to 160" diagonal; 4.5 times larger than a 75" flat panel

EB-810E's extreme short throw lens allows discreet positioning close to the wall, enabling presenters free access without casting shadows. The projector also comes with versatile wired and wireless connectivity options, including Miracast™ screen mirroring, ensure effortless, multi-device support for content sharing.

Built-in flexible digital canvas for easy integration
16:9 native aspect ratio with additional support for ultra wide 16:6 and 21:9 for equitable conferencing experience in meeting rooms and collaborative hybrid workspaces, as well as captivating digital signage

In addition to a standard 16:9 display, the EB-810E goes beyond the limits of ordinary flat panels by supporting an ultra wide 21:9 and 16:6 display to ensure an equitable hybrid meeting room experience where participants can easily see and be seen.

Projection TechnologyRGB liquid crystal shutter projection system (3LCD)
Brightness
White Light Output (Normal / Eco)5,000lm / 3,500lm
Colour Light Output5,000lm
Contrast RatioOver 2,500,000 : 1
Specifications of main parts
LCD (Size)0.62" (C2Fine)
LCD (Resolution)1080P (4K Enhancement)
LCD (Aspect Ratio)16:9
Projection Lens (Type)Focus (Manual)
Projection Lens (F-Number)1.80
Projection Lens (Focal Length)2.3mm
Projection Lens (Zoom Ratio)1.0 - 1.35 (Digital Zoom)
Projection Lens (Throw Ratio)0.16 - 0.22 (Wide - Tele)
Light Source
TypeLaser Diode
Life (Normal / Quiet / Extended)20,000 / 20,000 / 30,000 hrs
Screen Size (Projected Distance)
Zoom (Wide):80" to 160" (27.8 - 57.8m) @ 16:9
66" to 130" (28.1 - 57.4m) @ 4:3
74" to 148" (27.8 - 57.8m) @ 16:10
76" to 151" (27.9 - 57.5m) @ 21:9
75" to 148" (28.0 - 57.4m) @ 16:6
Zoom (Tele):60" to 118" (28.2 - 57.5m) @ 16:9
49" to 96" (28.2 - 57.2m) @ 4:3
55" to 109" (27.9 - 57.4m) @ 16:10
57" to 112" (28.2 - 57.6m) @ 21:9
56" to 110" (28.3 - 57.6m) @ 16:6
Geometric Correction
Quick CornerYes

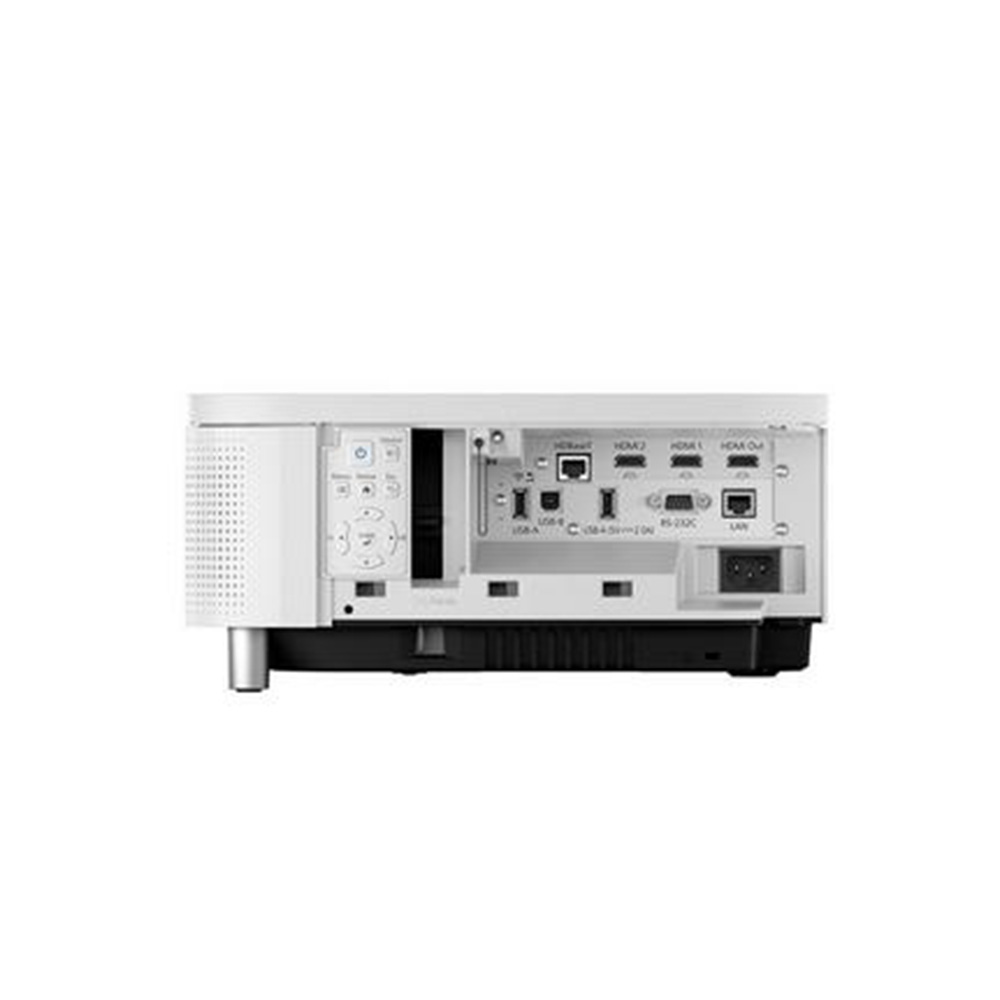

Connectivity
Digital InputHDMI: 2 (HDCP 2.3)
HDBaseT: 1 (HDCP 2.3)
Digital OutputHDMI: 1 (HDCP 2.3)
Control I/ORS-232C: D-Sub 9pin x 1
NetworkWired LAN: RJ45 x 1 (100Mbps)
Wireless LAN: Built-in and Optional (using ELPAP11)
Operating Temperature
Single UseLow Altitude: 0 – 2,286 m/7,500 ft: 0 °C – 40 °C [32 °F – 104 °F ]
High Altitude: Over 2,286 m/7,500 ft: 0°C – 35 °C [32 °F – 95 °F ]
20% to 80% Humidity, No Condensation
Operating AltitudeOver 1,500 m / 4,921 ft, with High Altitude Mode: 0 - 3,048 m (0 - 10,000 ft)
Direct Power On / OffYes
Start-Up PeriodLess than 6 seconds (Epson Logo), Warm-up Period: 30 seconds
Quick Start-UpLess than 12 seconds (Display)
Cool Down PeriodInstant Off
Air FilterType: Electrostatic Filter
Maintenance Cycle: 20,000 hours (Normal)
Power Supply Voltage100 – 240 V AC ±10%, 50/60 Hz
Power Consumption (220 - 240V)Laser Diode On (Normal/Extended): 380W/286W
Standby (Normal/Eco): 2.0W/0.4W
Dimensions Excluding Feet (W x H x D)695 x 145 x 341mm
Weight (with cable cover)Approx. 12.5kg
Fan Noise (Normal / Eco)35dB / 26dB
