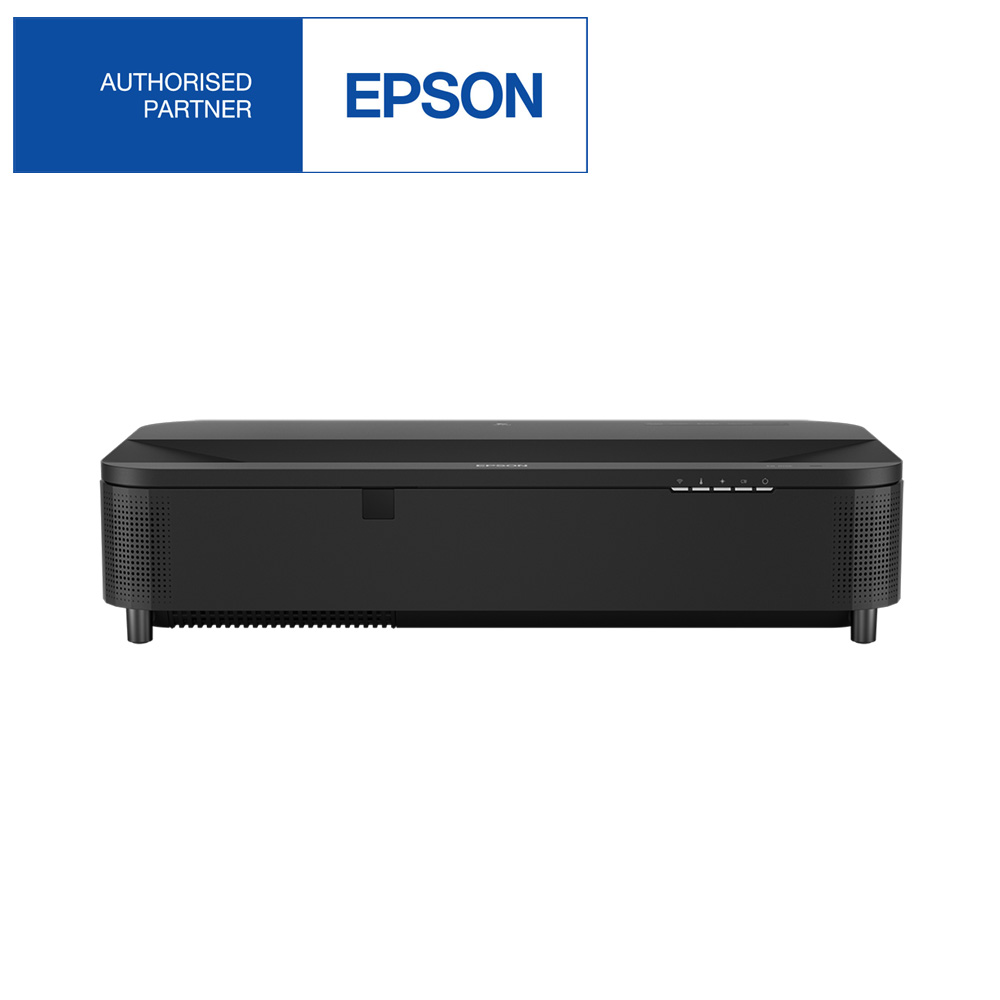

Epson EB-815E Extreme Short Throw 4K Enhancement Laser Projector

Take classroom and meeting room displays beyond the limits of flat panels.

The EB-815E Extreme Short Throw 4K Enhancement1 Laser Projector is an innovative lamp-free laser display, offering a flexible solution for classrooms and hybrid workspaces. It delivers a bright, glare-free display up to 160″ from just a few centimeters away from the wall, with built-in split-screen and multi-device support for casting.

It supports various display ratios for hybrid meetings, has a long-lasting laser light source, and offers versatile connectivity. With an optional wall mount, it can transform traditional whiteboards into vibrant displays, and installation is easy with the Epson Setting Assistant app. Elevate your display beyond ordinary flat panels with the Epson EB-815E.

3LCD technology; 5,000 lumens of colour/white brightness
1080p with 4K Enhancement1 for stunning image clarity
Up to 160-inch screen size; 4.5x larger than a 75-inch flat panel
Easy integration with native 16:9 aspect ratio, supports 16:10, 21:9, 16:6

Description

EB-815E Extreme Short Throw 4K Enhancement Laser Projector

The EB-815E Extreme Short Throw 4K Enhancement Laser Projector can be placed just centimeters away from a wall to create bright 4KE images up to 160”. It projects content in stunning clarity and offers a low-cost, energy-efficient, large display solution with a convenient and quick set up.

Stunning colour and impactful image quality with 3LCD technology

With 5,000 lumens colour light output and 3LCD technology, the EB-815E offers bright and vibrant images of up to 160″, which enables content visibility from all angles and distances. The experience is immersive and it’s extremely simple to use.

Extreme short throw- large, up to 160″ diagonal image

EB-815E’s extreme short throw lens allows discreet positioning close to the wall, enabling presenters free access without casting shadows. The projector also comes with versatile wired and wireless connectivity options, including Miracast™ screen-mirroring, ensure effortless, multi-device support for content sharing.

Built-in flexible digital canvas for easy integration

In addition to a standard 16:9 display, the EB-815E goes beyond the limits of ordinary flat panels by supporting an ultra wide 21:9 and 16:6 display to ensure an equitable hybrid meeting room experience where participants can easily see and be seen.

SpecificationDetails
Projection TechnologyRGB liquid crystal shutter projection system (3LCD)
White Light Output (Normal / Extended)5,000lm / 3,500lm
Colour Light Output5,000lm

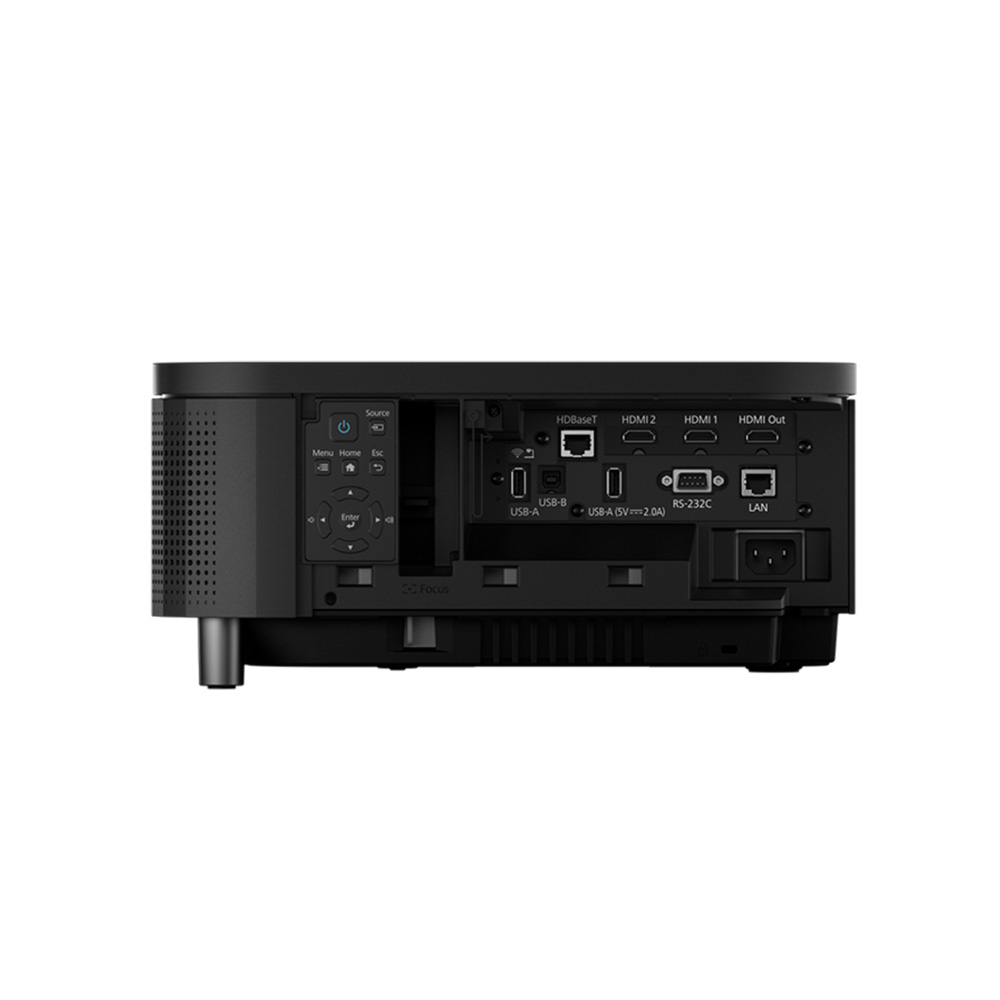

HDMI Inputs2 (HDCP 2.3)
HDBaseT Input1 (HDCP 2.3)
RS-232C1 (D-sub 9-pin)
USB Type A2 Ports: PC Free, Firmware, ELPAP11, 5V/2A Power
USB Type B1 (Firmware, Copy OSD)
Wired LAN1 (RJ45)
Wireless LANIn-built and Optional (USB-A)
HDMI Output1 (HDCP 2.3)
Contrast RatioOver 5,000,000:1
Quick CornerYes
Operating Temperature (Low Altitude)0 – 40 °C (32 – 104°F)
Operating Temperature (High Altitude)0 – 35 °C (32 – 95°F)
Operating Altitude0 – 3,048m (0 -10,000ft)
Start-Up Period<6s (Logo), <30s Warm-up
Quick Start-Up<12s
Cool Down PeriodInstant Off
Internal Speaker Output8 W x 2 Stereo
Direct Power On/OffYes
WeightApprox. 12.5 kg
Air Filter TypeElectrostatic Filter
Maintenance Cycle20,000 hours (Normal)
Fan Noise (Normal / Eco)35dB / 26dB
Frame InterpolationYes
Image Adjustment4K Enhancement, Image Present, Noise Reduction
Dimension (D x W x H)341 x 695 x 145 mm
Screen Size (Wide Zoom – 16:9)80″ to 160″ [27.8cm to 57.8cm]
Screen Size (Tele Zoom – 16:9)60″ to 118″ [28.2cm to 57.5cm]
Wireless Speed (Infrastructure)IEEE 802.11a/b/g/n/ac
Wireless Speed (Wi-Fi Direct)IEEE 802.11g/n/ac
Supported Wireless ModeInfrastructure, Wi-Fi Direct
Supported Wireless SecurityWPA2/WPA3-PSK/EAP
LCD Size0.62″ (C2 Fine)
LCD Resolution1080P (4KE)
LCD Aspect Ratio16:9
Lens TypeManual Focus
F-Number1.8
Focal Length2.3mm
Zoom Ratio1 – 1.35 (Digital)
Throw Ratio0.16 – 0.22
Power Consumption (Normal / Quiet / Extended)380W / 286W
Power Supply Voltage100 – 240 V AC ±10%, 50/60 Hz
Light Source TypeLaser Diode
Light Source Life (Normal / Extended)20,000 / 30,000 hrs
Colour ModesDynamic, Presentation, Cinema, Natural, Blackboard, DICOM SIM, Multi-Projection, Face Brightness
