Epson EB-L520U WUXGA 3LCD Laser Projector

Robust, compact WUXGA laser projector with 5,200 Lumens and Optical Zoom

Get bright, vivid images with 5,200 lumens of white & colour brightness. This robust projector also offers WUXGA resolution. Featuring breakthrough laser technology, it delivers a laser light source of up to 20,000 hours and offers virtually maintenance-free operation with no lamps. Plus, it features an optical zoom of up to 1.6x. It also supports split screen function of up to 4 screens enabling better information sharing and also comes with flexible settings for image enhancement to further sharpen image resolution to your preferences. It is also compatible with the Epson Wireless Presentation System which enables hassle-free connectivity for better productivity

  • 5200 lumens of color and white brightness
  • 20,000-hour laser light source with no lamps
  • WUXGA resolution
  • 1.6x Optical Zoom
  • Screen size of up to 500″


Higher Energy Efficiency & Eco-friendly

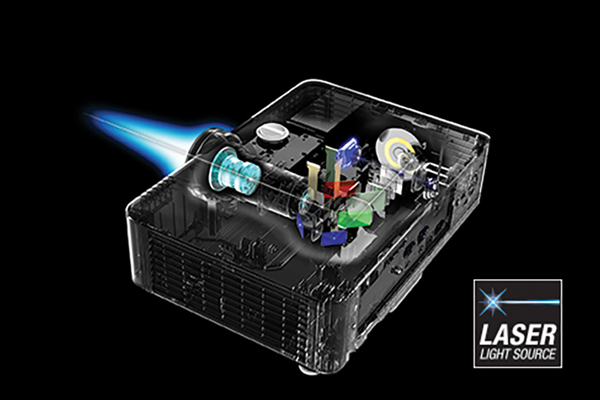

New laser diode and optical parts quality improvement ensure improved light source output while reducing electricity consumption and other natural resources during use.


 Split Screen Function

Supports up to 4 split screens. Connect up to 4 devices simultaneously to share screen and accommodate better information sharing.


Supports 16:6 Wide Screen Setting

Wide and large screen display ensuring optimal visibility, regardless of where you are seated.


SKU NumberV11HA30040
Projection TechnologyRGB liquid crystal shutter projection system (3LCD)
LCDSize0.67″ (C2 Fine)
Aspect Ratio16:10
Projection LensTypeNo optical zoom / Focus (Manual)
Focal Length11.76 mm
Zoom Ratio1.0 – 1.35 (Digital Zoom)
Throw Ratio0.80 – 1.07 (Wide – Tele)
LightsourceTypeLaser Diode
Life20,000 hours (Normal) / 30,000 hours (Extended)
Zoom: Wide50” – 200” [0.85 – 3.49 m]
Zoom: TeleN/A
White Light Output (Normal / Extended)5,200lm / 3,640lm
Colour Light Output (Normal)5,200lm
Contrast RatioOver 2,500,000:1
Projection Orientation360º Free
Vertical / Horizontal±30º / ±30º

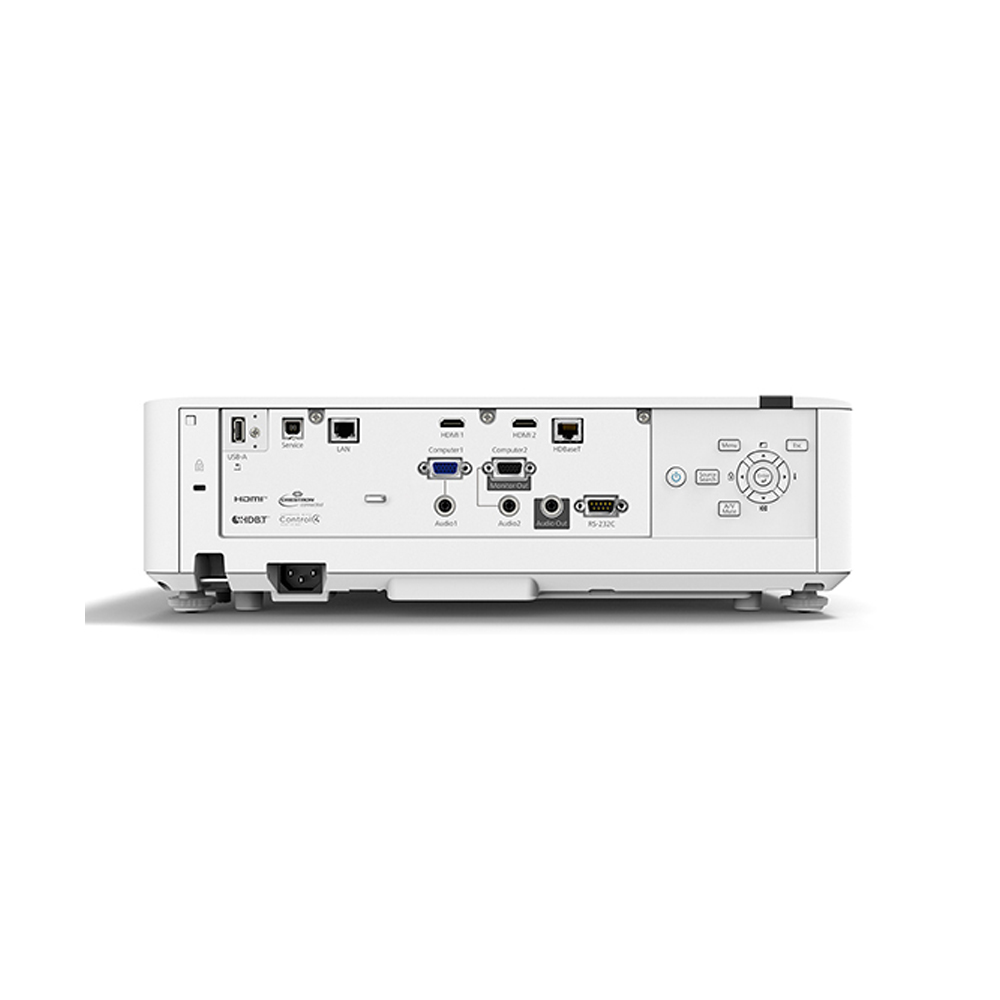

Analog RGB InputD-Sub 15Pin2
Digital InputHDMI2 (HDCP 2.3)
HDBaseT1 (HDCP 2.3)
Audio InputStereo Mini Jack2
USB InputUSB Type A1 (For PC Free, Firmware Update and Copy OSD Settings)
USB Type B1 (For Mouse, K/B, Control and Firmware Update
Control I/ORS-232CD-Sub 9pin x 1
Analog Video OutputD-Sub 15Pin1
Digital Video OutputHDMIN/A
Audio OutputStereo Mini Jack1
NetworkWired LANRJ45 x 1 (100Mbps)
Wireless LAN (In-Built) and Screen MirroringSupported Speed for Each modeN/A
Supported ModeN/A
Supported Security TypeN/A
Wireless LAN (Using Optional ELPAP11)Supported Speed for Each modeAccess Point (Wi-Fi Direct):
IEEE 802.11g (2.4GHz): 54 Mbps*2, IEEE 802.11n (2.4GHz): 72.2 Mbps*2, IEEE 802.11a (5GHz): 54 Mbps*2,
IEEE 802.11n (5GHz): 150.0 Mbps*2, IEEE 802.11ac (5GHz): 325Mbps*2
Supported ModeAccess Point (Wi-Fi Direct)
Supported Security TypeAccess Point (Wi-Fi Direct): WPA2-PSK (AES)
Operating TemperatureSingle UseLow Altitude (0 – 2,286m/7,500ft): 0 – 45 °C <32 - 113 °F>
High Altitude (Over 2,286m/7,500ft to 3,048m/10,000ft): 0 – 40 °C <32 - 104 °F>
20% – 80% Humidity, No Condensation
Multi-projection UseLow Altitude (0 – 2,286m/7,500ft): 0 – 40 °C <32 - 104 °F>
High Altitude (Over 2,286m/7,500ft to 3,048m/10,000ft): 0 – 35 °C <32 - 95 °F>
20% – 80% Humidity, No Condensation
Operating AltitudeOver 1,500m/4,921ft with High Altitude Mode: 0 – 3,048m (0 -10,000ft)
Direct Power On / OffYes
Start-Up Period8 seconds (Epson Logo); Warm-up Period: 30 sec
Quick Start-UpLess than 5 seconds (Display)
Cool Down PeriodInstant Off
Air FilterTypeElectrostatic Filter
Maintenance Cycle20,000 hours (Normal) / 30,000 hours (Extended)
Power Supply Voltage100 – 240 V AC ±10%, 50/60 Hz
Power Consumption (220 – 240V)Laser Diode On (Normal / Extended)293 W / 223W
Standby (Normal / Eco)2.0W / 0.3W
Dimension Excluding Feet (D X W X H)304 x 440 x 122 mm
WeightApprox. 7.7kg
Fan Noise (Normal / Eco)31dB / 23dB
