Brilliant colours and stunning clarity in one compact projector, with 4K enhancement

The versatile EB-L570U laser projector brings strikingly clear images to meeting rooms, classrooms and beyond. This conveniently lightweight, compact projector offers native WUXGA with 4K Enhancement and 5,200 lumens of brightness, providing smooth, detailed images—even up close. The flexible display can switch between a variety of aspect ratios, including standard 16:10 up to 500”, plus ultra wide 21:9 that provides for a more immersive experience—ideal for hybrid work environments as well as classrooms. The more information that needs to be displayed on a single screen, the more critical the need for a larger display and higher resolution.

Simple to install, the EB-L570U is easy to operate from start to finish. Designed with convenience in mind, this projector features a 20,000 hour virtually maintenance-free laser light source and air filter. Plus, simplify complex multi-projector applications with the optional attachable ELPEC01 camera.

  • 5,200 lumens of colour and white brightness
  • WUXGA with 4K Enhancement for clear, detailed images
  • 20,000 hour, virtually maintenance-free laser light source and air filter
  • Project up to 500″ diagonal in 16:10, plus ultra wide 16:6 and 21:9
Categories: , , ,

Description

Product Brochure

Ultra bright, detailed images with 4K Enhancement

Delivers 4.6 million pixels on screen for a visibly smoother and sharper display, even at close viewing distances; accepts 4K content

Large, ultra wide display

Experience immersive video conferencing with our cutting-edge displays, showcasing images of up to an impressive 500″ diagonal.*
Choose between the standard 16:10 and 16:9 aspect ratios for a seamless viewing experience, or dive into a whole new level of immersion with the ultra-wide 16:6 and 21:9 options.

*500″ diagonal size is only applicable to 16:10 aspect ratio.

16:10
16:6
21:9

Power up your processes with attachable ELPEC01 camera

Simplify multi-projector functions** with optional attachable ELPEC01 camera.

** Simple stacking, screen matching and simple blending without PC or Geometry Correction Assist for Stacking, Blending and Screen Matching using PC with Epson Professional Tool software.

Ideal for Hybrid Corporate Environments, Educational Spaces, and Immersive Environment Applications

Elevate entertainment and educational spaces. Facilitate more equitable and collaborative meeting experiences with easy operation from start to finish.



Projection TechnologyRGB liquid crystal shutter projection system (3LCD)
LCDSize0.67″ (C2 Fine)
ResolutionWUXGA
Aspect Ratio16:10
Projection LensTypeOptical Zoom (Manual) / Focus (Manual)
F-Number1.50 – 1.70
Focal Length20 mm – 31.8 mm
Zoom Ratio1.0 – 1.60
Throw Ratio1.35 – 2.20 (Wide – Tele)
LightsourceTypeLaser Diode
Life20,000 hours (Normal) / 30,000 hours (Extended)
Zoom: Wide50” – 500” [1.44 – 14.76 m]
Zoom: Tele50” – 500” [2.35 – 23.84 m]
White Light Output (Normal/Eco)5,200lm / 3,640lm
Colour Light Output (Normal)5,200lm
Contrast RatioOver 2,500,000:1
Projection Orientation360º Free
Vertical / Horizontal±30°

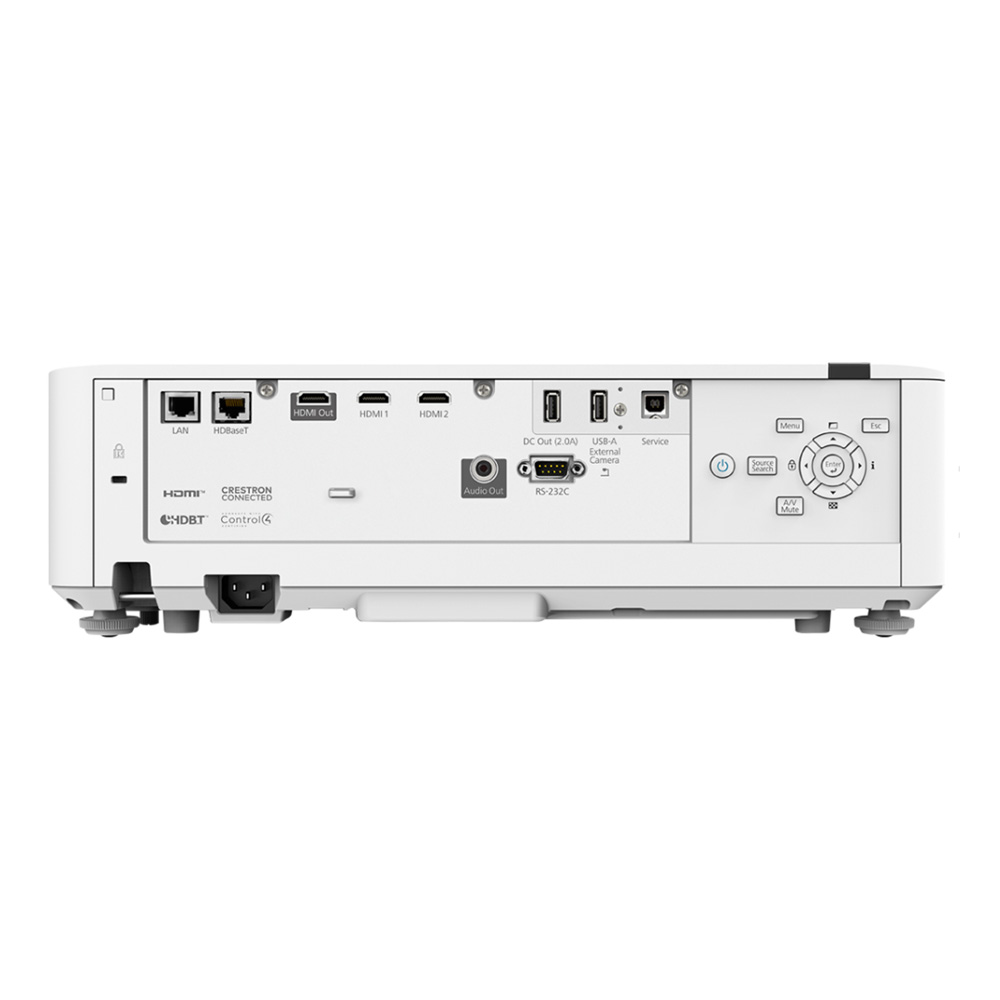

Digital InputHDMI2 (HDCP 2.3)
HDBaseT1 (HDCP 2.3)
Audio I/OAudio Out1 (Stereo Mini)
USB InputUSB Type A2 (Port1 for for PC Free, Firmware update, Wireless LAN, Document Camera, Copy OSD Settings, Content playback, External camera; Port2 for 5V/2A power supply only, no USB function)
USB Type B1 (For Firmware update, Copy OSD Settings)
Control I/ORS-232CD-Sub 9pin x 1
Digital Video OutputHDMI1 (HDCP 2.3)
Network I/OWired LAN1 (RJ45)
Wireless LANOptional (Using ELPAP11)
Operating TemperatureSingle UseLow Altitude (0 – 2,286m/7,500ft): 0 – 45 °C <32 - 113 °F>
High Altitude (Over 2,286m/7,500ft to 3,048m/10,000ft): 0 – 40 °C <32 - 104 °F>
20% – 80% Humidity, No Condensation
Multi-projection UseLow Altitude (0 – 2,286m/7,500ft): 0 – 40 °C <32 - 104 °F>
High Altitude (Over 2,286m/7,500ft to 3,048m/10,000ft): 0 – 35 °C <32 - 95 °F>
20% – 80% Humidity, No Condensation
Operating AltitudeOver 1,500m/4,921ft with High Altitude Mode: 0 – 3,048m (0 -10,000ft)
Direct Power On / OffYes
Start-Up Period8 seconds (Epson Logo); Warm-up Period: 30 sec
Quick Start-UpLess than 7 seconds (Display)
Cool Down PeriodInstant Off
Air FilterTypeElectrostatic Filter
Maintenance Cycle20,000 hours (Normal) / 30,000 hours (Extended)
Power Supply Voltage100 – 240 V AC ±10%, 50/60 Hz
Dimension Excluding Feet (D X W X H)304 x 440 x 122 mm
WeightApprox. 8.3kg
Fan Noise (Normal / Eco)31dB / 23dB
