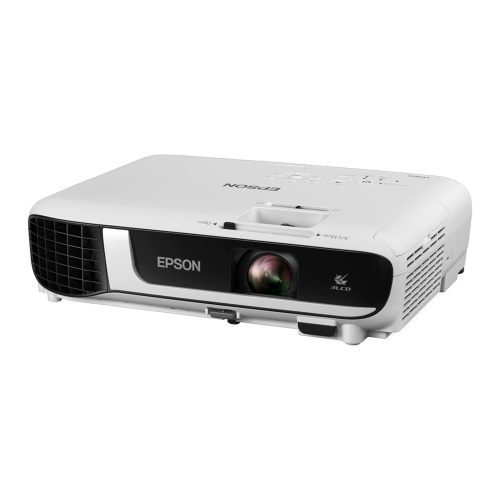

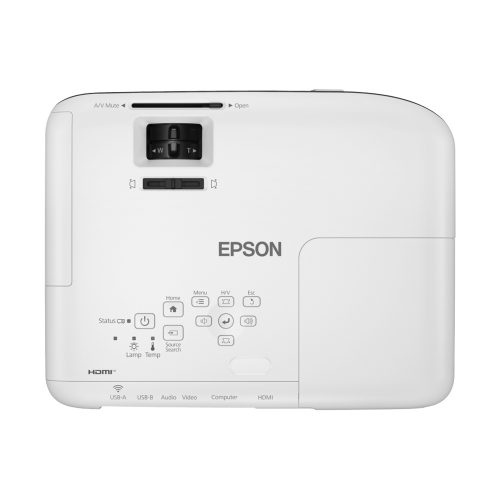

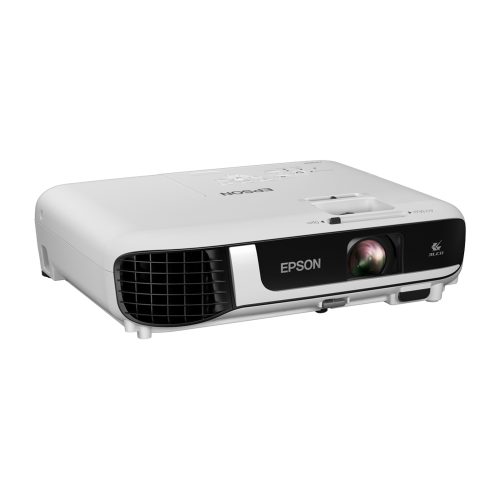

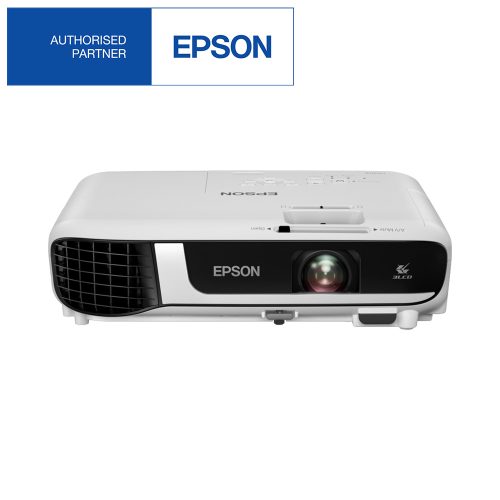

Epson EB-W51 WXGA 3LCD Projector

Larger, Sharper, More Impactful Viewing Experience.

Present dynamic lessons with the affordable EB-W51 classroom projector. Offering remarkable color accuracy, Epson projectors deliver high Color Brightness. Reliable and impressive, the EB-W51 features 4,000 lumens of color/white brightness2, plus widescreen WXGA resolution. Its long-lasting lamp, which delivers up to 12,000 hours in ECO Mode, lowers maintenance costs. Optional wireless connectivity offer advanced network control and support the simultaneous display of multiple screens.

  • Projection System: 3LCD, 3-chip technology
  • Native Resolution: 1280 x 800 (WXGA)
  • Color Brightness: 4000 lumens
  • White Brightness: 4000 lumens

Description

Higher resolution quality
WXGA quality projection ensures that content is shared without distortion and any image quality loss.



Bigger projections
When you are looking for bigger display, projection is the obvious answer ensuring that your information is conveyed clearly and accurately for everyone in the room.

Split Screen Function for Wired / Non-wired Devices
A split screen function enables the simultaneous projection of two images from separate devices through both wired and wireless connections on a single screen, eliminating the need for a second projector. Classroom lessons and business meetings can now be more engaging by connecting the projector with a document camera and a PC or tablet.

Projection TechnologyRGB liquid crystal shutter projection system (3LCD)
LCDSize0.59” (C2fine)
Native ResolutionWXGA (1280 x 800)
LightsourceType210W UHE
Life (Normal / Eco)6,000 / 12,000 hours
Aspect Ratio16:10
Projection Lens
TypeOptical Zoom (Manual) / Focus (Manual)
F-Number1.49 – 1.72
Focal Length16.90 – 20.28 mm
Zoom Ratio1 – 1.2
Throw Ratio1.30 – 1.56 (Wide to Tele)
StandardTele: 33” to 320” [1.10 to 10.89 m]
Wide: 33” to 320” [0.91 to 9.07 m]
White Light Output (Normal / Extended)4,000 lm
Colour Light Output4,000 lm
Contrast Ratio16,000:1
Vertical / Horizontal Keystone±30° / ±30° (Auto Vertical Keystone only)
Quick CornerYes
Split ScreenYes
Internal SpeakersMonoaural: 16W x 1

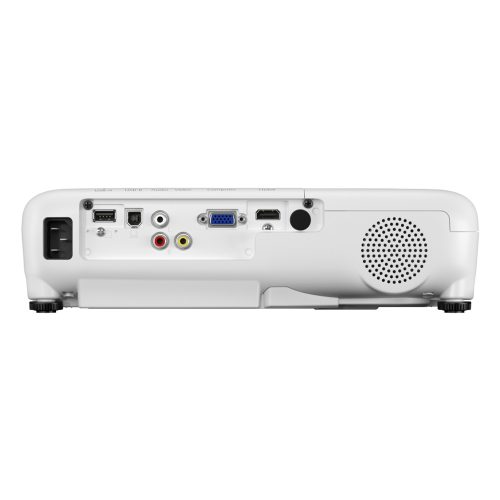

Analog InputD-Sub 15Pin1
Composite1 (RCA)
Digital InputDVI-DNA
HDMI1
HDBaseTNA
Output TerminalD-Sub 15PinNA
HDMINA
Audio Input2RCA (White & Red)1
Audio OutputStereo Mini JackNA
OthersUSB Type A1 (for Wireless LAN, Firmware Update, Copy OSD Settings)
USB Type B1 (for Firmware Update, Copy OSD Settings)
Control I/ORS-232CNA
Remote Control InputNA
NetworkWired LANNA
WirelessOptional (ELPAP11)
Supported Speed For Each ModeIEEE 802.11b (2.4GHz): 11 Mbps*2 / IEEE 802.11g (2.4GHz): 54 Mbps*2 / IEEE 802.11n (2.4GHz): 72.2 Mbps*2 /
IEEE 802.11a (5GHz): 54 Mbps*2 / IEEE 802.11n (5GHz): 150 Mbps*2
Wireless LAN SecurityInfrastructure: OPEN, WPA2/WPA3-PSK
Access Point: OPEN, WPA2-PSK (AES)
Operating AltitudeLow Altitude: 5 – 40 °C <41 – 104 °F> High Altitude: 5 – 35 °C <41 – 95 °F>
(20% – 80% Humidity, No Condensation)
Direct Power On / OffYes
Start-Up PeriodUp to 6 seconds, Warm-up Period: 30 seconds
Cool Down PeriodInstant Off
Air FilterTypeHigh Efficiency Filter
Maintenance Cycle (Normal / Eco)6,000 / 12,000 hours
Power Supply Voltage100 – 240 V AC ±10%, 50/60 Hz
Power Consumption (220 - 240V)Lamp (Normal / Medium / Eco)327W / 225W
Standby (Network / Energy Saving)2.0W / 0.3W
Dimension Excluding Feet (D X W X H)234 x 302 x 77 mm
Weight (Including Standard Lens)Approx. 2.5 kg
Fan Noise (Normal / Quiet)37dB / 28dB
